Yamada NDP-50FAN 2″ Air-Operated Diaphragm Pump, 164 GPM, Solids Handling

Yamada NDP-50FAN 2" Air-Operated Diaphragm Pump, 164 GPM, Solids Handling

Yamada NDP-50FAN 2" Air-Operated Diaphragm Pump, 164 GPM, Solids Handling

Yamada NDP-50FAN 2" Air-Operated Diaphragm Pump, 164 GPM, Solids Handling

Yamada NDP-50FAN 2" Air-Operated Diaphragm Pump, 164 GPM, Solids Handling

Yamada NDP-50FAN 2" Air-Operated Diaphragm Pump, 164 GPM, Solids Handling

Yamada NDP-50FAN 2" Air-Operated Diaphragm Pump, 164 GPM, Solids Handling

Yamada NDP-50FAN 2" Air-Operated Diaphragm Pump, 164 GPM, Solids Handling

Yamada NDP-50FAN 2" Air-Operated Diaphragm Pump, 164 GPM, Solids Handling

Yamada NDP-50FAN 2" Air-Operated Diaphragm Pump, 164 GPM, Solids Handling

Yamada NDP-50FAN 2" Air-Operated Diaphragm Pump, 164 GPM, Solids Handling

Brand
YAMADA

Model
NDP-50FAN

Type
Pumps

Stock #
LMMA240

Condition
Used

Year
2017

Location
Port Carbon, Pennsylvania
United States

Price

$1,290.00

Request a Quote

Specifications

Equipped With

Features from manufacturer:

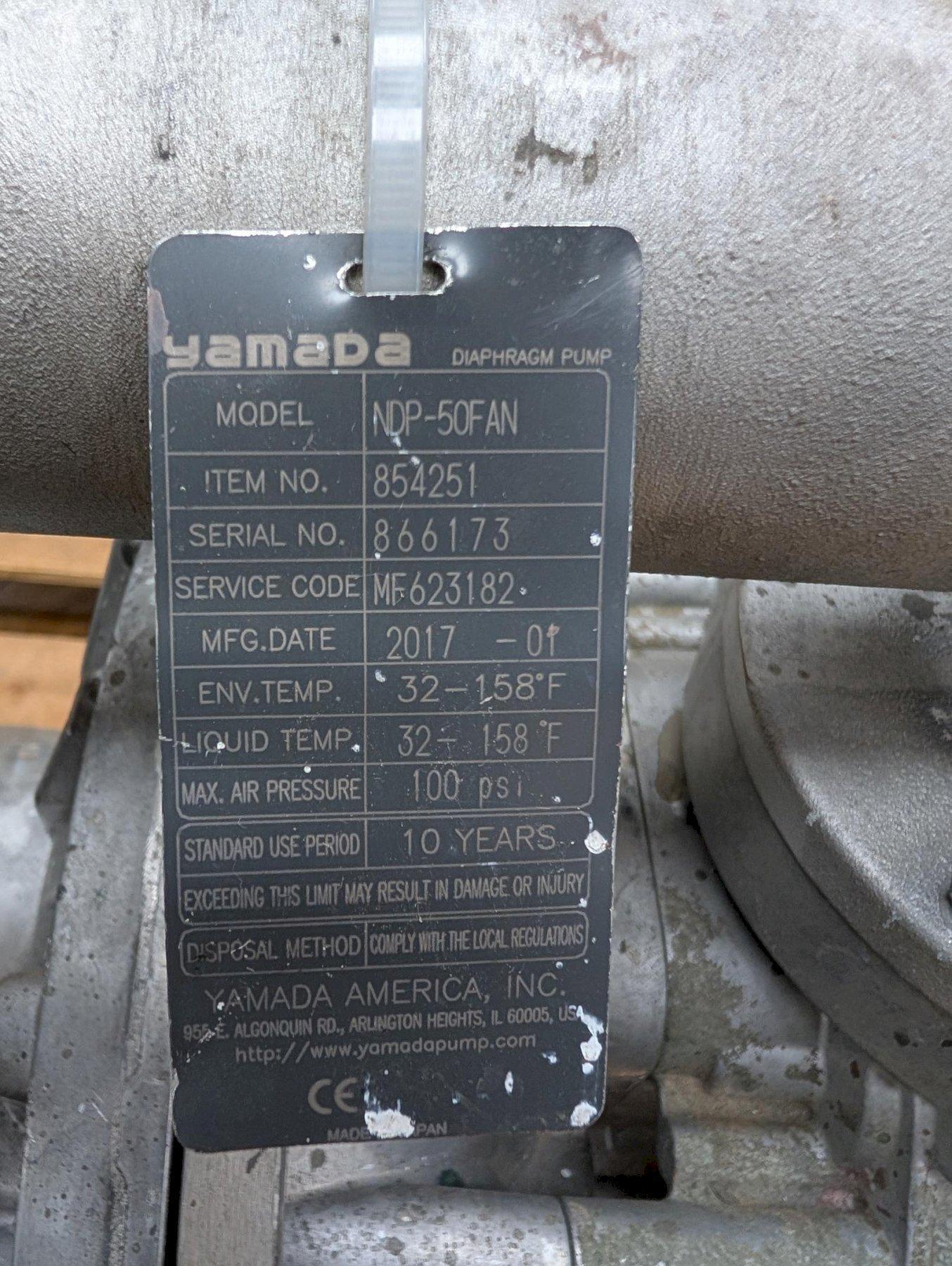

Pump Model: NDP-50FAN, Item No. 854251.
Serial Number: 866173.
Service Code: MF623182.
Manufactured Date: 2017.
Performance:
- Maximum Flow: 164 GPM.
- Discharge Volume Per Cycle: 1.14 gallons (4.3 liters).
- Max Cycles Per Minute: 146.
- Max Suction Lift: 19 feet.
- Solids Handling: Up to 5/16" (8 mm).
Air System:
- Air Inlet: 3/4" Female NPT (with ball valve).
- Air Exhaust: 1" Female NPT (with silencer).
- Air Supply Pressure: 20 to 100 PSI (1.4 to 7 kgf/cm²).
Material Specifications:
- Diaphragm, Valve, Seat, and O-Ring: Buna-N.
- Motor: Aluminum Air Motor.
- Pump Material: Flapper pump design with 2" ANSI flange and tapped FNPT inlet/outlet.
Temperature Limits:
- Environmental Temp: 32°F to 158°F.
- Liquid Temp: 32°F to 180°F (82°C max).
Connections:
- Fluid Ports: 2"

Price includes rigging and loading.

As is, where is.
