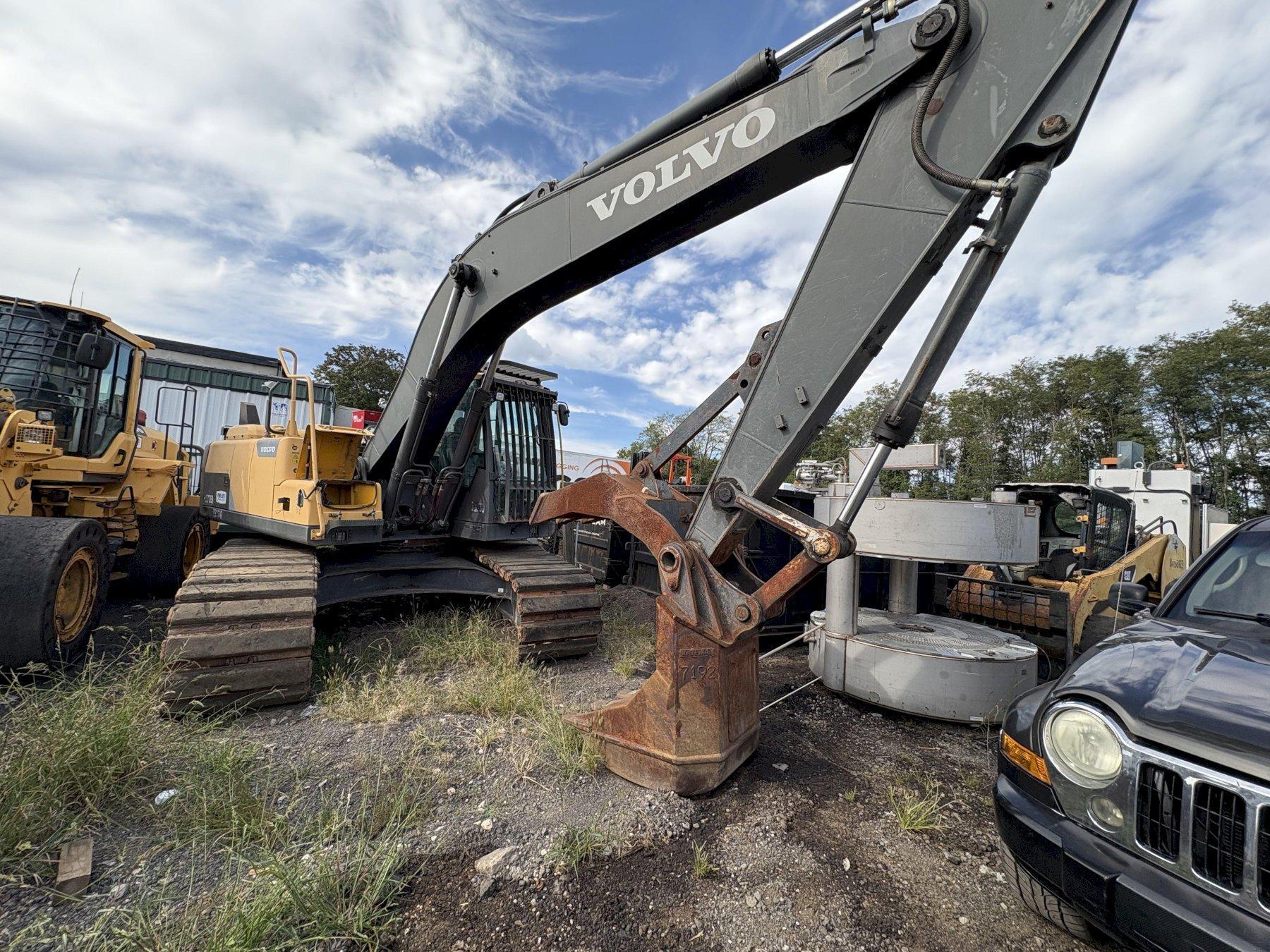

Volvo EC220D Excavator The Volvo EC220DL hydraulic excavator has a net power of 165 hp (123 kW), an operating weight of approximately 53,793 lbs (24,400 kg), and a maximum bucket capacity of around 3 cu yd (2 cu m). It features heavy-duty construction with an integrated ROPS cabin, a camera, and efficient hydraulics for smooth operation and heavy-duty tasks.
Key Specifications
Engine: 165 hp (123 kW) net power
Operating Weight: 53,793 lbs (24,400 kg)
Maximum Bucket Capacity: 3 cu yd (2 cu m)
Breakout Force (SAE): 29,225 lbs (13,256 kg)
Max Digging Depth: 24 ft (7 m)
Max Digging Reach: 34 ft (10 m)
Weight: Approximately 22 to 24.4 tons, depending on the model year.
Key Features
Heavy-Duty Construction: Equipped with a heavy-duty boom and arm, wear strips, and heavy-duty gusseting for durability and versatility.
Advanced Hydraulic System: Provides smooth, predictable operations for efficient material handling and precise movements.
Integrated ROPS Cab: Offers a spacious environment with a large, high-quality display, adjustable seating, and certified TOPS and FOPS guards.
High-Quality Camera: A color camera is mounted on the counterweight and integrated into the machine's dash for improved visibility.
Efficient Maintenance Access: Features include external cab filters, steel piping on top of the boom for ease of access, and hinged belly plates with countersunk bolts for simple removal.
Operator Comfort: The machine features a spacious cab with a climate control system, adjustable seat, and ergonomic controls to create a comfortable and productive working environment.
Productivity: Volvo's smart hydraulic system enhances controllability for tasks like grading and lifting, while the auto-idle function contributes to fuel efficiency.
Safety: The EC220DL includes safety features such as certified guards and hydraulic hose rupture valves.
Versatility: It is designed for various applications, including road construction, quarry work, and trenching, and can be fitted with various Volvo attachments for increased productivity.
Applications: Ideal for infrastructure work, general construction, and earthmoving. Dimensions: Standard dimensions include a transport length of around 9.75 meters and a track width of 600 mm.
