Brand
SYLVANIA

Model
123-LP3-3N

Type
Transformers

Stock #
LMMA246

Condition
Used

Year
Not Specified

Location
Port Carbon, Pennsylvania
United States

Price

$798.00

Request a Quote

Specifications

Equipped With

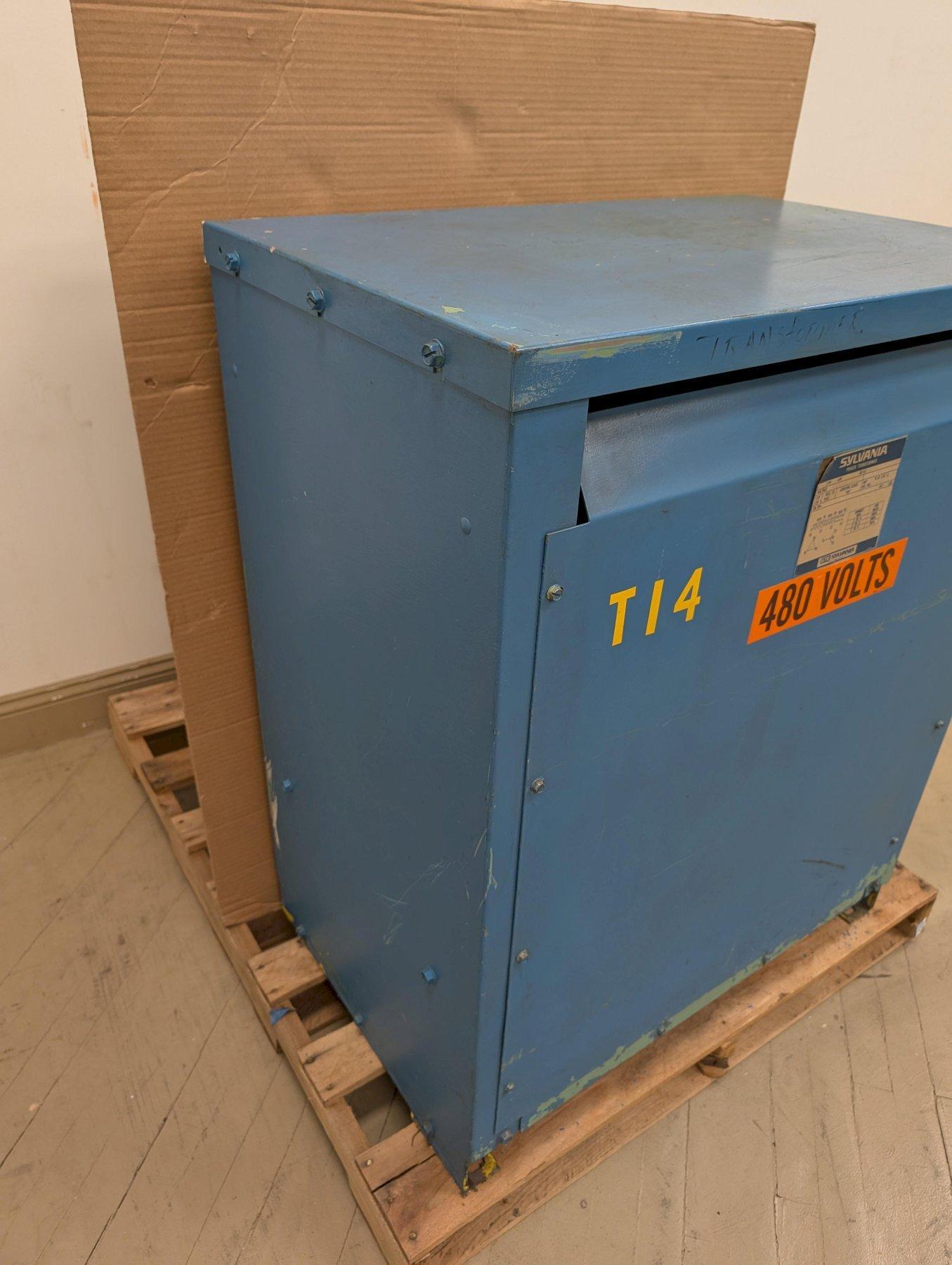

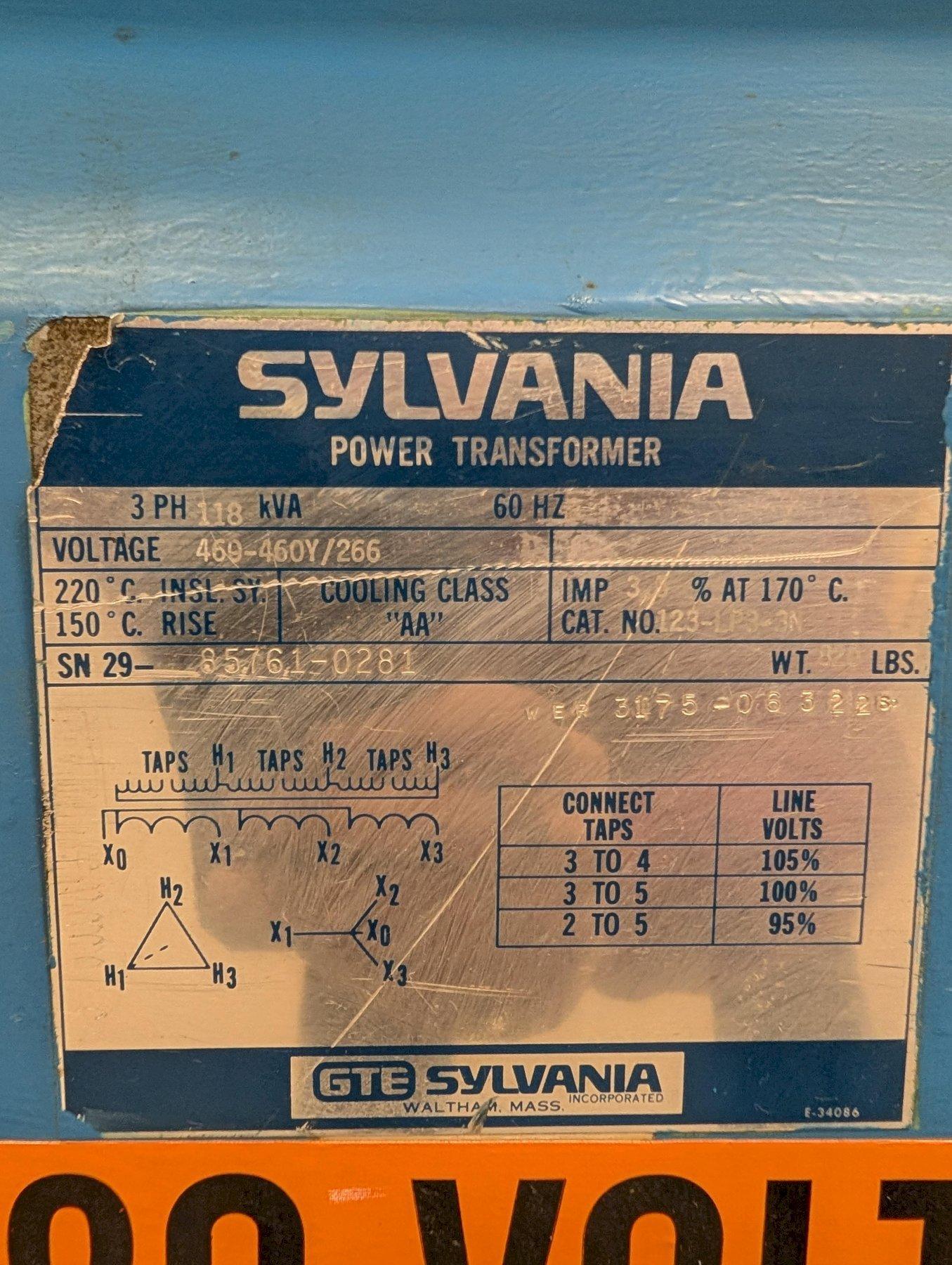

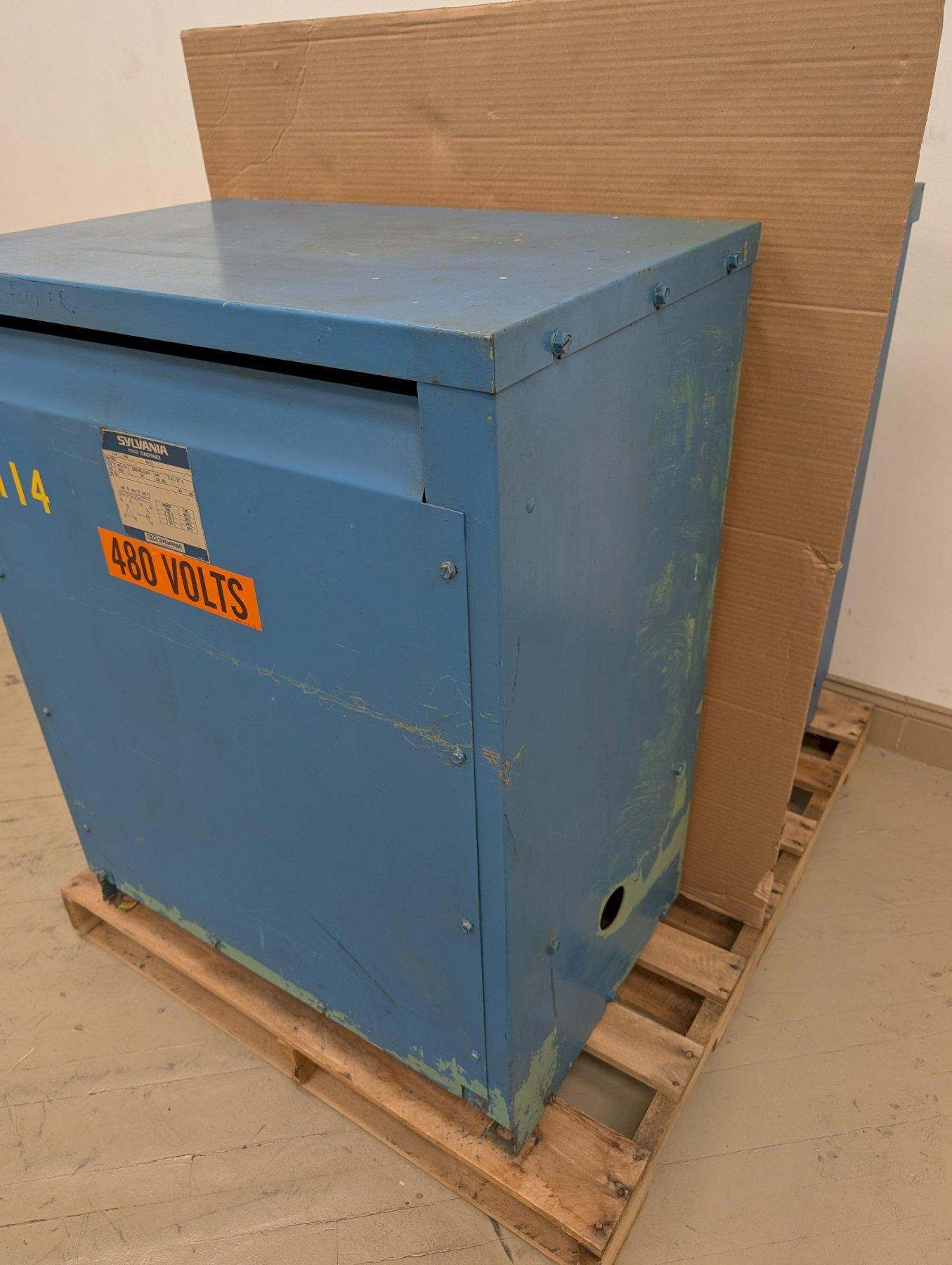

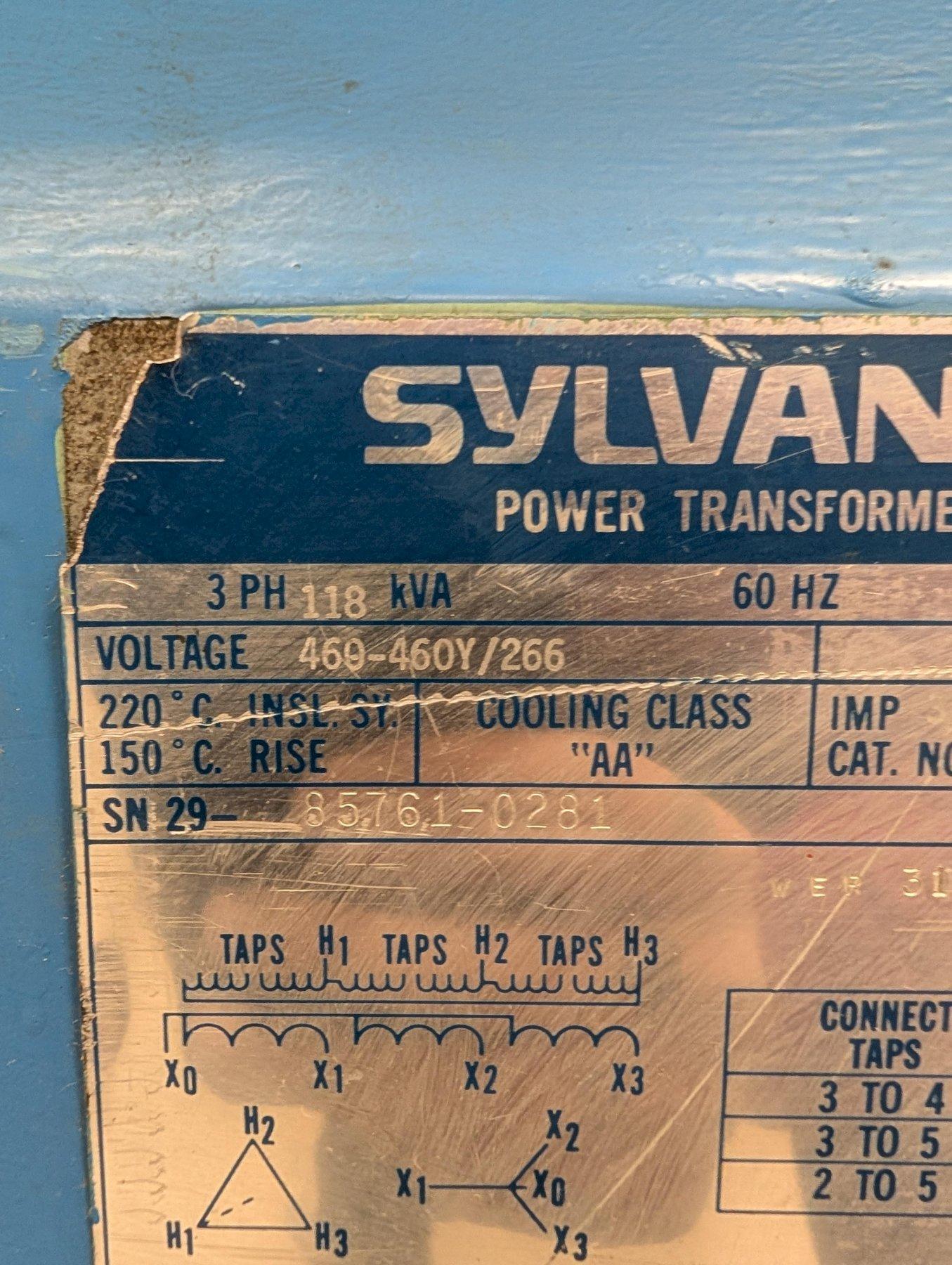

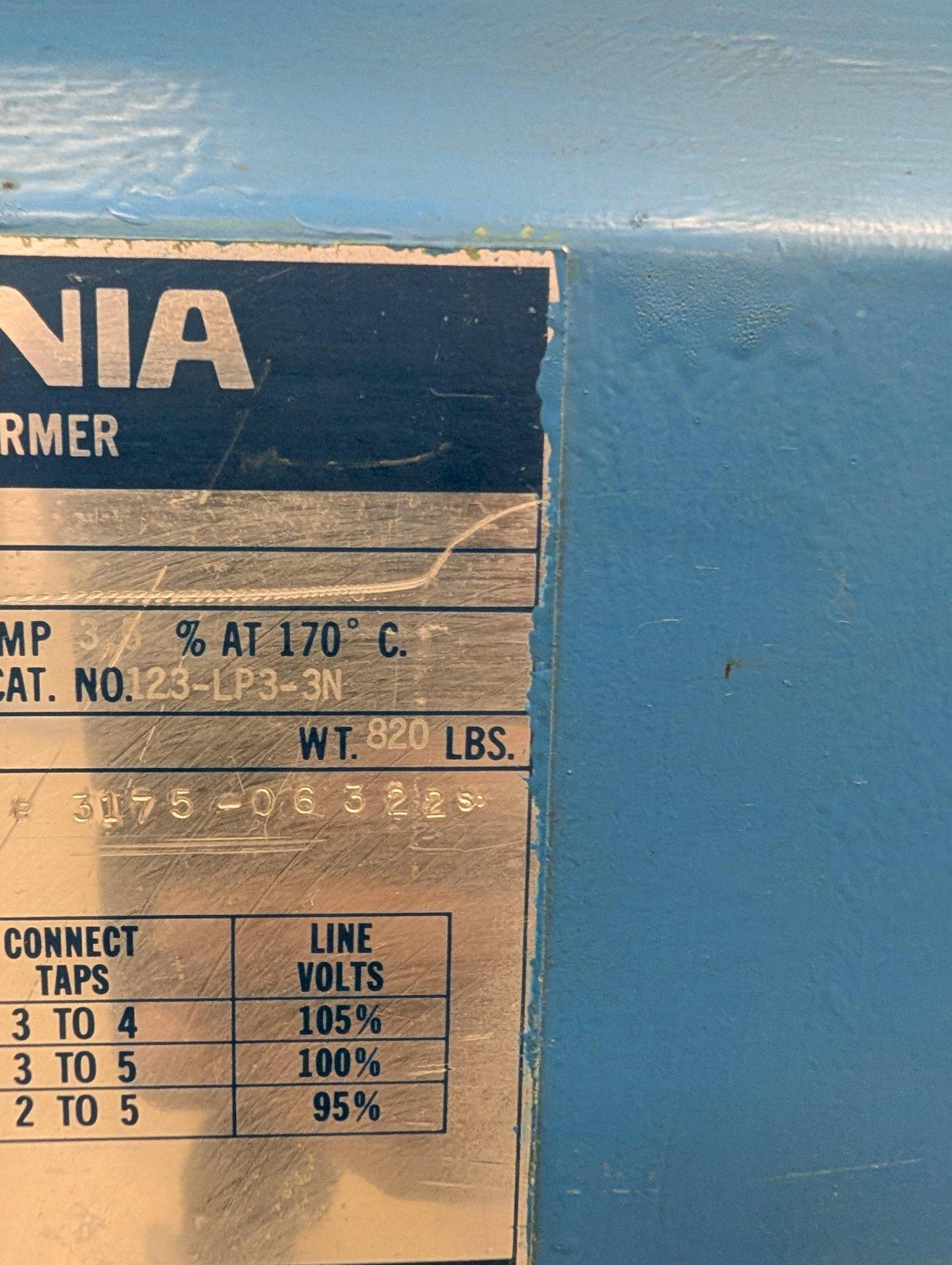

Sylvania Transformer 118 kVA, 3 Phase

Specifications:

Model: Sylvania Transformer
Capacity: 118 kVA
Phase: 3 Phase
Frequency: 60 Hz
Cooling Class: AA

Electrical Specifications:

Primary Voltage: 469-460Y
Secondary Voltage: 266V
Impedance: 3.5% at 170°C

Thermal Ratings:

Insulation Class: 220°C
Temperature Rise: 150°C

Physical Specifications:

Weight: 820 lbs

Additional Information:

Serial Number: 29 85761-0281
Catalog Number: 123-LP3-3N

As is Where is
This transformer was removed from a working environment where it was in use.
Price includes rigging and loading.
