Square D / Sorgel 45T12H 45 KVA three-phase dry-type insulated transformer.

Specifications:

• Manufacturer: Square D / Sorgel
• Catalog Number: 45T12H
• Style Number: 33728-17112-014
• Transformer Type: Dry-Type / Insulated Transformer
• Power Rating: 45 KVA
• Phase: 3 Phase
• Frequency: 60 Hz
• Primary / High Voltage: 240V Delta
• Secondary / Low Voltage: 208Y/120V Wye
• Primary Amps: 108A
• Secondary Amps: 125A
• Primary Taps: 252 / 246 / 240 / 234 / 228V
• Impedance: 5.8%
• Class: AA
• Insulation System: 220°C
• Temperature Rise: 150°C
• Weight: Approximately 335 lbs per nameplate
• UL Listed
• Made in USA

This industrial transformer is designed to convert 240V three-phase power to 208Y/120V three-phase power.

The 208Y/120V secondary provides 208V phase-to-phase and 120V phase-to-neutral power when properly installed and wired, making this transformer suitable for a variety of commercial and industrial electrical distribution applications.

Condition:

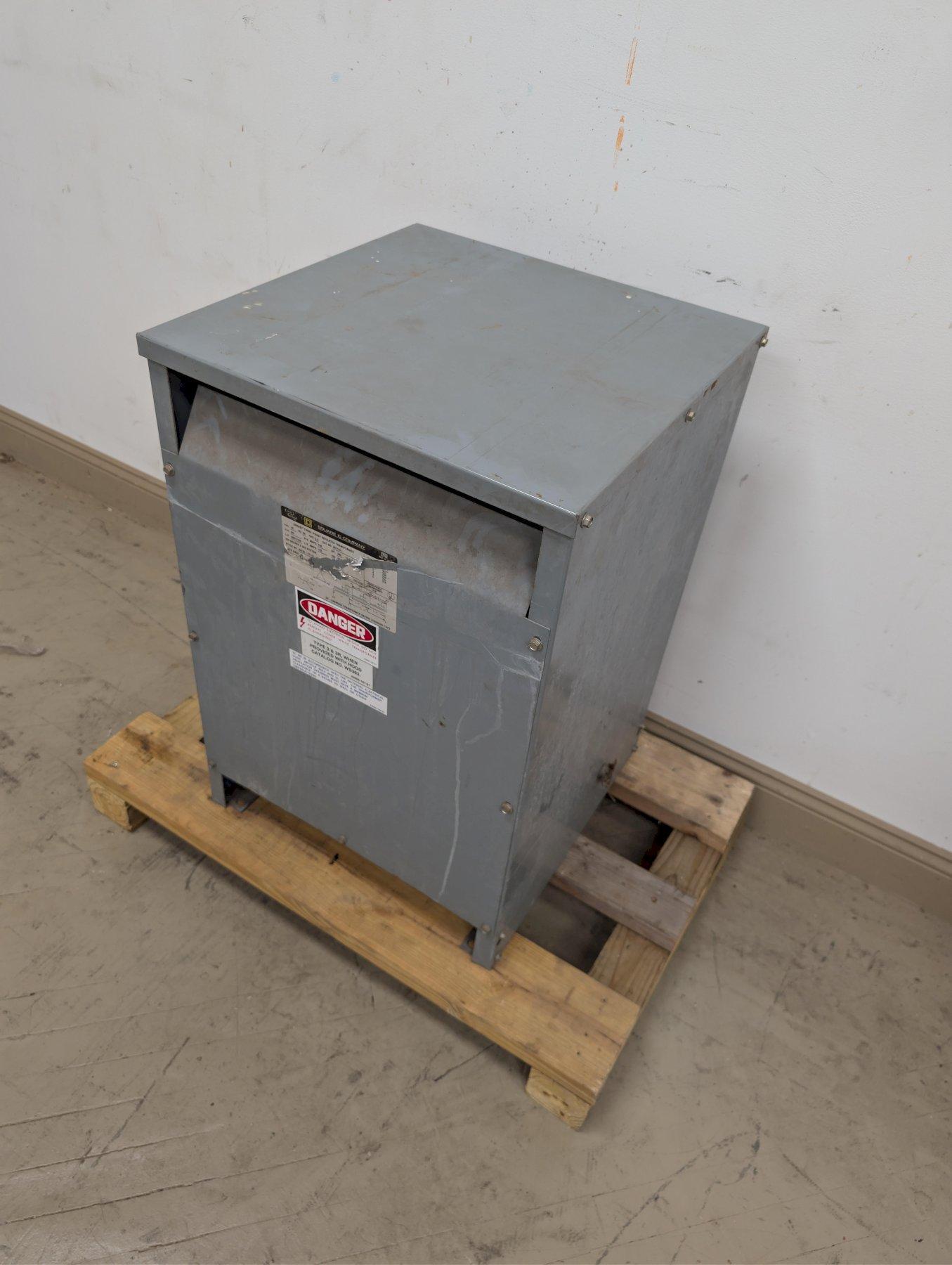

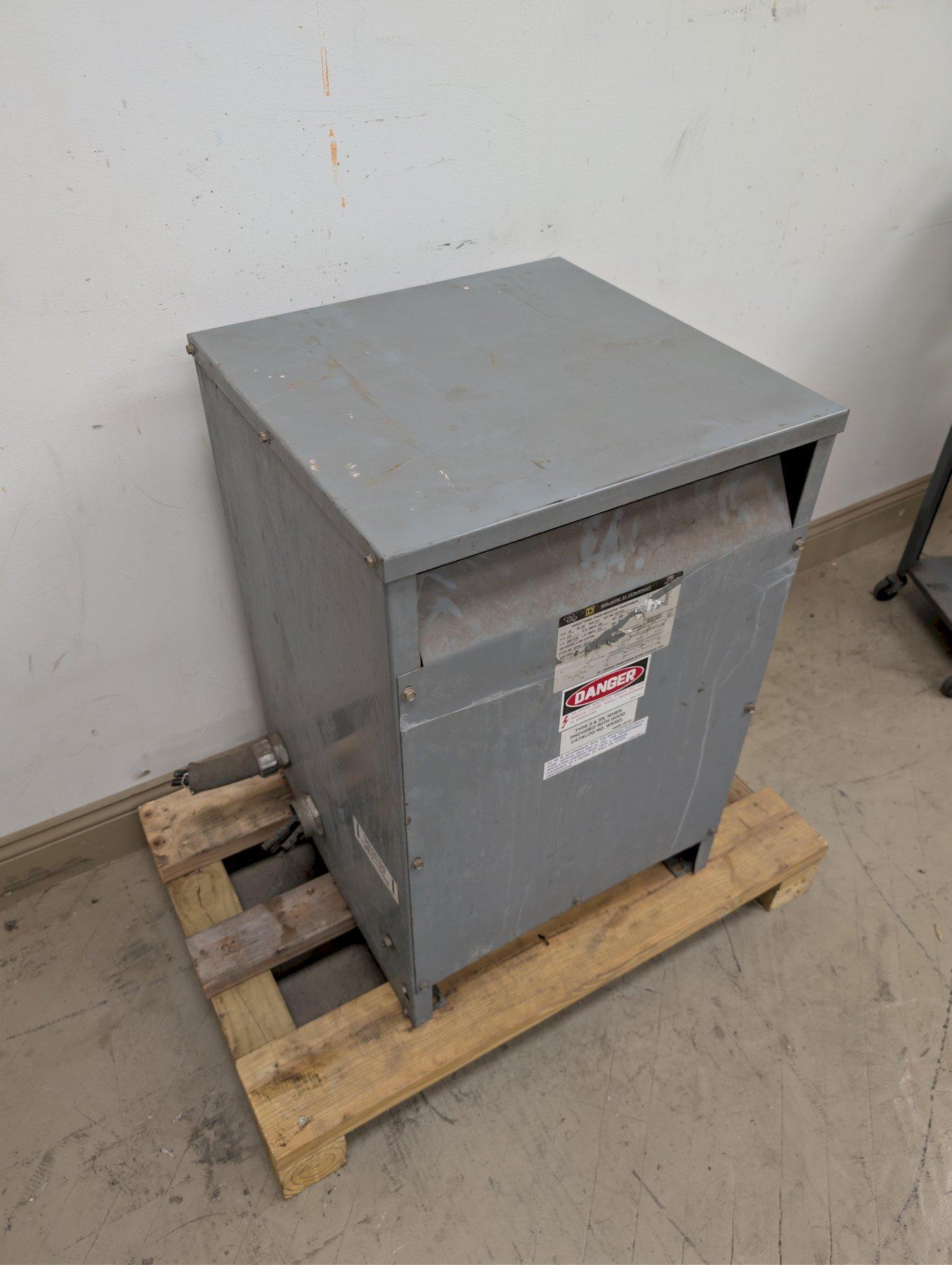

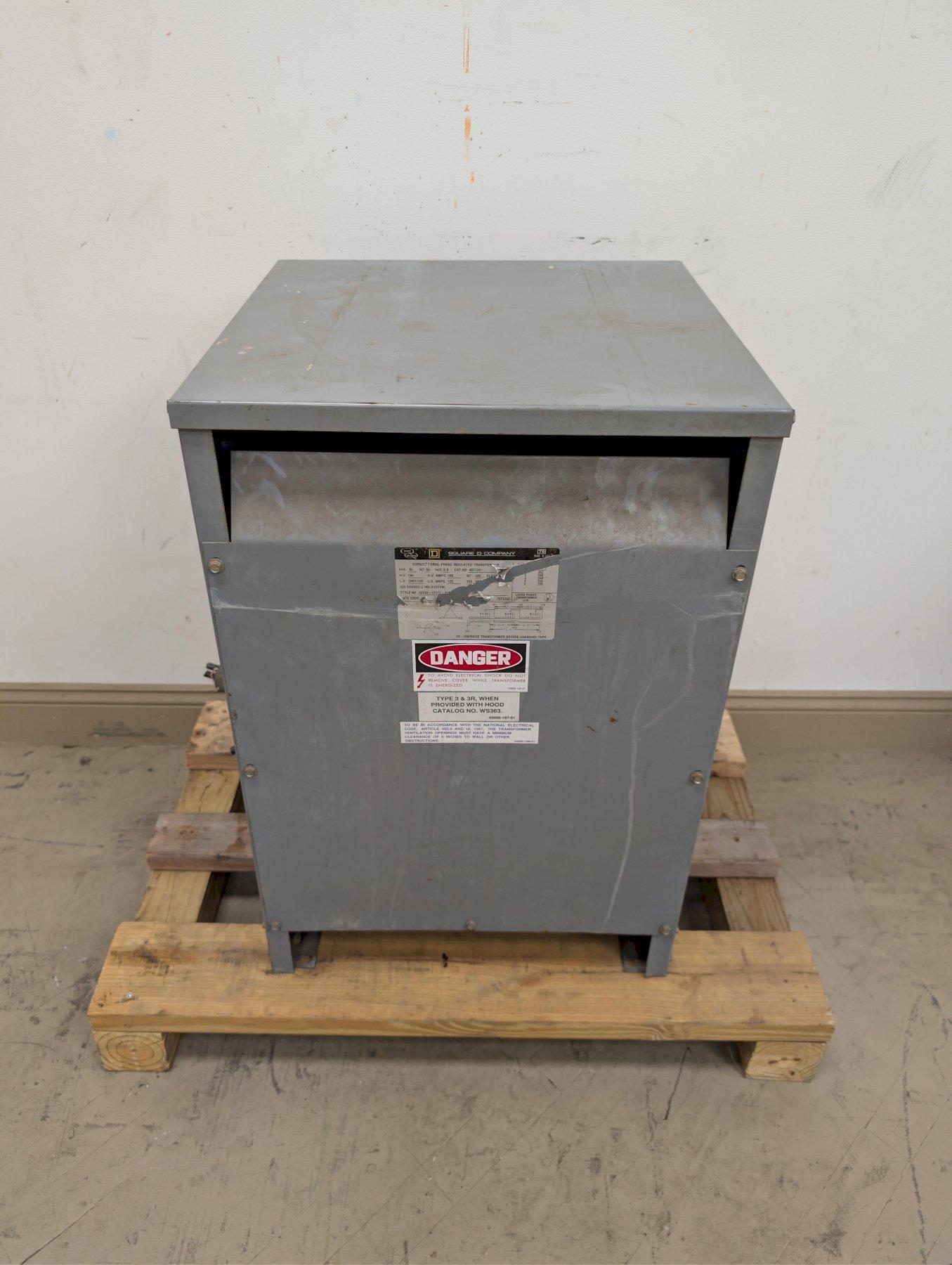

Unit is in used condition and shows cosmetic wear from previous industrial use and storage, including scratches, scuffs, discoloration, surface oxidation, paint wear, and other marks.

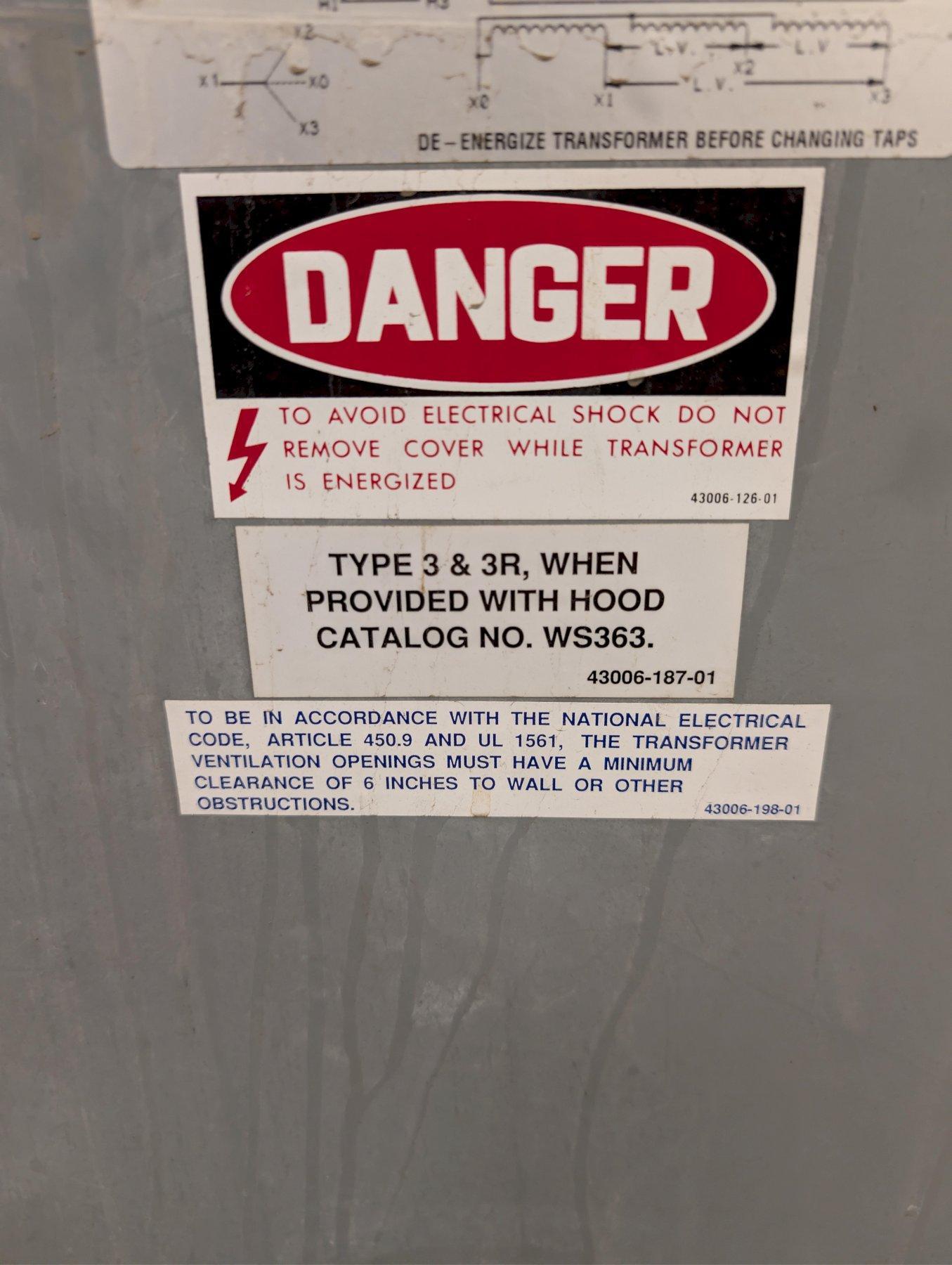

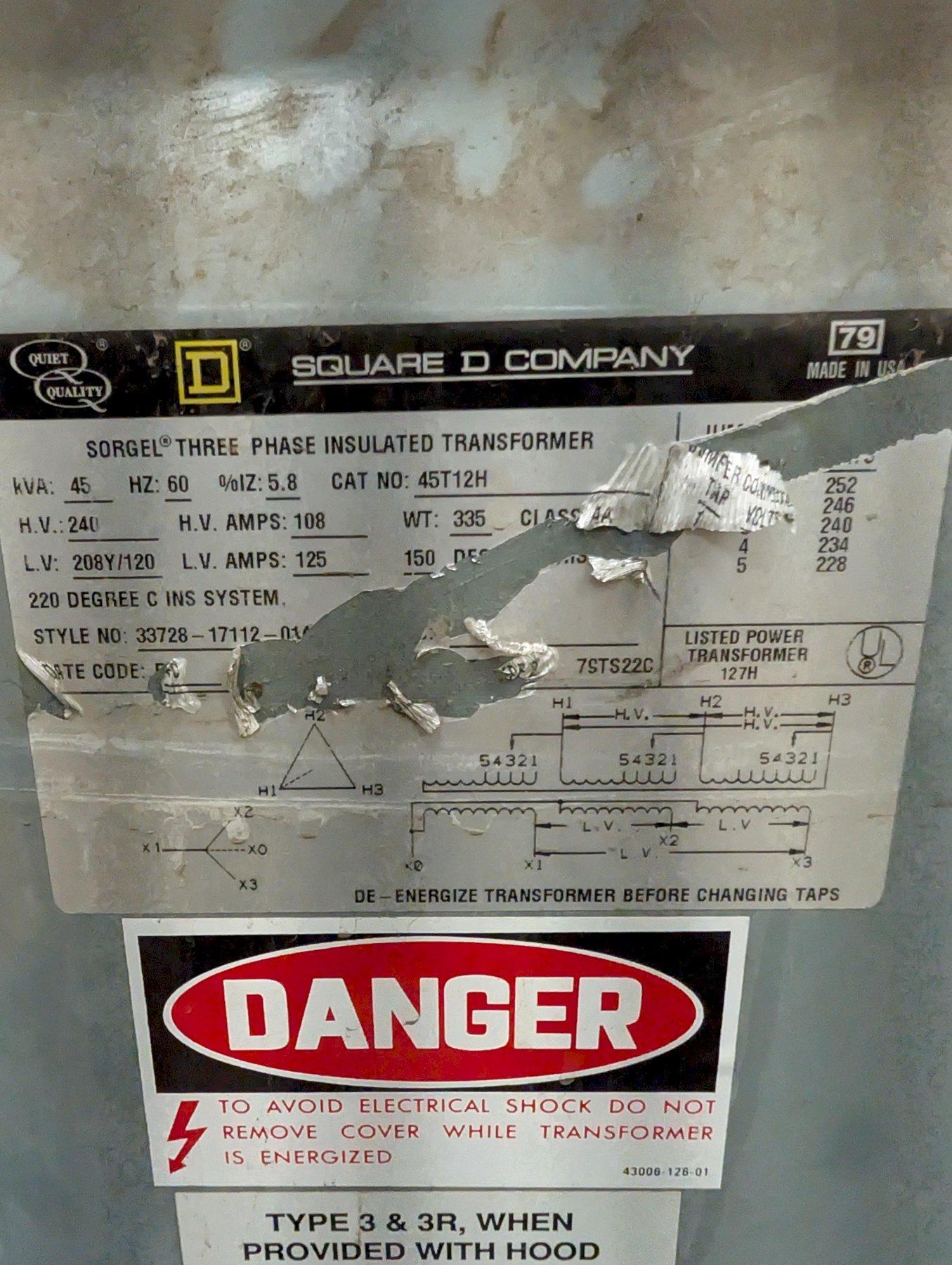

Please note that the manufacturer's nameplate was damaged during previous handling/shipping. Portions of the label are torn; however, the primary identifying information and electrical specifications remain visible. Please review all photos carefully for the condition of the unit and nameplate.

Freight Shipping / Local Pickup:

Due to the size and weight of this transformer, it will ship via freight or is available for local pickup.

Please contact us with your delivery ZIP code and whether the destination is commercial or residential for a freight quote.

Transformer weight is approximately 335 lbs according to the remaining manufacturer's nameplate information. Pallet and packaging will add additional shipping weight.
