Square D / Sorgel 15T76H 15 KVA three-phase dry-type insulated transformer.

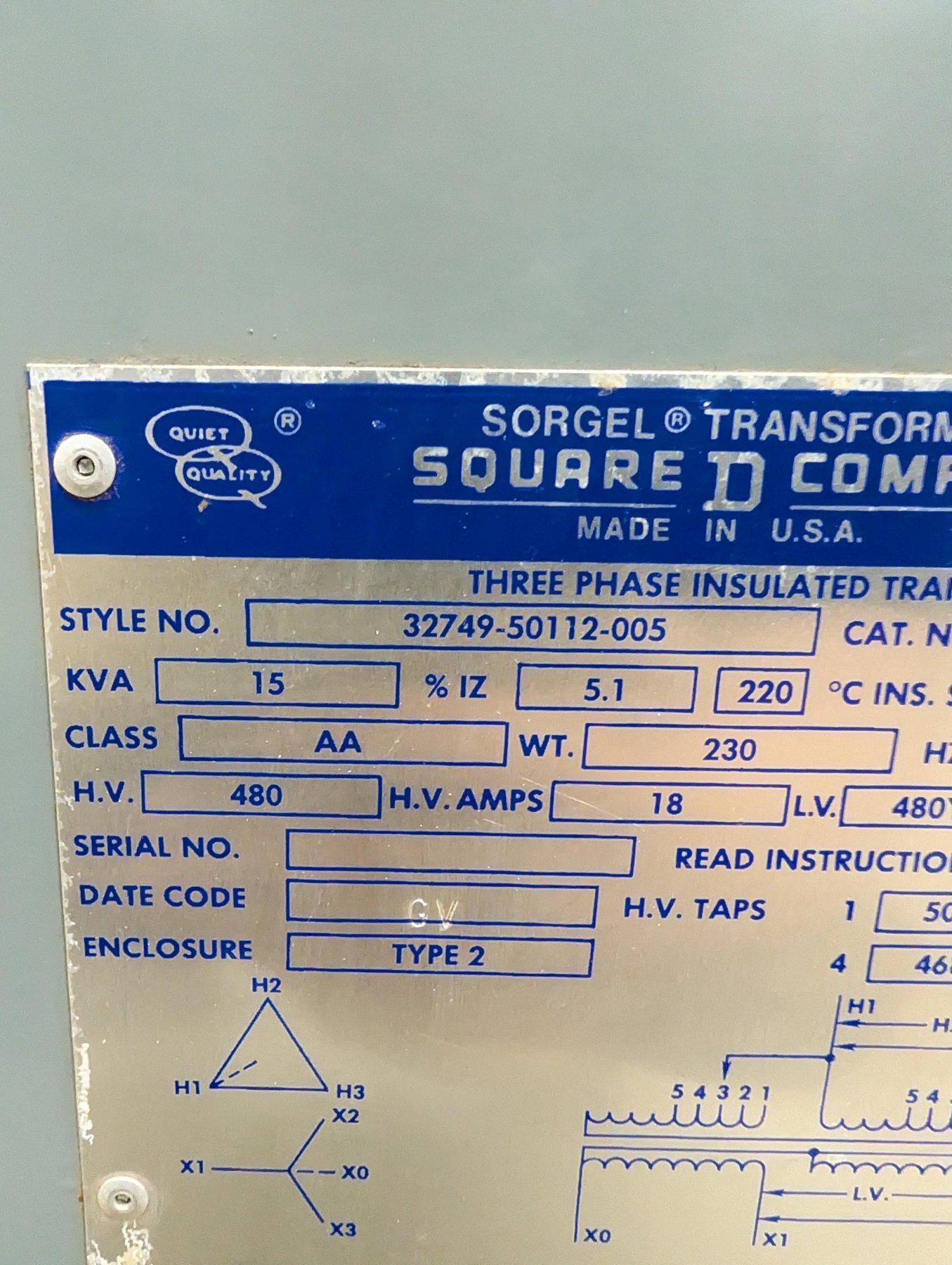

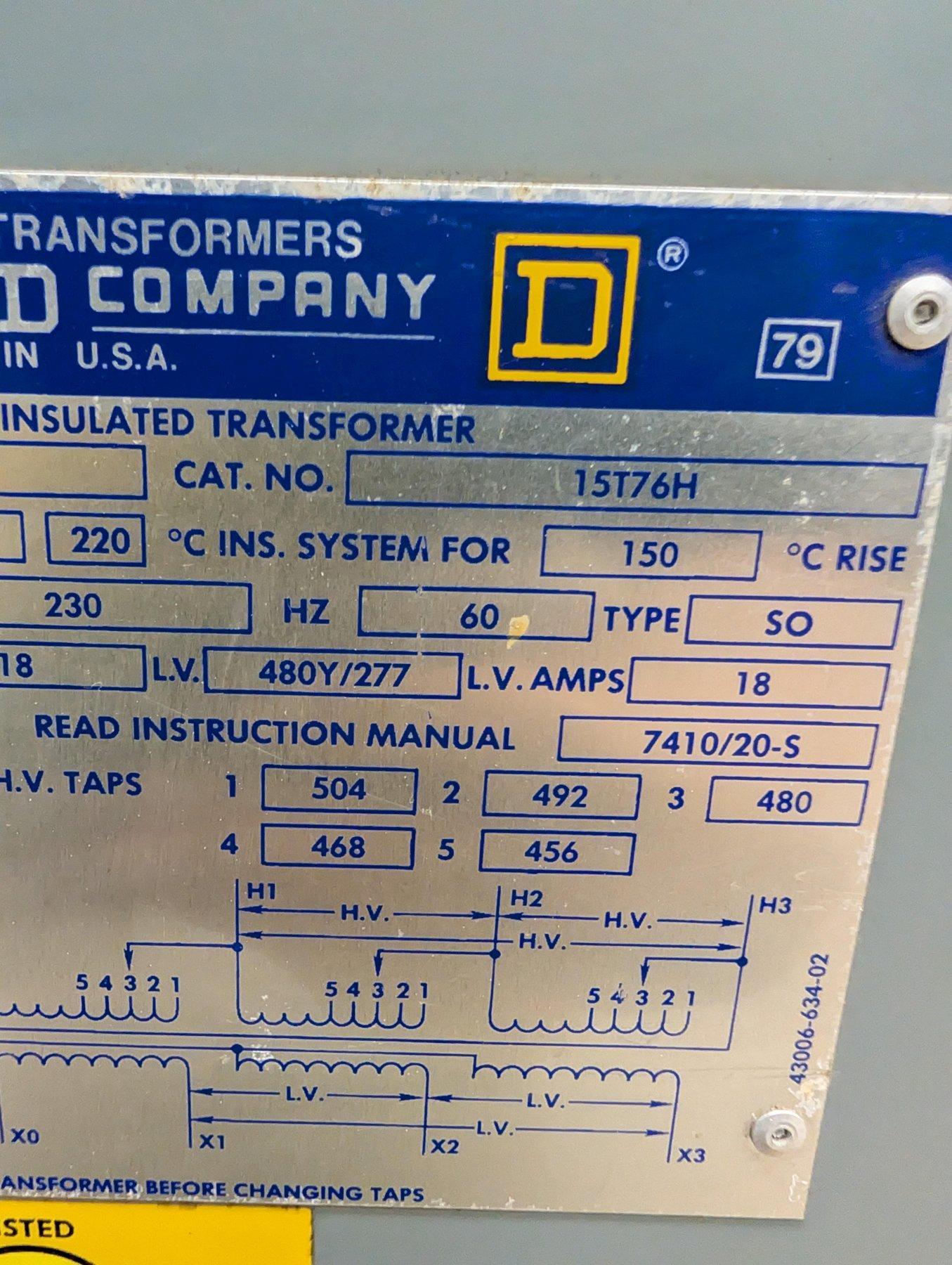

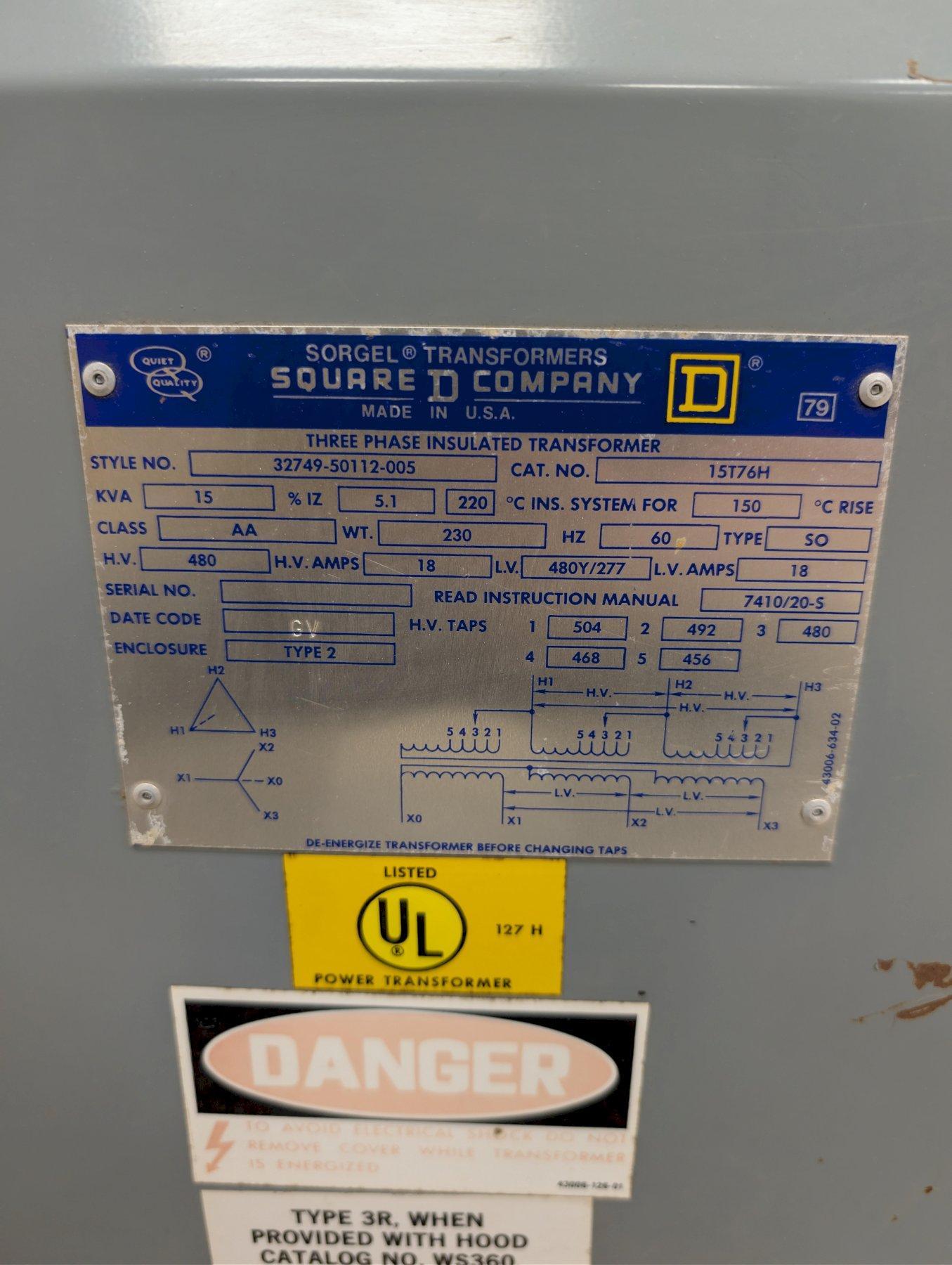

Specifications:

• Manufacturer: Square D / Sorgel
• Catalog Number: 15T76H
• Style Number: 32749-50112-005
• Type: SO
• Power Rating: 15 KVA
• Phase: 3 Phase
• Frequency: 60 Hz
• High Voltage / Primary: 480V Delta
• Low Voltage / Secondary: 480Y/277V Wye
• High Voltage Amps: 18A
• Low Voltage Amps: 18A
• Primary Taps: 504 / 492 / 480 / 468 / 456V
• Impedance: 5.1%
• Class: AA
• Insulation System: 220°C
• Temperature Rise: 150°C
• Enclosure: Type 2
• Weight: 230 lbs per nameplate
• UL Listed
• Dry-Type / Insulated Transformer
• Made in USA

This industrial transformer features a 480V Delta primary and 480Y/277V Wye secondary configuration.

The 480Y/277V secondary provides 480V phase-to-phase and 277V phase-to-neutral power, making this transformer suitable for compatible industrial and commercial electrical distribution applications.

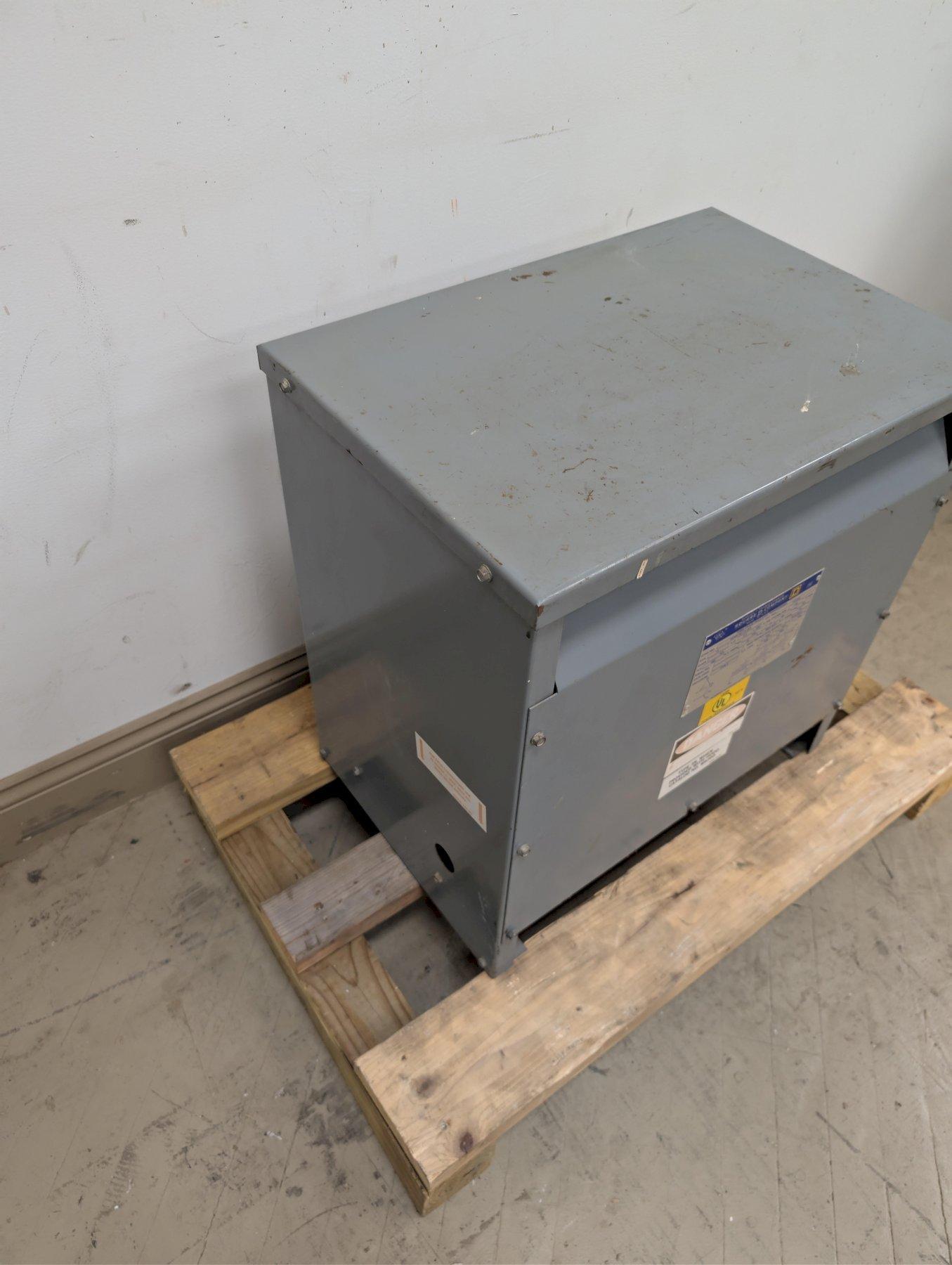

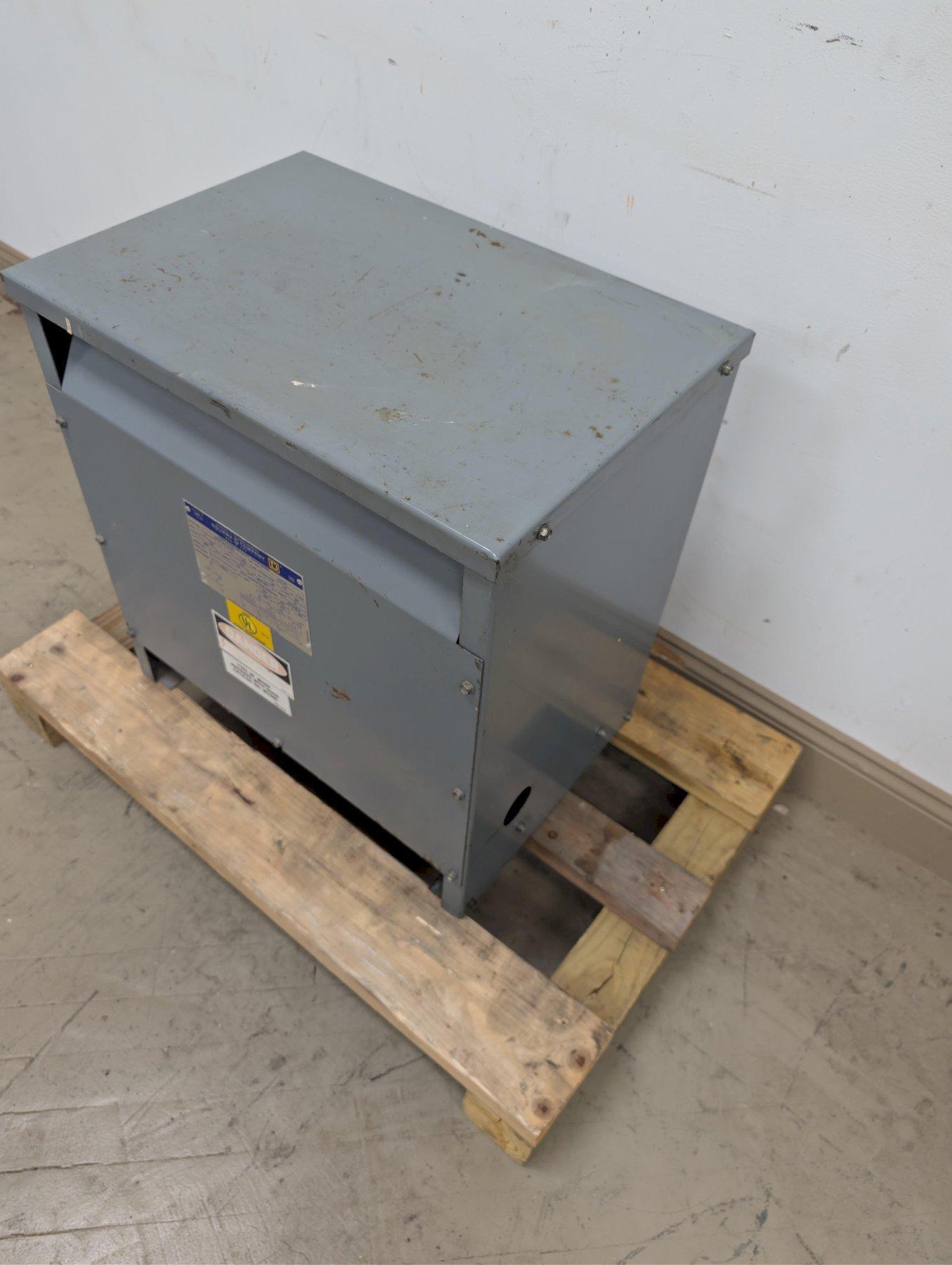

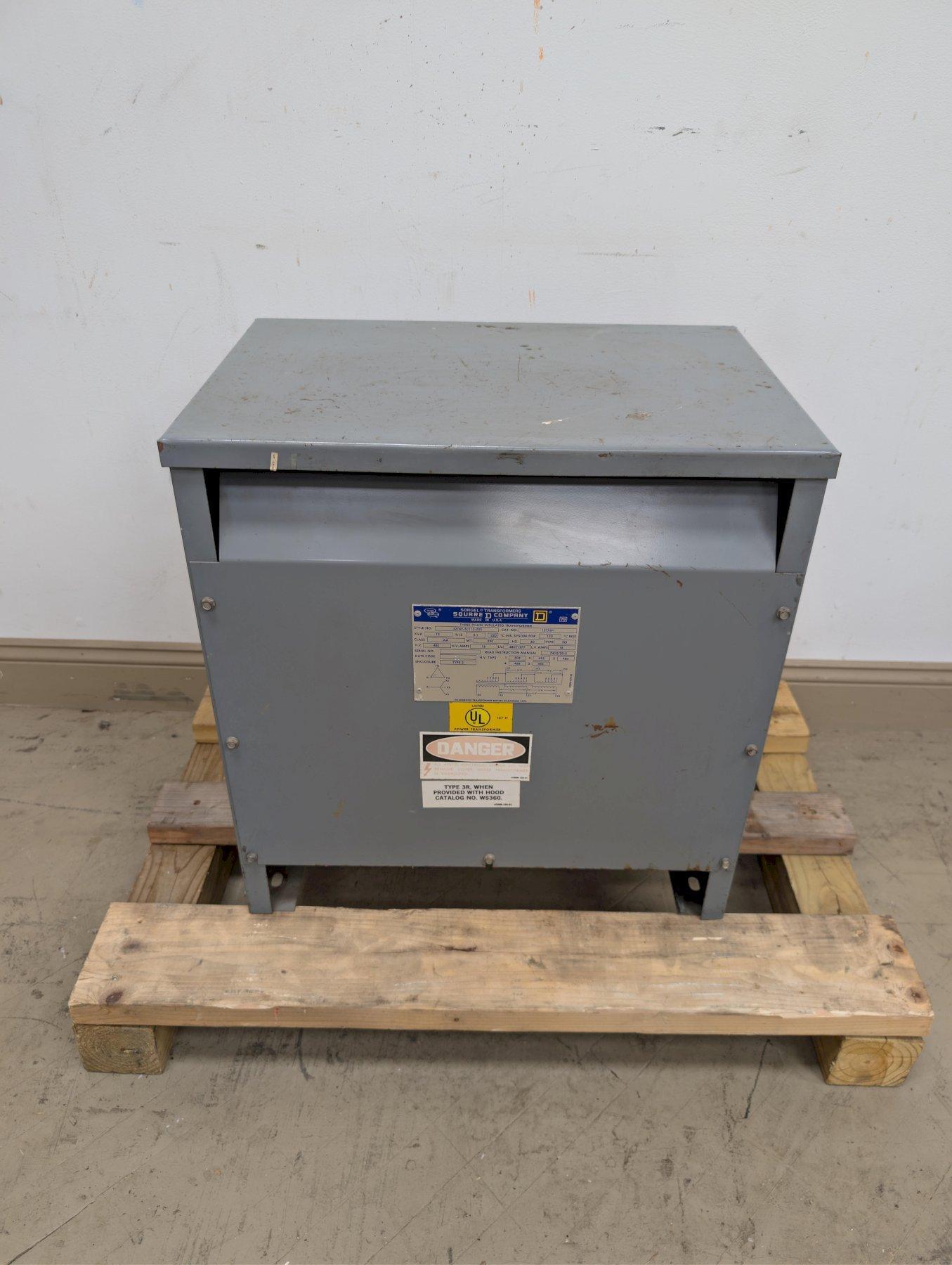

Unit is in used condition and shows normal cosmetic wear from previous industrial use and storage, including scratches, scuffs, surface rust, paint wear, and other marks. Please review all photos carefully for overall condition.

Freight Shipping / Local Pickup:

Due to the size and weight of this transformer, it will ship via freight or is available for local pickup.

Please contact us with your delivery ZIP code and whether the destination is commercial or residential for a freight quote.

Transformer weight is approximately 230 lbs according to the manufacturer's nameplate. Pallet and packaging will add additional weight.
