Square D / Sorgel 15T3H 15 KVA three-phase dry-type insulated transformer.

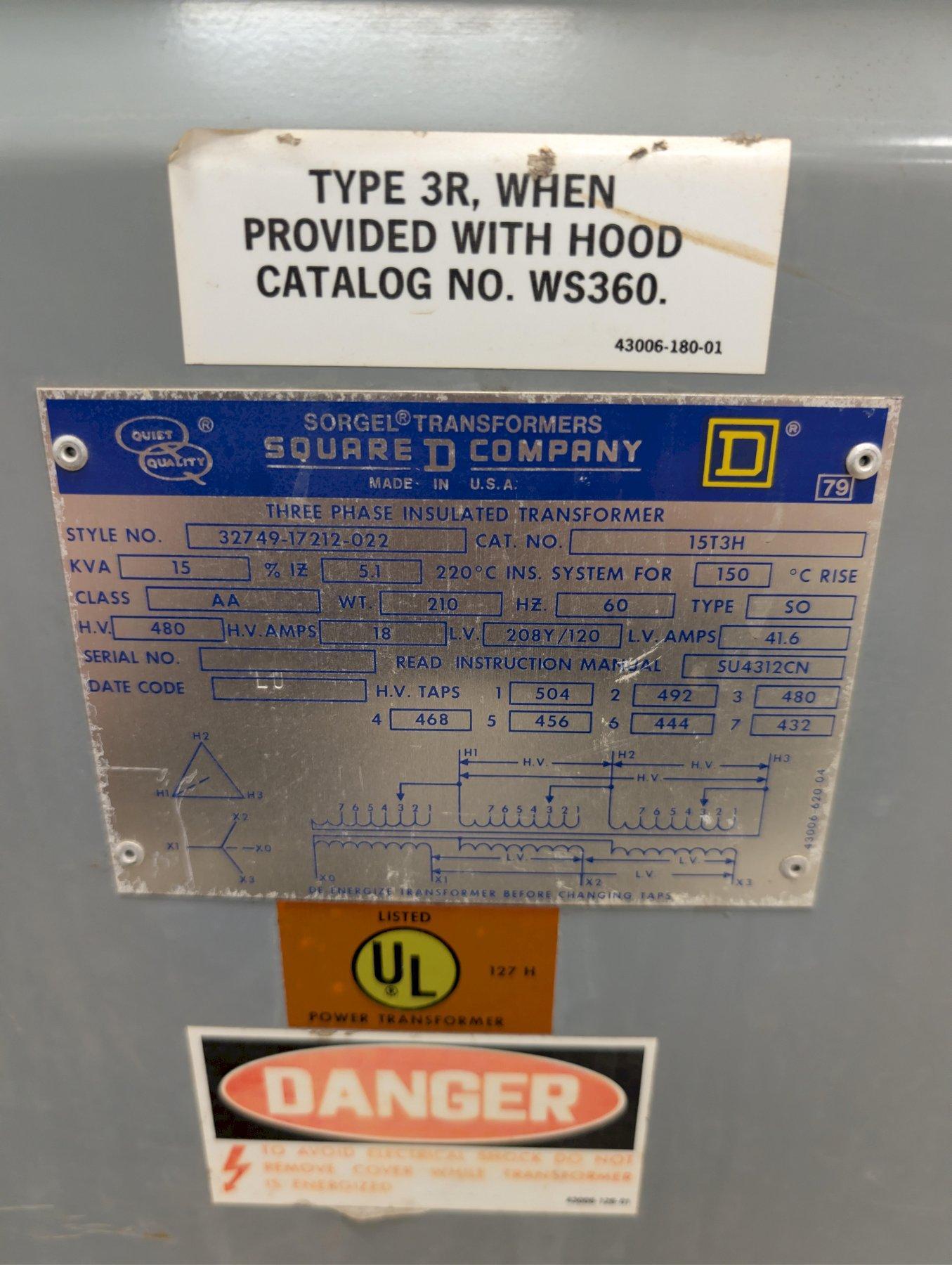

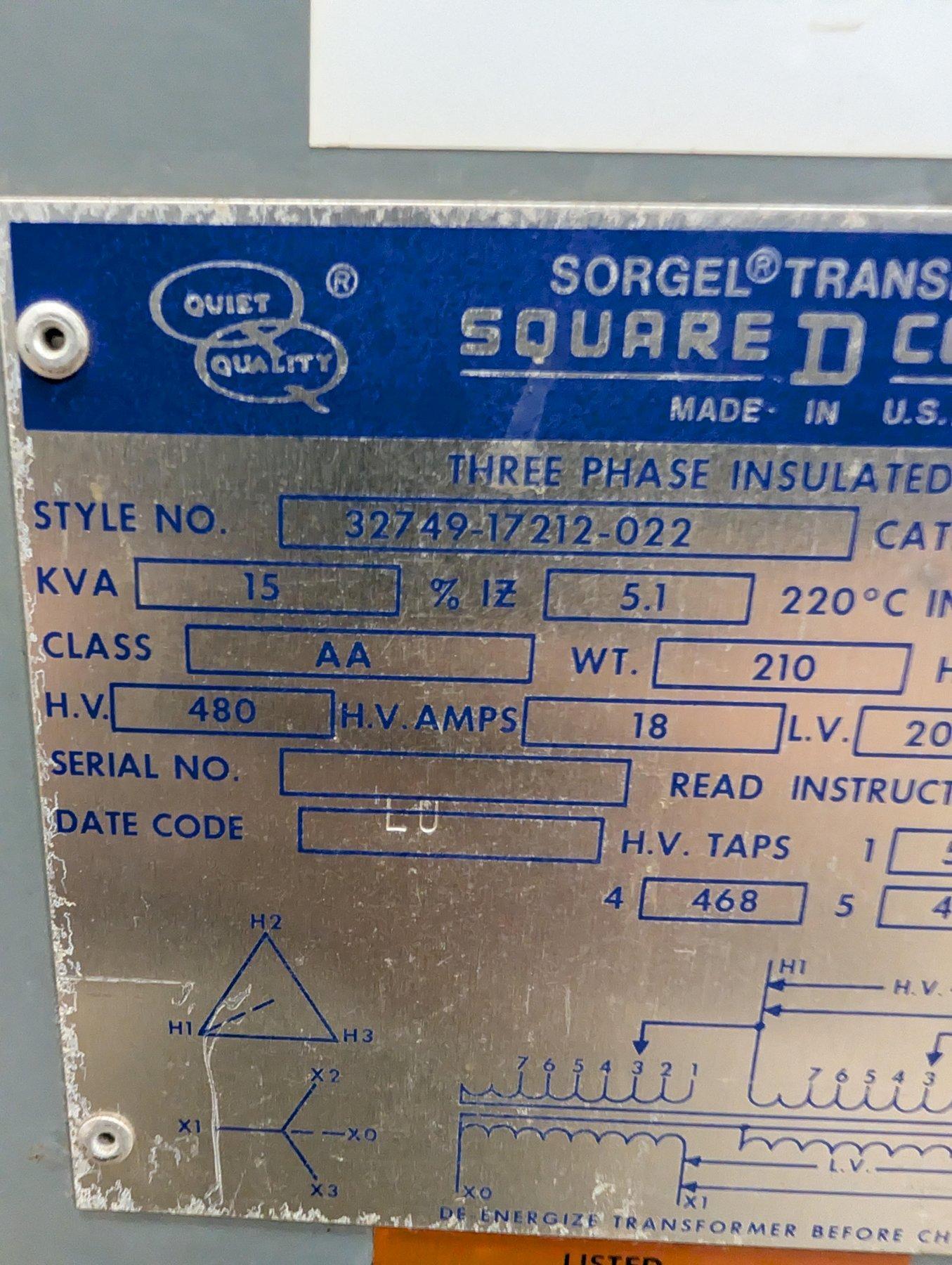

Specifications:

• Manufacturer: Square D / Sorgel
• Catalog Number: 15T3H
• Style Number: 32749-17212-022
• Type: SO
• Transformer Type: Dry-Type / Insulated
• Power Rating: 15 KVA
• Phase: 3 Phase
• Frequency: 60 Hz
• Primary / High Voltage: 480V Delta
• Secondary / Low Voltage: 208Y/120V Wye
• Primary Amps: 18A
• Secondary Amps: 41.6A

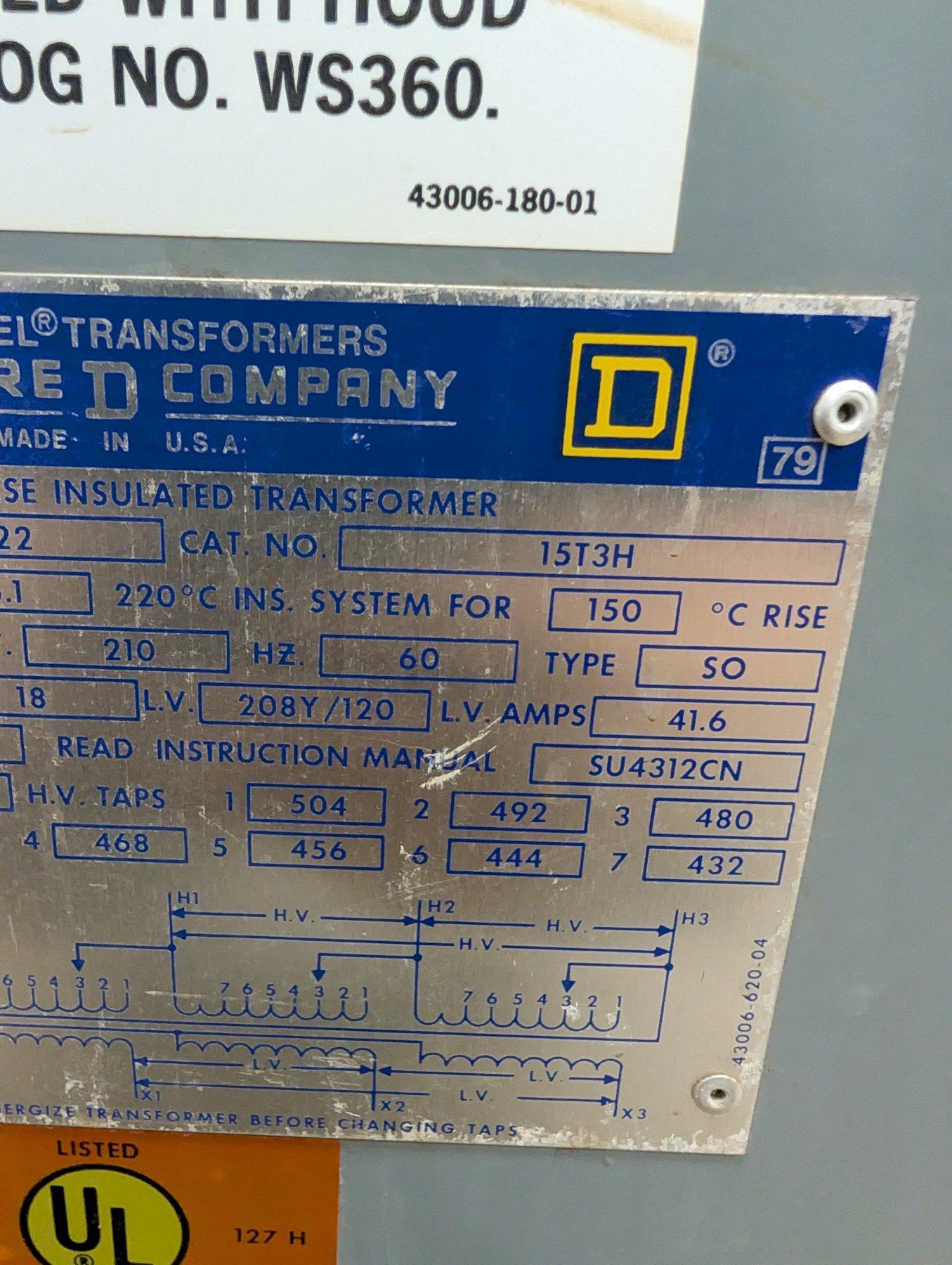

• Primary Taps: 504 / 492 / 480 / 468 / 456 / 444 / 432V
• Impedance: 5.1%
• Class: AA
• Insulation System: 220°C
• Temperature Rise: 150°C
• Enclosure: Type 2
• Weight: 210 lbs per nameplate
• UL Listed
• Made in USA

This transformer is designed to step down 480V three-phase power to 208Y/120V three-phase power for industrial and commercial electrical distribution applications.

The 208Y/120V secondary provides 208V phase-to-phase and 120V phase-to-neutral power when properly installed and wired.

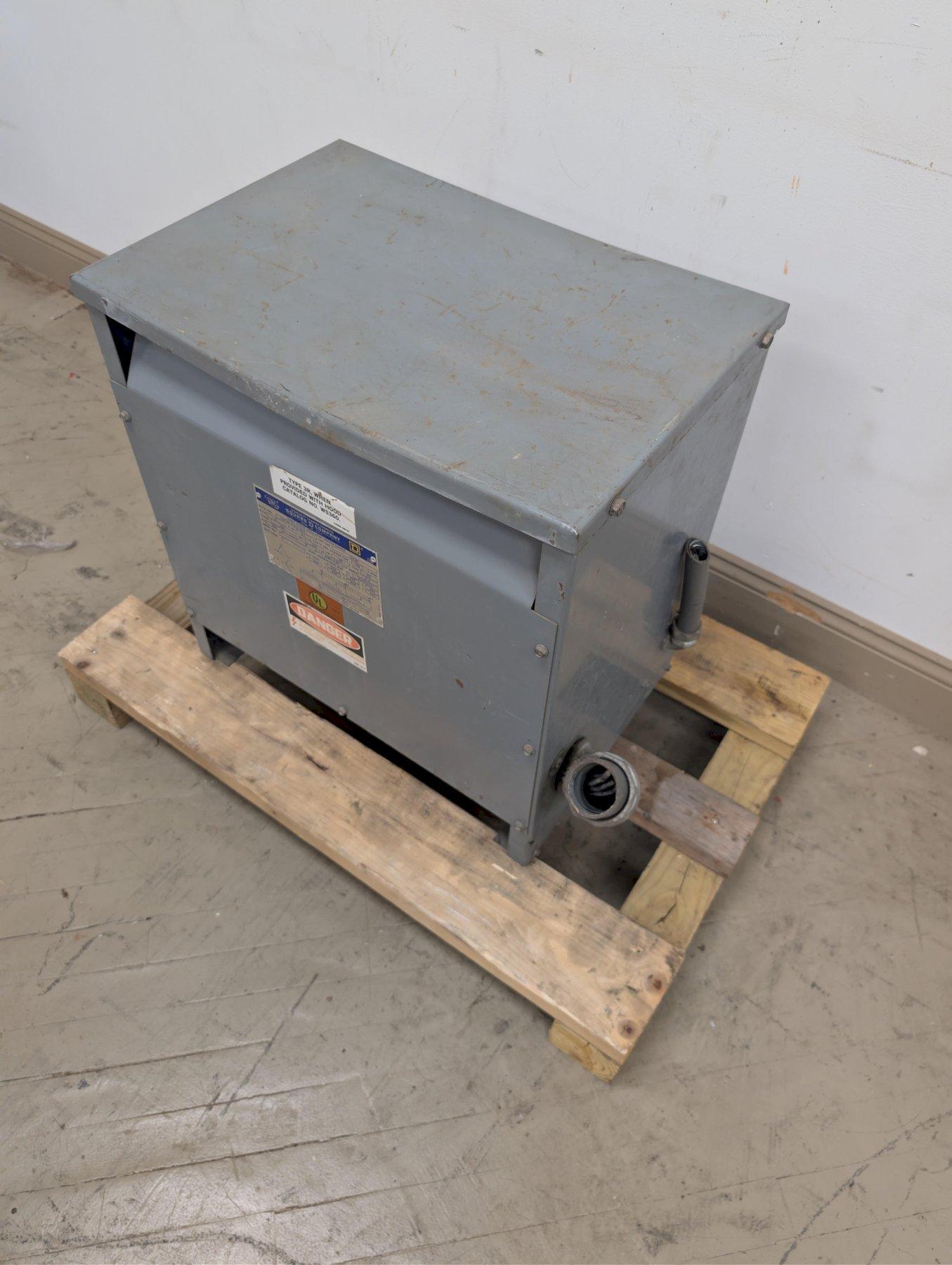

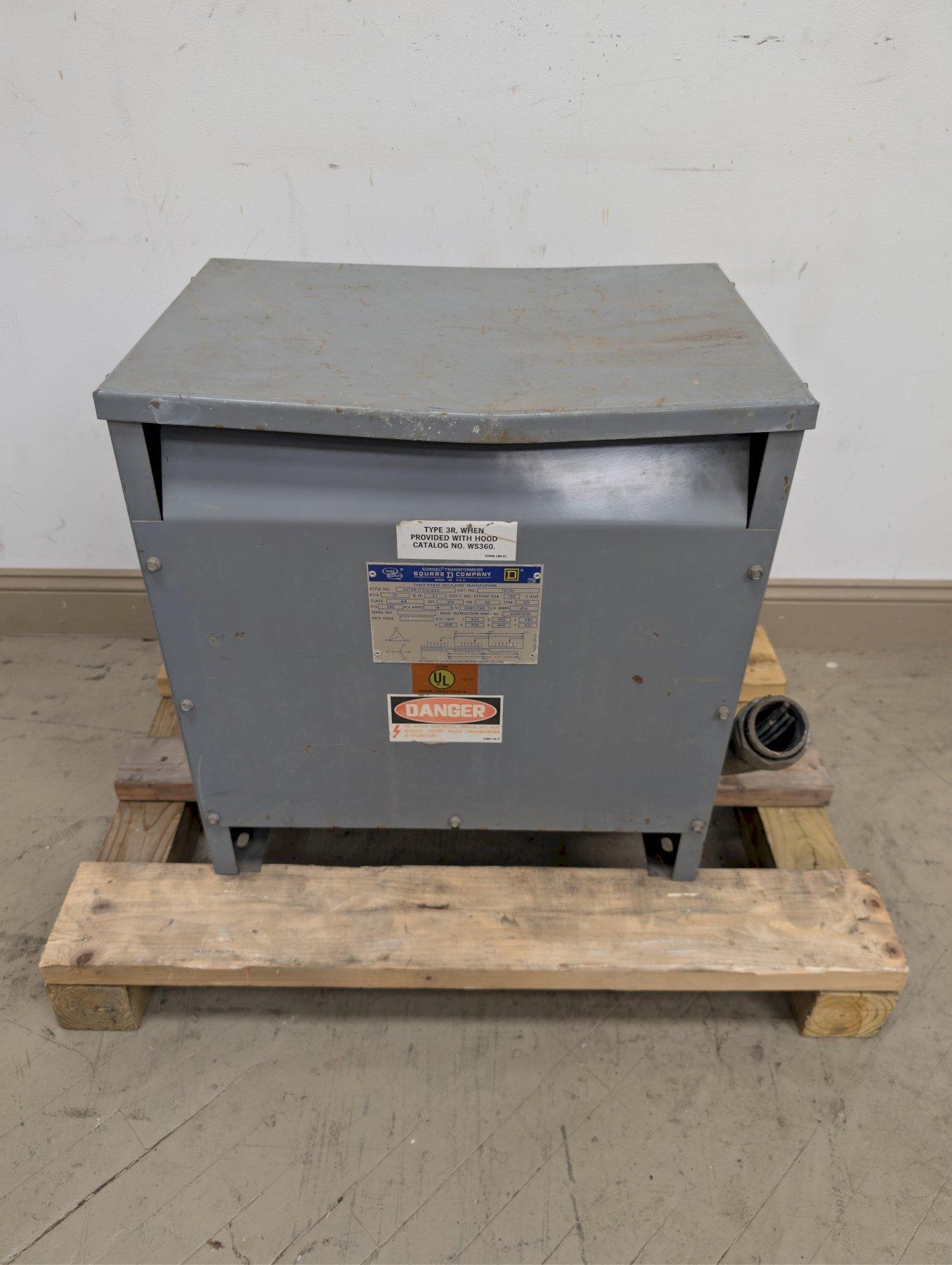

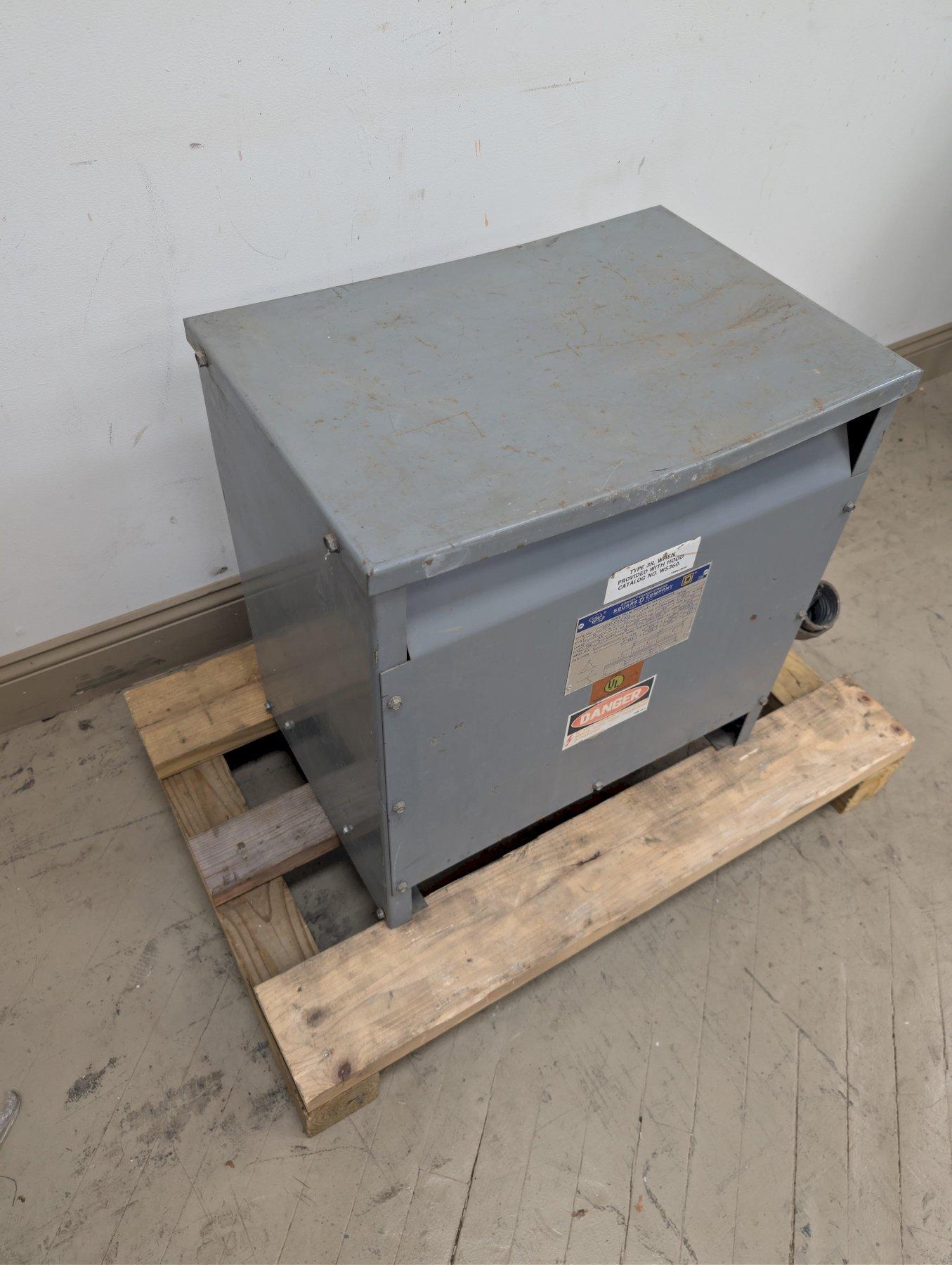

Unit is in used condition and shows normal cosmetic wear from previous industrial use and storage, including scratches, scuffs, surface oxidation, paint wear, and other marks. Please review all photos carefully for overall condition.

Freight Shipping / Local Pickup:

Due to the size and weight of this transformer, it will ship via freight or is available for local pickup.

Please contact us with your delivery ZIP code and whether the destination is commercial or residential for a freight quote.

Transformer weight is approximately 210 lbs according to the manufacturer's nameplate. Pallet and packaging will add additional shipping weight.
