Square D Sorgel 75 kVA Three Phase General Purpose Transformer – Type 2 Enclosure

Up for sale is a Square D Sorgel 3-phase transformer, built for dependable industrial and commercial power distribution. This unit steps down 480V to 208Y/120V, one of the most common and in-demand configurations.

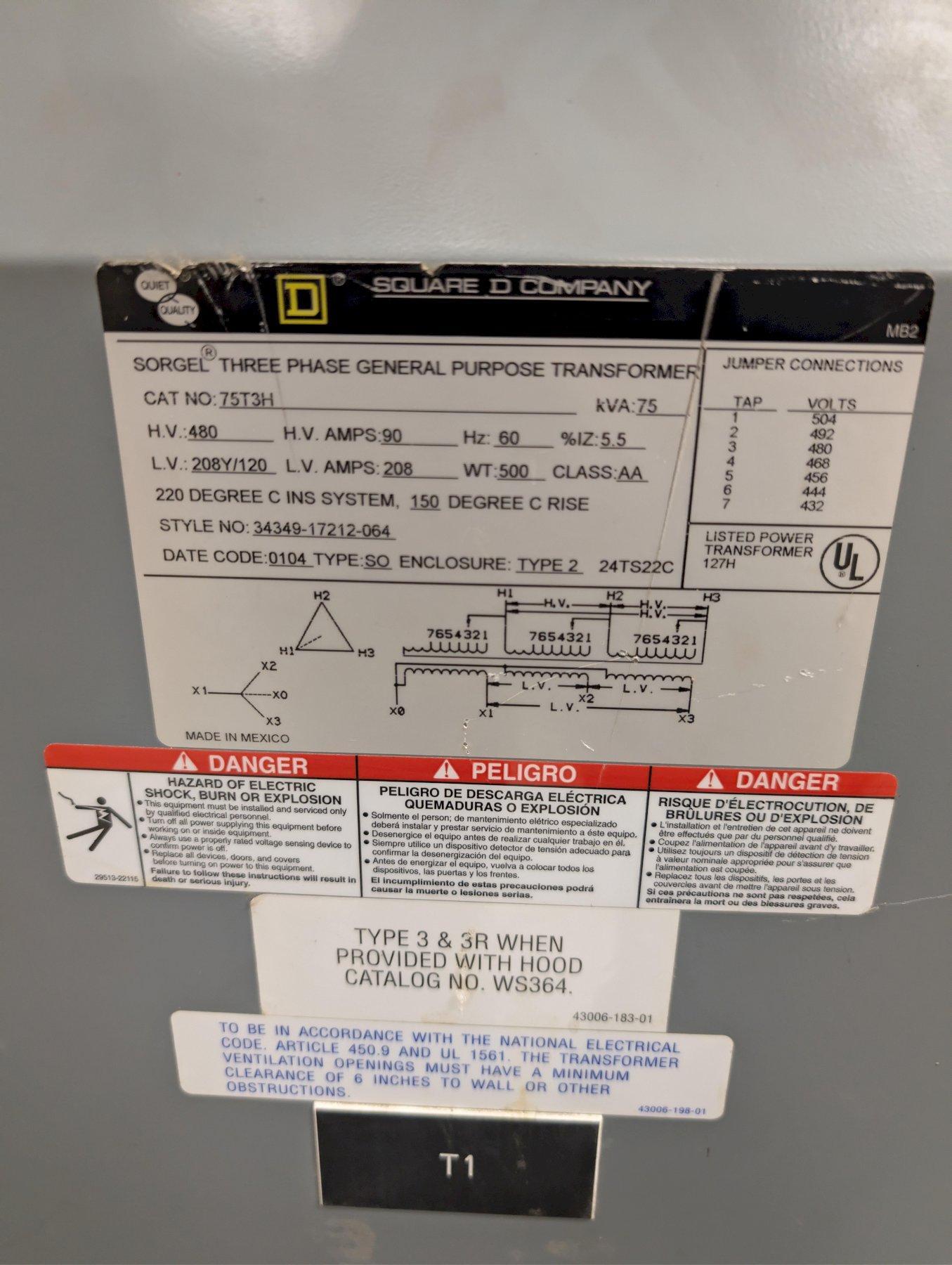

⚙️ Specifications:

• Manufacturer: Square D
• Series: Sorgel
• Catalog Number: 75T3H
• KVA Rating: 75 kVA
• Phase: Three Phase
• Frequency: 60 Hz
• Primary Voltage: 480V
• Secondary Voltage: 208Y/120V
• Primary Amps: 90 A
• Secondary Amps: 208 A
• Impedance: 5.5%
• Temperature Rise: 150°C
• Insulation System: 220°C
• Cooling Class: AA (Air Cooled)
• Enclosure: Type 2
• Weight: Approx. 500 lbs
• Made in: Mexico

🔧 Features:

• Multiple tap settings for voltage adjustment (see nameplate)
• Durable industrial construction
• Quiet operation (Sorgel design)
• Suitable for indoor use (Type 2 enclosure)
• Can be used outdoors with optional weathershield (Type 3R with hood WS364)

📦 Condition:

• Used, pulled from working environment
• Clean condition with typical cosmetic wear
• No further testing performed

🚚 Shipping / Freight:

• Ships via freight
• Please provide:
  • Business or residential address
  • Forklift or loading dock availability
• We can assist with shipping quotes
