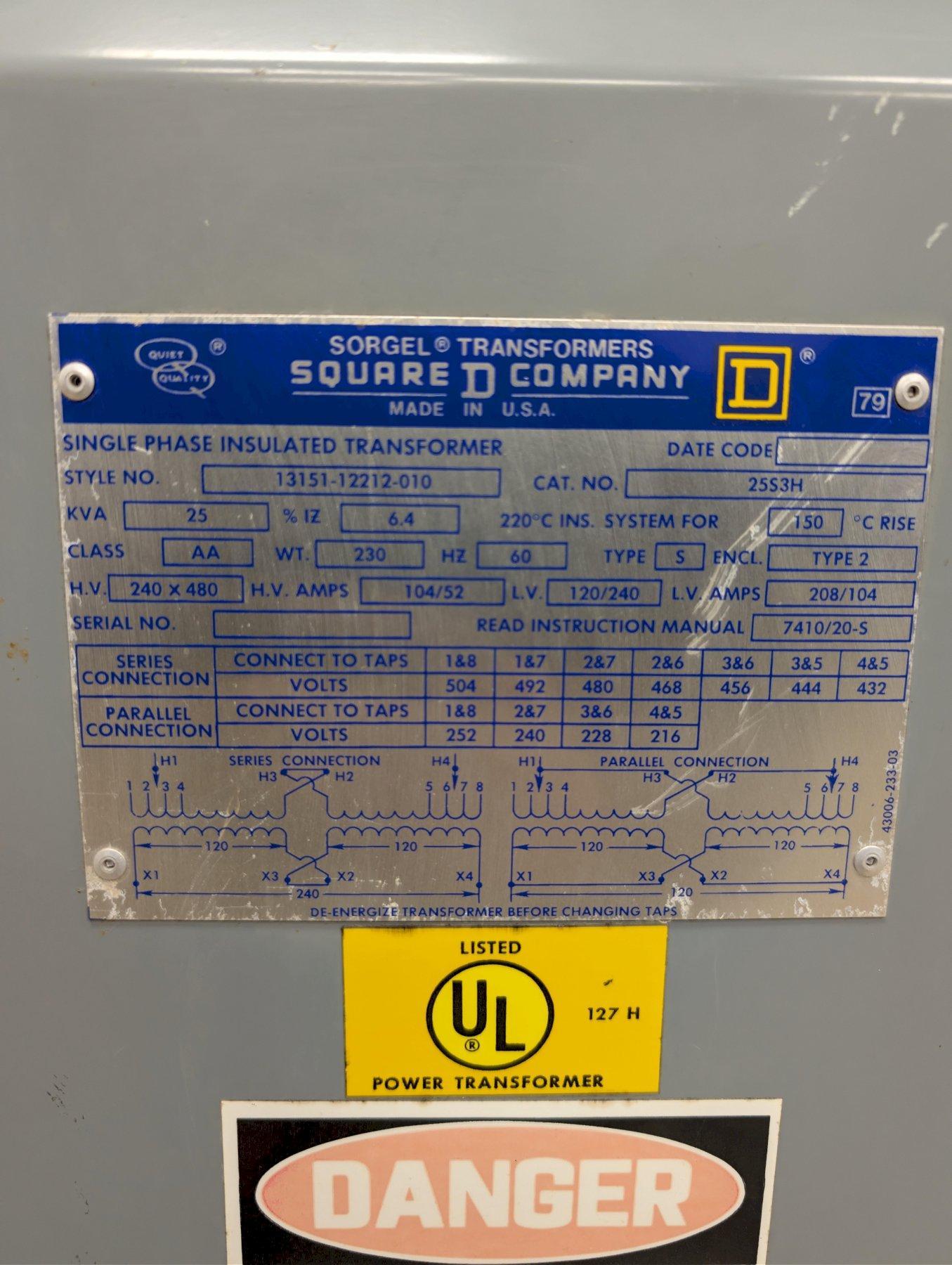

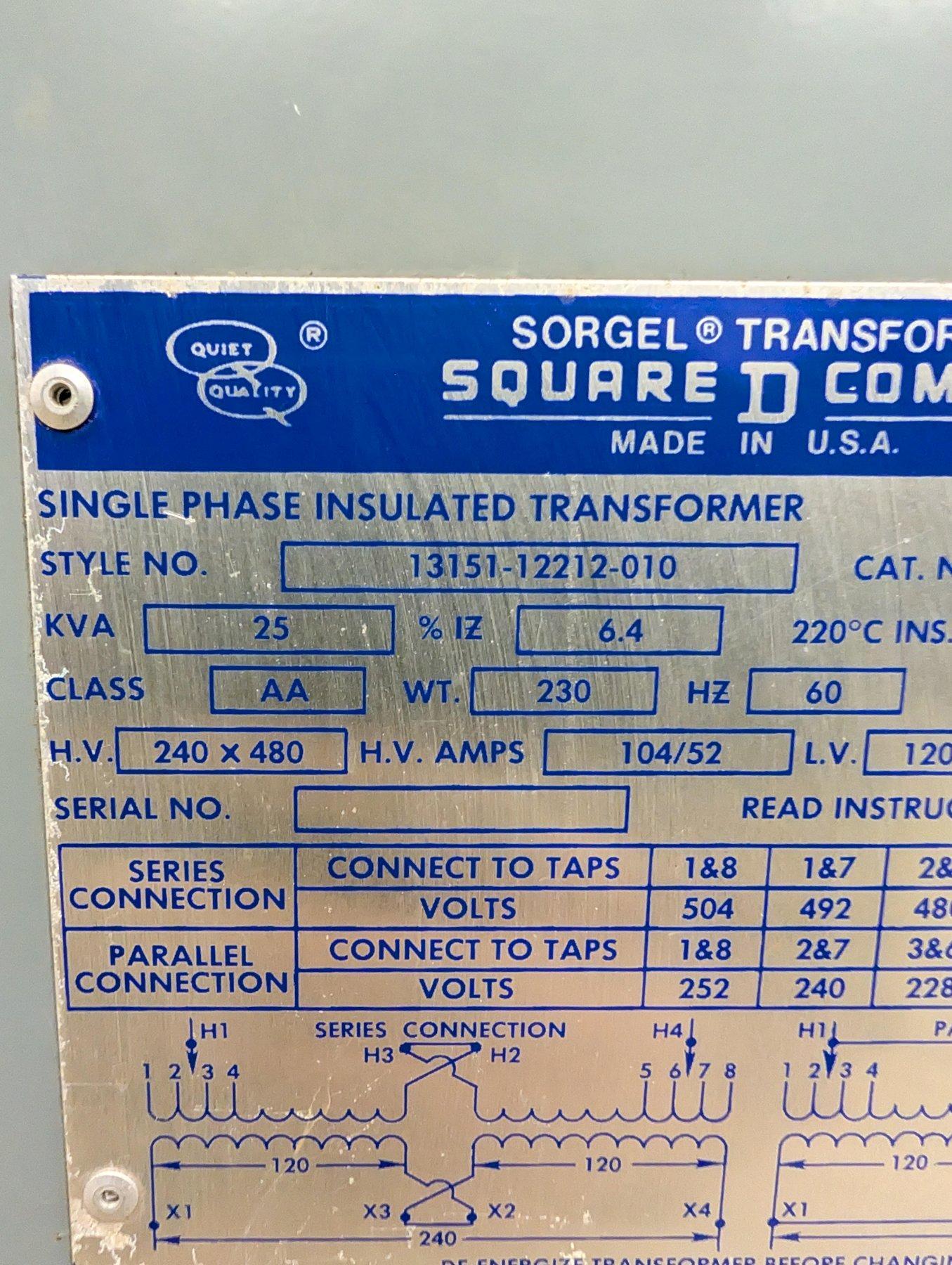

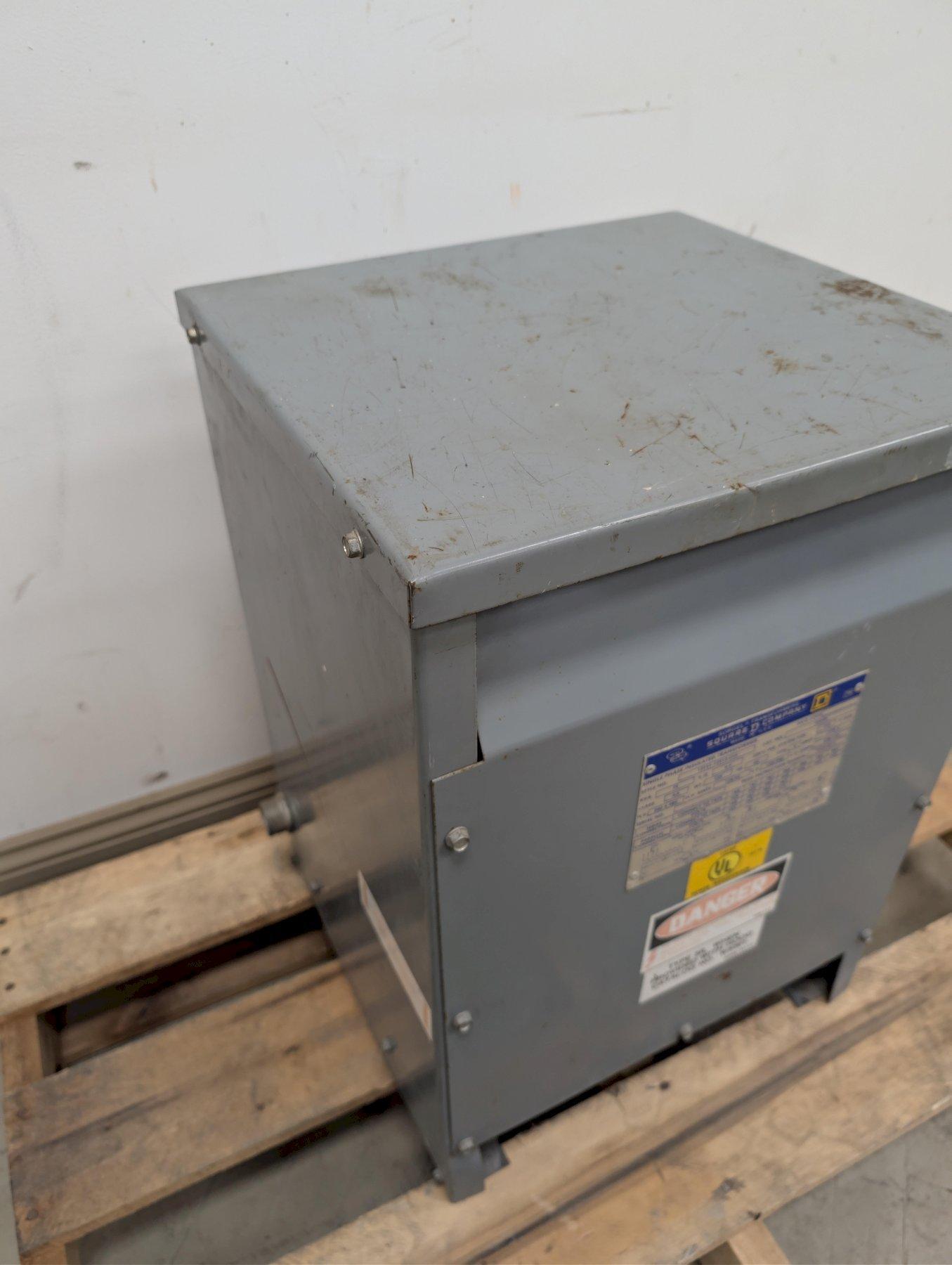

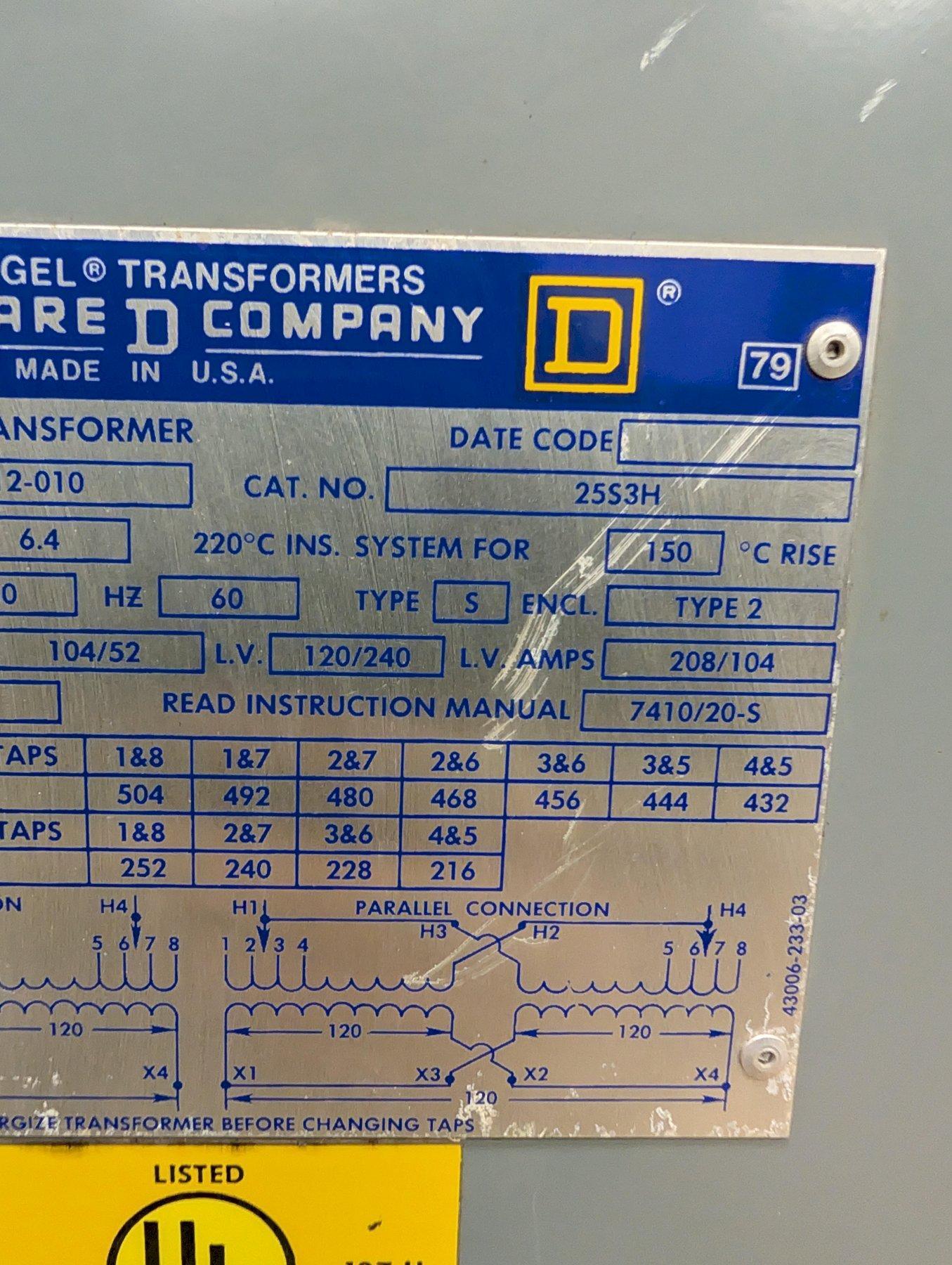

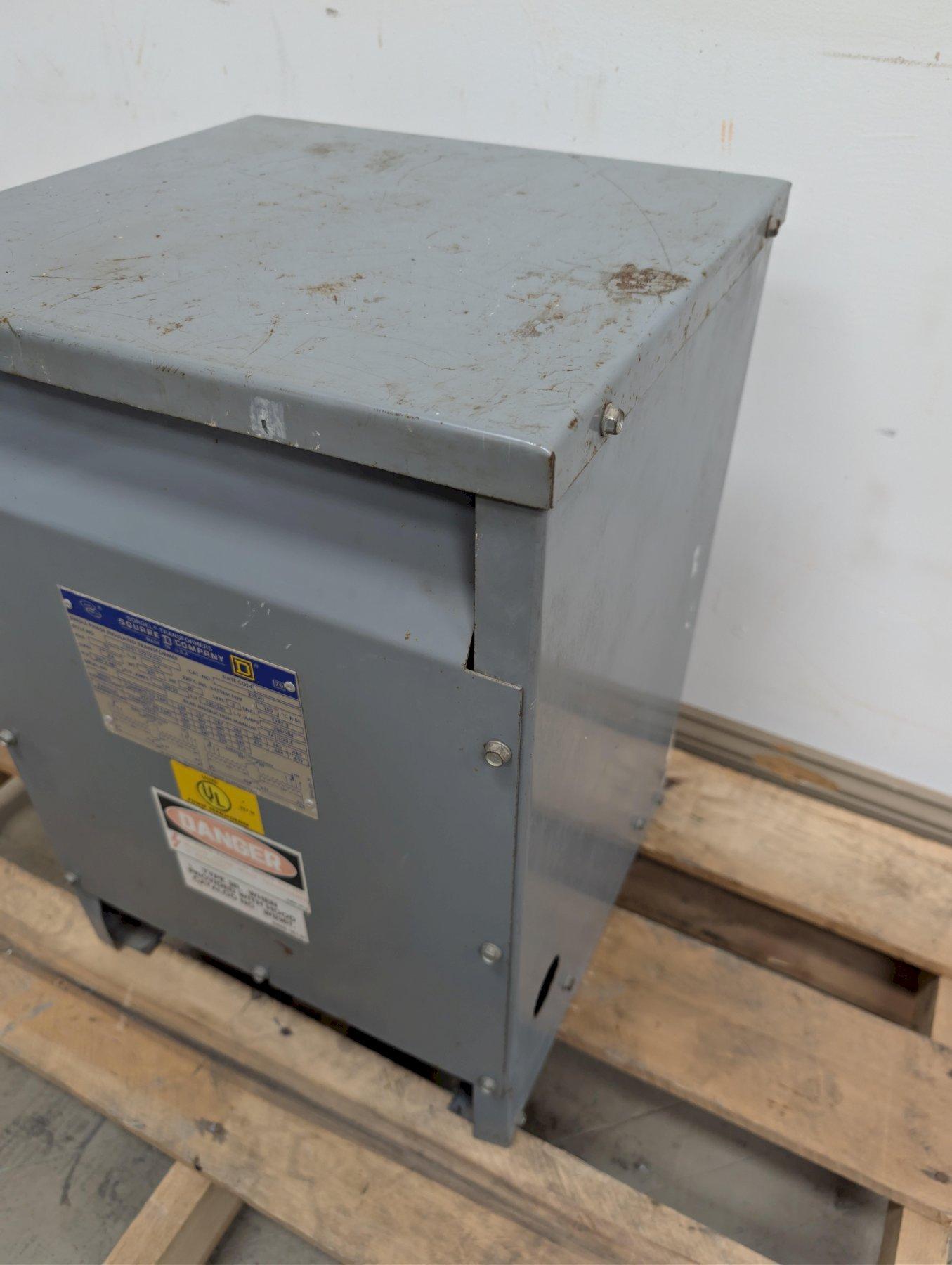

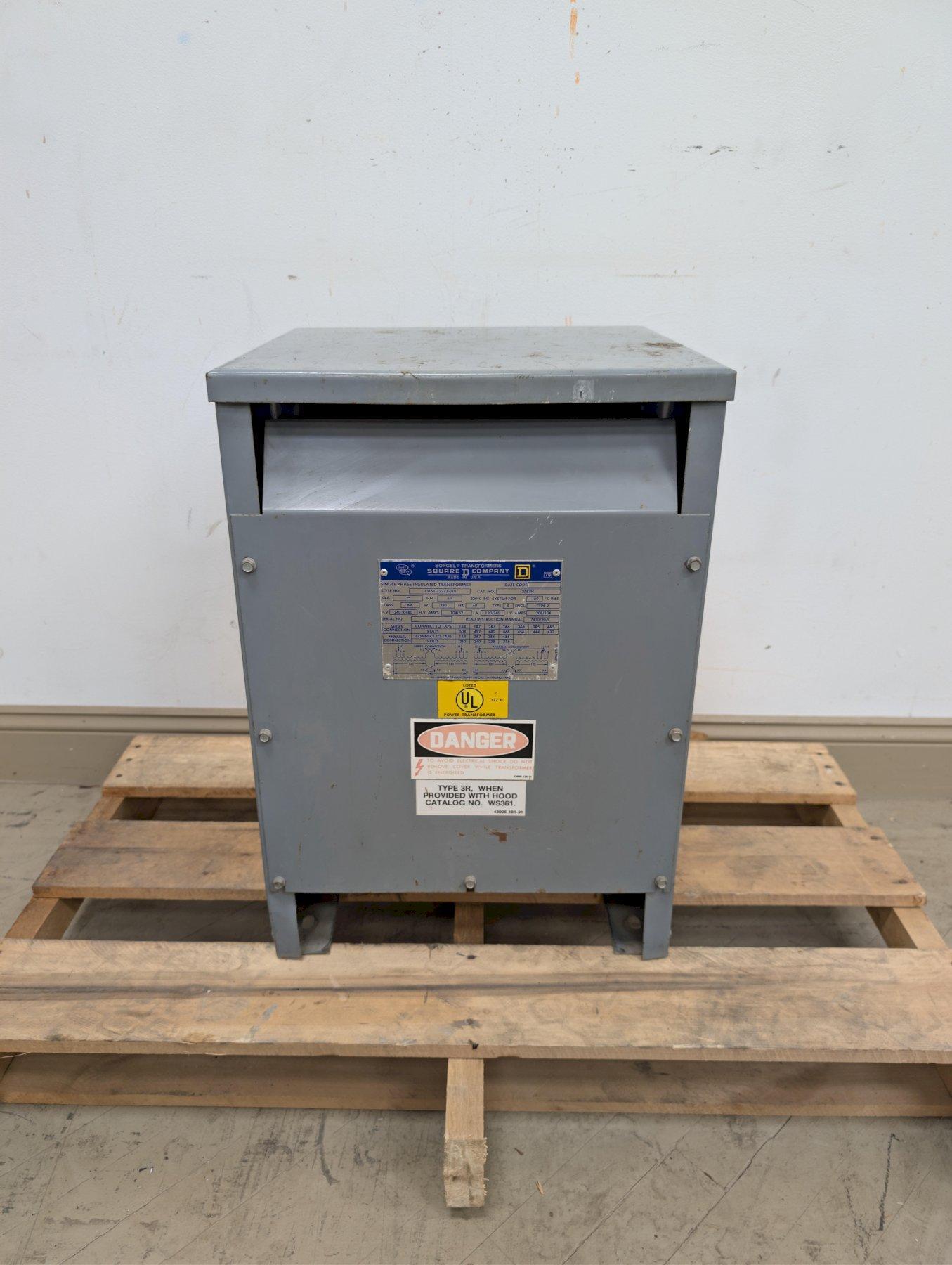

Square D Sorgel 25 kVA Single Phase Insulated Transformer – Type 2 Enclosure

Up for sale is a Square D Sorgel single-phase transformer, built in the USA and known for reliability and quiet operation. This unit is ideal for stepping down voltage in commercial and industrial applications.

⚙️ Specifications:

• Manufacturer: Square D (Sorgel)
• KVA Rating: 25 kVA
• Phase: Single Phase
• Frequency: 60 Hz
• Primary Voltage (H.V.): 240 x 480V
• Secondary Voltage (L.V.): 120/240V
• Impedance: 6.4%
• Insulation System: 220°C
• Temperature Rise: 150°C
• Enclosure: Type 2
• Cooling Class: AA (Air Cooled)
• Weight: Approx. 230 lbs

⚡ Amperage:

• Primary: 104 / 52 Amps
• Secondary: 208 / 104 Amps

🔧 Features:

• Multiple tap configurations for voltage adjustment
• Quiet operation (Sorgel design)
• Durable industrial construction
• Indoor enclosure (Type 2)

📦 Condition:

• Used, pulled from working environment
• Clean condition with minor cosmetic wear
• No further testing performed

🚚 Shipping / Freight:

• Ships via freight
• Please provide:
  • Business or residential address
  • Forklift or loading dock availability
• We can assist with shipping quotes
