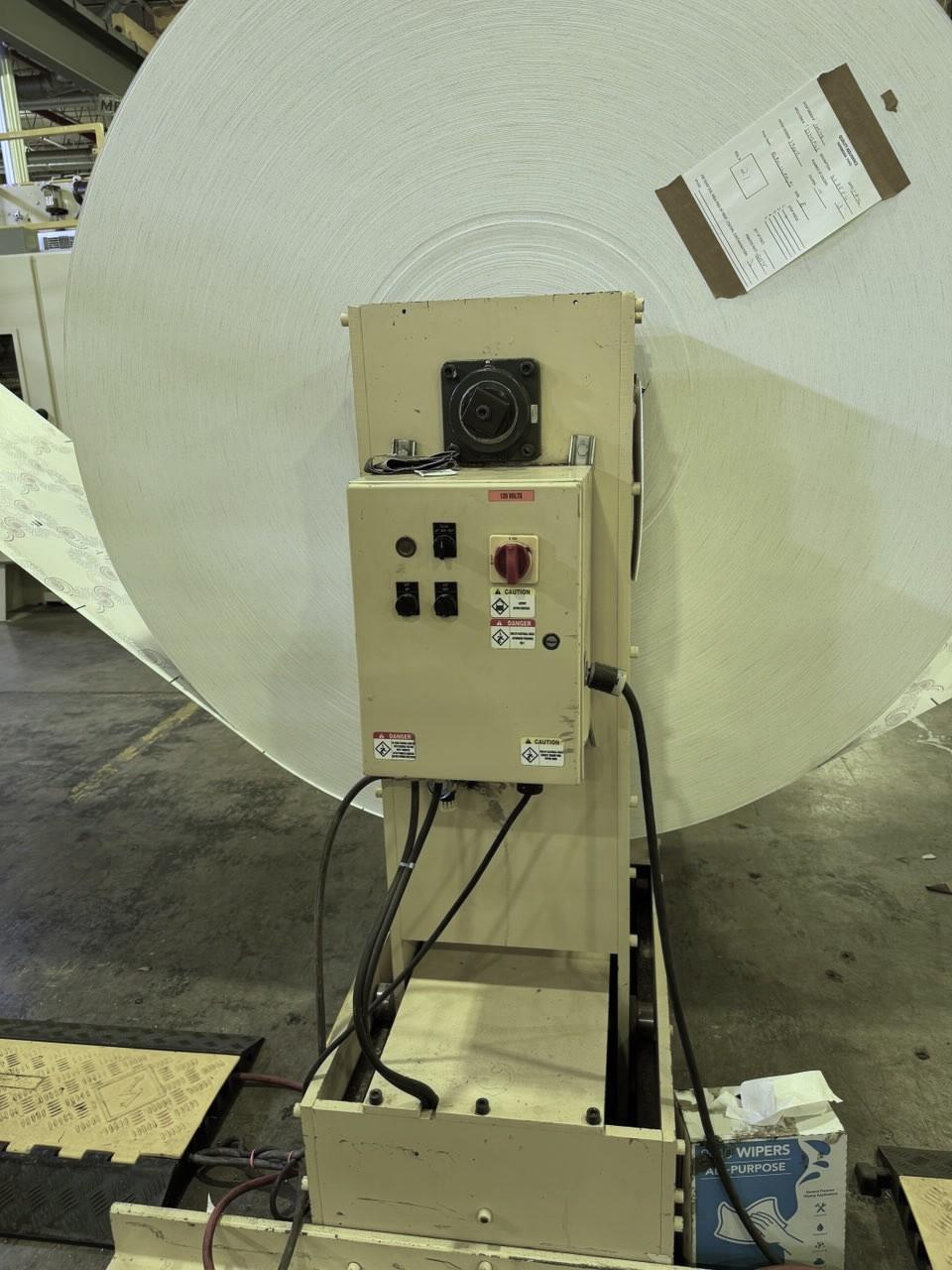

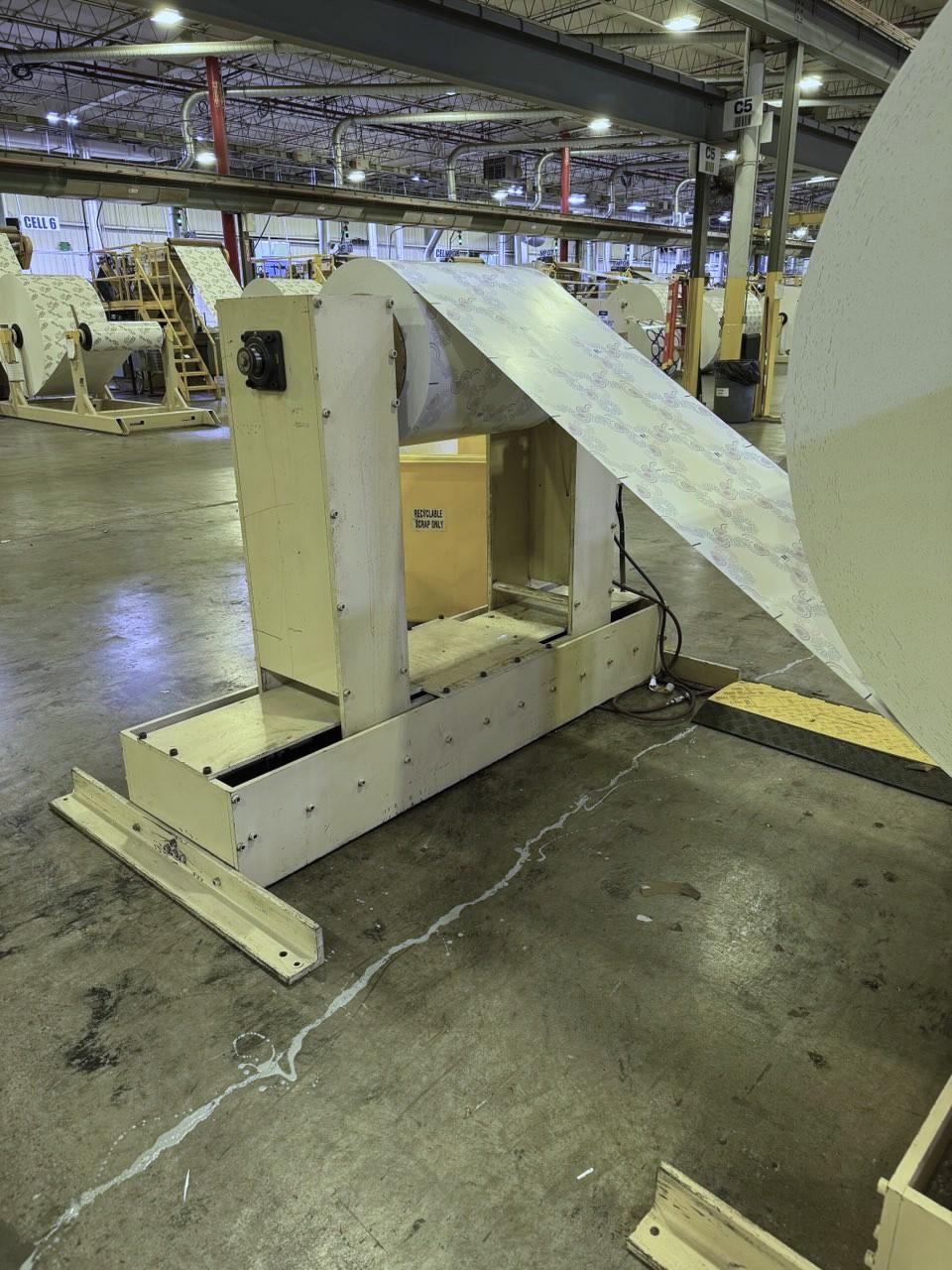

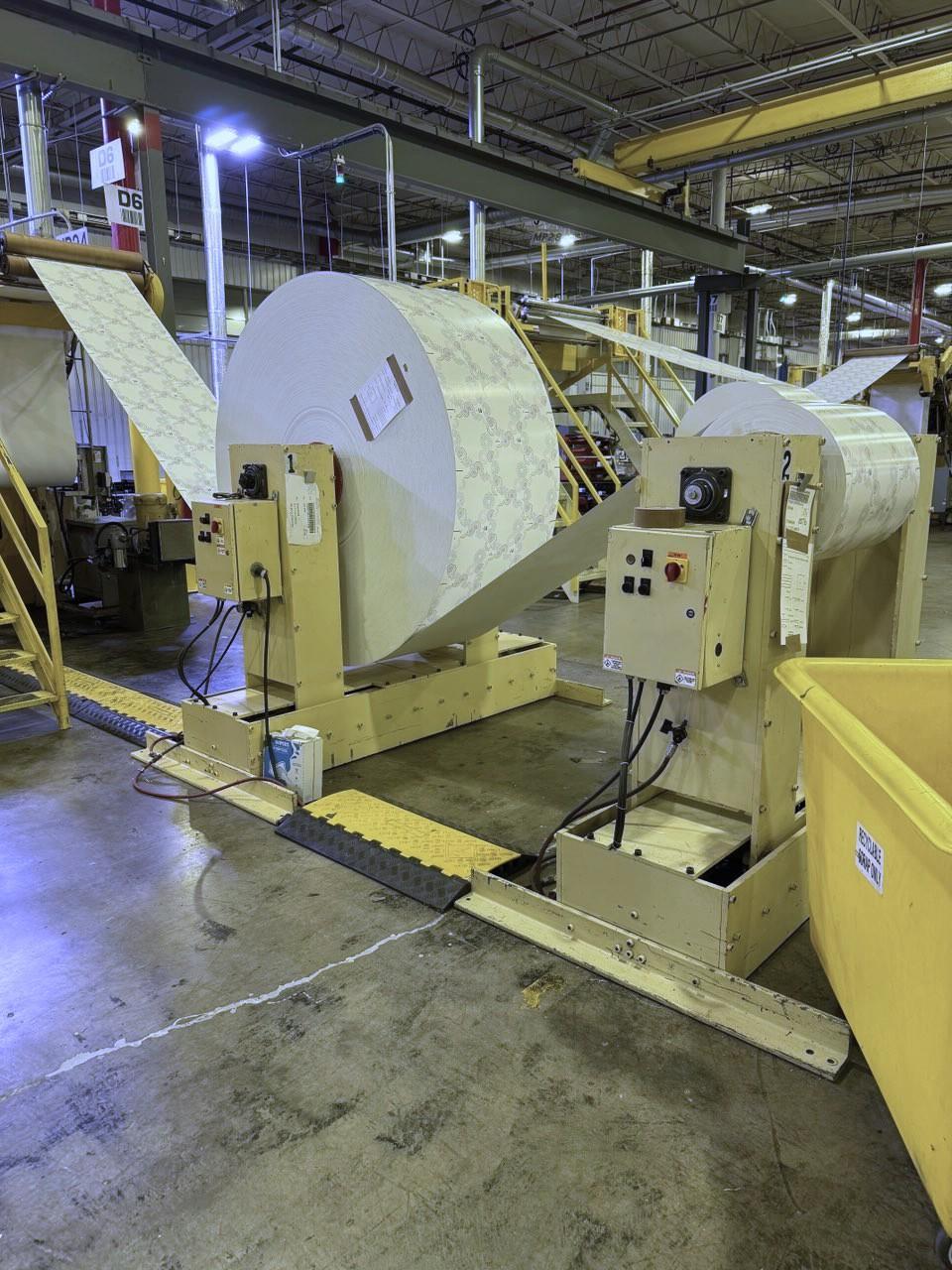

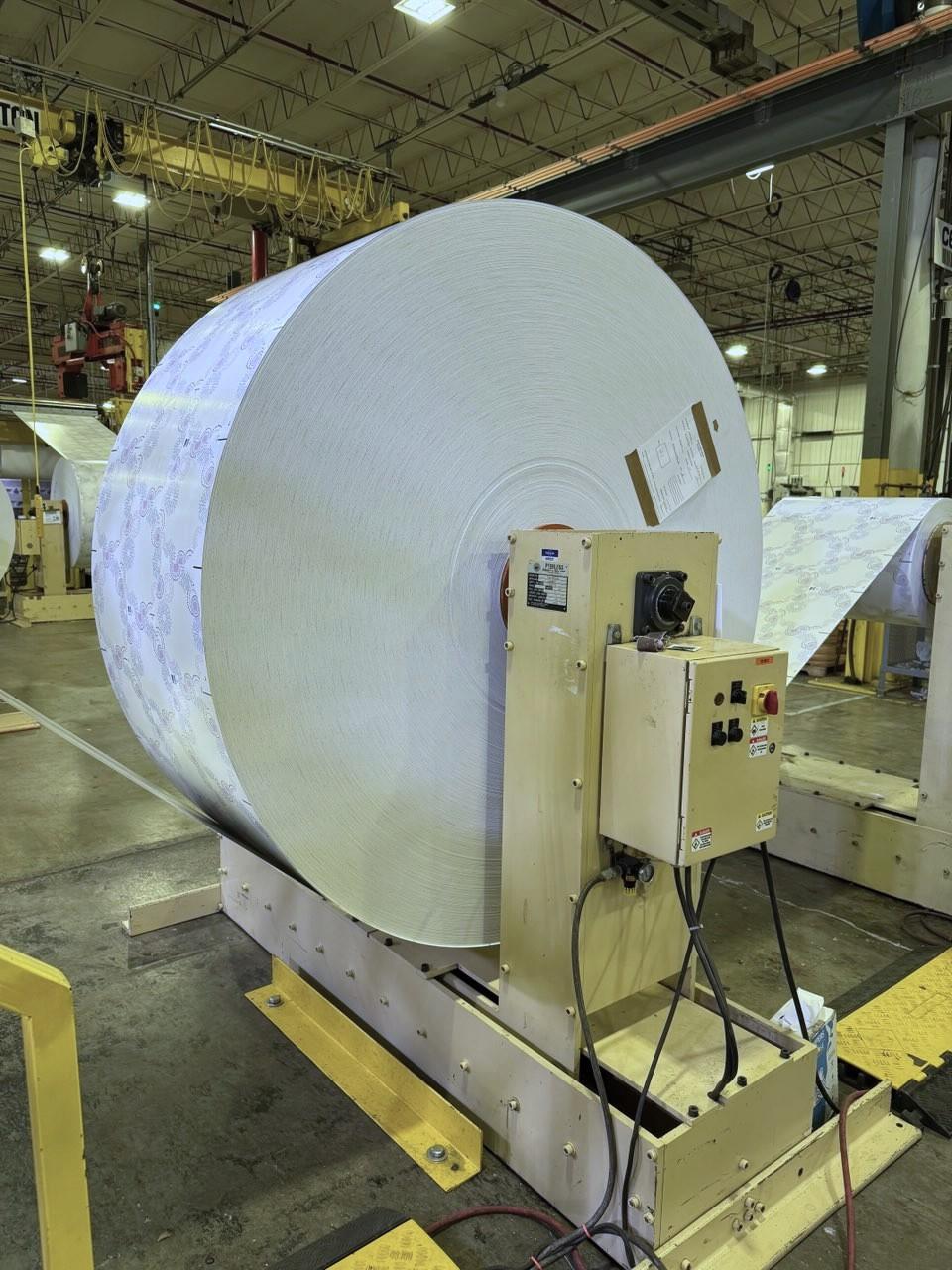

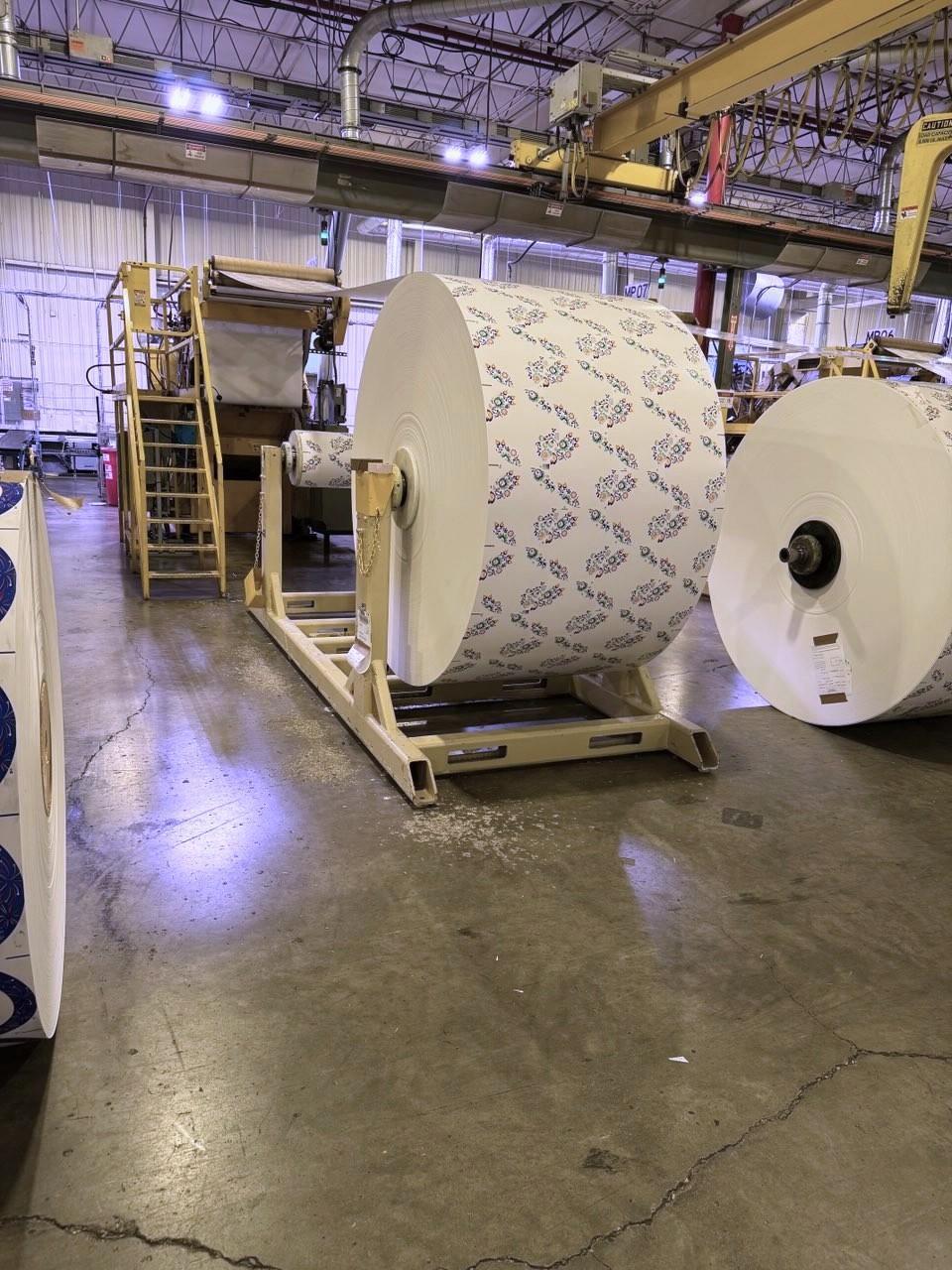

Peerless 44” Shaftless Roll

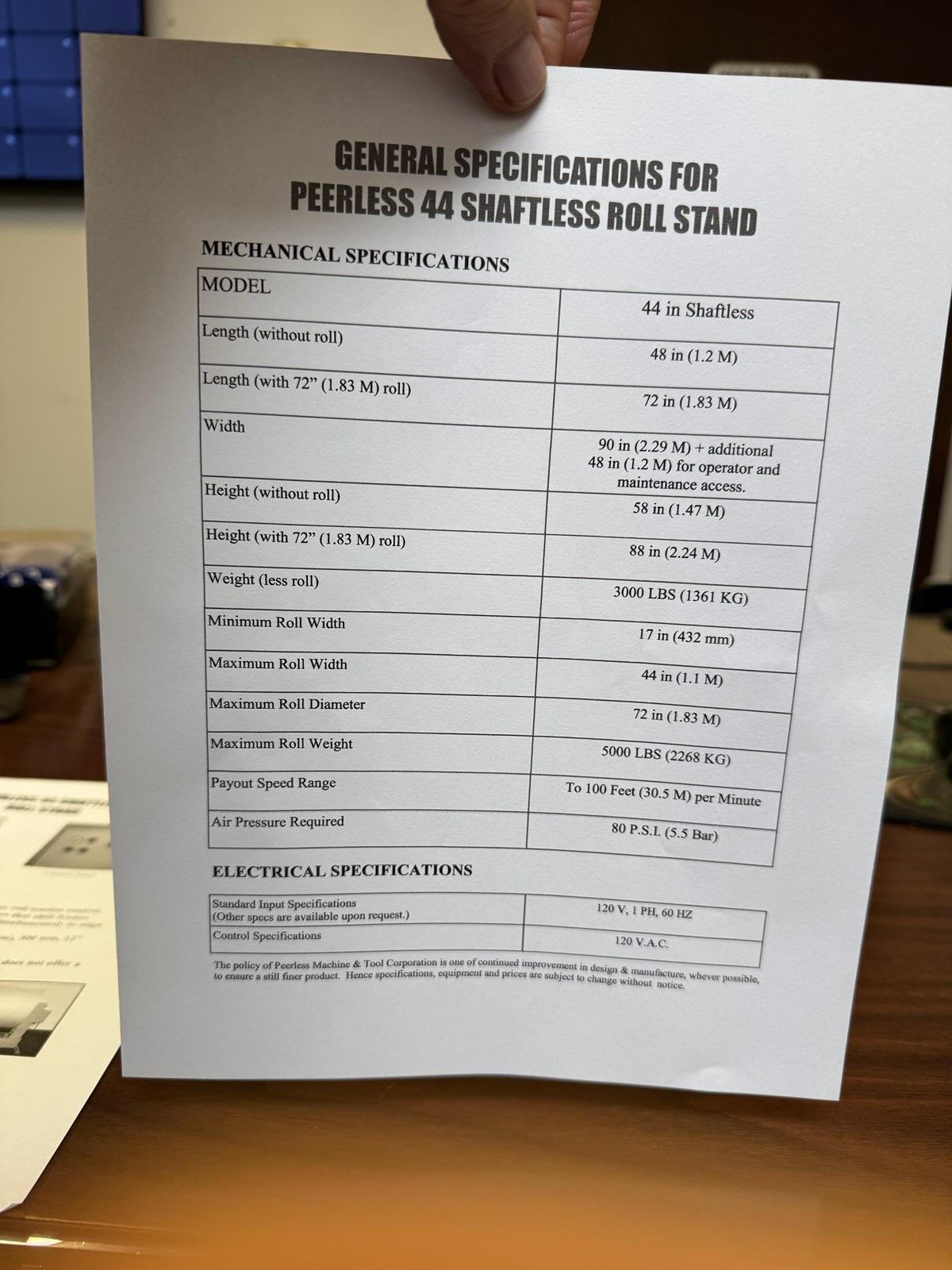

Model 44” Shaftless Roll Stand

Length (without roll) 48 in (1.2 m)

Length (with 72” roll) 72 in (1.83 m)

Overall Width 90 in (2.29 m) + additional 48 in (1.2 m) clearance

Height (without roll) 58 in (1.47 m)

Height (with 72” roll) 88 in (2.24 m)

Weight (less roll) 3,000 lbs (1,361 kg)

Minimum Roll Width 17 in (432 mm)

Maximum Roll Width 44 in (1.1 m)

Maximum Roll Diameter 72 in (1.83 m)

Maximum Roll Weight 5,000 lbs (2,268 kg)

Payout Speed Range Up to 100 ft (30.5 m) per minute

Air Pressure Required 80 PSI (5.5 bar)

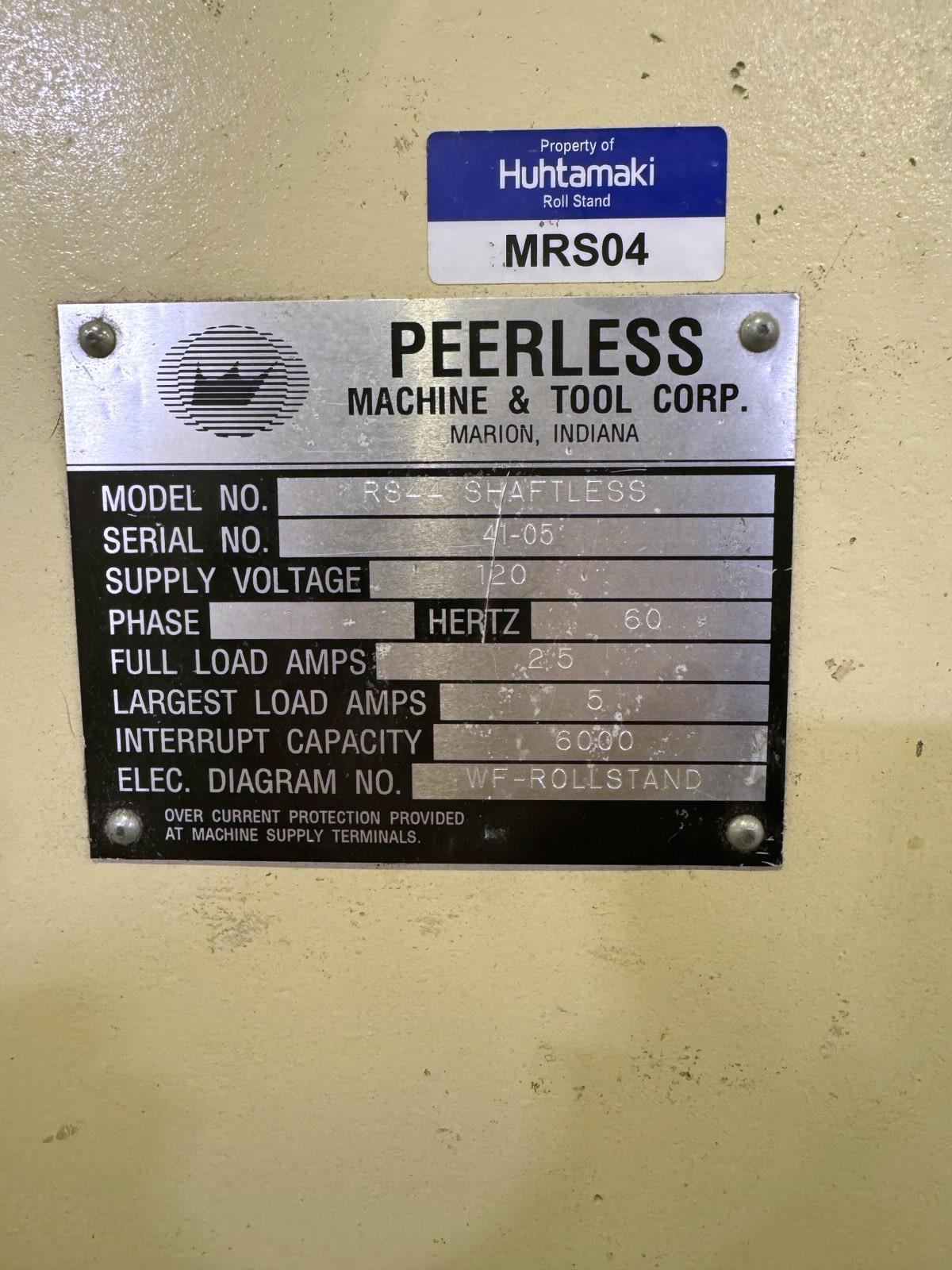

Electrical Specifications

Standard Input: 120V, 1 Phase, 60 Hz

Controls: 120V A.C.

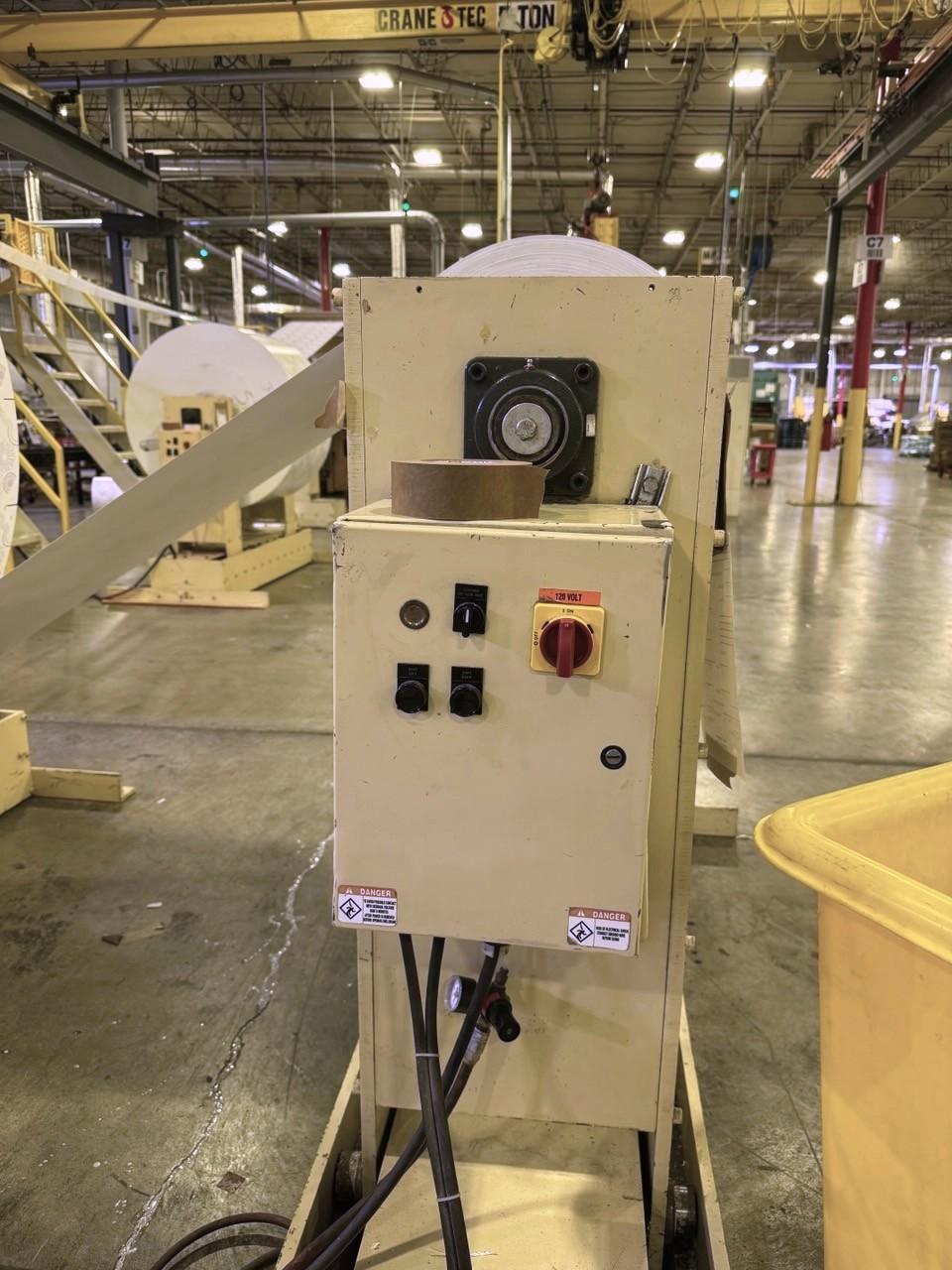

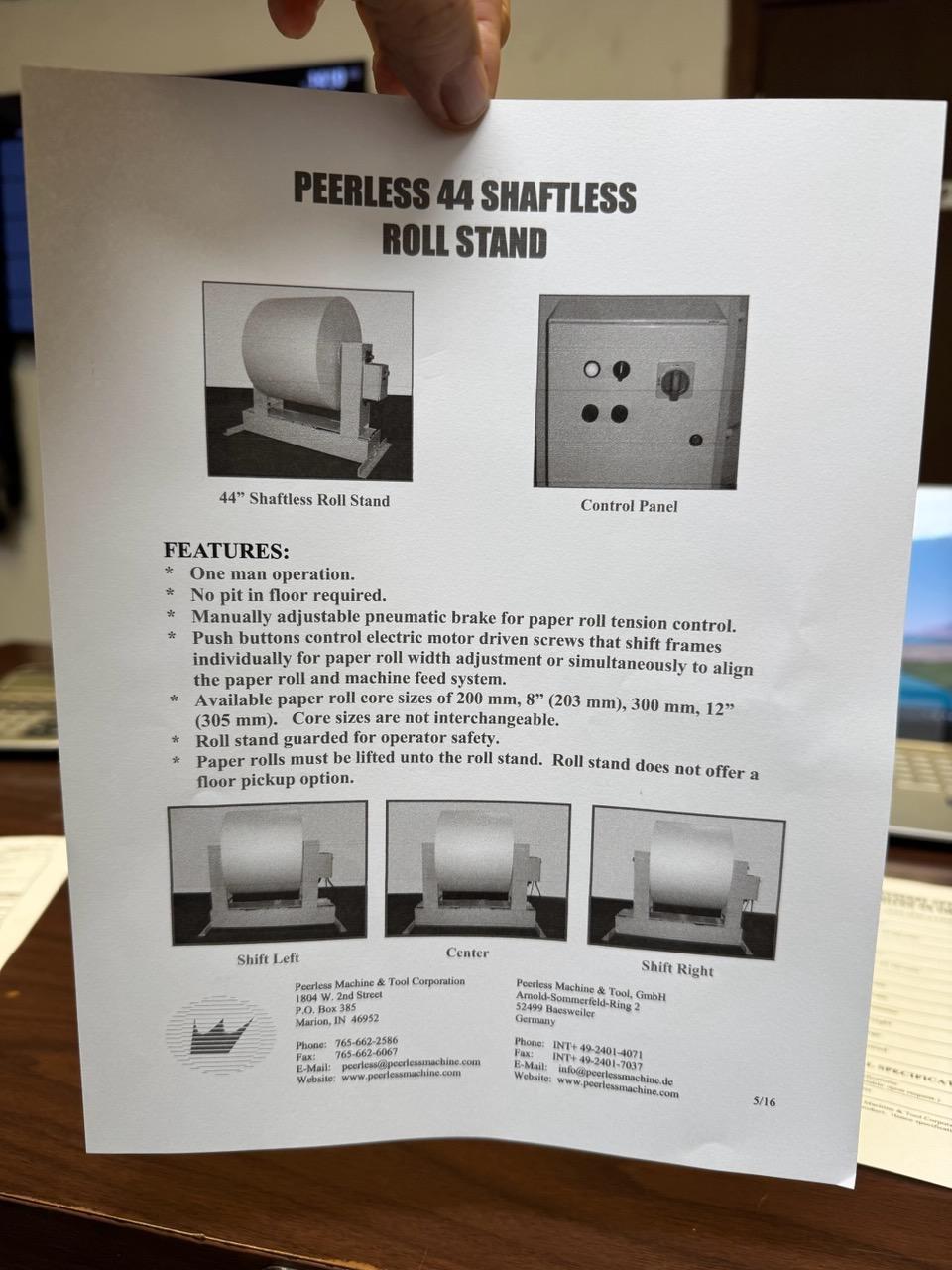

FEATURES: * One man operation. * No pit in floor required. * Manually adjustable pneumatic brake for paper roll tension control. * Push buttons control electric motor driven screws that shift frames individually for paper roll width adjustment or simultaneously to align the paper roll and machine feed system. * Available paper roll core sizes of 200 mm, 8” (203 mm), 300 mm, 12” (305 mm). Core sizes are not interchangeable. * Roll stand guarded for operator safety. * Paper rolls must be lifted unto the roll stand. Roll stand does not offer a floor pickup option.

As is, where is.
