Mazak MTV-655/60N CNC Vertical Machining Center, Year 10/1999

Brand
MAZAK

Model
MTV-655/60N

Type
Accumulators

Stock #
LMICS-104-011

Condition
Used

Year
1999

Location
New Hope, Michigan
United States

Price

$17,500.00

Request a Quote

Specifications

Equipped With

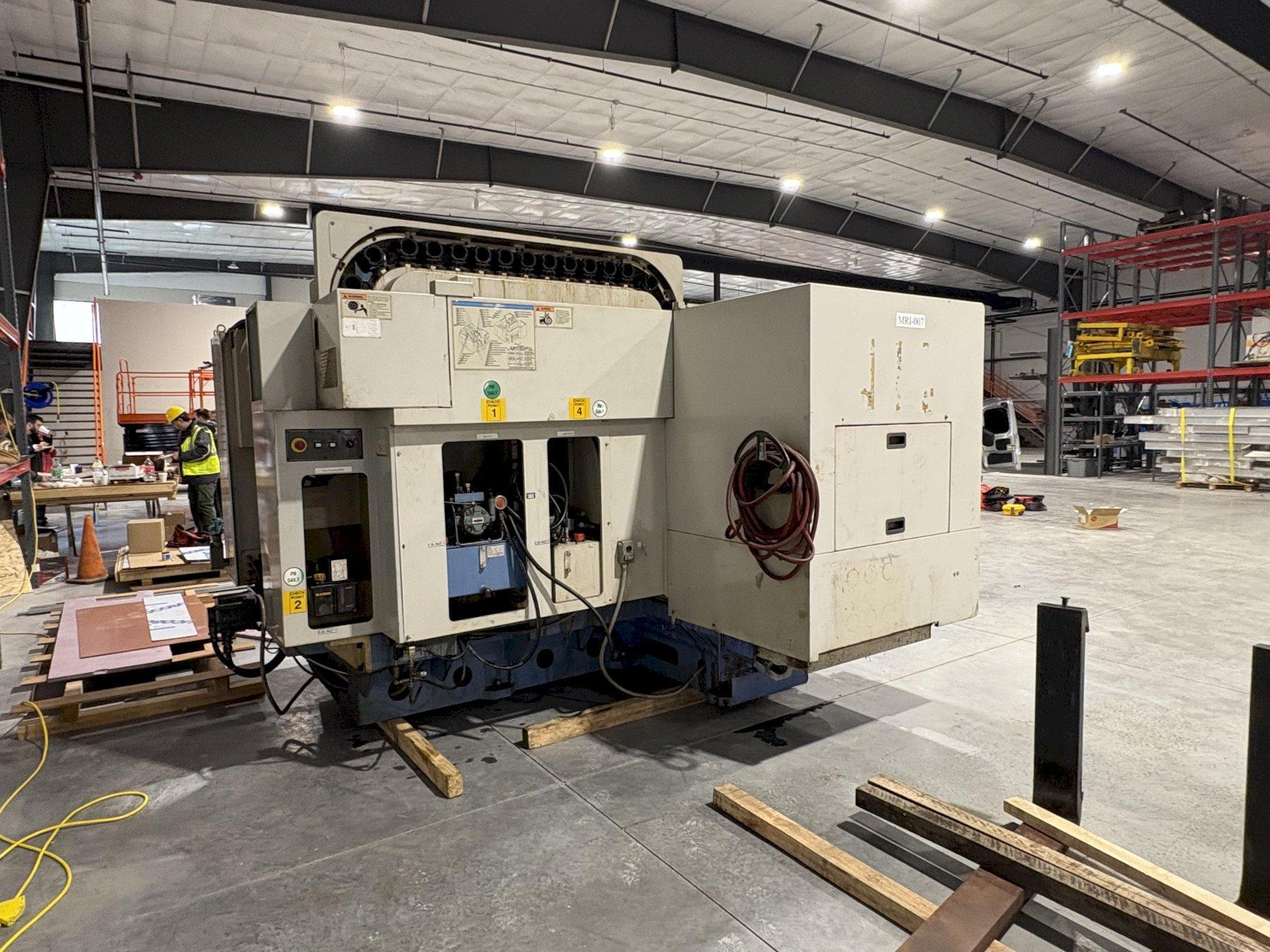

Mazak MTV-655/60N CNC Vertical Machining Center

The

Yamazaki Mazak MTV-655/60N

is a heavy-duty vertical machining center designed for high-torque milling and precision.

Condition: Used but in good running condition.

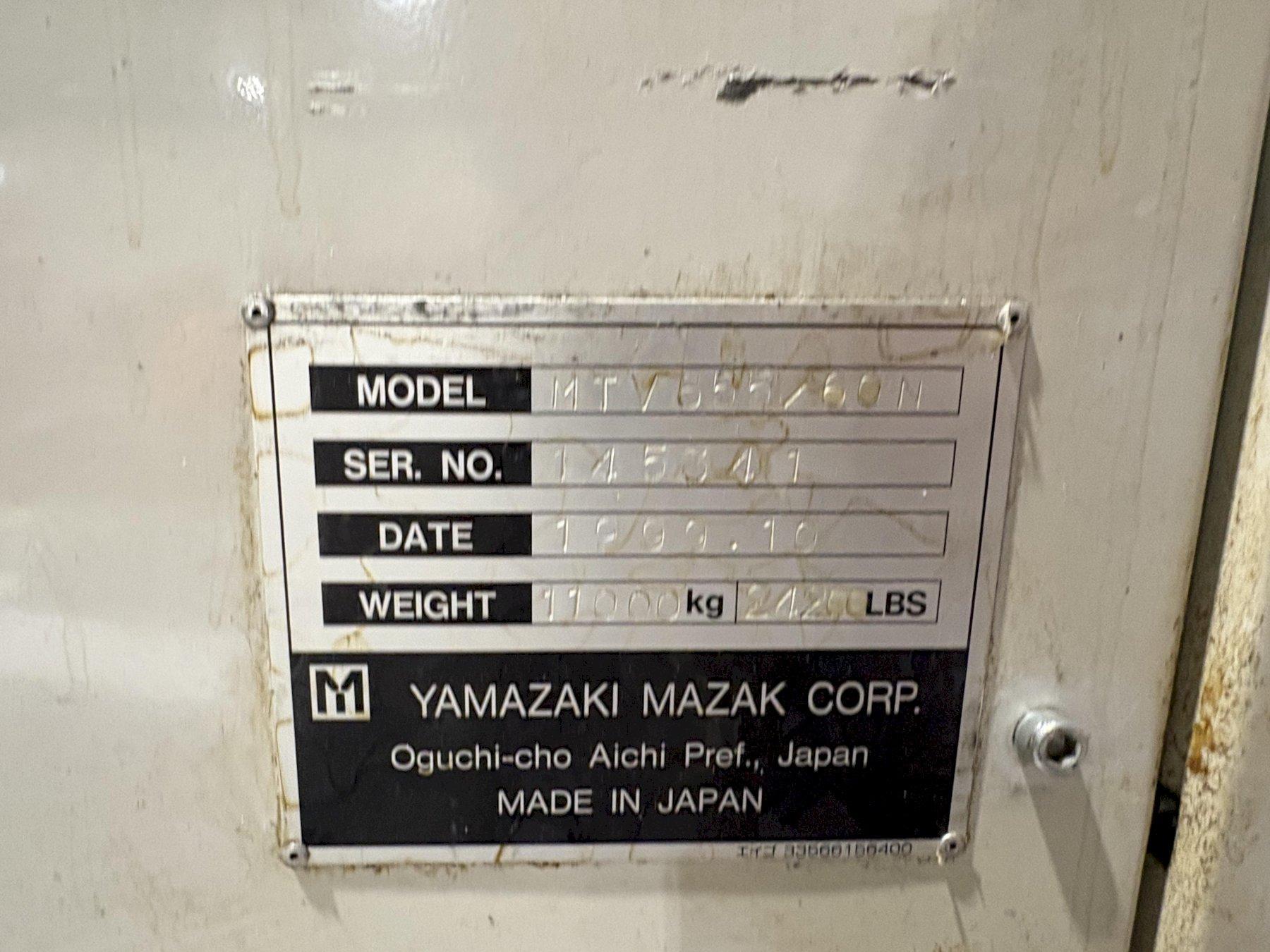

Year: October 1999
As is, where is

From the Manufacturer:

Technical Specifications

Travels:
- X-Axis: 59.06" (1,500 mm)
- Y-Axis: 25.59" (650 mm)
- Z-Axis: 25.59" (650 mm)
Table:
- Dimensions: 68.5" x 25.6" (1,740 mm x 650 mm)
- Maximum Load: 4,409 lbs (2,000 kg)
Spindle:
- Speed: 6,000 RPM
- Taper: CAT 50 or BT 50
- Motor Power: 25 HP (18.5 kW)
- Maximum Torque: 560 ft-lbs (759 Nm)
Tool Changer (ATC):
- Capacity: 30 tools (60 tools optional on some models)
- Max Tool Diameter: 4.92" (125 mm)
- Max Tool Length: 15.74" (400 mm)
- Max Tool Weight: 44 lbs (20 kg)
Feed Rates:
- Rapid Traverse (X/Y): 1,024 IPM (26 m/min)
- Rapid Traverse (Z): 787 IPM (20 m/min)
Physical Characteristics:
- Machine Weight: Approx. 24,251 lbs (11,000 kg)
- Floor Space Required: 175" x 155.3" x 117.8"

Standard Control Systems

Commonly equipped with Mazak’s conversational CNC controls:

Mazatrol Fusion 640M
Mazatrol M Plus (on older versions)

Designed with quality, efficiency, ease of operation and safety in mind, the MTV-655/60 features a high-torque spindle and high-rigidity machine construction ideal for heavy-duty machining.

This vertical machining center is equipped with a robust #50 taper spindle that provides a top speed of 6000 rpm, 25 hp, and maximum torque of 759Nm to deliver high efficiency machining of parts from a wide variety of materials. Plus, the column-feed machine design with wide machining area makes this machine easy and safe to operate.

Part of the MTV Series, which includes machines in a range of sizes and capacities, the MTV-655/60 handles parts up to 59.06" x 25.59" x 25.59".
