Equipment Description:

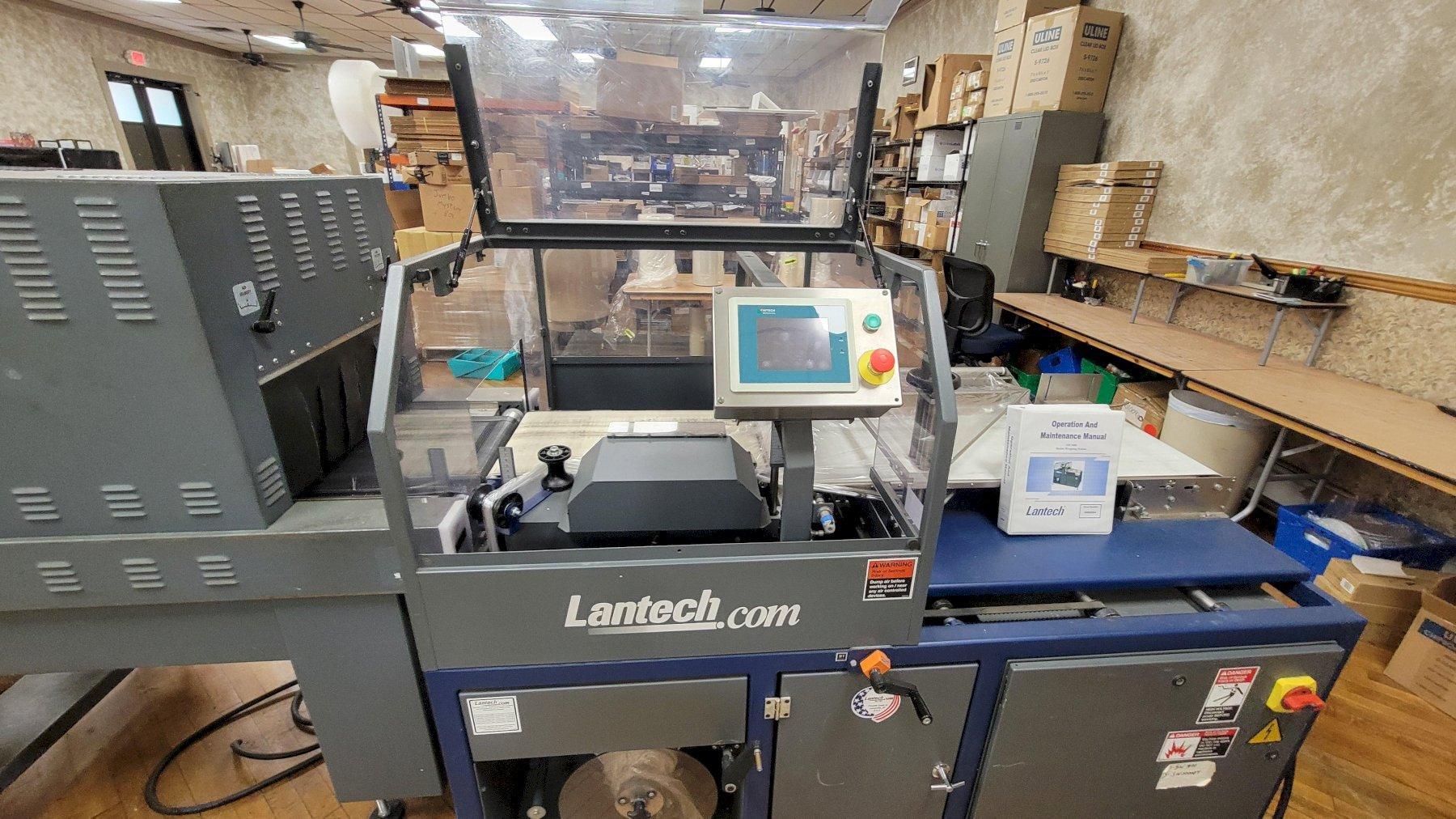

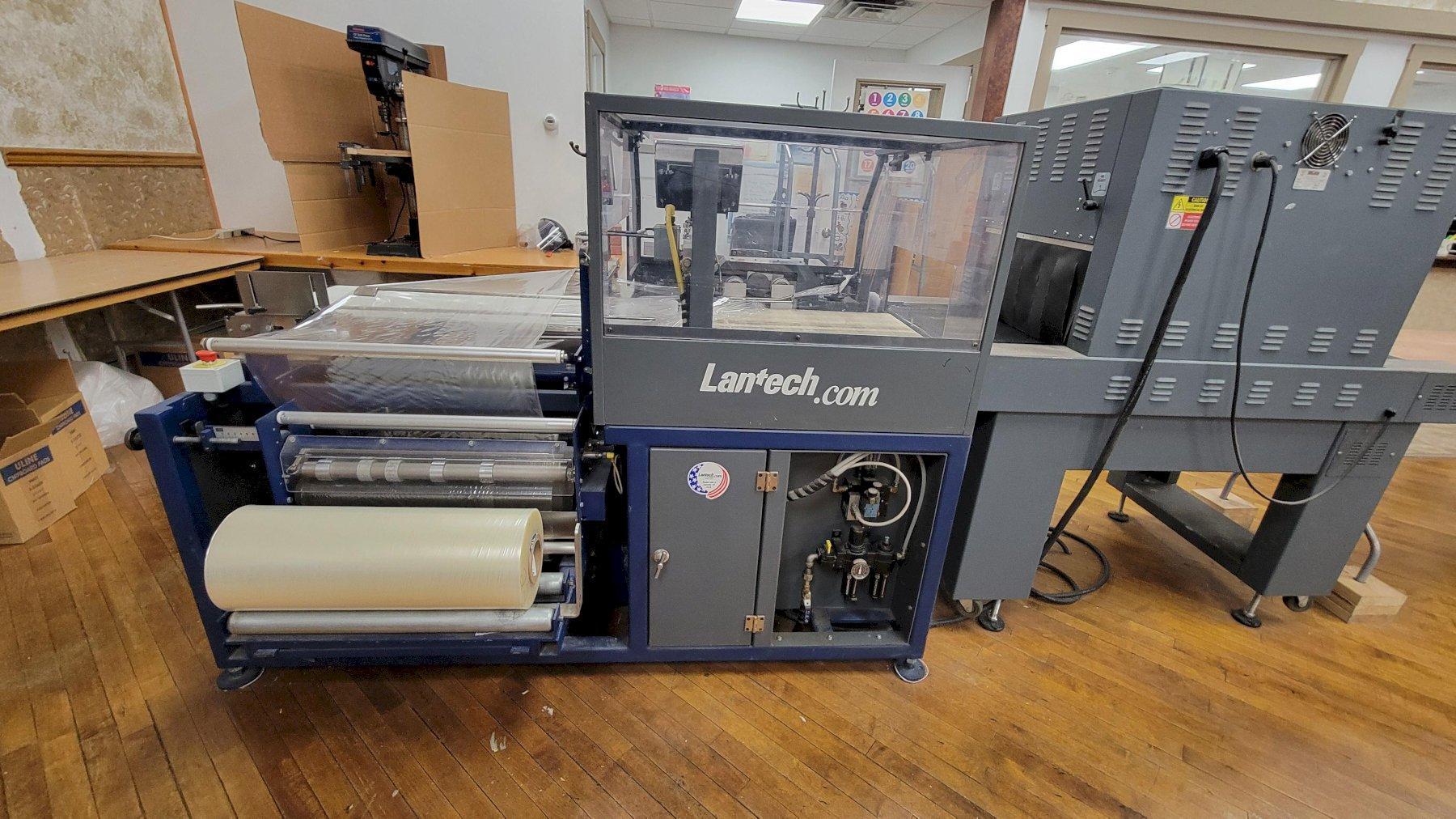

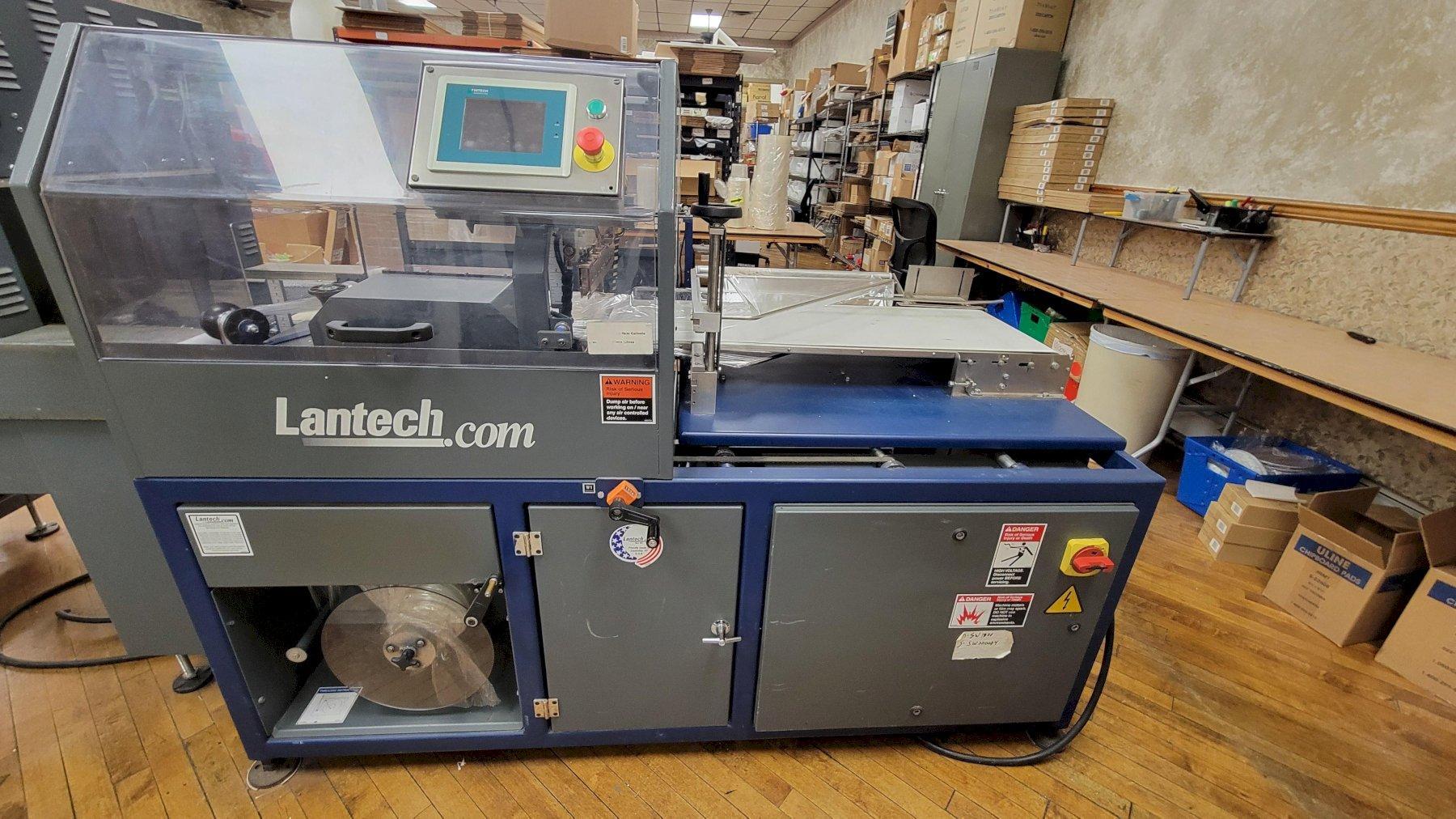

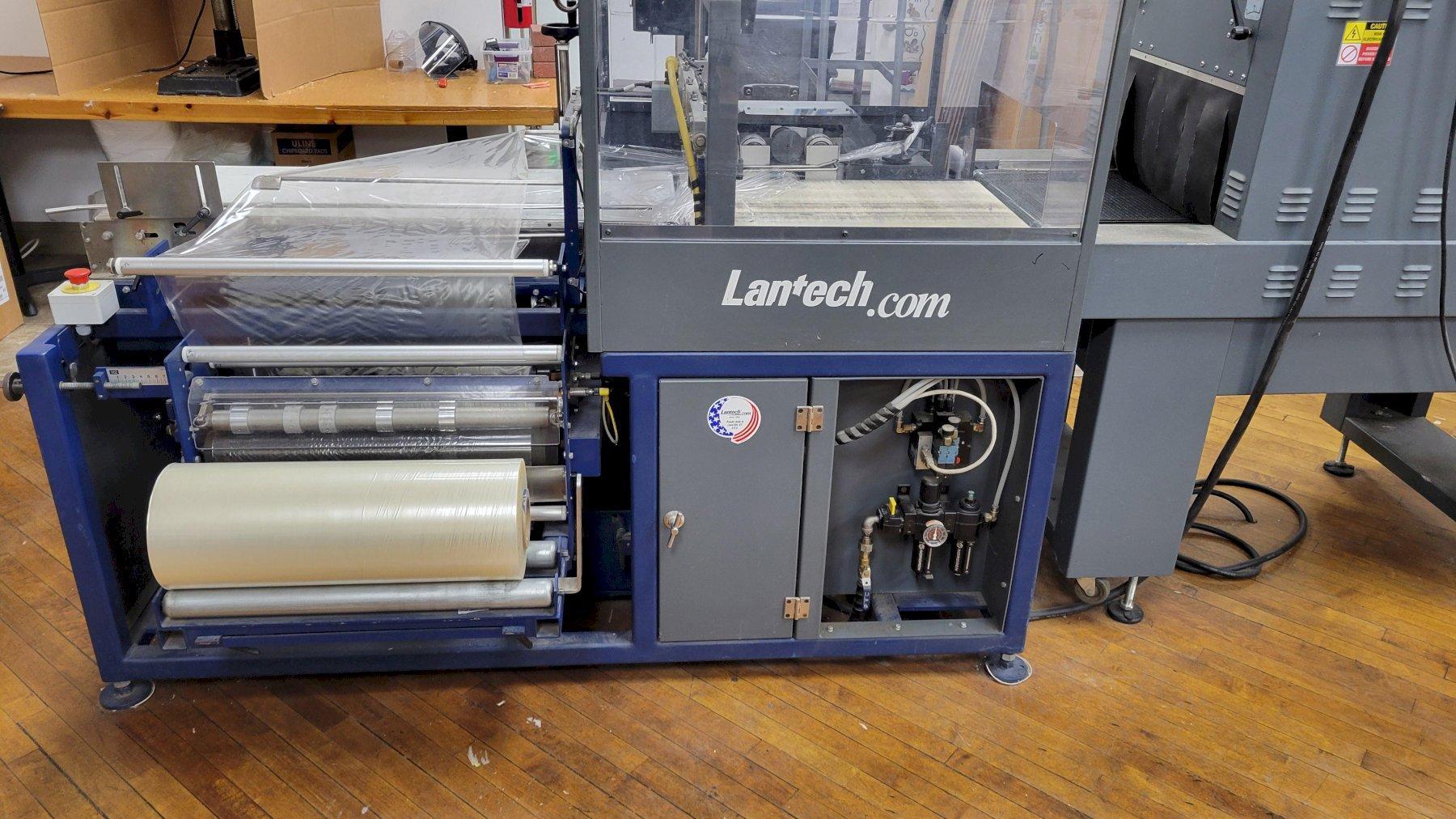

Used- Lantech Model SW1000 Automatic Side Seal Shrink Wrapper.

Capable of speeds up to 40 packages per minute or 90 lineal feet per minute has side seal.

•     Production output rate:
•         Up to 40 packages per minute
•     Belt infeed: 15.5 inches
•     Seal bar width: 18 inches
•     Minimum product dimensions:
•         3 length x 1 width x 0.125 height (inches)
•     Maximum product dimensions:
  • Infinite length x 15 width x 8 height (inches)

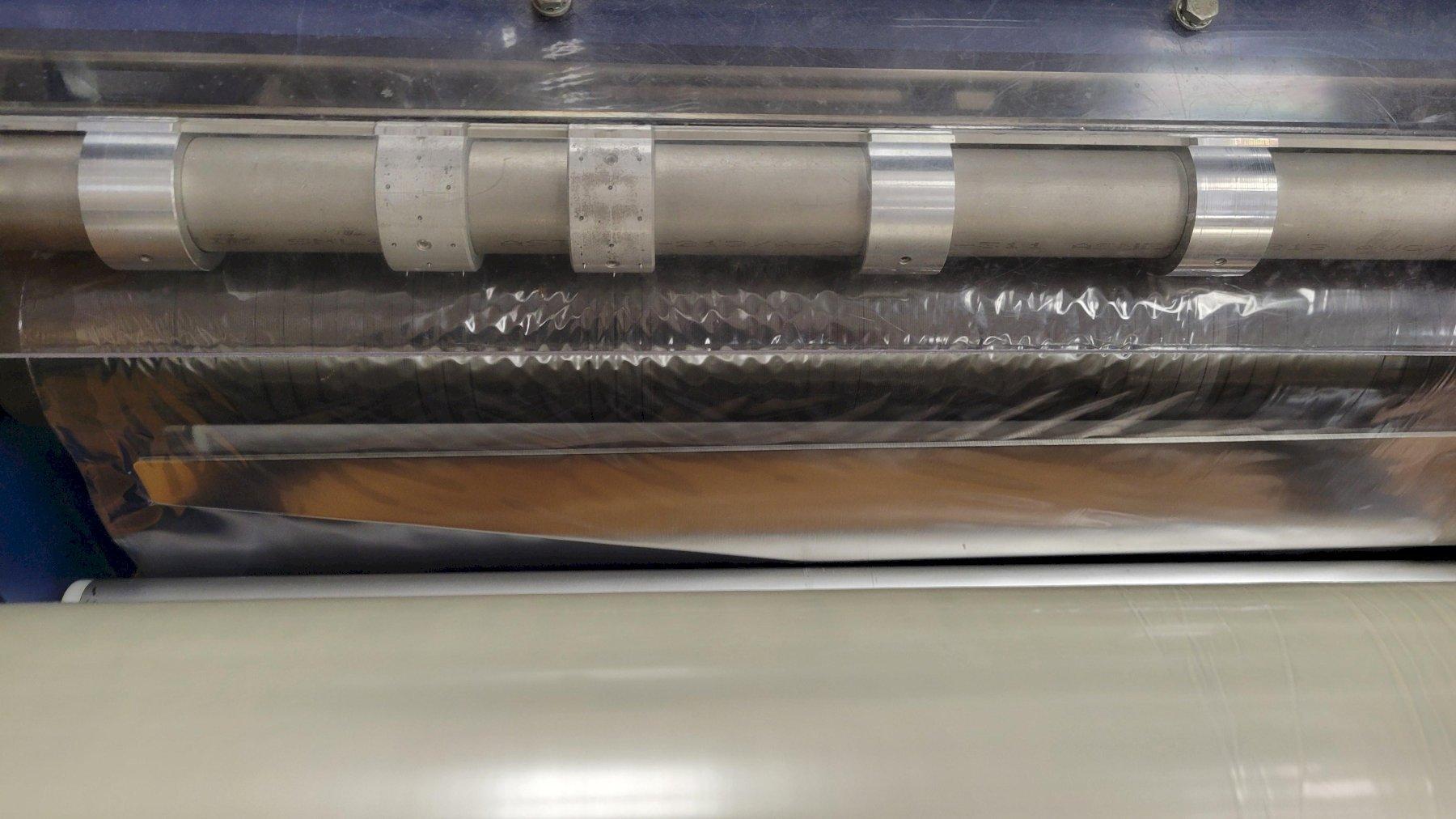

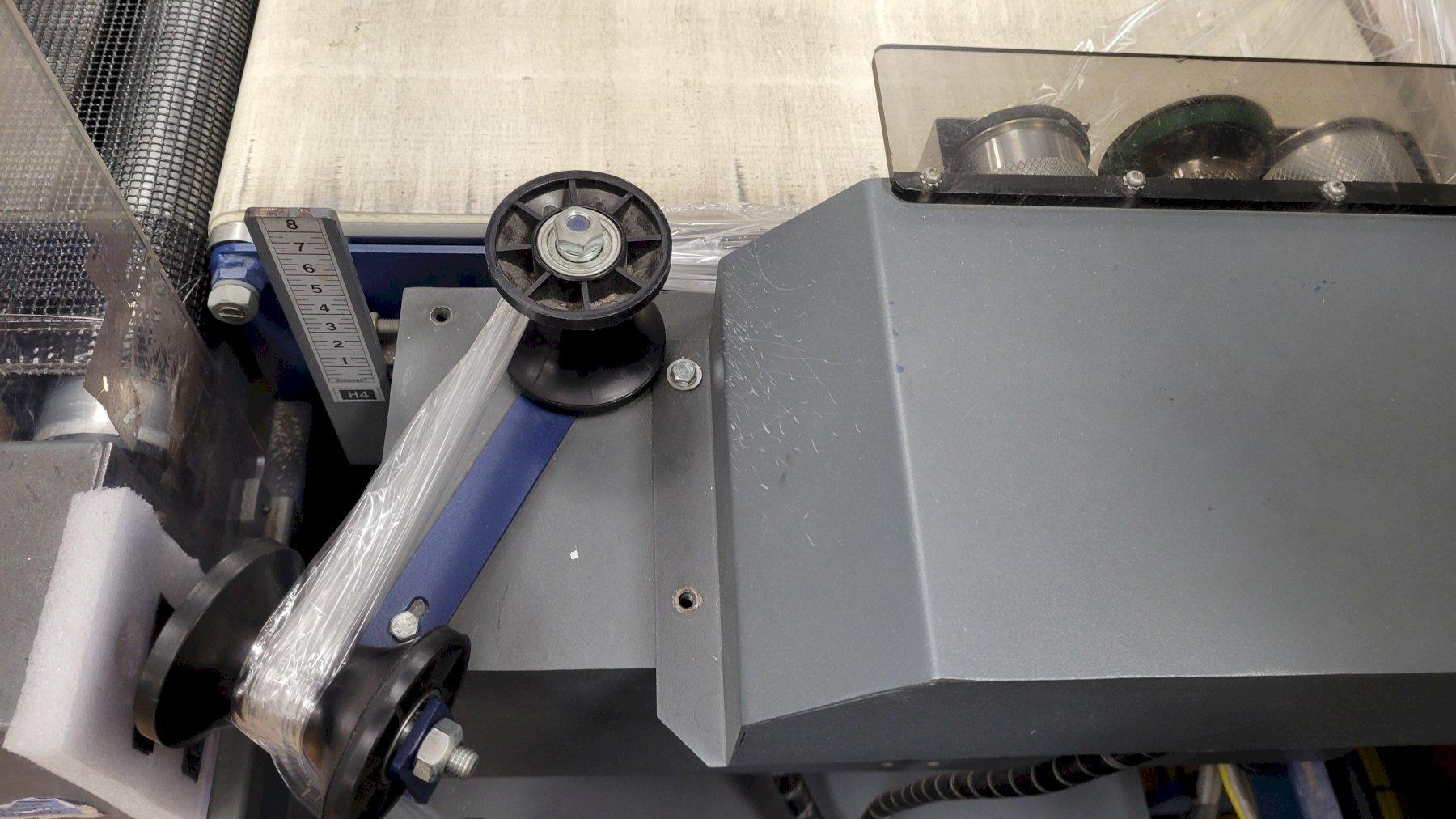

•     Adjustable film inverting head
•     Film width range:
  • 6 to 24 inches
•     Cross seal:
  • Hot knife
  • 18 inch width
•     Film width range: 6 - 24 inches

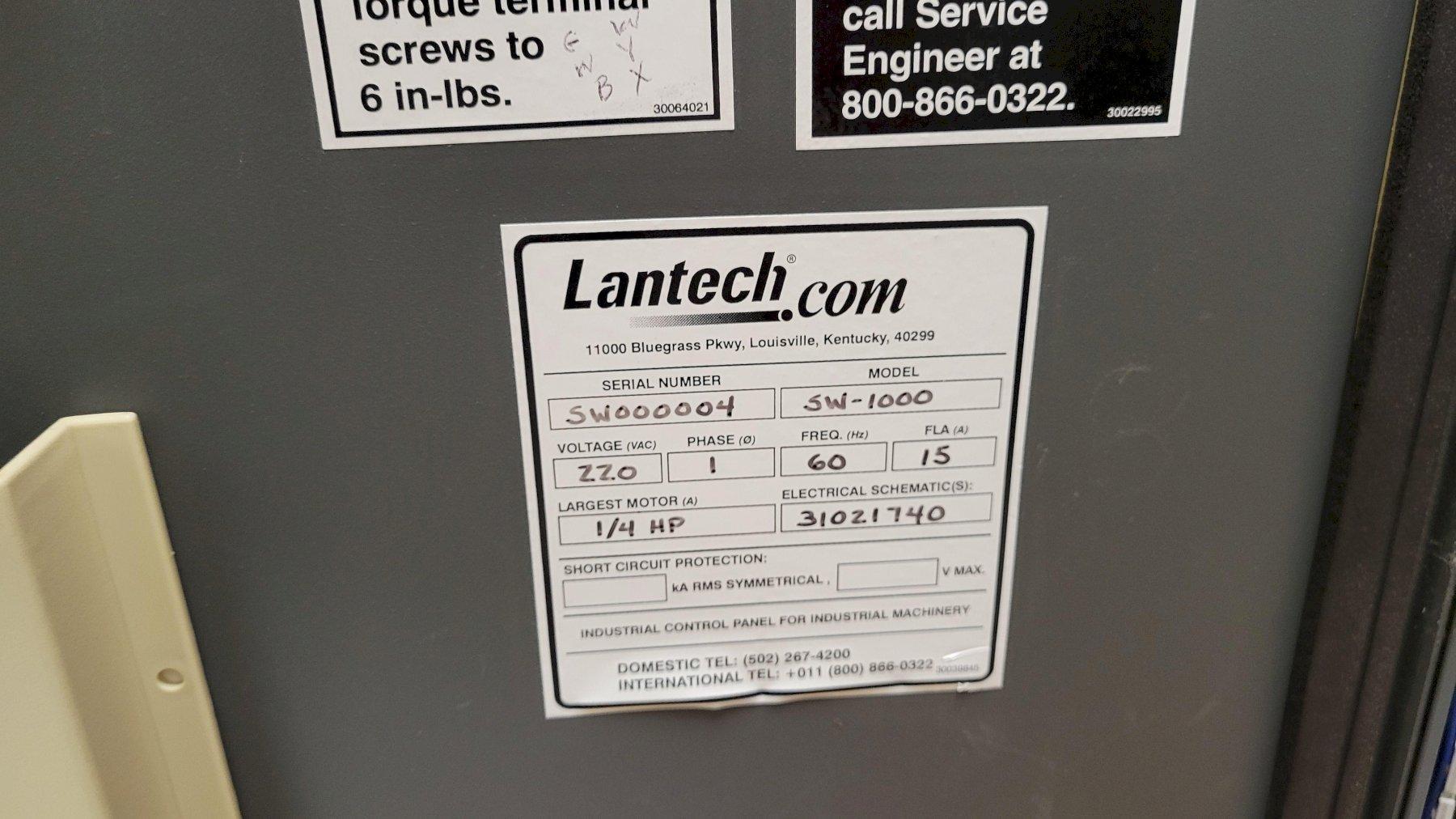

•     Power supply: 230 voltage / 1 phase / 60 hertz / 15 amps
•     Approximate overall dimensions (inches): 72 long x 45 wide x 35 high

• Intermittent motion. Package size range: 3" to infinite (length) x 1" to 15" (width) x 1/8" to 8" (height).
• Hot knife cross seal width of 18". Film width (centerfolded) 6" to 24", PLC controls.

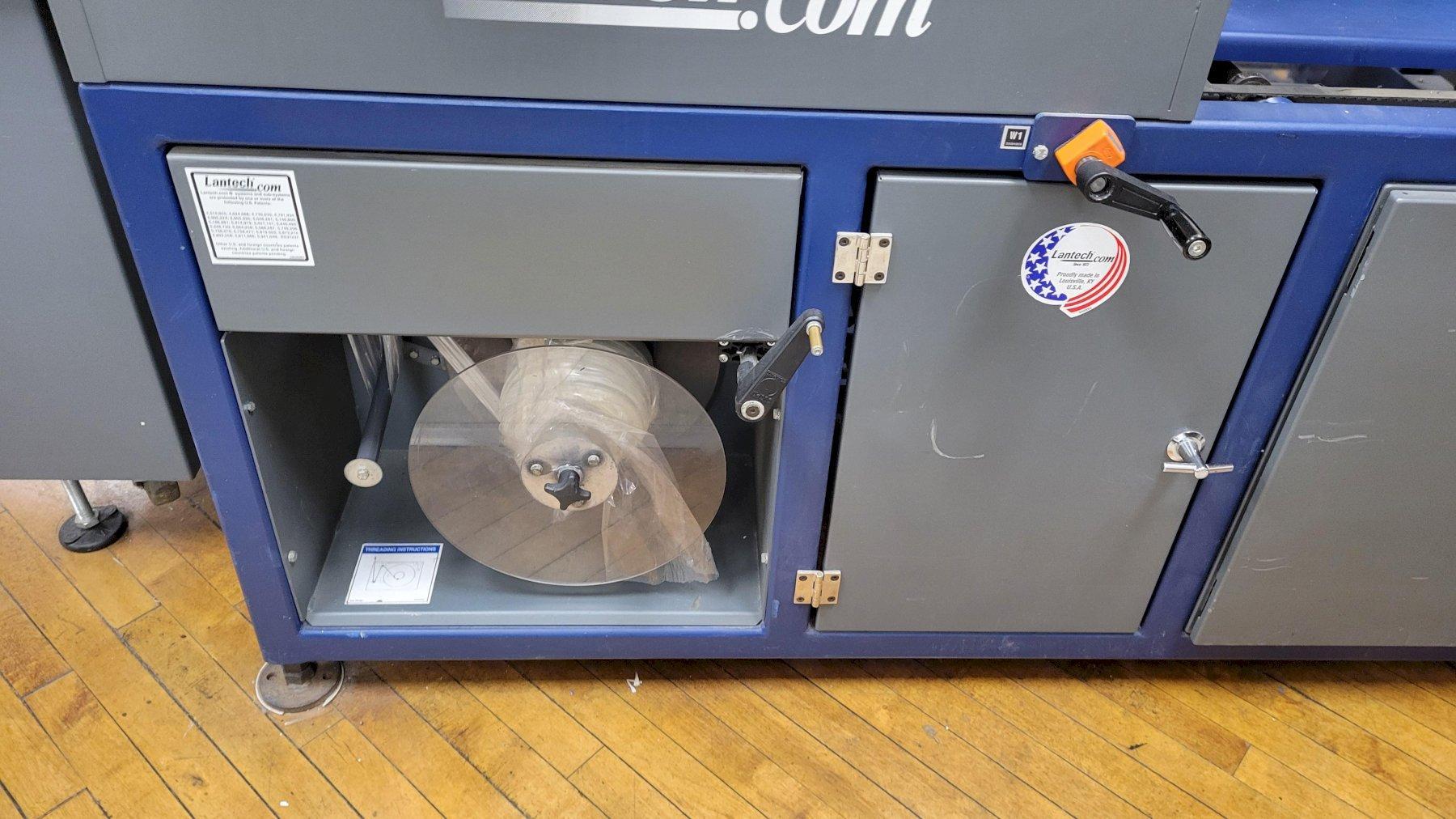

• Mechanical scrap rewind, adjustable film inverting head.

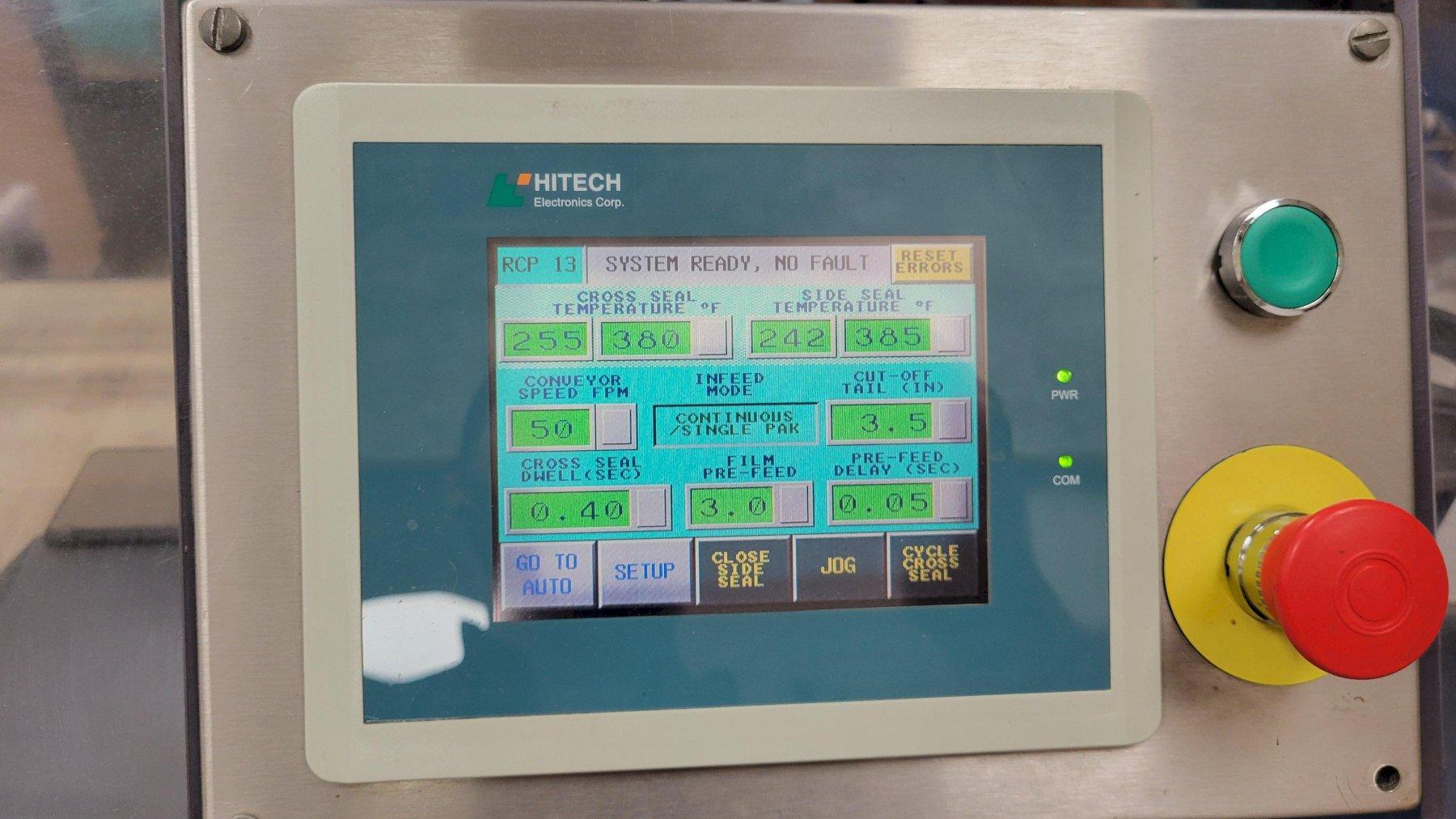

• Film types: most commercial grade polyolefin, PVC, some films may require change-parts. HMI digital read out.

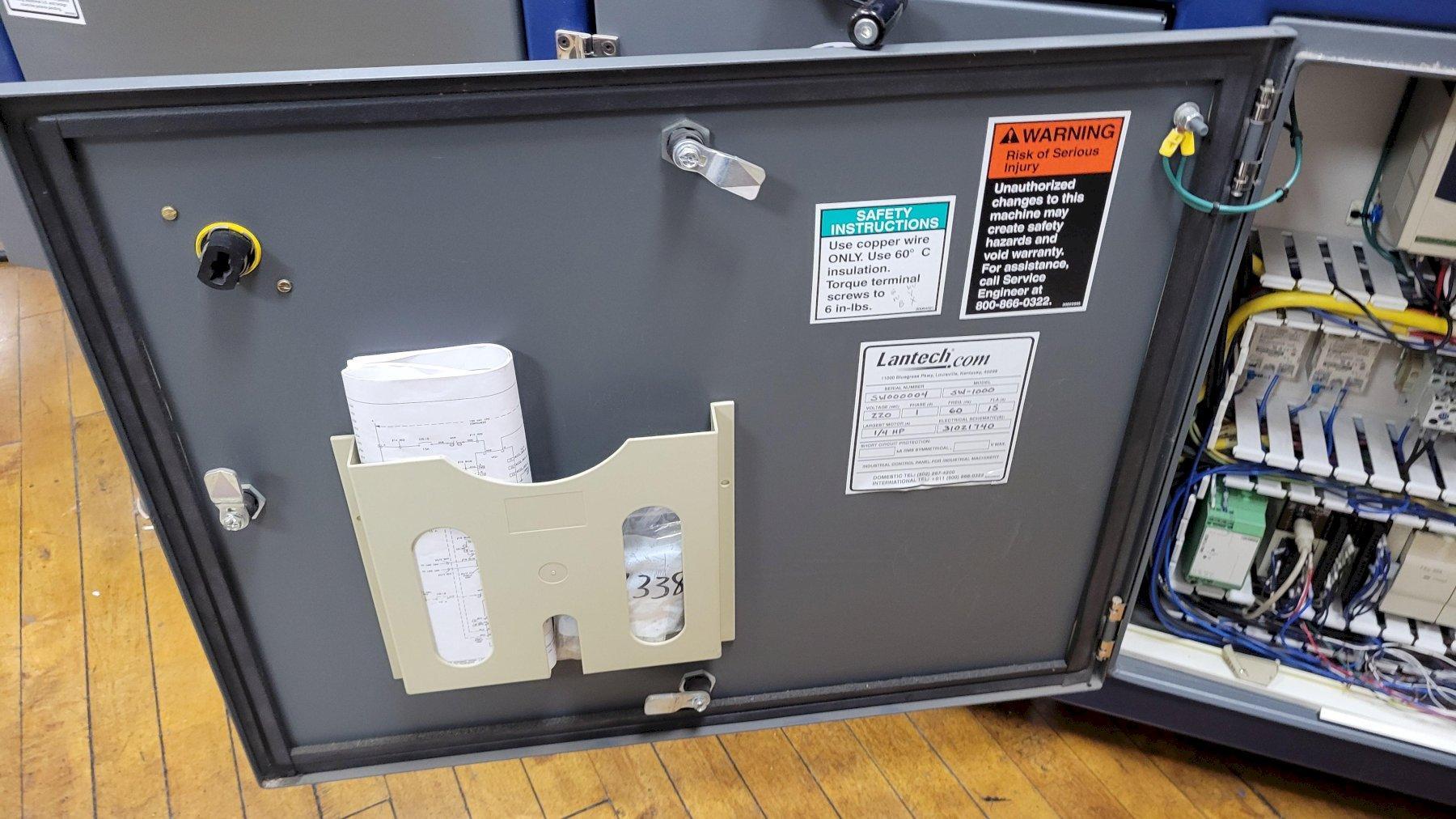

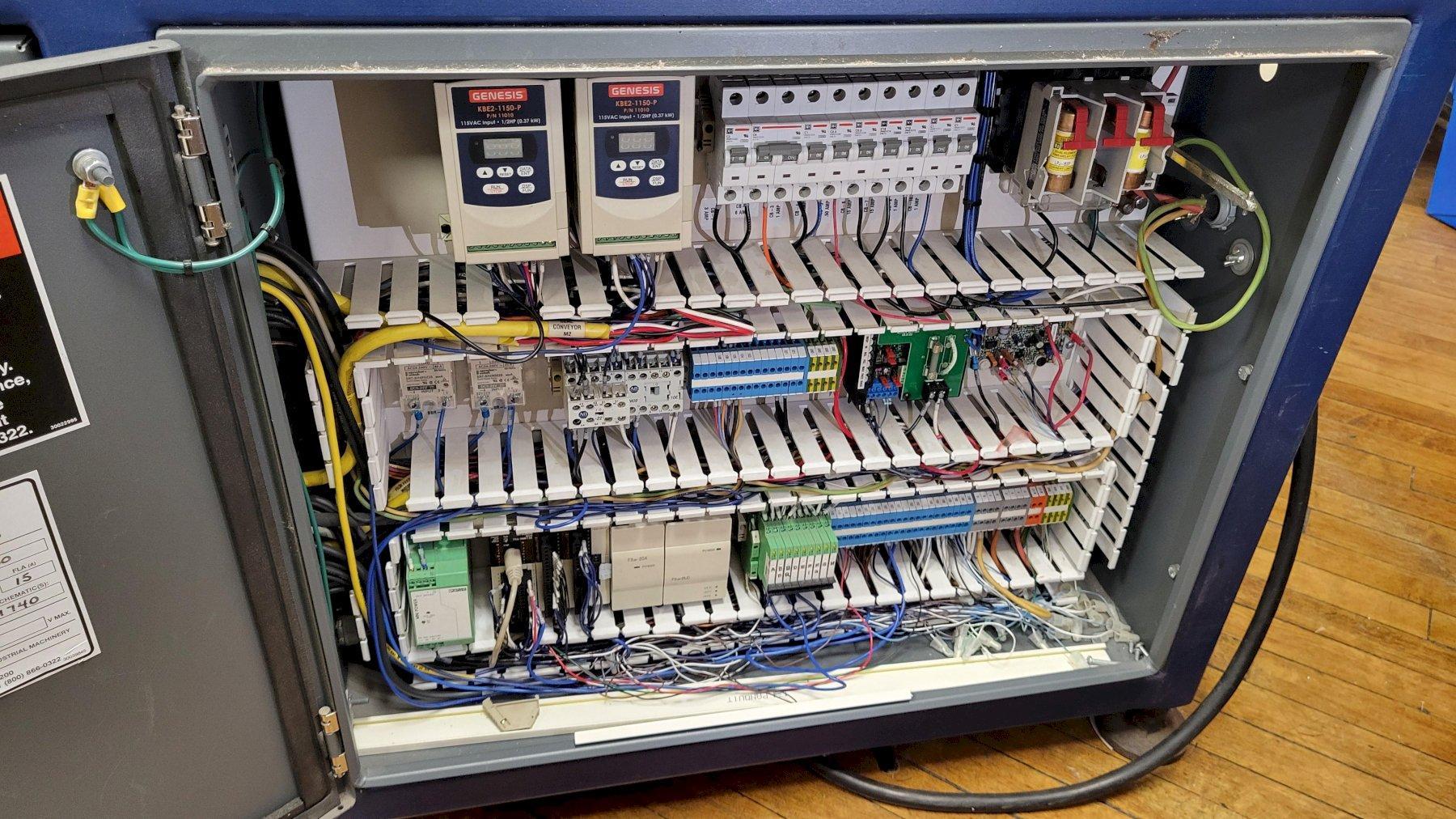

• Has Mitsubishi Model FX-2NC Controls
• Capable of speeds up to 70 feet per minute dependent on package configuration and film.

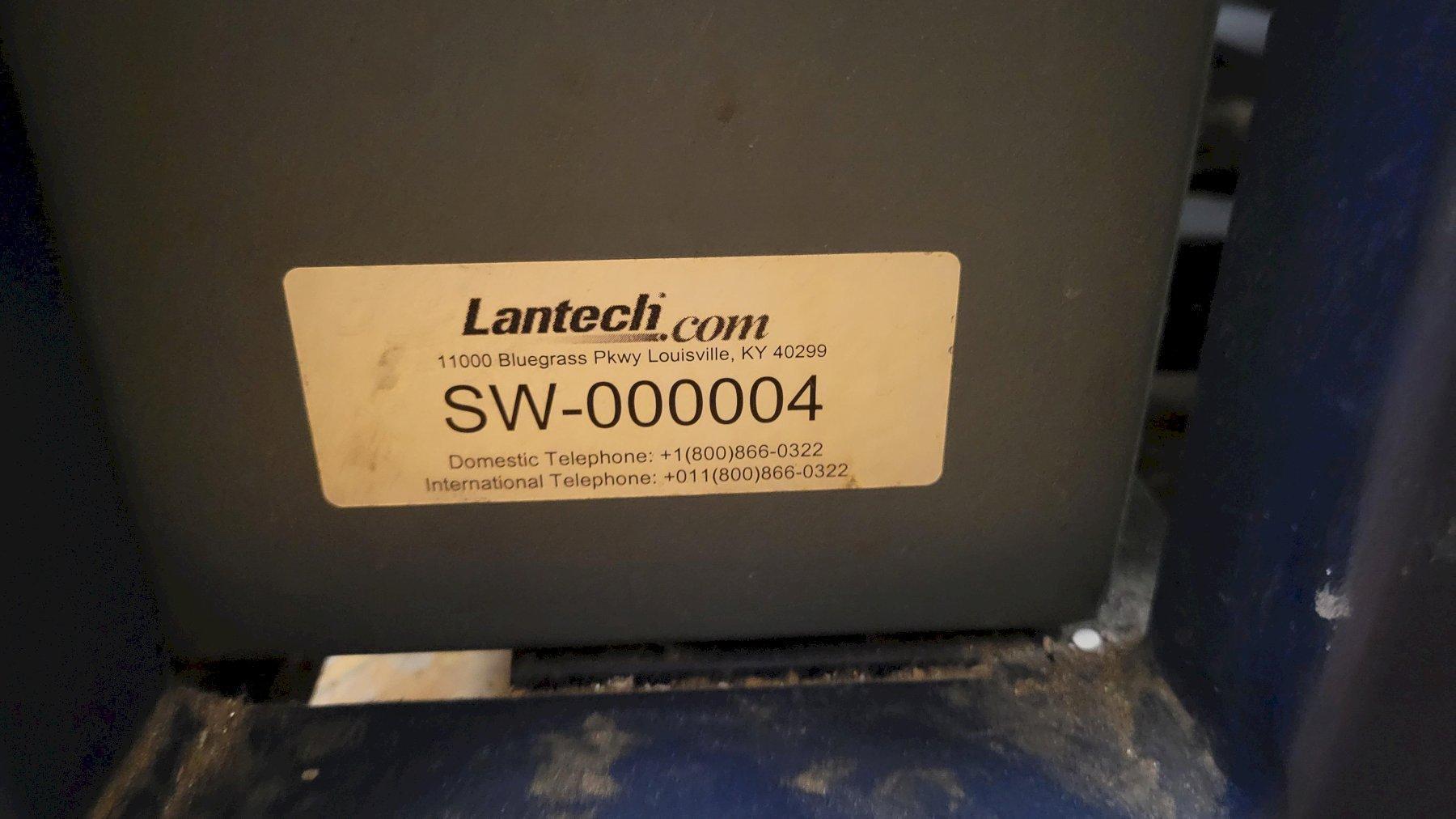

Serial: SW000004

Condition: used and in good condition. No issues, runs very good.

Updates within the last few years: New side-sealer cutter, new hot-knife and updated programming and micrologic battery for programming.

As is where is.

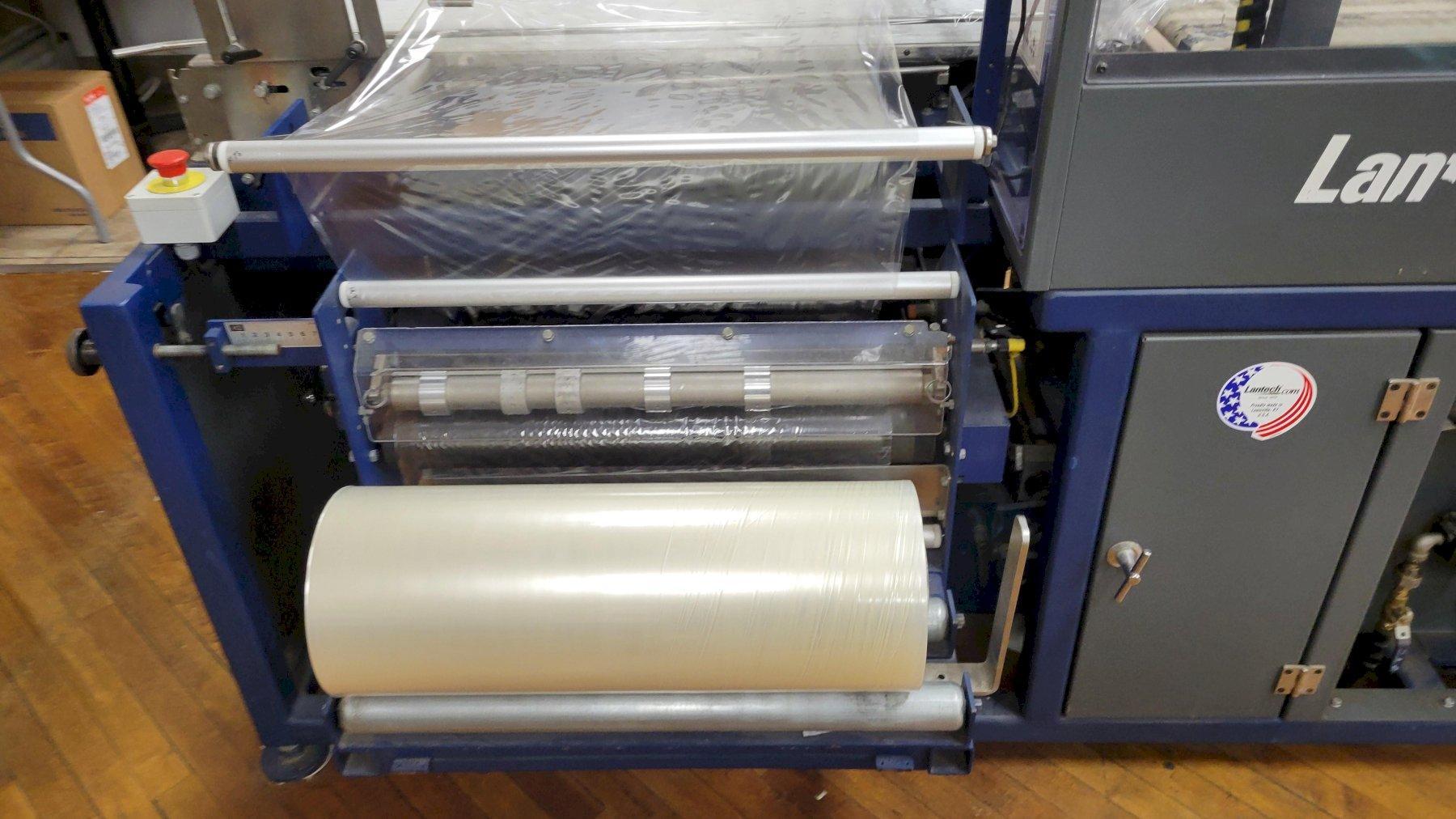

Extra Film: We have extra centerfold film at various sizes that may be purchased at an additional cost and shipped with unit.

There is a loading charge of $250 to be loaded on your truck.

Trucking: When you order a truck, send a "logistics van" so it can be strapped to the wall of the truck. Also, we can order a truck for you at an additional cost.


Can be inspected at: INTERSPECTIVE LLC in Port Carbon PA


From the Manufacturer:

·         Lantech's revolutionary SW-Series shrink wrappers eliminate many of the common shrink wrapping problems that often result in poor package quality.

·         Our simple, intuitive mechanical adjustments make it easy for operators to set up.

·         Our extra large operating sweet spot for time, speed and temperature control significantly improve "first out" quality.

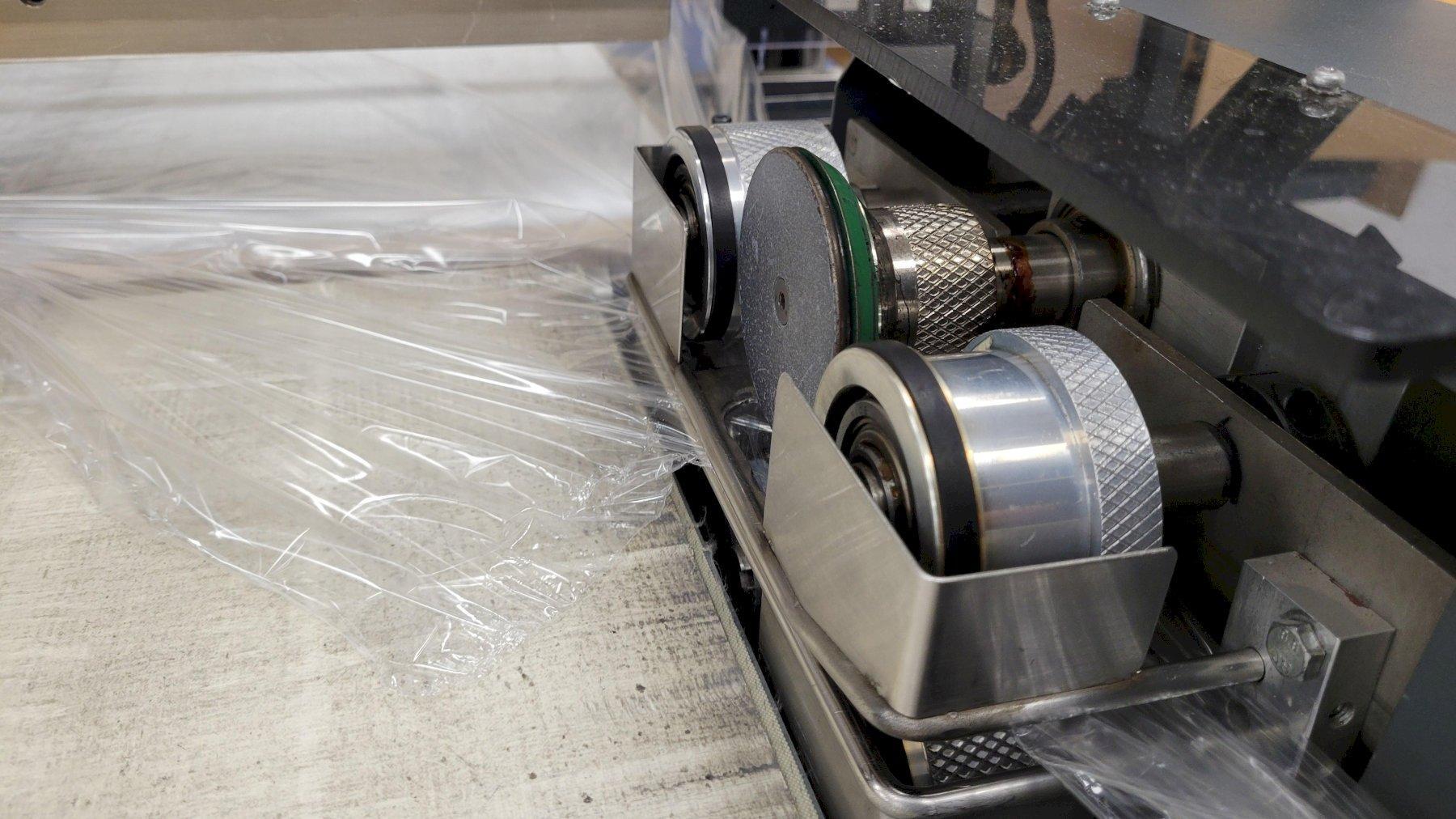

·         Our innovative side seal eliminates changes in seal quality result from dirt and/or film build-up on traditional hot wires.

·         Choose Lantech SW-Series shrink wrappers to significantly improve productivity levels by reducing rework that comes from poor package quality and reducing downtime associated with time consuming changeovers.

·         Most Commercial grade Polyolefin, PVC, LDPE. Some films may require change parts.

·         Mechanical with Electronic Tension control

·         Adjustable Film inverting Head

·         Top level access to primary machine functions, changeable without stopping machine Password Protection (3 levels)

·         Easily store and recall up to 16 basic recipes Diagnostic and maintenance features

·         Multiple Operating Modes Selections Through HMI

·         Intermittent or Continuous infeed Multipack or single package mode tall package 0-90 fpm

·         Horizontal/Vertical photo-eye
