Hitran 20 KVA Transformer 460 Delta To 230 Y / 133 VAC 3 Phase

Hitran 20 KVA Transformer 460 Delta To 230 Y / 133 VAC 3 Phase

Hitran 20 KVA Transformer 460 Delta To 230 Y / 133 VAC 3 Phase

Hitran 20 KVA Transformer 460 Delta To 230 Y / 133 VAC 3 Phase

Hitran 20 KVA Transformer 460 Delta To 230 Y / 133 VAC 3 Phase

Hitran 20 KVA Transformer 460 Delta To 230 Y / 133 VAC 3 Phase

Hitran 20 KVA Transformer 460 Delta To 230 Y / 133 VAC 3 Phase

Brand
HITRAN

Model
D3002042H6

Type
Transformers

Stock #
LMMA226

Condition
Used

Year
Not Specified

Location
Port Carbon, Pennsylvania
United States

Price

$257.00

Request a Quote

Specifications

Equipped With

Hitran Transformer 20 kVA, 3 Phase

Specifications:

Model: Hitran Transformer
Capacity: 20 kVA
Phase: 3 Phase
Frequency: 60 Hz
Type: DIT
Class: AA

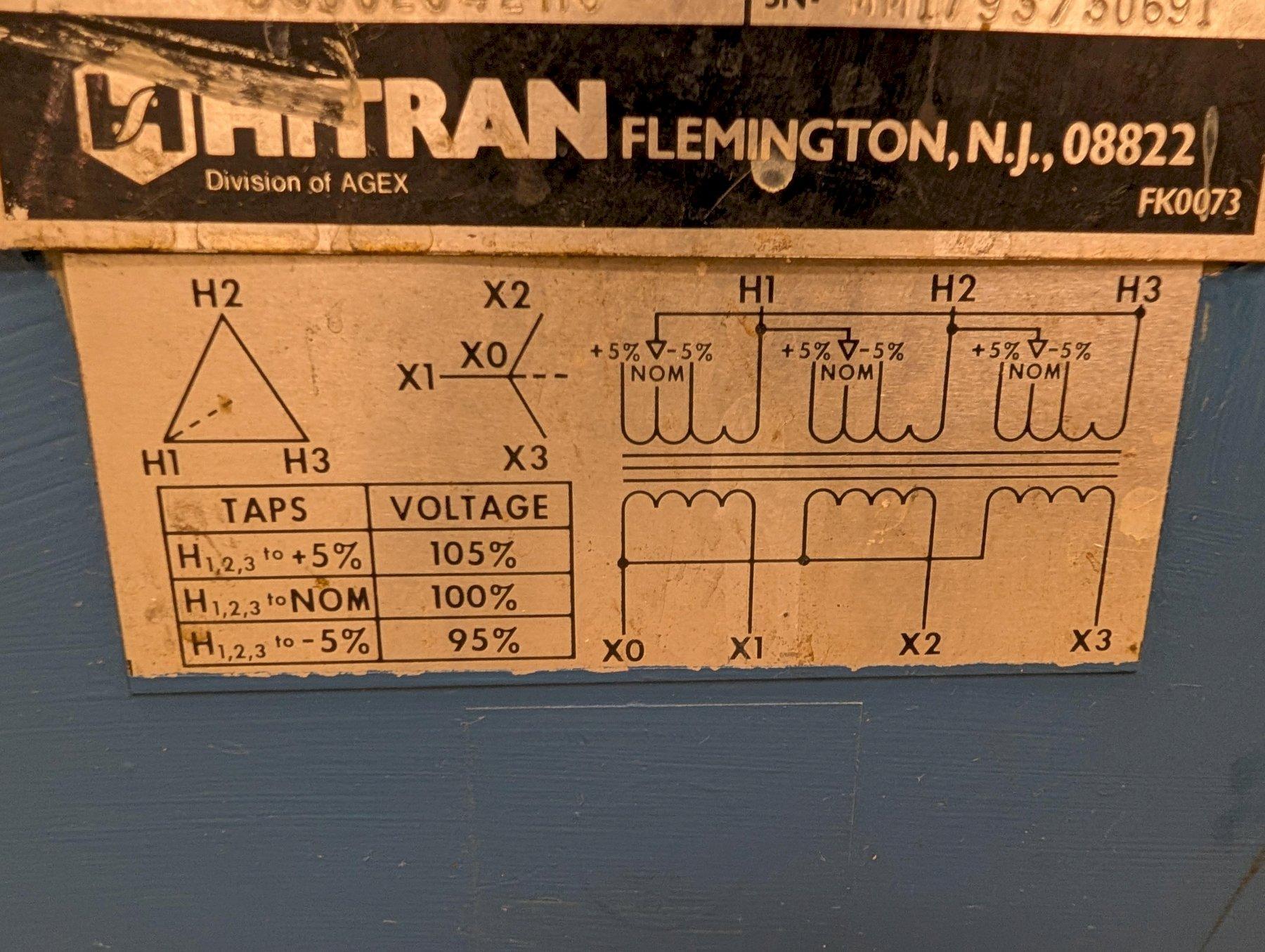

Electrical Specifications:

Primary Voltage: 460V ± 5% (Delta)
Secondary Voltage: 230Y/133V
Current Range: 27–50.2 Amps

Thermal Ratings:

Insulation Class: 220°C
Temperature Rise: 150°C

Impedance:

Impedance Rating: 6.4%

Physical Specifications:

Weight: 250 lbs

Additional Information:

Serial Number: MM1793/30691
Catalog Number: D3002042H6

As is Where is
This transformer was removed from a working environment where it was in use.
Price includes rigging and loading.
