HASKRIS Outdoor Chiller OPC24-A7-01, R407C, 24hp, 300k Btu/hr, 25 Ton

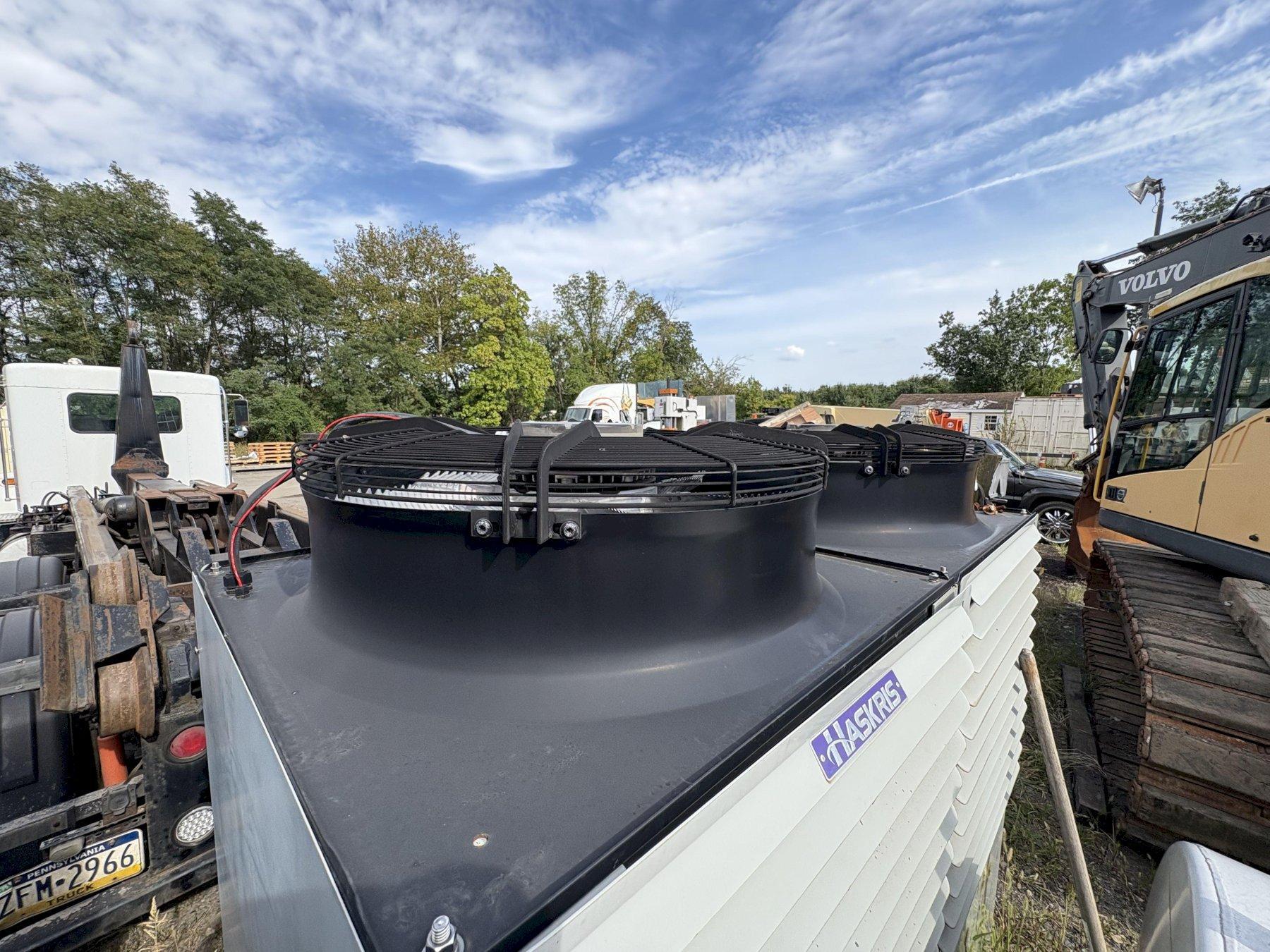

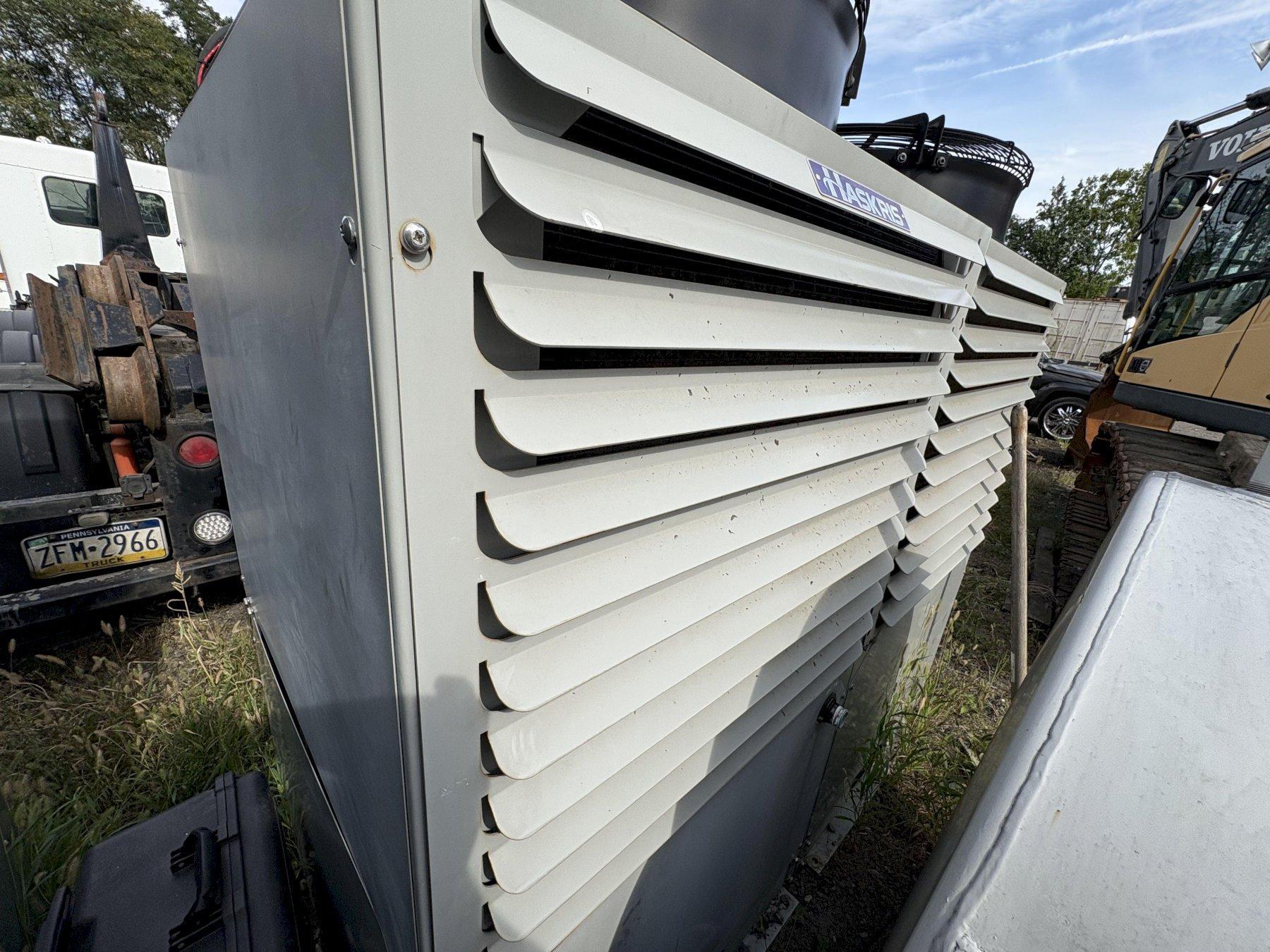

Haskris OPC24 Outdoor Process Chiller (Model: OPC24-A7-01X)

The Haskris OPC24 is a fully customizable outdoor process chiller designed for demanding applications in MRI, medical, industrial, and HVAC systems. It features a factory-tested, weather-tight enclosure with a scroll or discus compressor, variable speed condenser fans, pump bypass/relief valves, and a corrosion-resistant coil.

Key Specifications:

• Net Cooling Capacity: 300,000 Btu/hr

• Compressor HP: 24

• Flow Rate at 50 PSI: 25 GPM

• Dimensions:

  • Width: 76"

  • Depth: 38"

  • Height: 73"

• Ambient Operating Range: -30°F to +120°F

• Fluid Temperature Control: Maintains set point within ±0.1°C

• Uptime Performance: Industry-leading 99.96% to 99.97%

• Available Certifications: Seismic certification (OSHPD compliant), UL, CSA, CE

Additional Features:

• Customization: Built-to-order with no minimum order quantities.

• Remote Monitoring: Optional Modbus or BACnet communication for integration with Building Management Systems.

• Backup Systems: Compatible with Haskris Continuous Water System (CWS) and Continuous Glycol System (CGS) for added reliability.

For precise technical details specific to the OPC24-A7-01X variant, including electrical specifications and installation requirements, consult the official OPC24 User Manual or contact Haskris directly.
