Brand
FEDERAL PACIFIC

Model
36 B

Type
Transformers

Stock #
LMMA249

Condition
Used

Year
Not Specified

Location
Port Carbon, Pennsylvania
United States

Price

$2,490.00

Request a Quote

Specifications

Equipped With

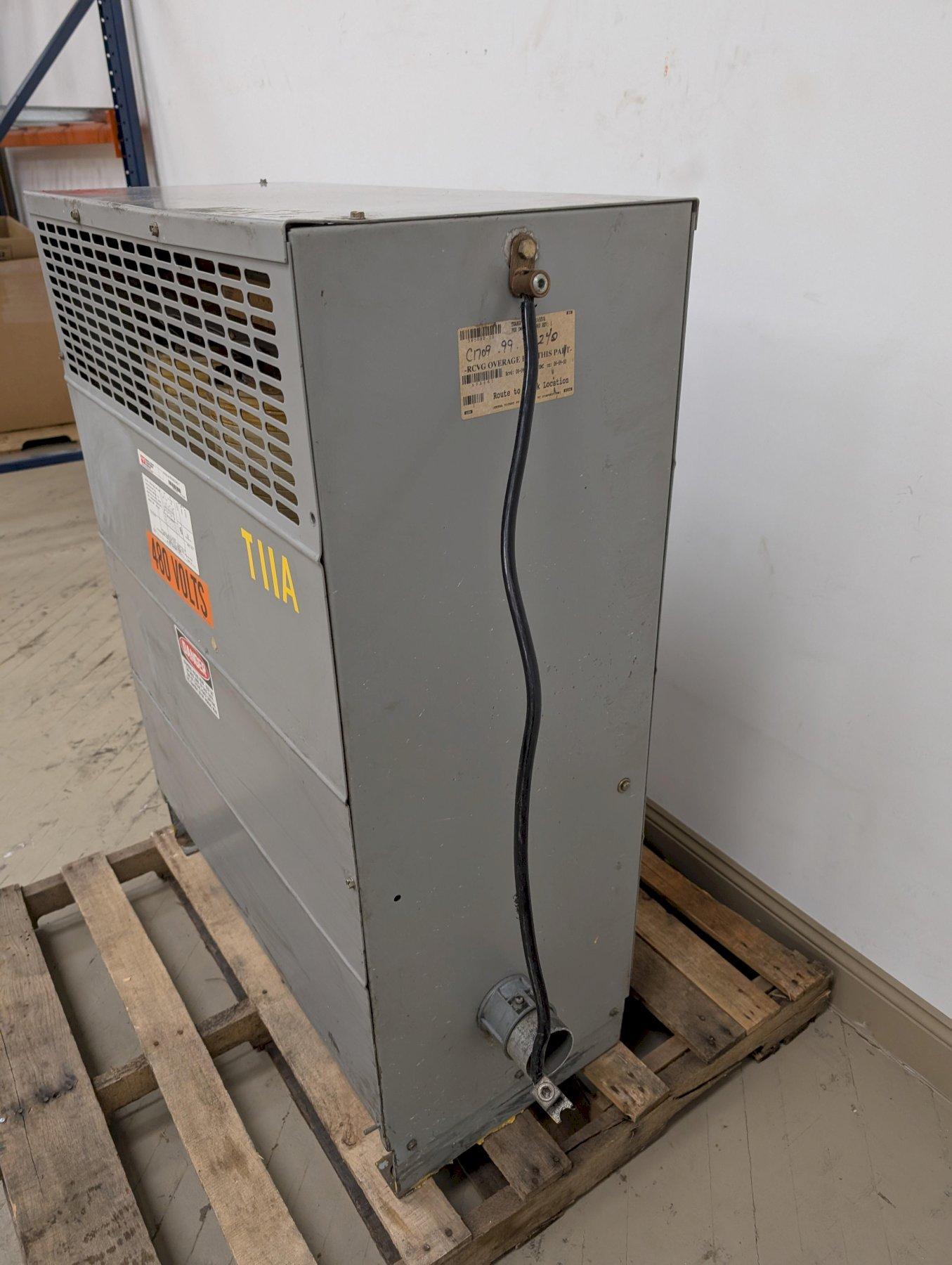

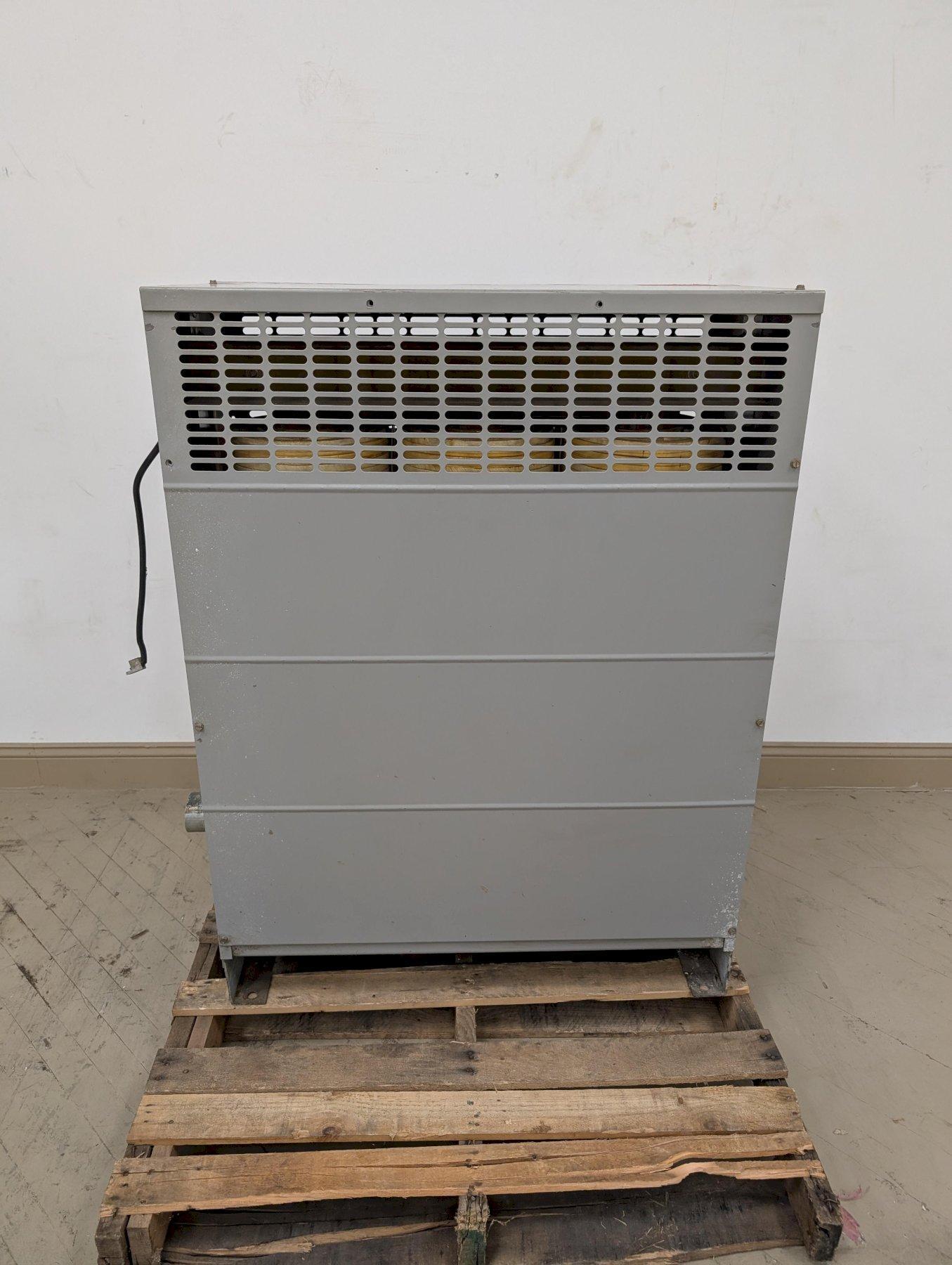

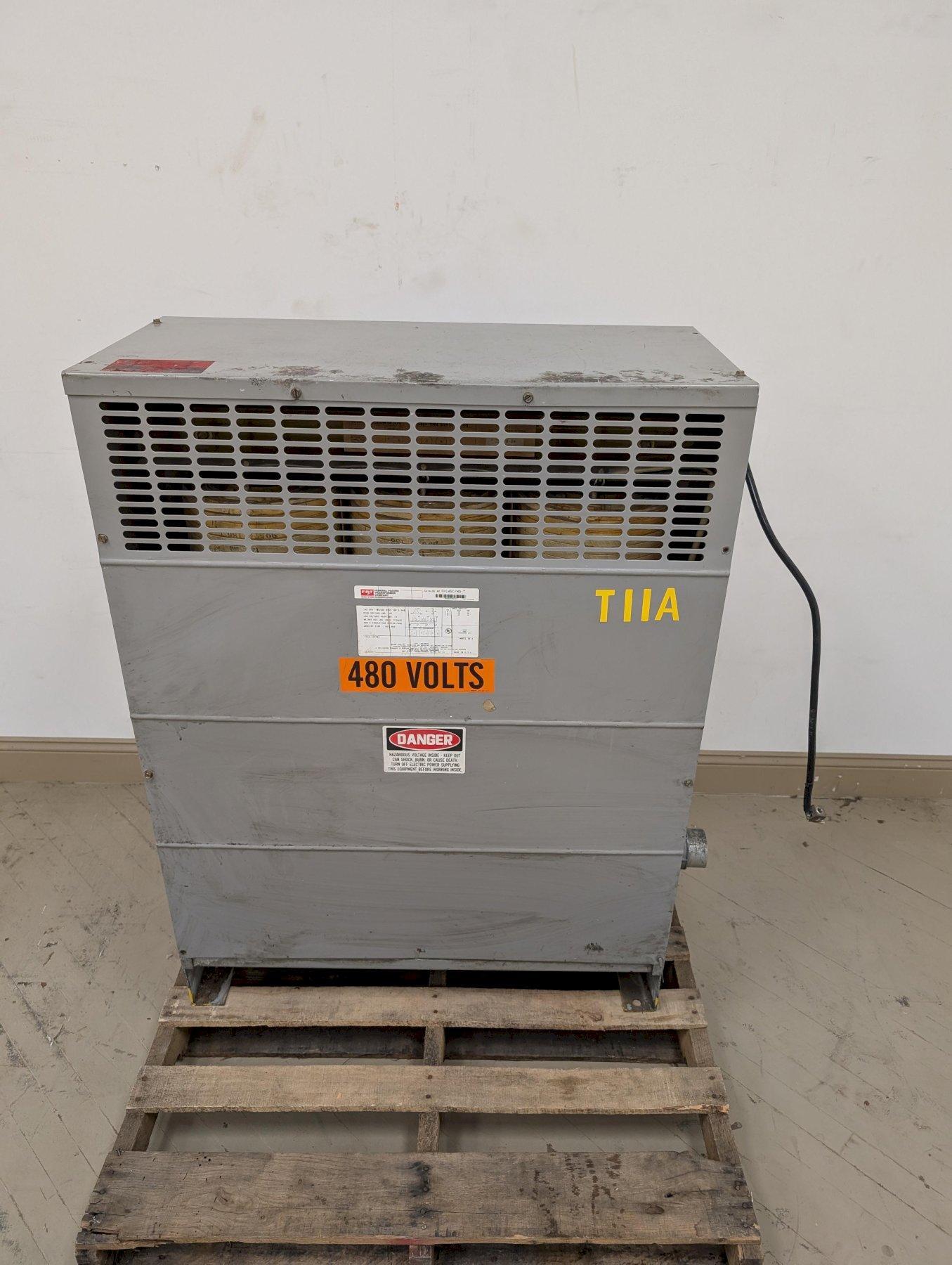

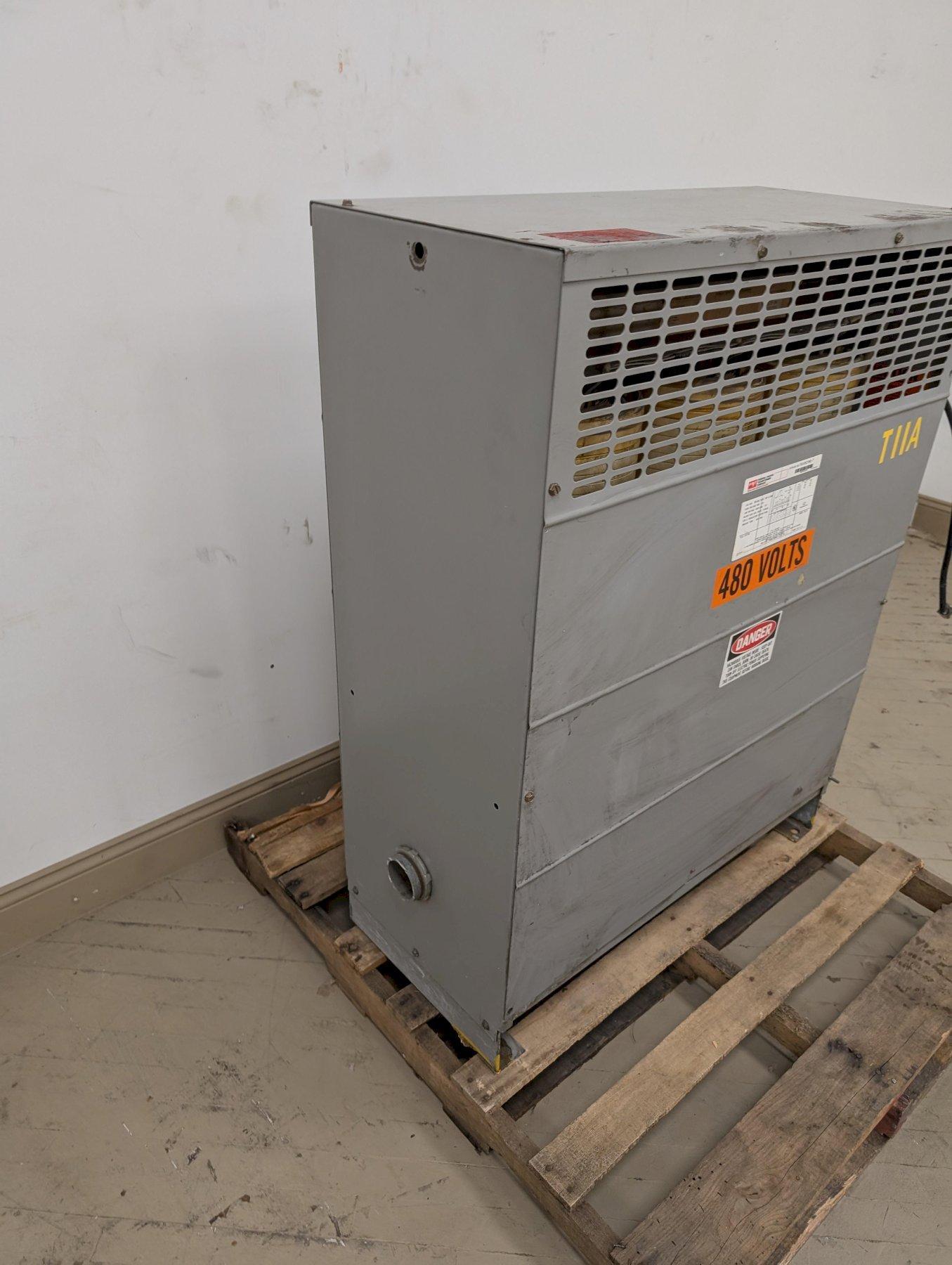

Federal Pacific Transformer 145 KVA 460 High Voltage / 460Y-266 Low Voltage | 3-Phase | Model FH145CFMD-T

Description:

Product Features:

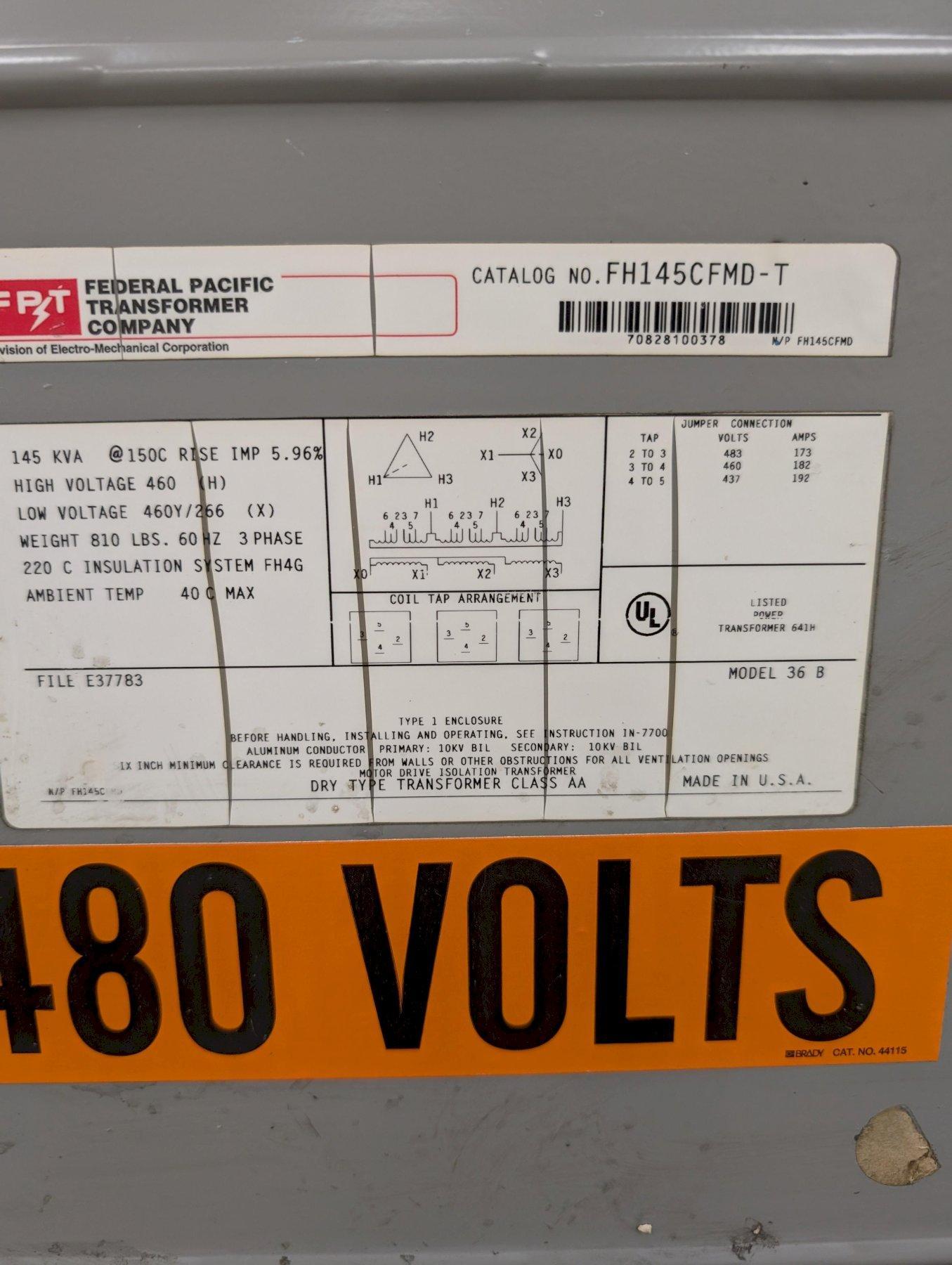

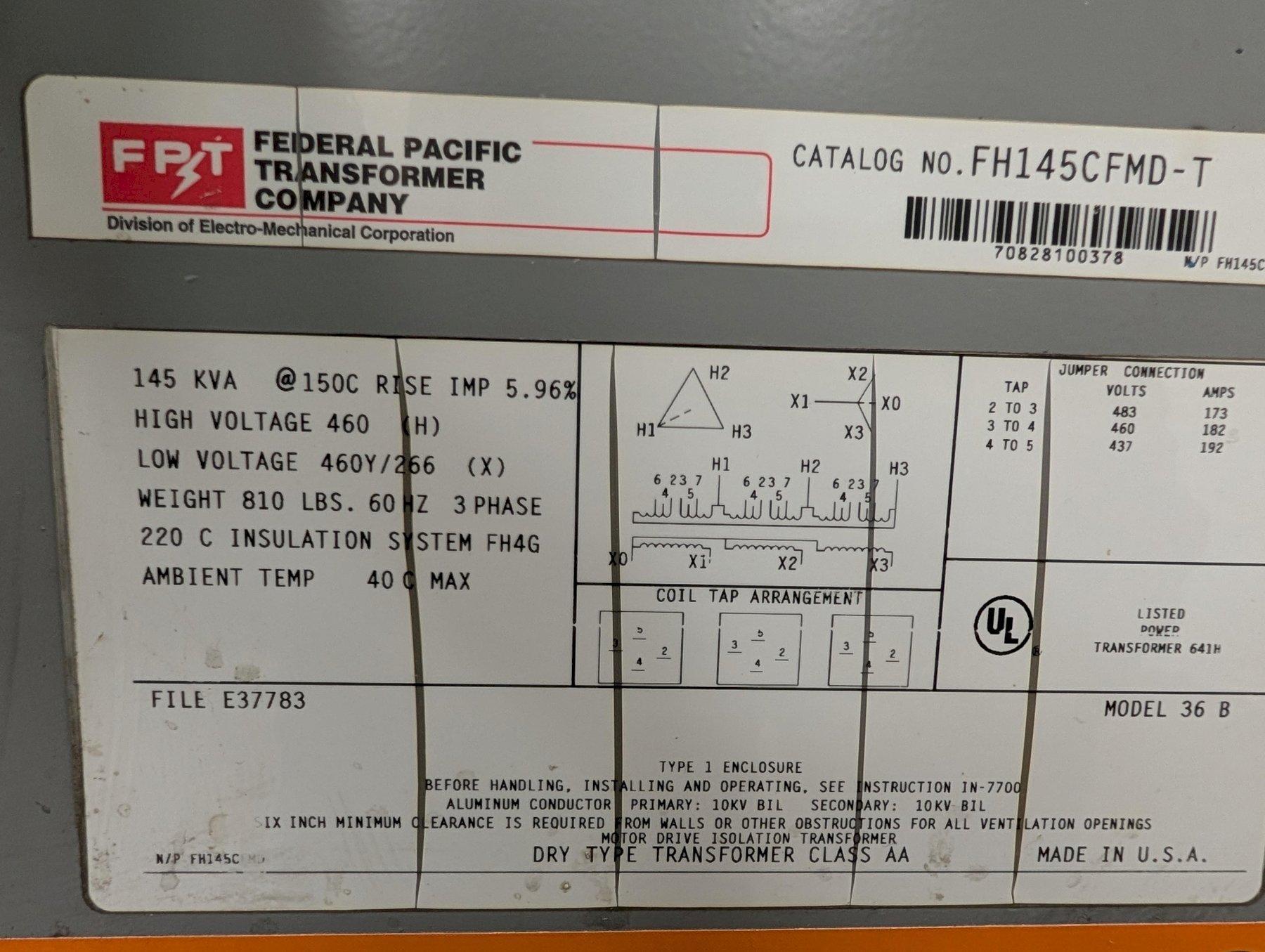

Manufacturer: Federal Pacific Transformer Company
Model Number: 36 B
Catalog Number: FH145CFMD-T
KVA Rating: 145 KVA (150°C rise)
Primary Voltage: 460 High Voltage
Secondary Voltage: 460Y / 266 Low Voltage
Phase: 3-Phase
Frequency: 60 Hz
Insulation System: 220°C Insulation System
Ambient Temperature Rating: 40°C Maximum
Impedance: 5.96%
Weight: 810 lbs

As is Where is
This transformer was removed from a working environment where it was in use.
Price includes rigging and loading.
