DoALL Model 2013-V Vertical Band Saw | 154" Blade | 3-Phase, 230V

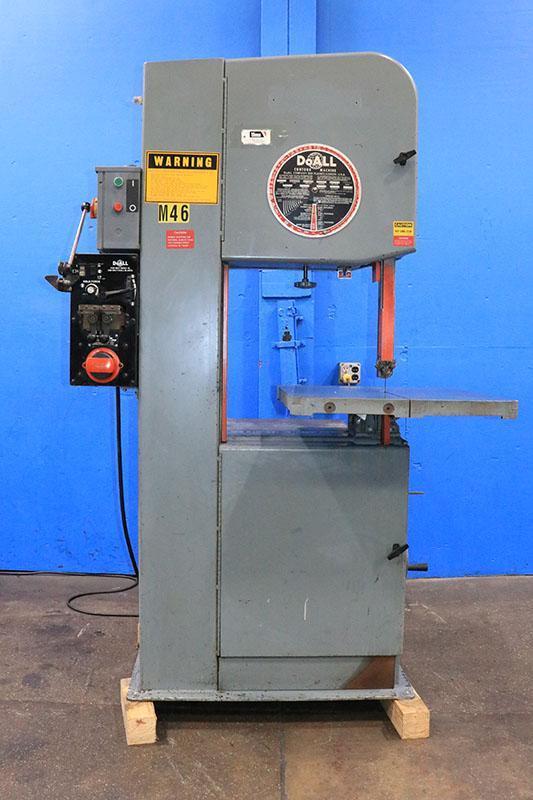

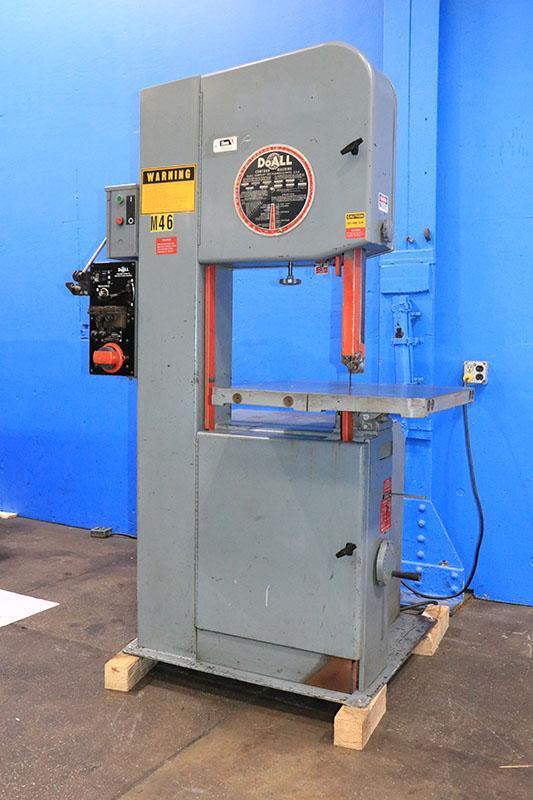

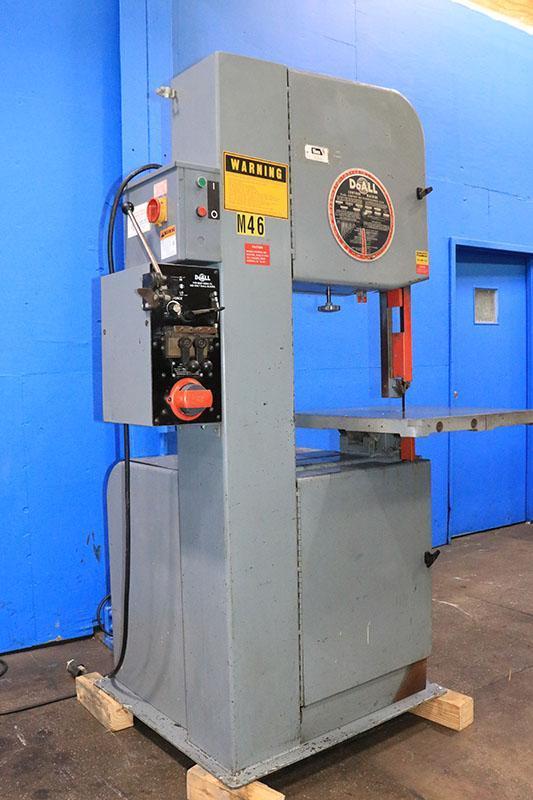

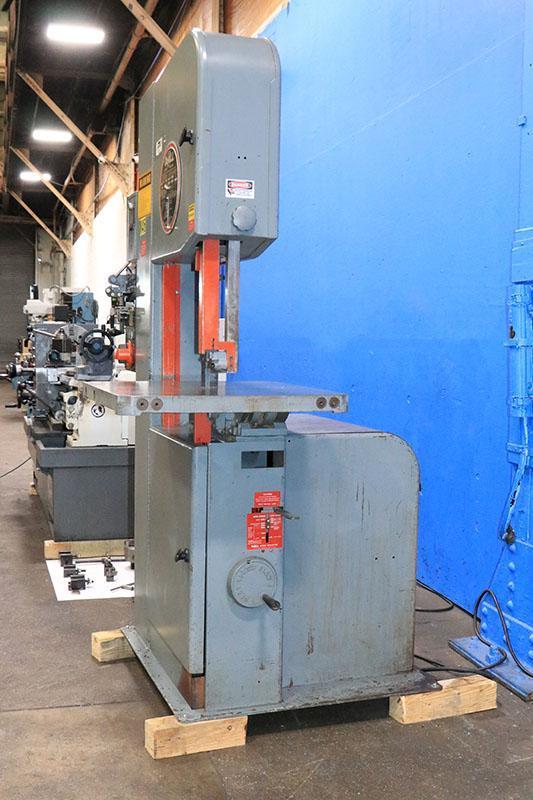

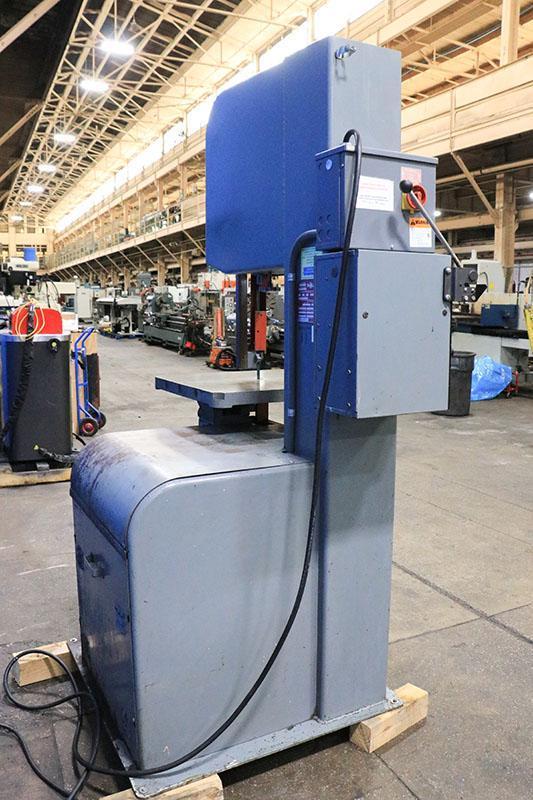

20" DOALL VERTICAL BANDSAW

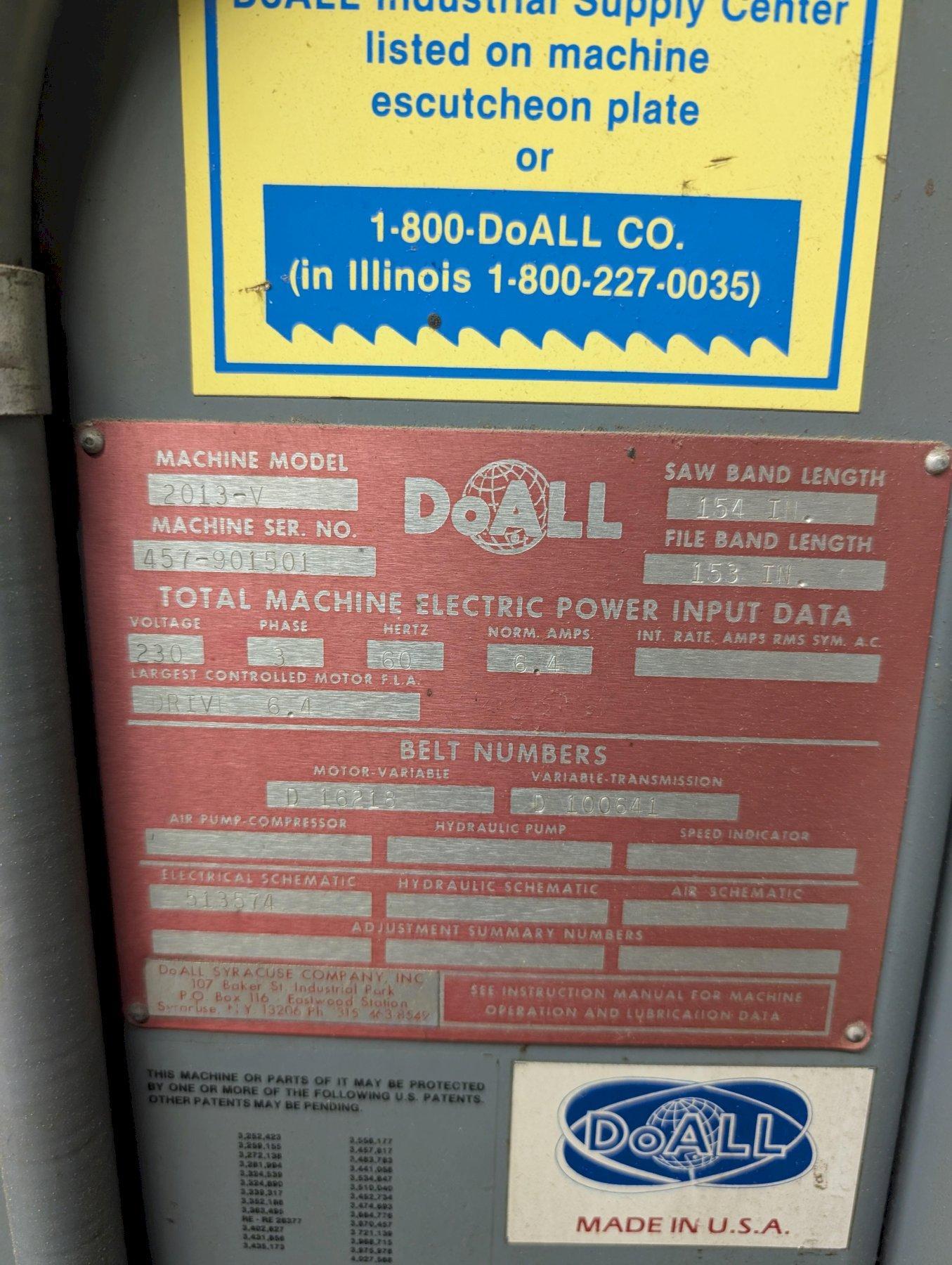

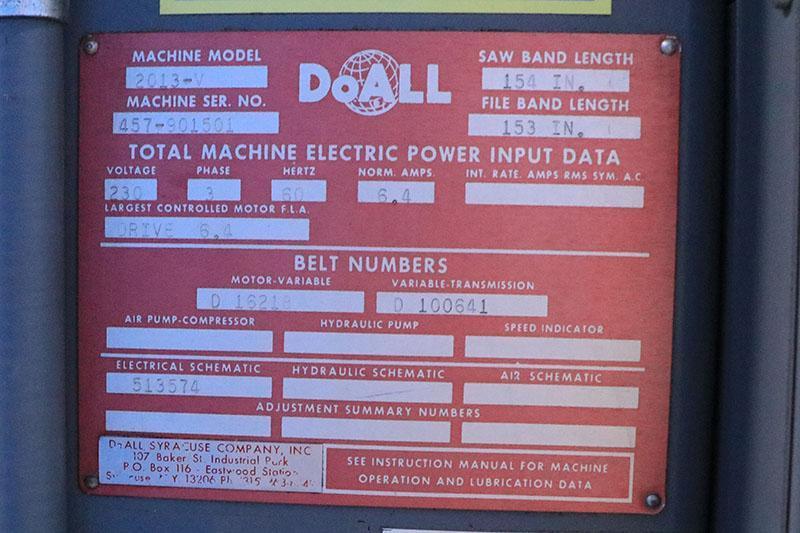

MODEL: 2013-V,   S/N: 457-901501,   NEW: 1990

SPECIFICATIONS:

THROAT, BAND TO COLUMN ............................ 20"

MAXIMUM WORK HEIGHT ............................... 13"

BAND WIDTH CAPACITY ........................ 1/16" - 1"

SAW BAND LENGTH .................................. 154"

FILE BAND LENGTH ................................. 153"

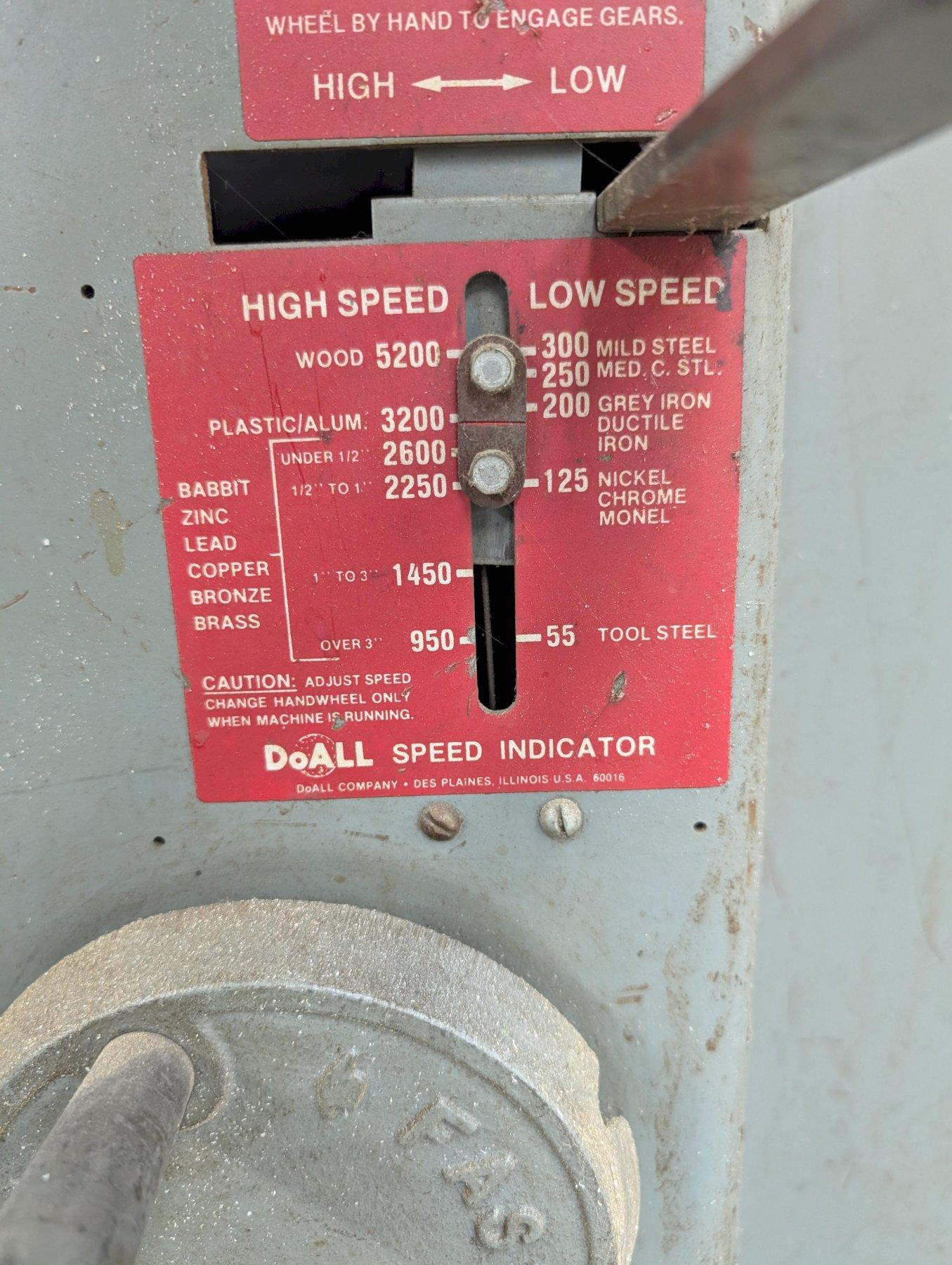

BAND SPEED RANGE, VARIABLE TWO RANGES:

     LOW RANGE .......................... 55 TO 300 FPM

     HIGH RANGE ...................... 960 TO 5,200 FPM

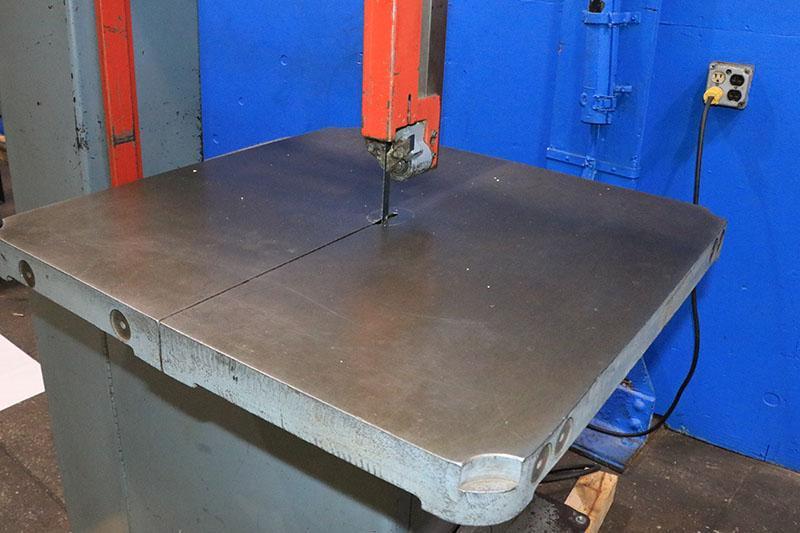

TABLE SIZE .................................. 26" X 26"

TABLE TILTS ......... 45 DEGREES LEFT, 10 DEGREES RIGHT

MAXIMUM WEIGHT ON TABLE ....................... 500 LBS

APPROXIMATE MACHINE WEIGHT .................. 1,250 LBS

APPROXIMATE DIMENSIONS ....... 48-1/2" X 42" X 81-1/2"H

EQUIPPED WITH:

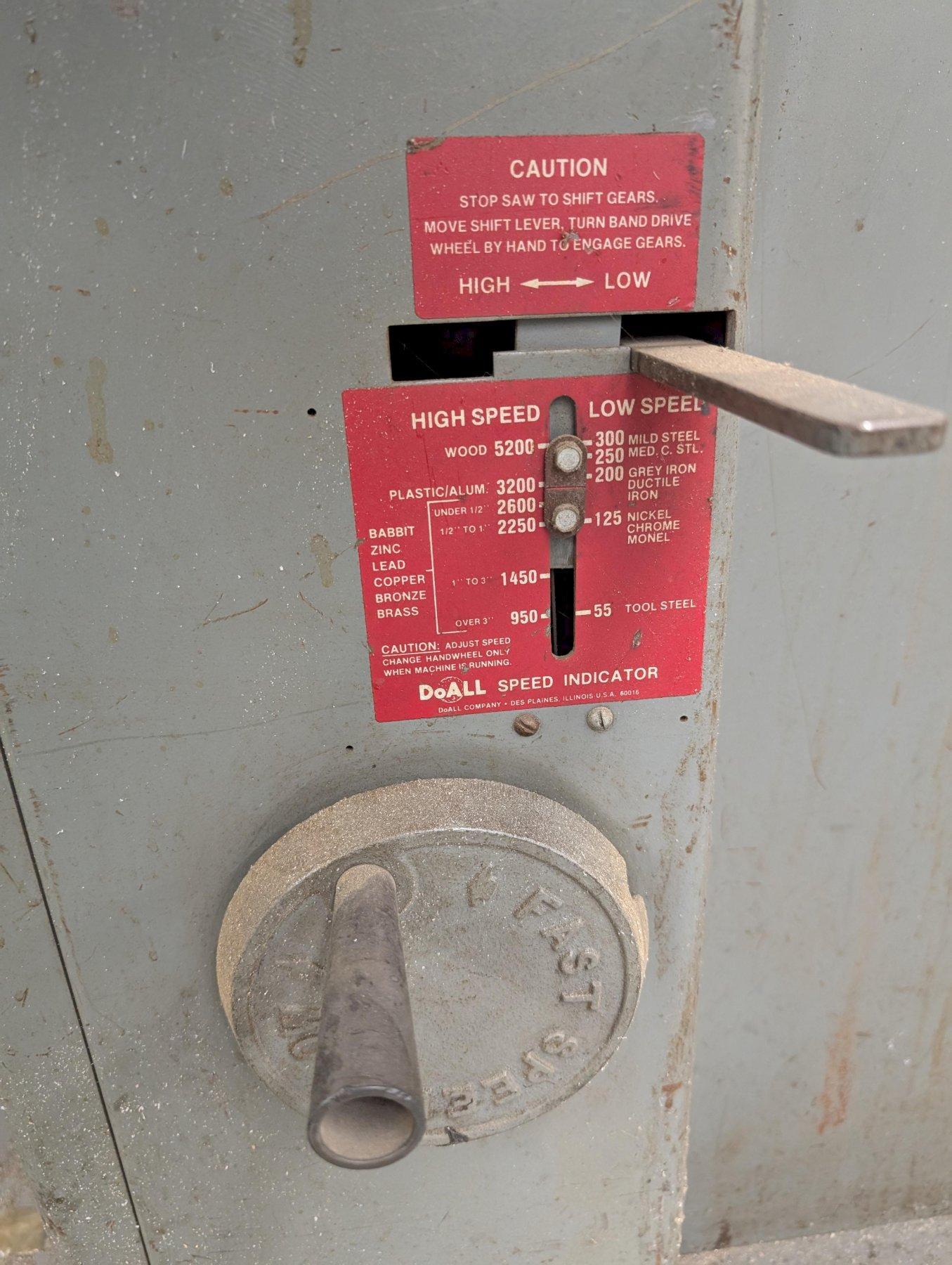

DUAL RANGE TRANSMISSION

TILT TABLE

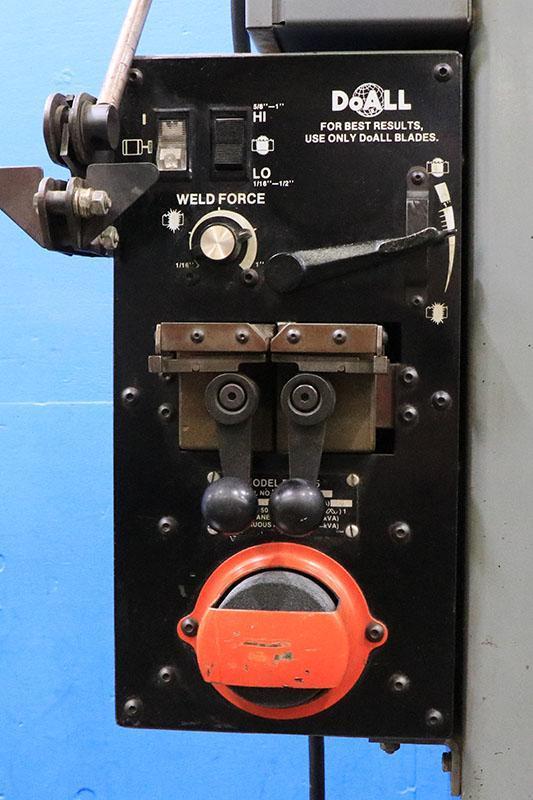

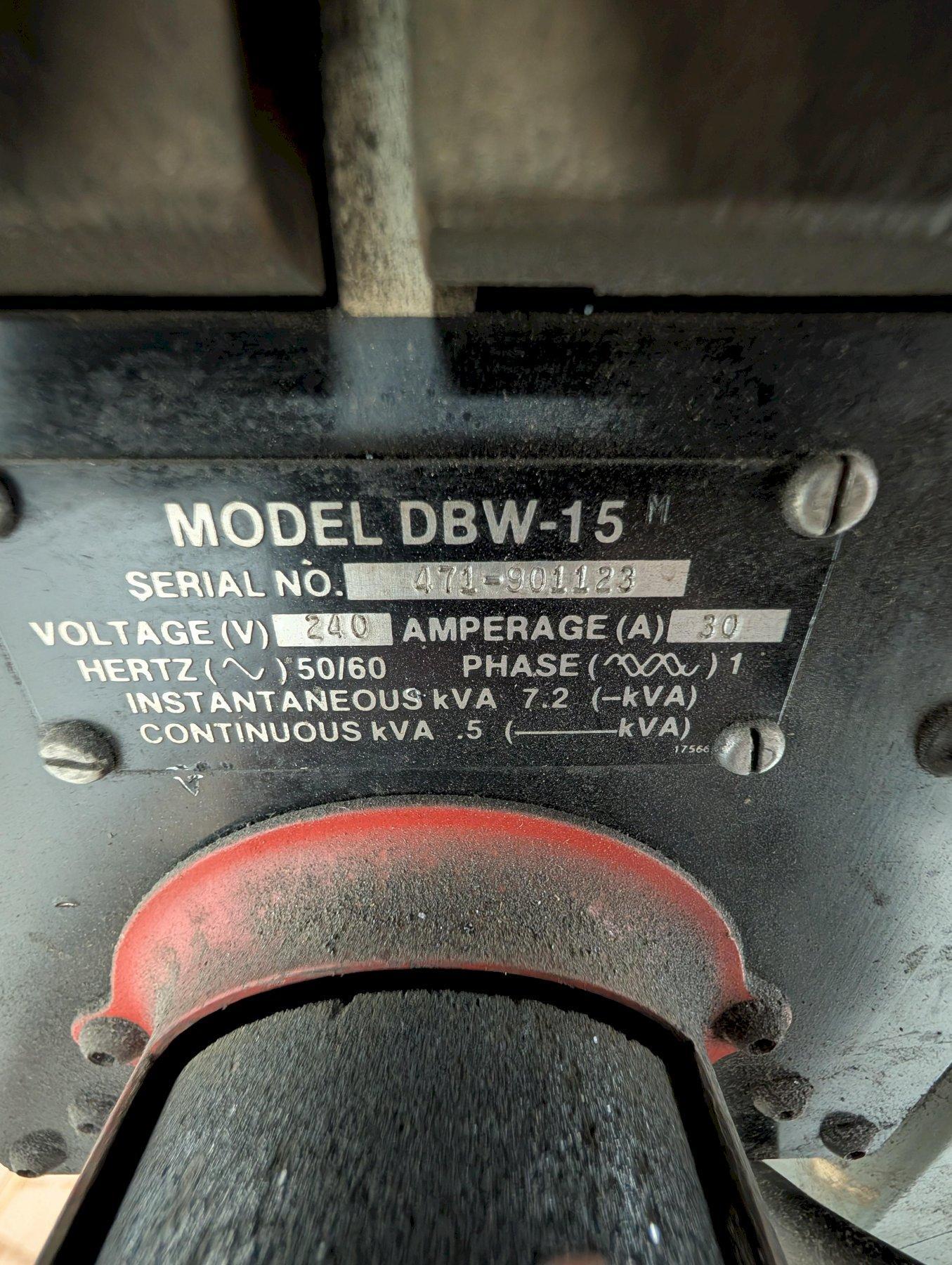

DOALL MODEL: DBW-15 BLADE WELDER,GRINDER & SHEAR

2 HORSE POWER BLADE DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
