• Davis-Standard / Killion extruder, single-screw, 2.5", 24:1 L/D 1998
• Novatec Bessemer Model C-3 - 3" Rotary Cutter 2018
• Paco Winders - Model MW-8A, To wind tubes from 1" (25 mm) I.D. to B" (200 mm) OD. And related equipment.1998?
• Extrusion lamination (sheet) die
• Conair Access Loader AL-5 - vacuum loader for extrusion lines 2018
• Three (3) Steel Stands

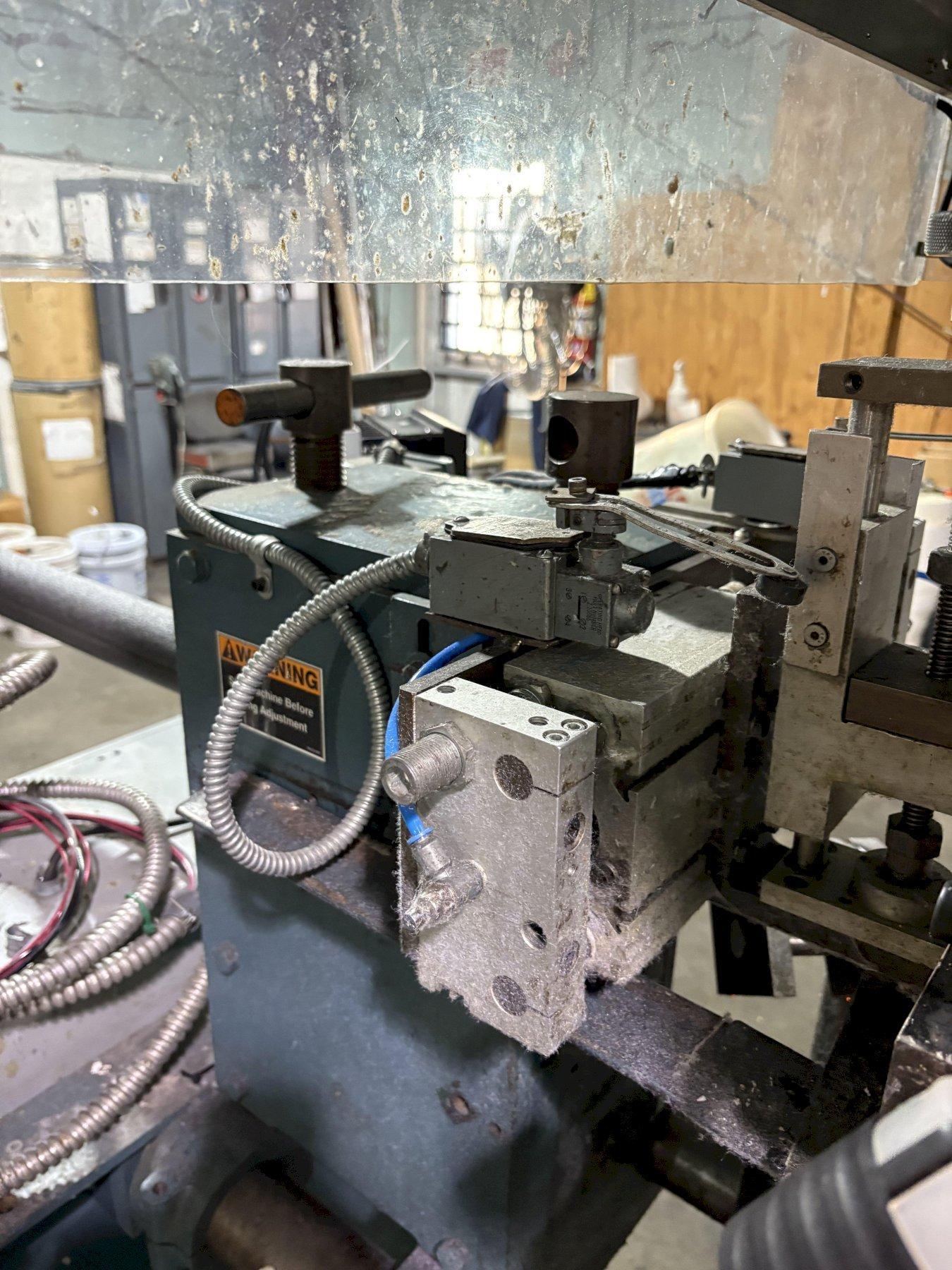

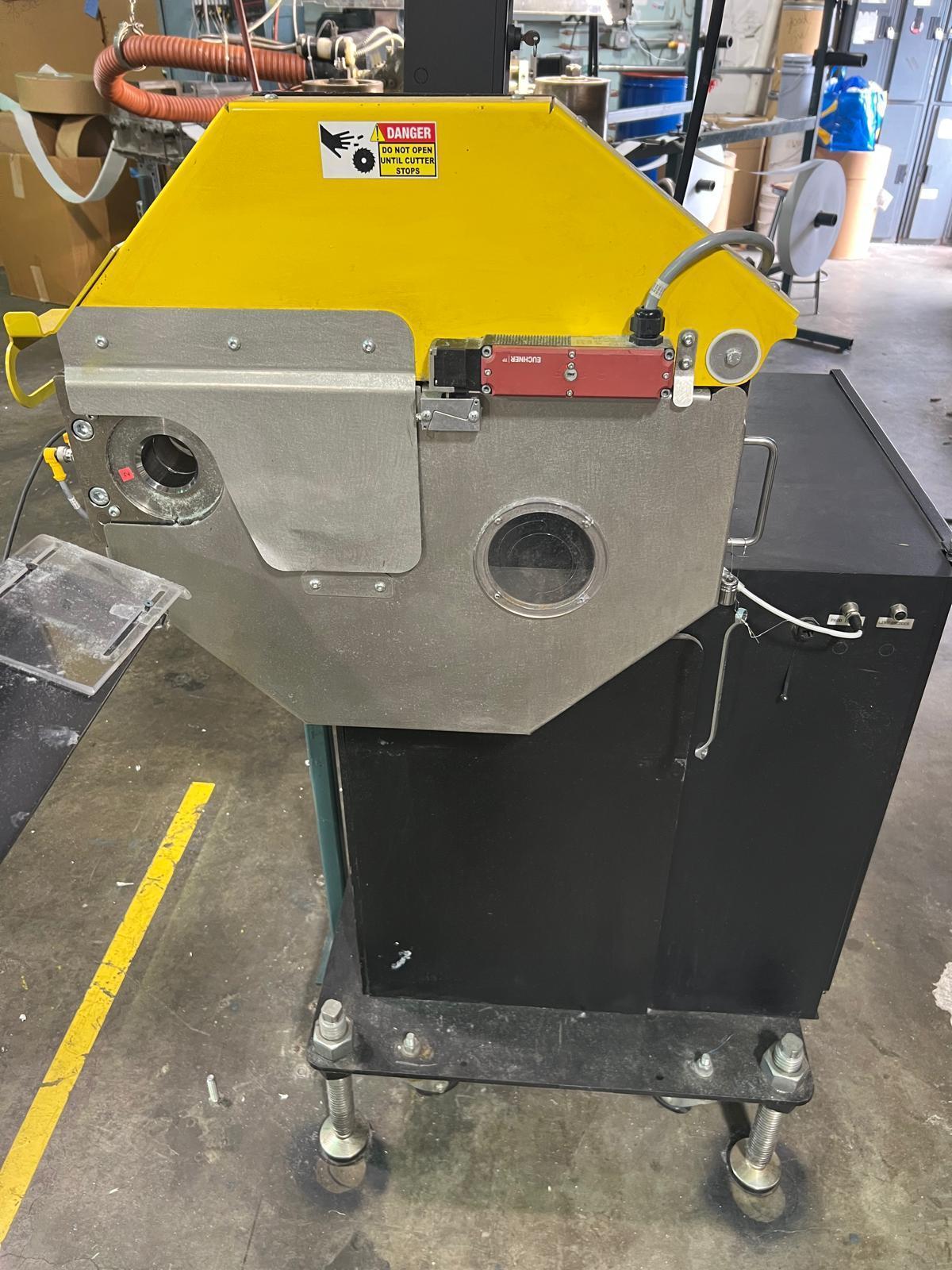

Cutter:

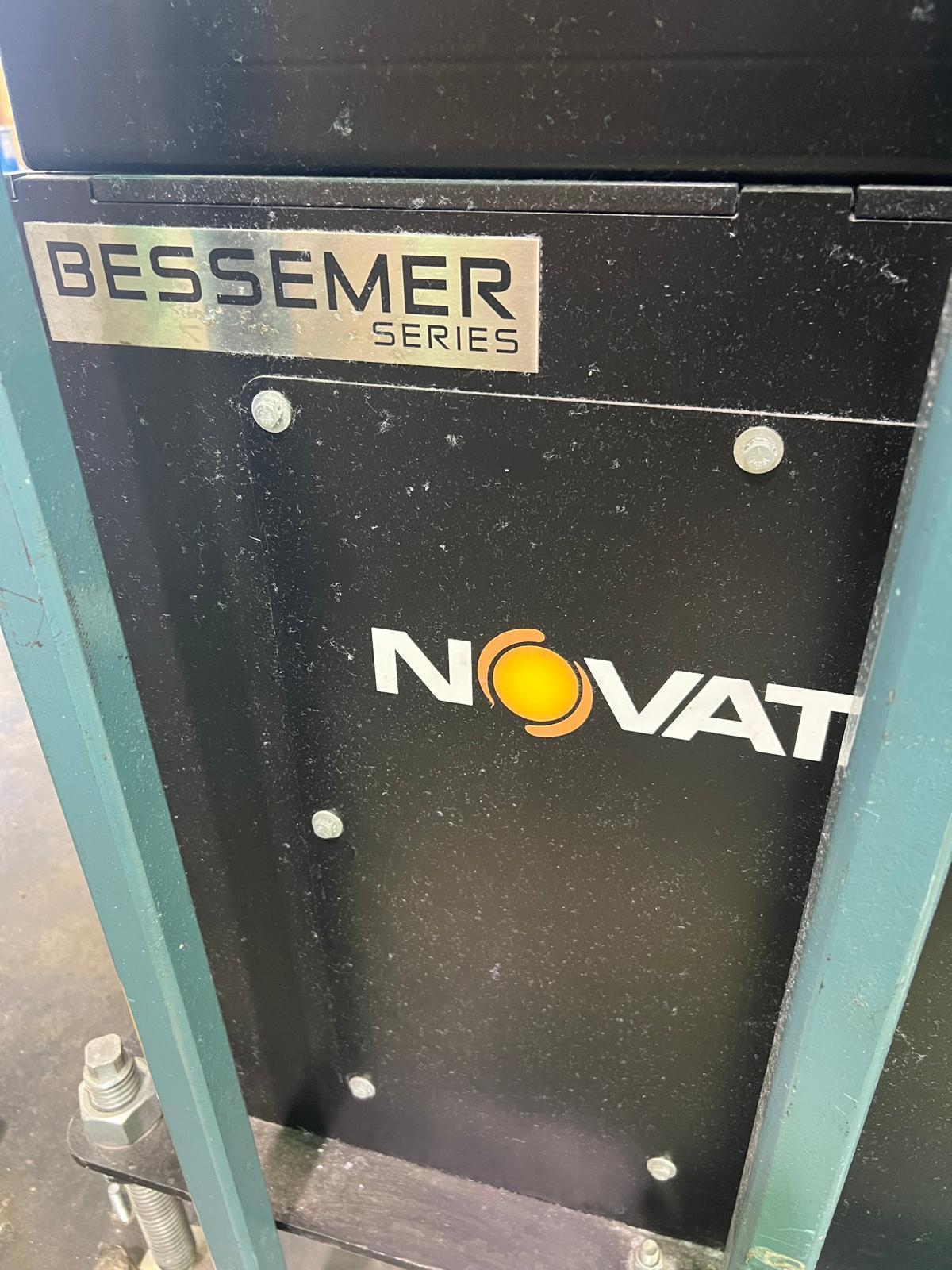

• Novatec Bessemer Model C-3 - 3" Rotary Cutter
• +Nickel Plated Bushing Holder Set for 3.25"round bushings
• +300 Cuts per minute on-demand
• +Up to 1800 cuts per minute continuous (two knives)
• +On demand Blade speed adjustable up to 900 RPM
• +4:1 Planetary reduction
• +0.68 inch/ms knife speed
• +5 hp (3700 W) servomotor
• +Electrical panel 460VAC/3 phase/60Hz

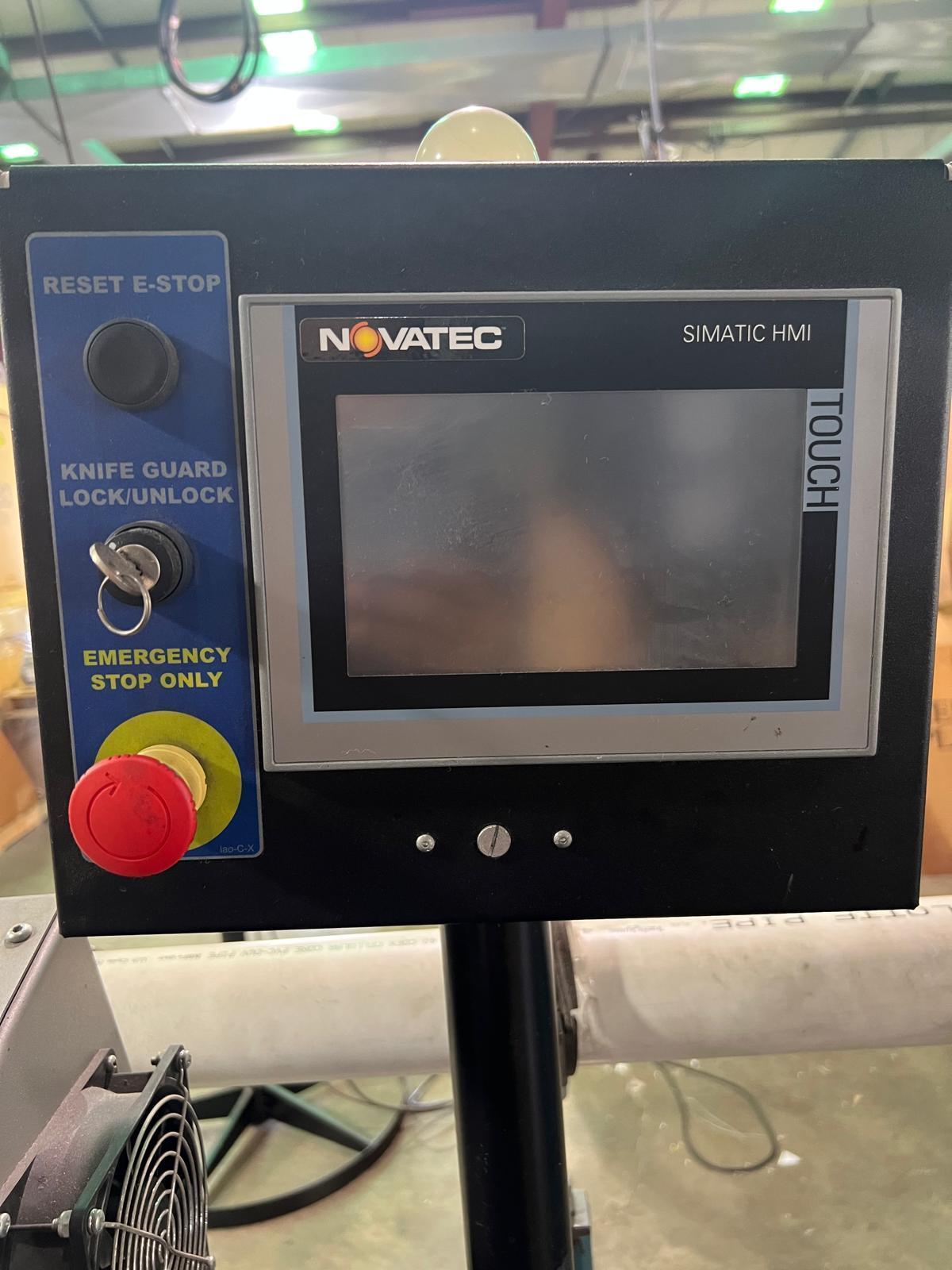

• SIEMENS TOUCH SCREEN PLC CONTROLWITH CONNECTIVITY
• +Recipe Management for consistent and repeatable setups
• +REMOTE CONTROL of BESSEMER Series Machines
• +Standard 5000 Count/Rev Encoder with 12" Diameter, 1" Wide Urethane Wheel for use on smooth surfaces, or choose from other encoder options:
• kit-NC4009-1 for Knurled Wheel to use on hard, tacky surfaces
• kit-NC4009-2 to Mount encoder to HD puller gearbox shaft
• kit-NC4009-3 to Mount encoder to STD or Mini puller gearbox shaft
• kit-NC4009-4 for Interface cable to Conair
• Dynapar encoder HC#25#####24#
• kit-NC4009-5 for Precision 6000 cut/rev encoder with dual Knurled wheels (added cost)
• kit-NC8002-4 for End Sensor Input Kit using
• Laser Proximity Sensor (added cost)
• Machine Dimensions:
• +36" wide x 38" deep x 58" overall height
• +42"+/- 2" centerline height capacity
• Purchased in 2018

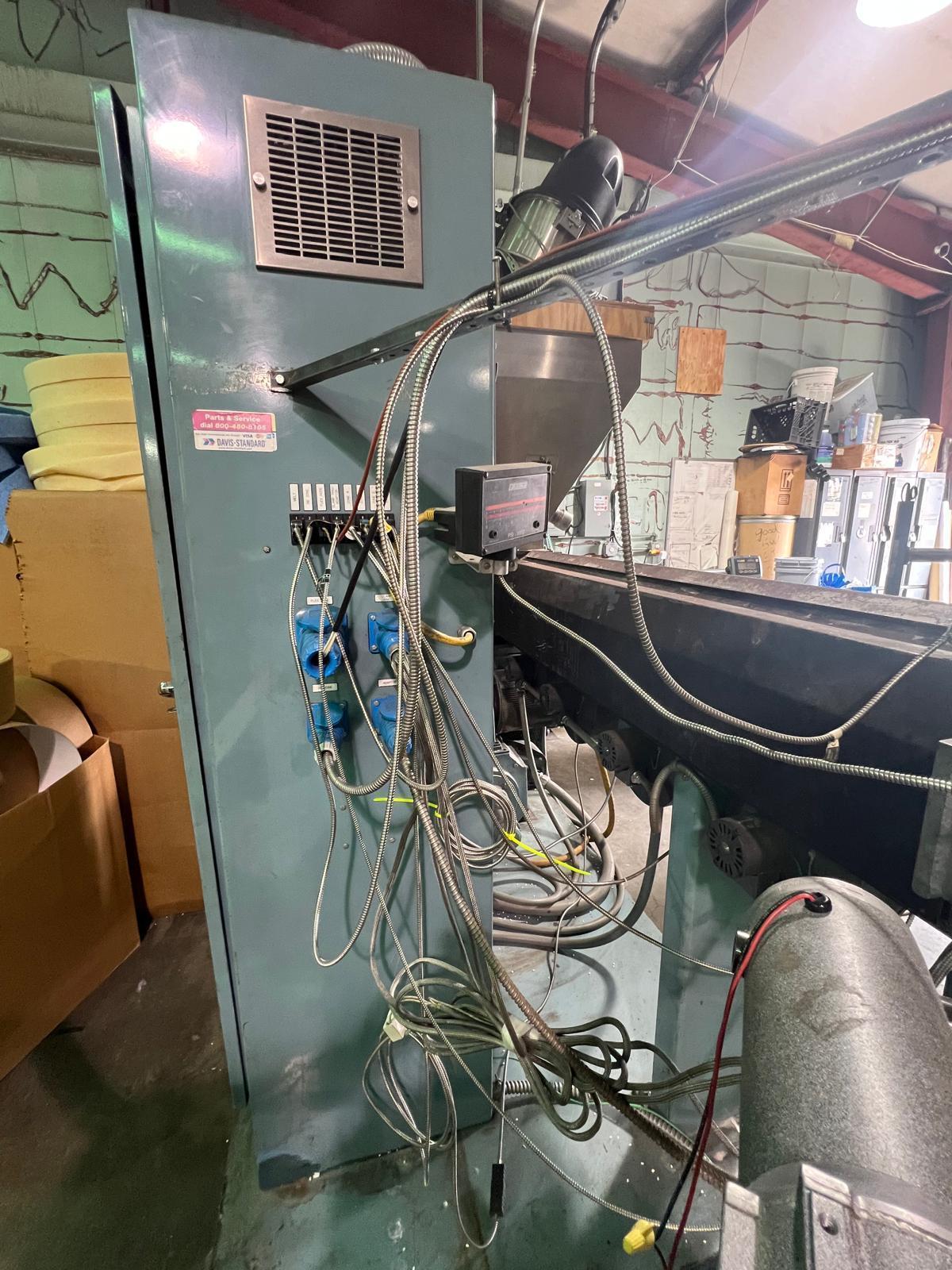

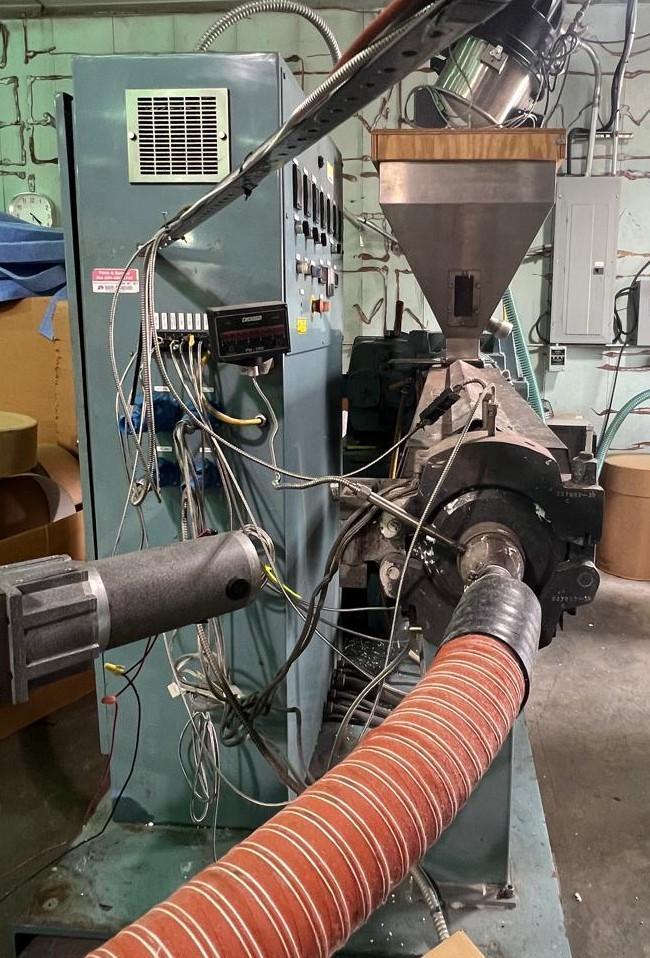

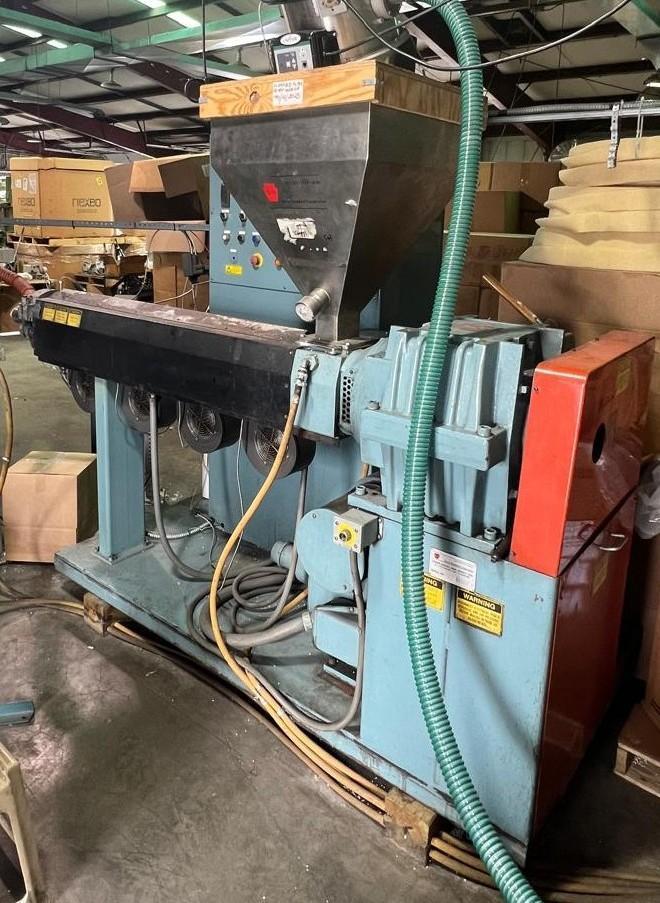

 Extruder:

• Davis-Standard / Killion
• This is a single-screw, 2 ½" air-cooled extruder
• DS-25, X-0548, SO# 61783
• 24:1 L/D ratio

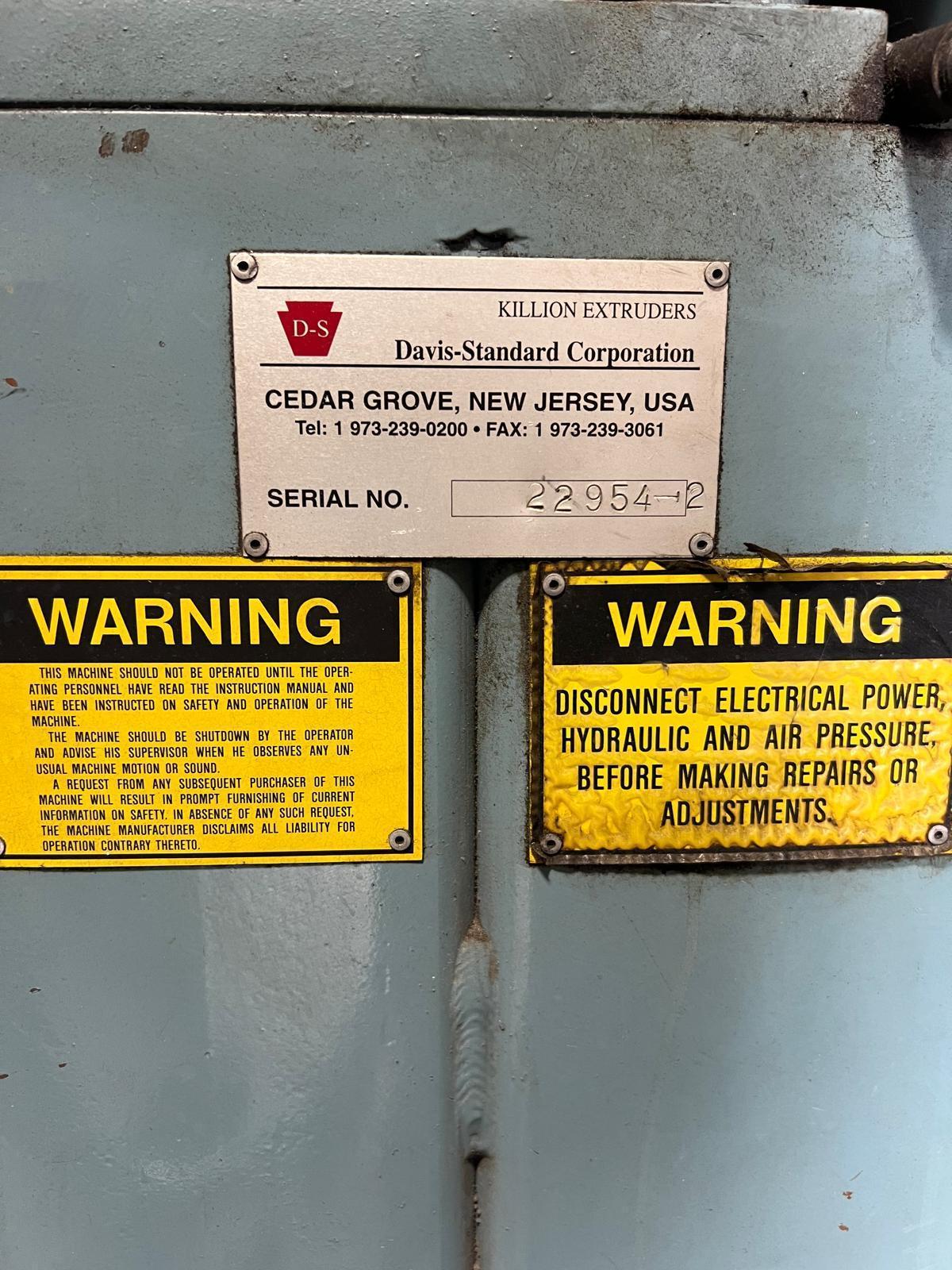

• Serial # 22954-2
• In good condition, still usable. All zones heat, all temperature controllers work. Two controllers replaced recently.
• 460V, 3-phase, 60 Hz
• Made in 1998
• Comes with three spare barrel heaters

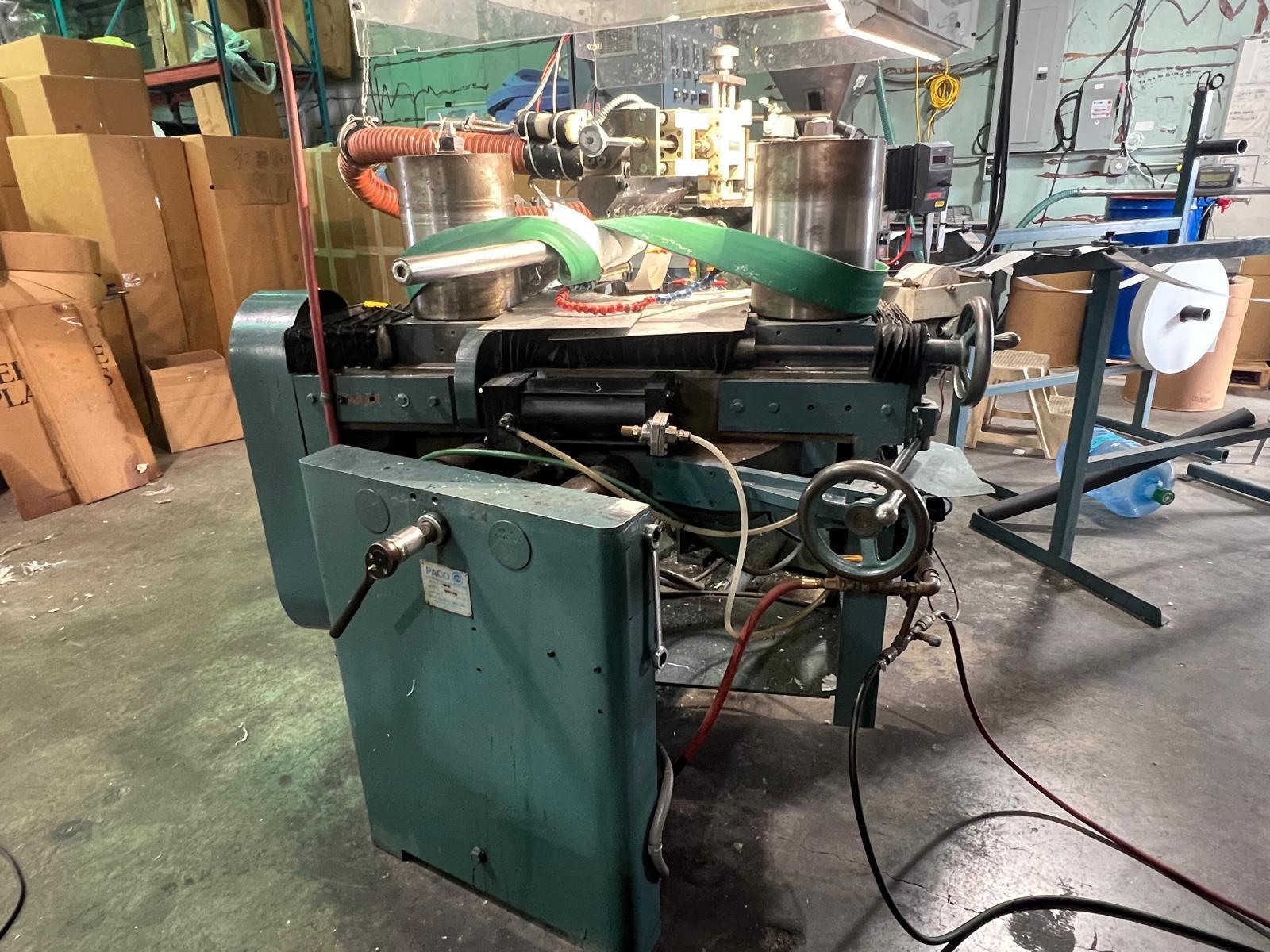

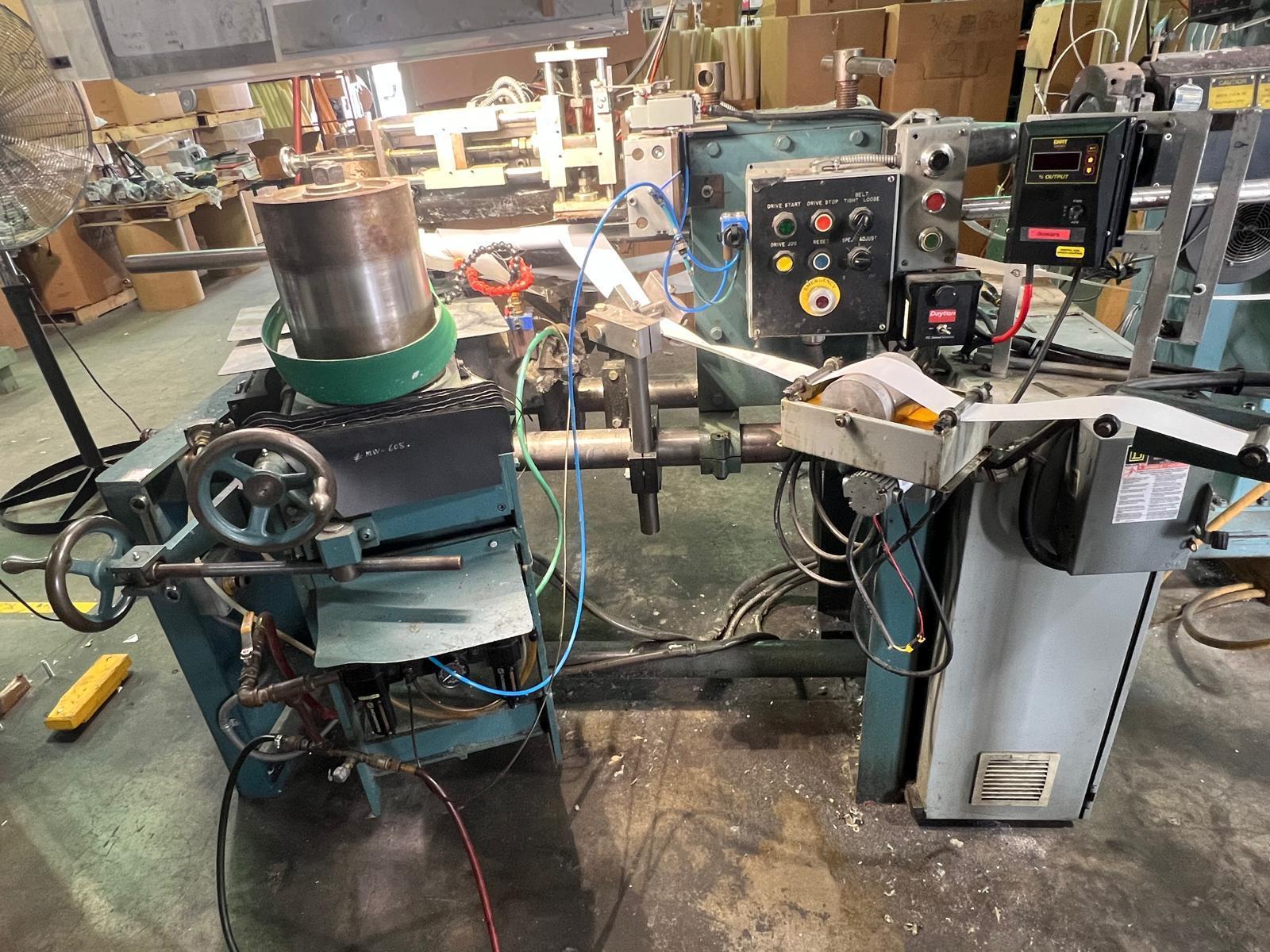

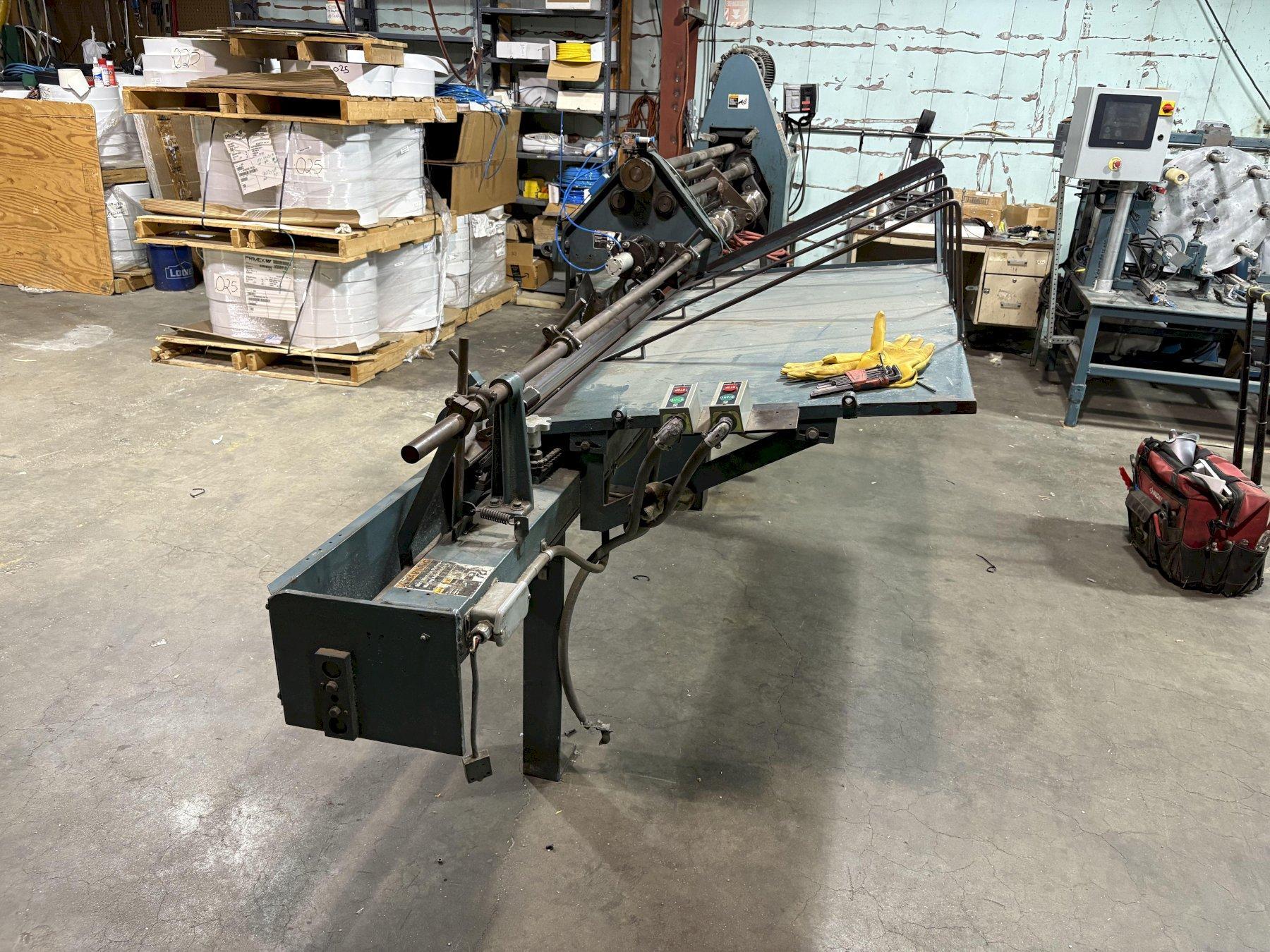

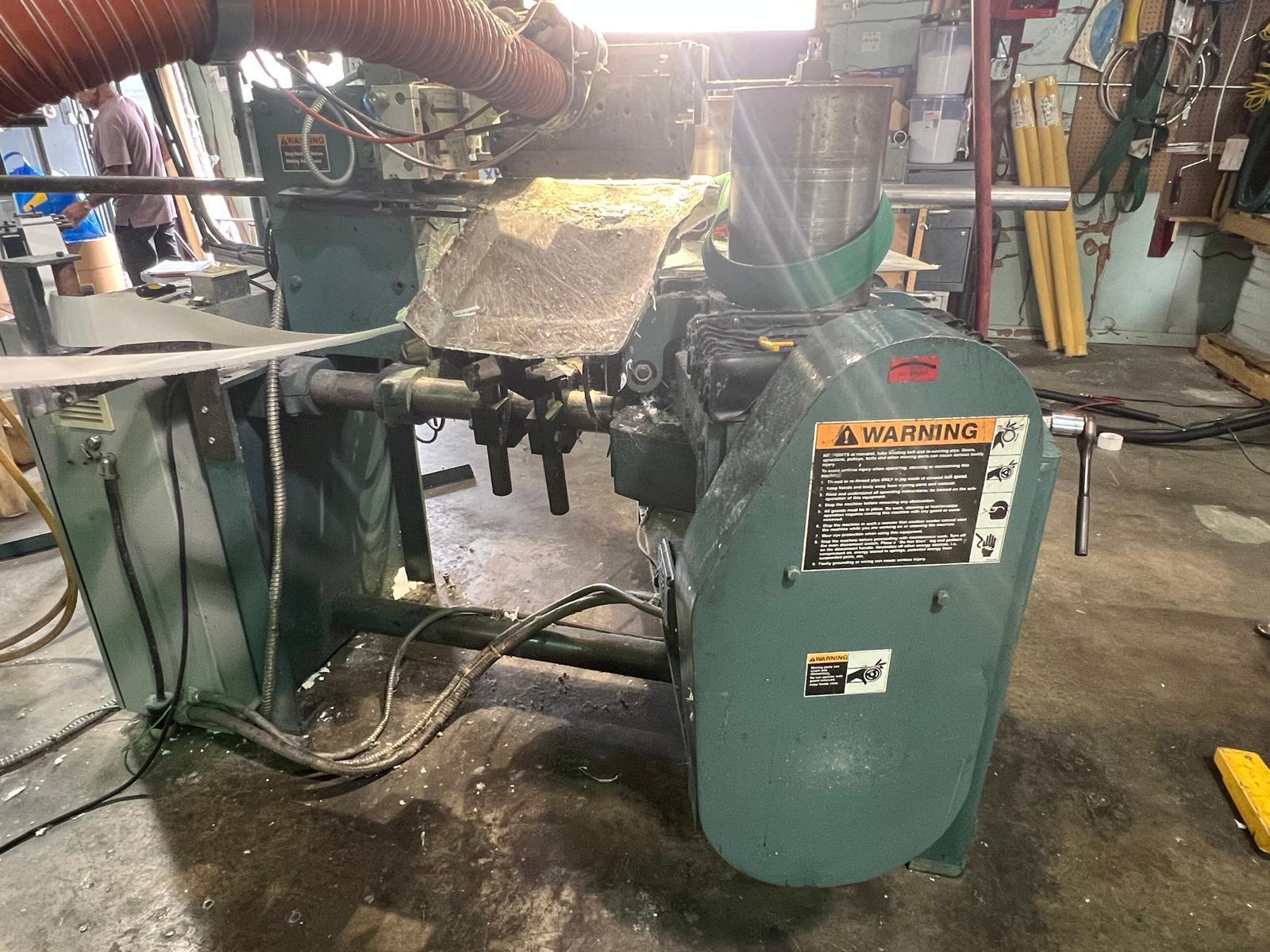

 Winder /  Related equipment:

• Paco Winders - Model MW-8A
• Serial # A2636-466
• To wind tubes from 1" (25 mm) I.D. to B" (200 mm) OD
• Powered by 7-1/2 H.P. AC Variable Frequency Vector Drive Package
• Production rates of 18 to 150 feet of tubing per minute (speed relative to tube diameters)
• Winding drum diameter - 8-3/8"
• Winding drum height - 1 0"
• Winding drum speed- 25 to 210 RPM
• Belt feet per minute - 25 to 450

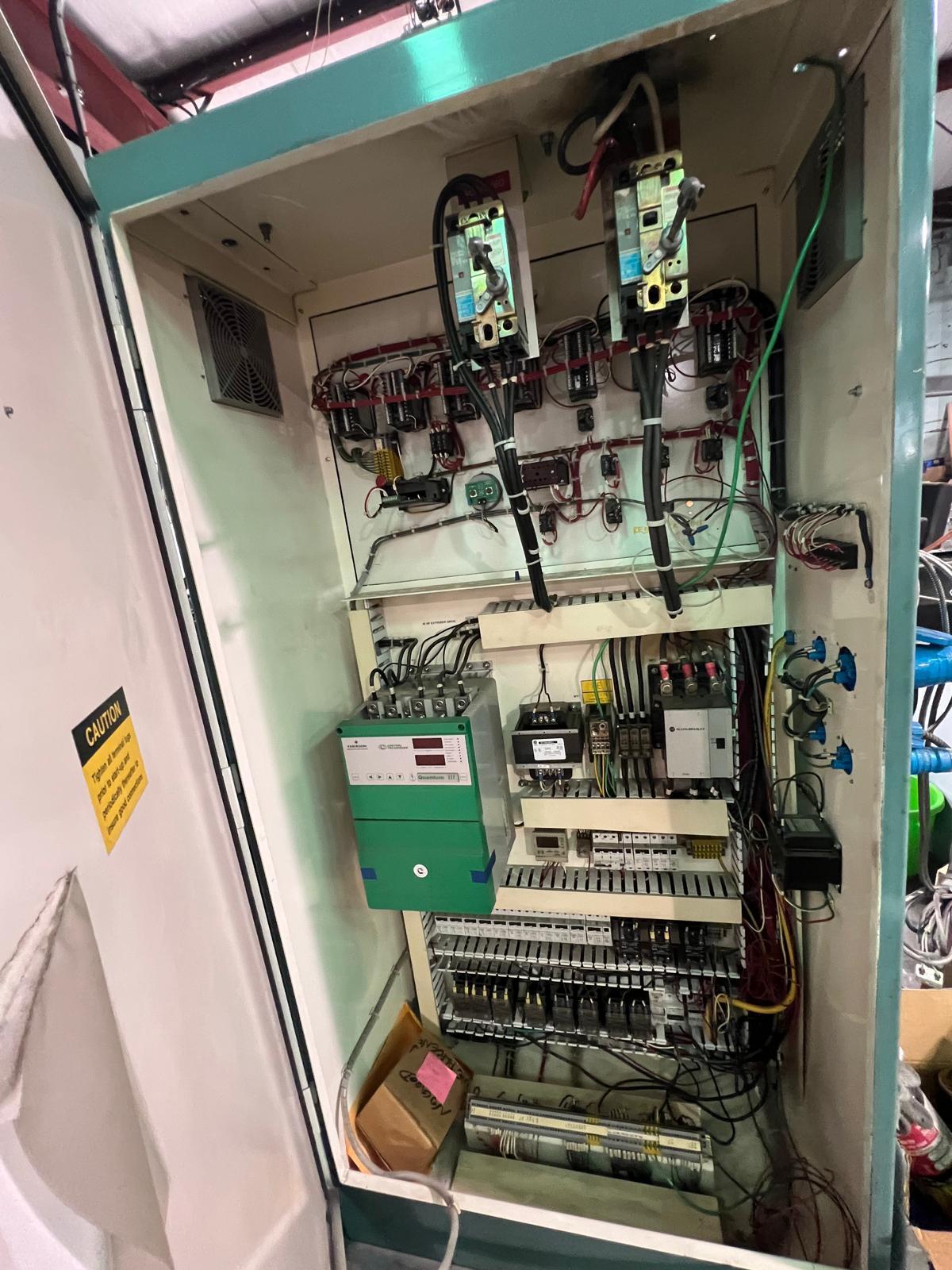

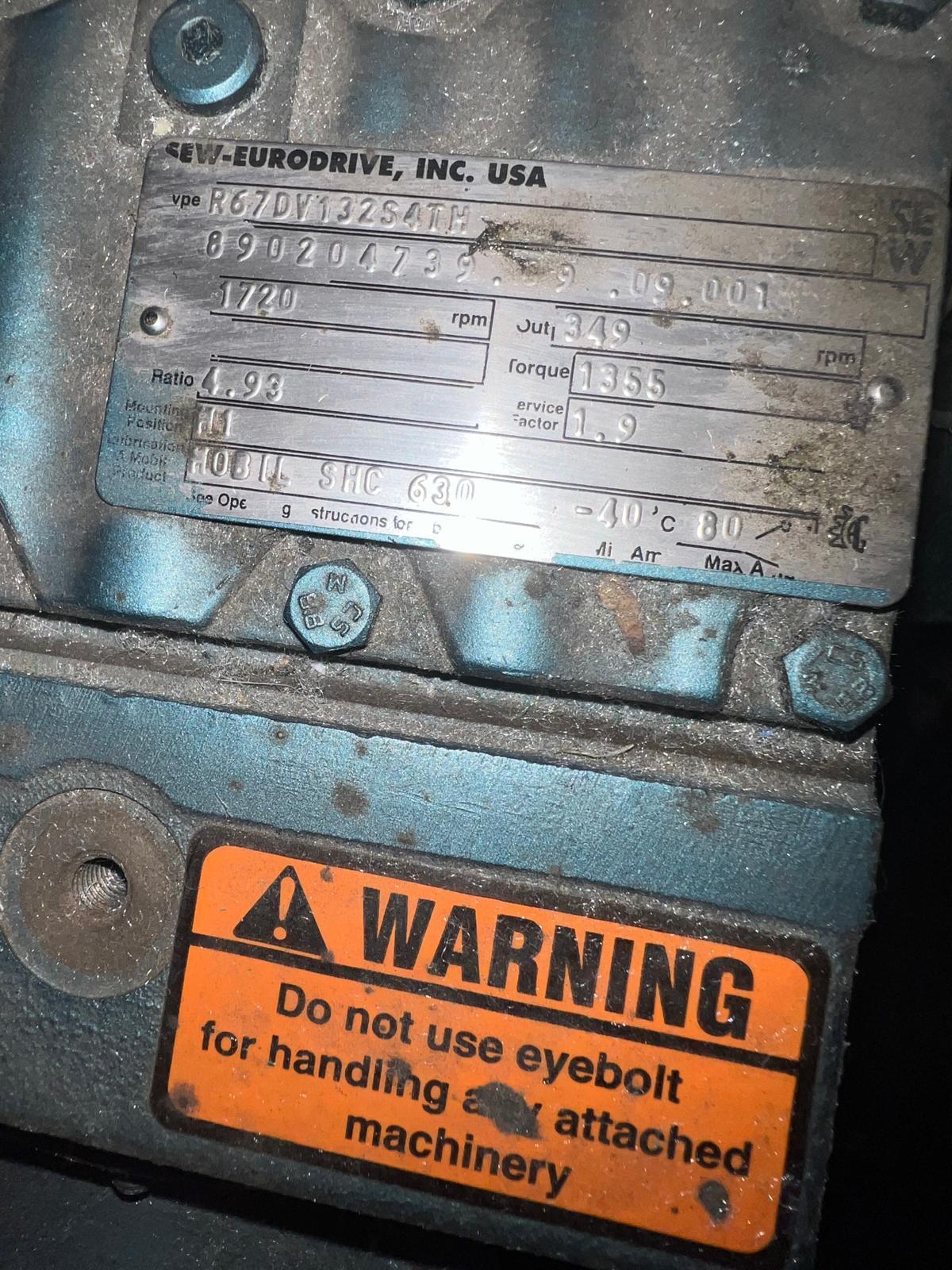

• Winder powered by AC Variable Frequency Vector Drive Package including a 7-1/2 H.P. Eurodrive Model # R67 Parallel Helical Gear Motor Inverter Rated Duty Controlled with a Danfoss # VL T FC302 Programmable Vector Drive Controller providing constant torque throughout the drive speed range and mounted in a NEMA 12 cabinet with fused safety disconnect, control transformer, relay and terminal blocks and is mounted on the rear leg of the Winder.

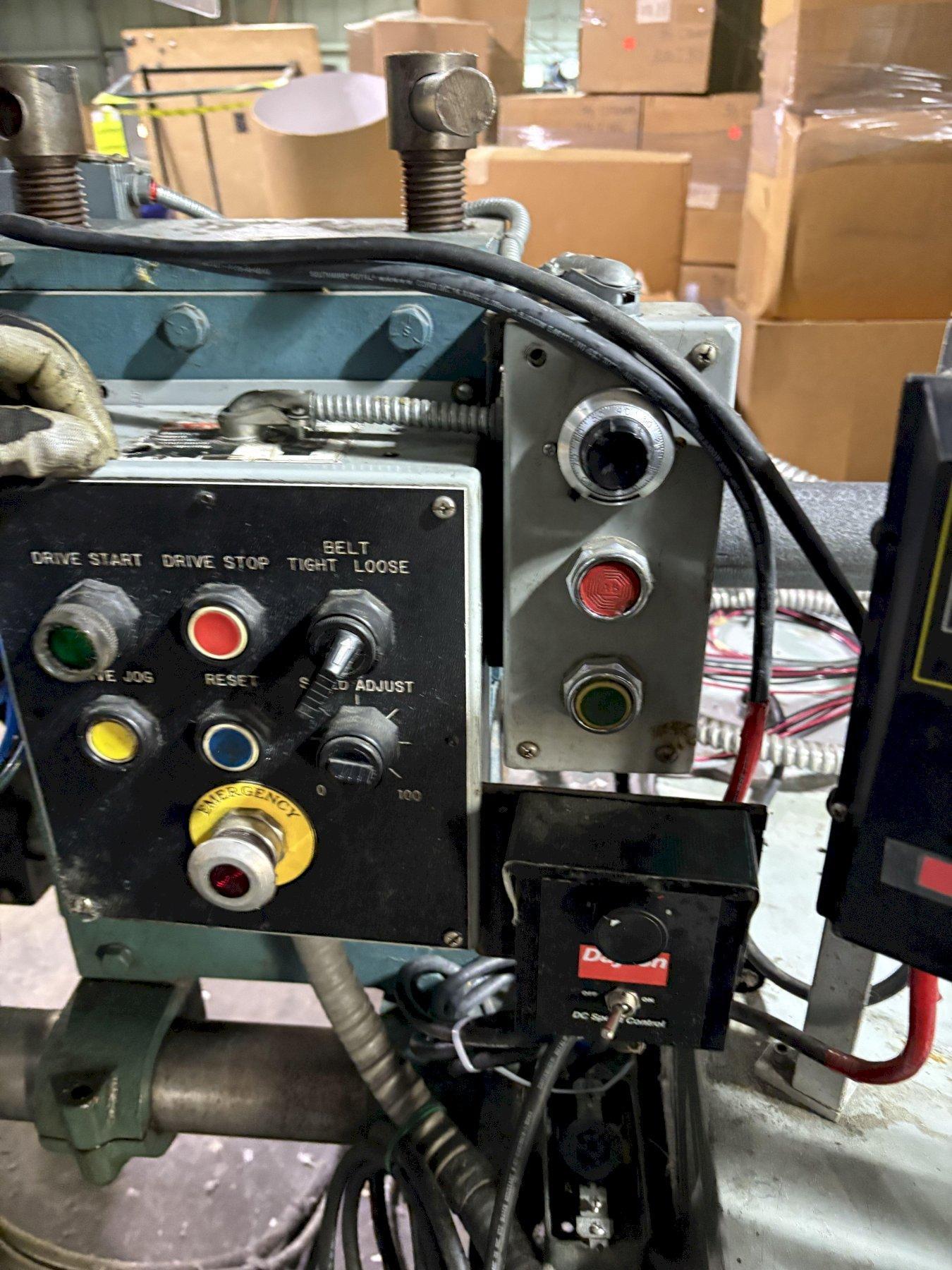

• Operator controls are hardwired to the drive cabinet and mounted on one side of the mandrel clamp housing and one on the operator side of the mandrel.
• One (1) winding head to include air operated cylinders and solenoid operated air switch to provide the quick release of belt tension with "Wobble Stick" master stop switch mounted on mandrel clamp housing and extending over the winding mandrel with adjustable mounting brackets for changes in the mandrel diameters.
• One (1) MW-563-C - 1.520" Diameter (Approx.) Water Cooled Spiral Tube Winding Mandrel

with hard chrome plating in winding and relief areas.

• 3 phase, 60 hertz, 208/230/460 volt

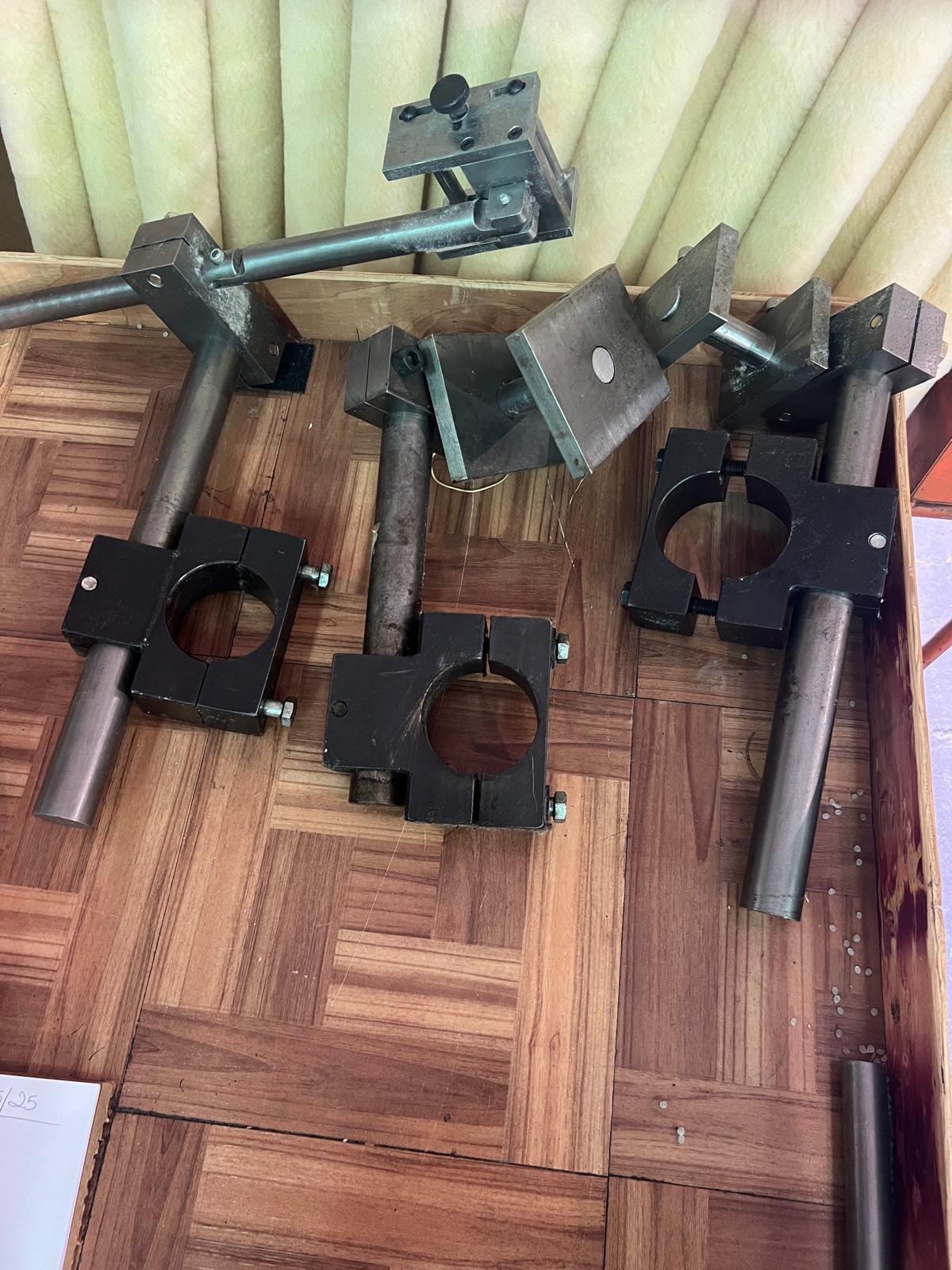

 3 Steel Stands

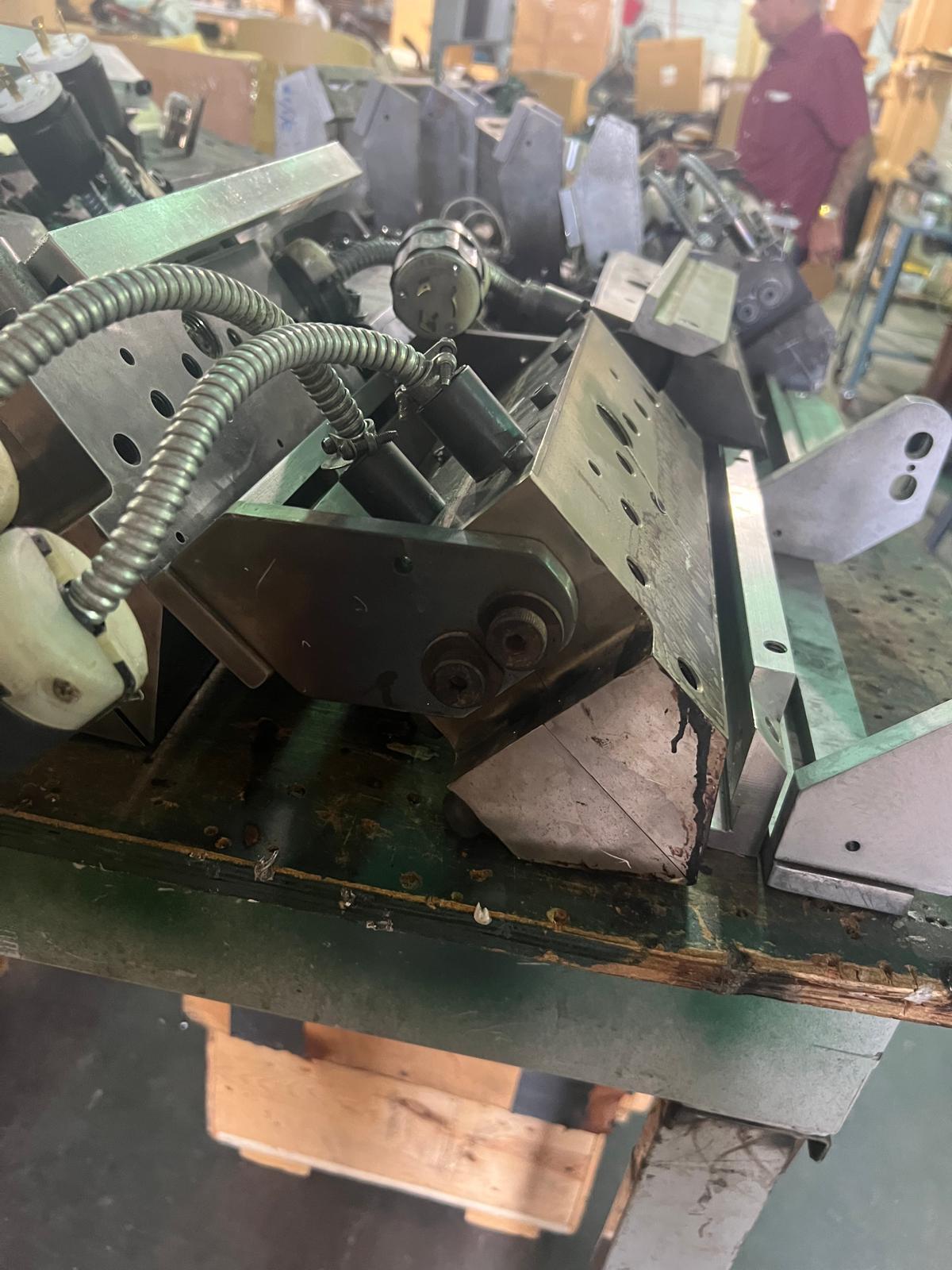

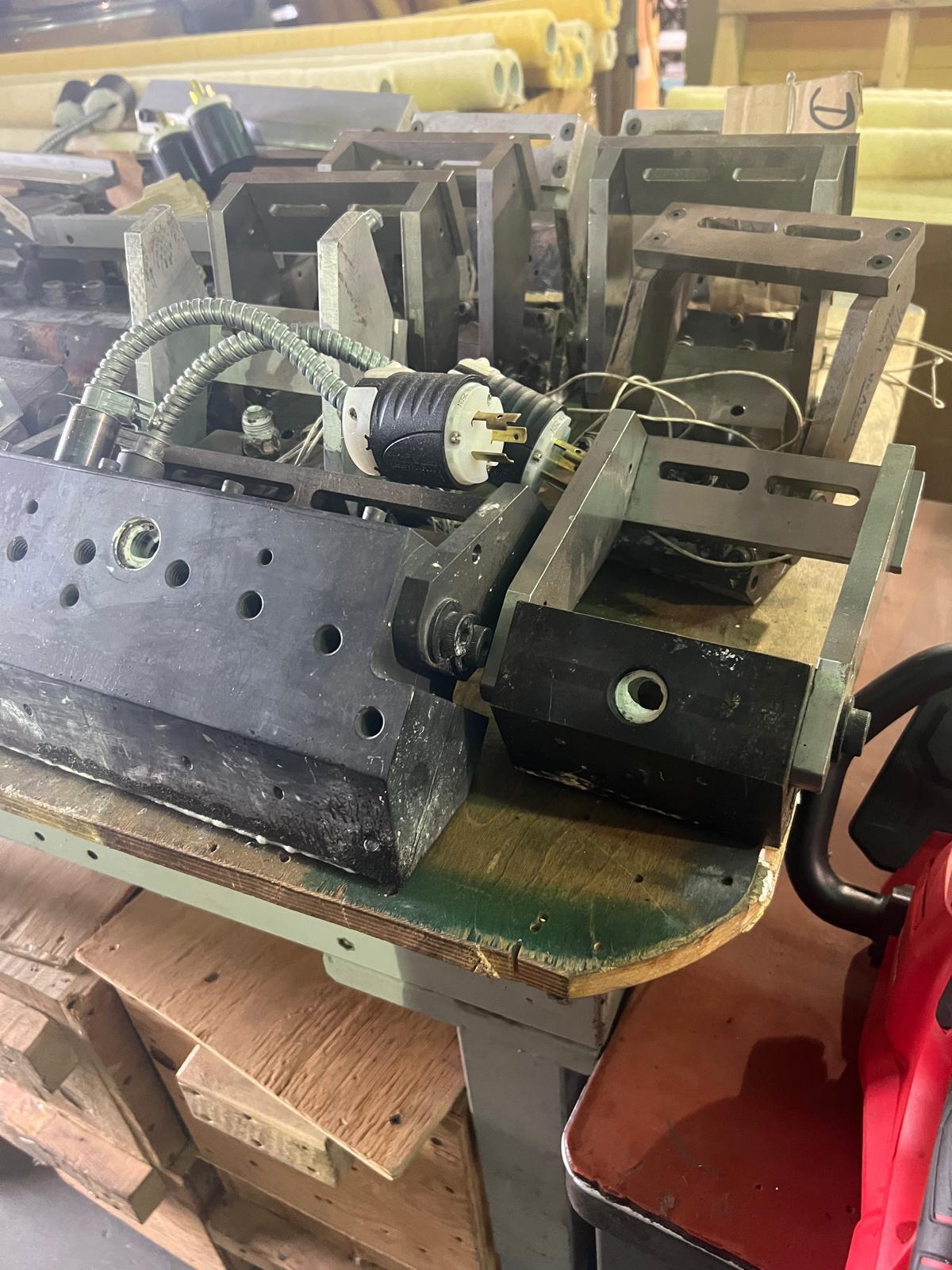

  Die (1):

• Extrusion lamination (sheet) die
• 10.5" wide
• Was used for PP and for filled PP
• Internal flow passage custom-designed for low shear and uniform distribution of melt stream

across width of die via a coat hanger manifold.

• Lip opening range: 0.010”- 0.030”
• Lower lip is integral to the die body – not removable
• All fasteners with U.S. standard threading
• Die completely wired with cartridge heaters and high temperature insulated wire terminated to IEC plug with five-foot long power lead
• Temperature control is achieved via 1 control zone, including 1 individual I/C “J” type thermocouples with five foot lead in armor cable
• Dimensions - height = 7.5", width = 12", depth = 3.5"

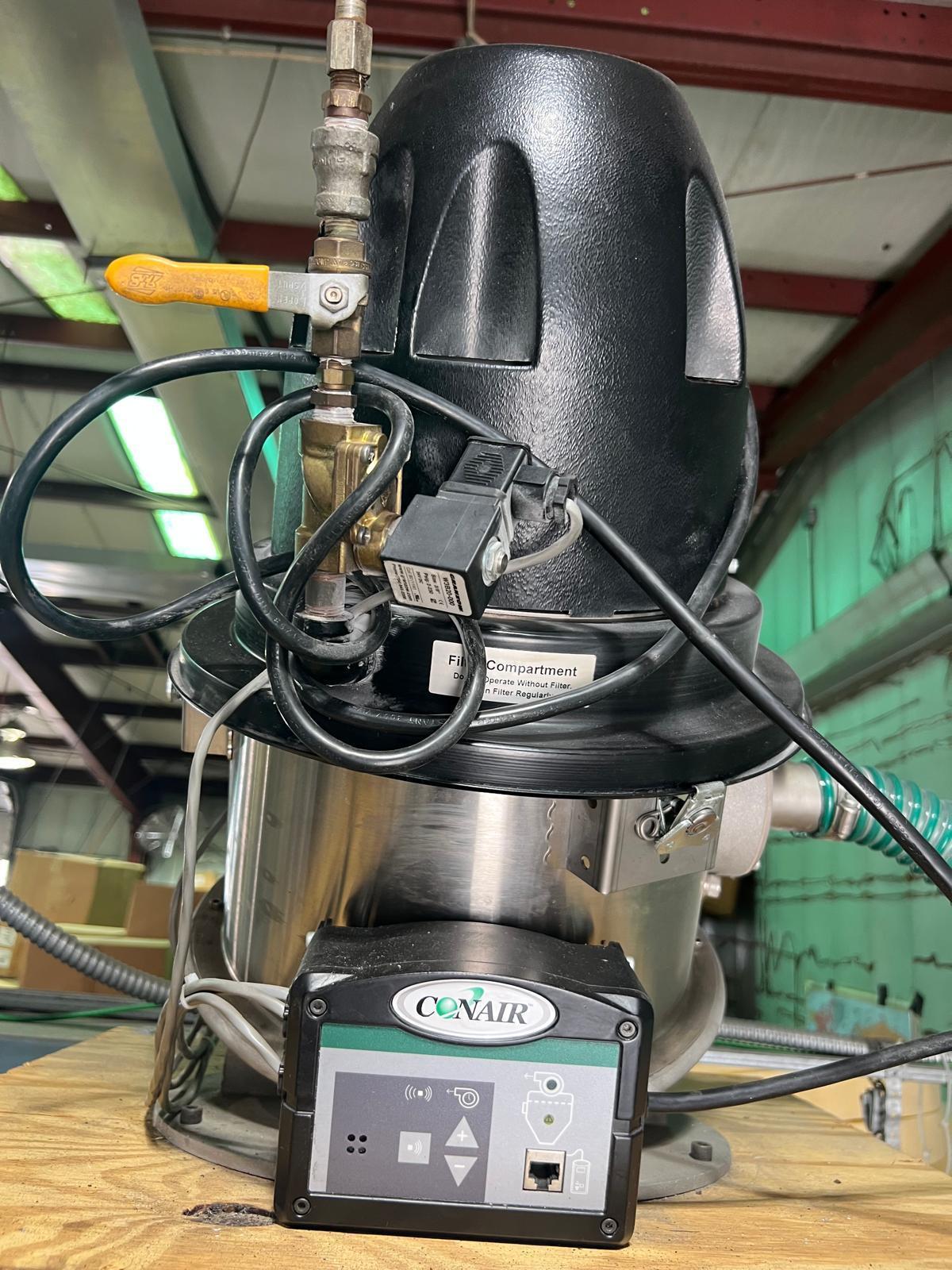

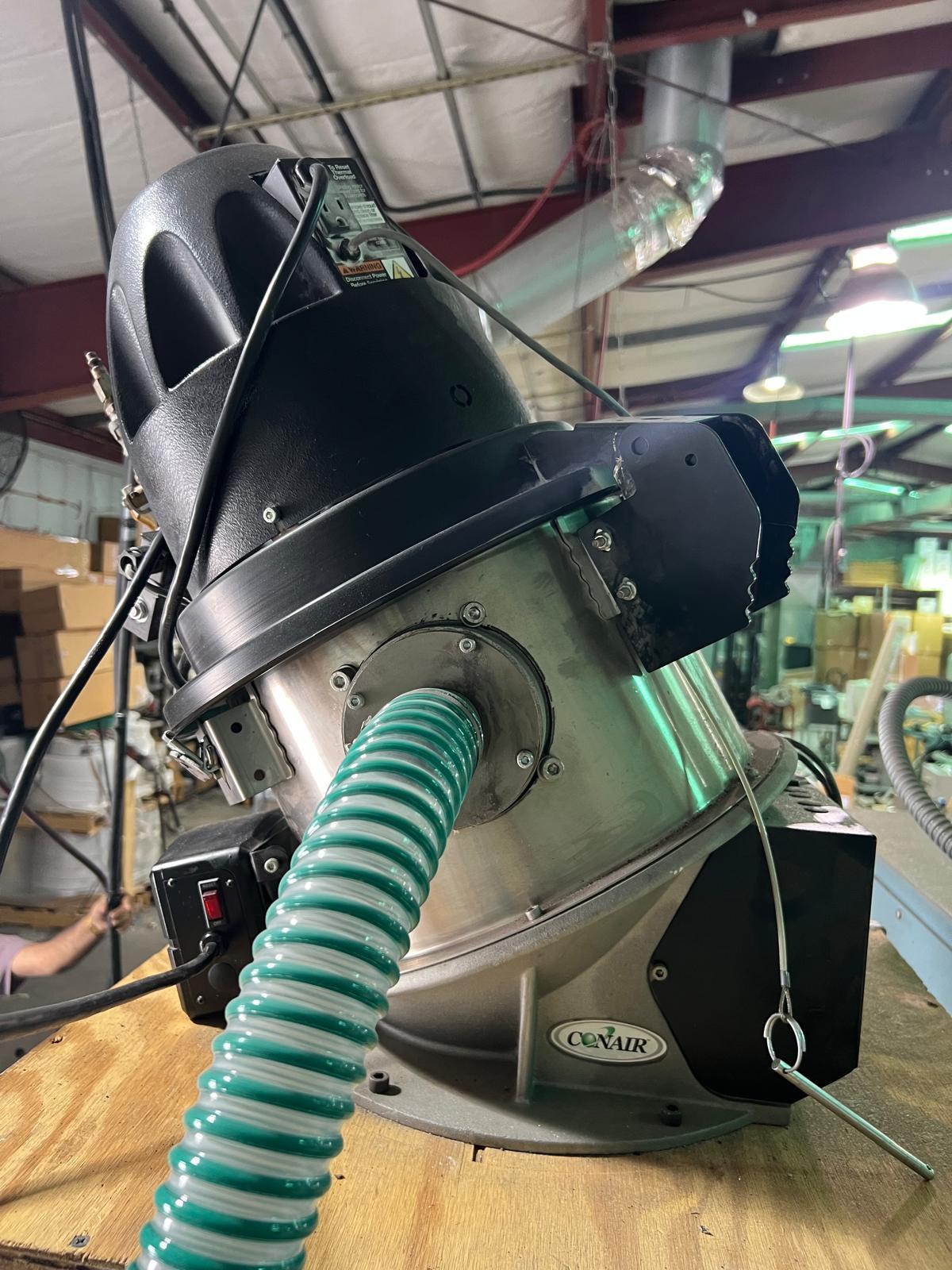

 Vacuum loader:

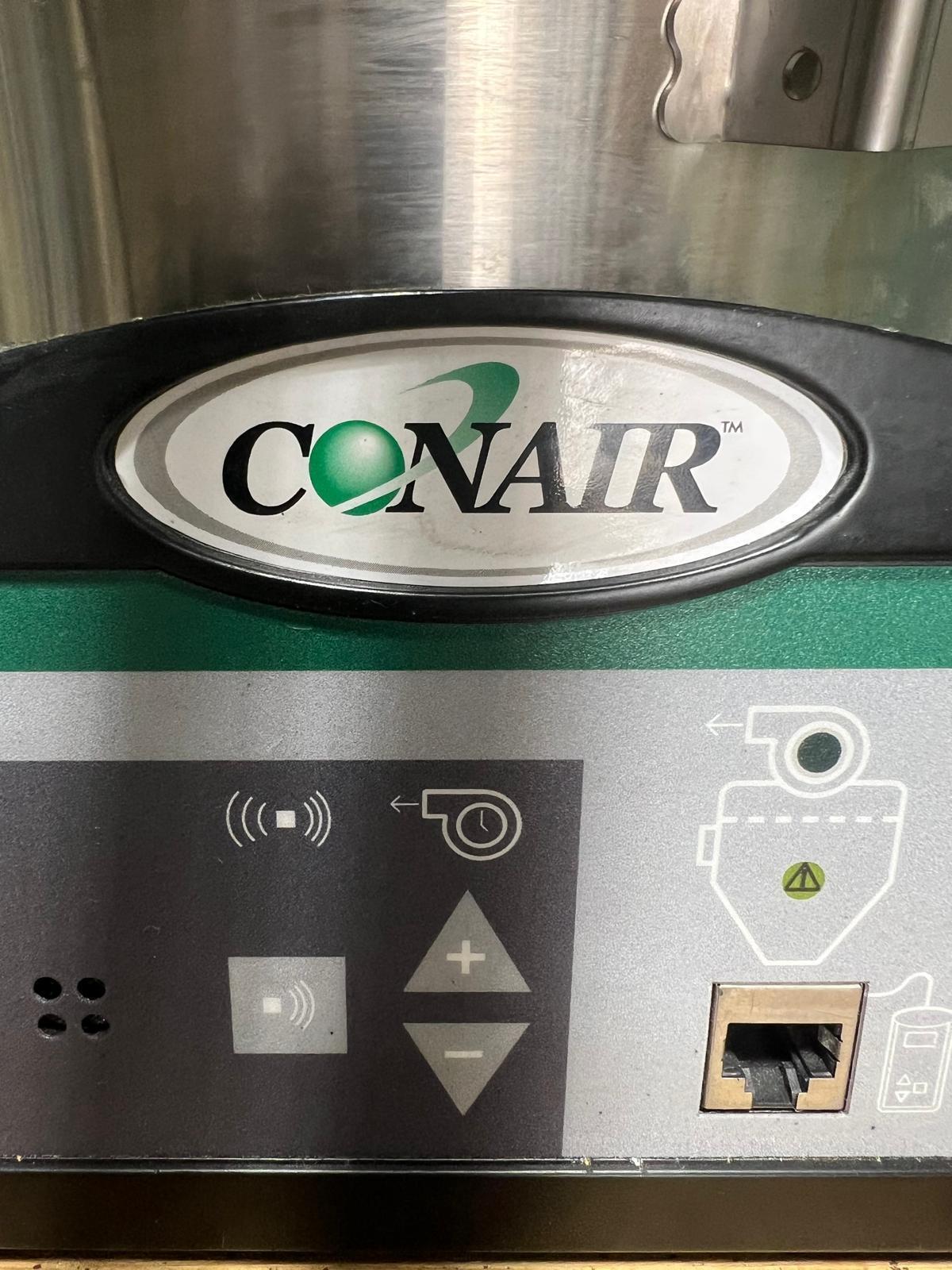

• Conair Access Loader AL-5
• Size - 5
• Voltage and Frequency - 110/1/60hz
• Inlet Line Size OD - 1.75 inch
• ° Capacity: 0.5 cubic feet
• 1.3 HP Brushless Integral Motor
• Purchased in 2018

 As is, where is.
