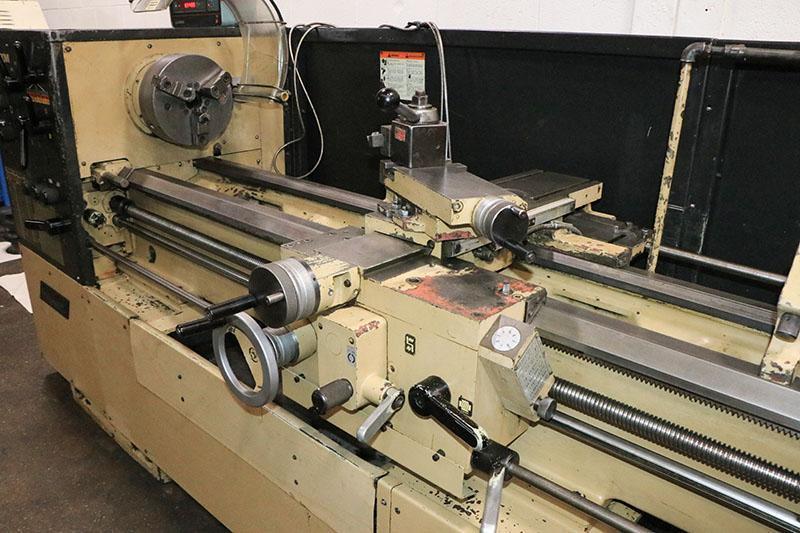

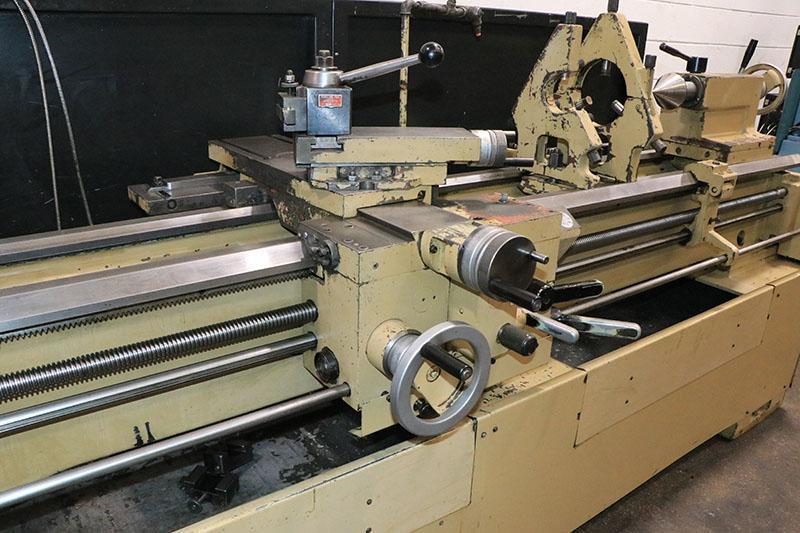

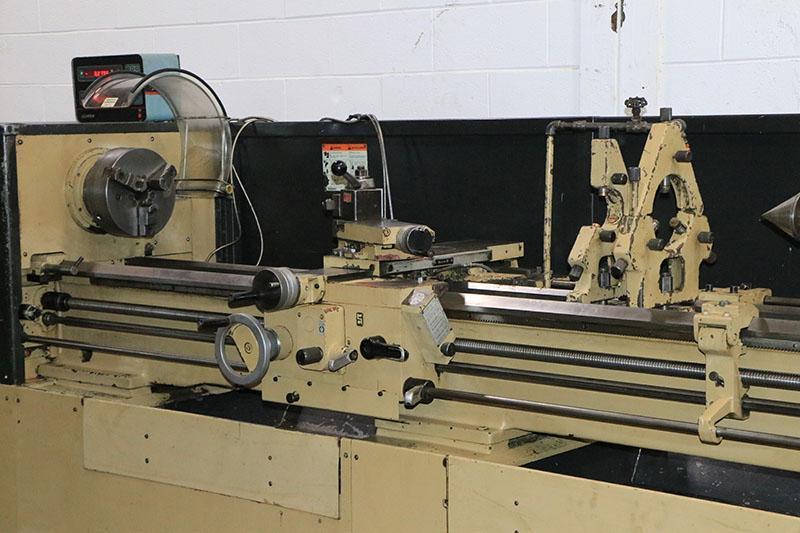

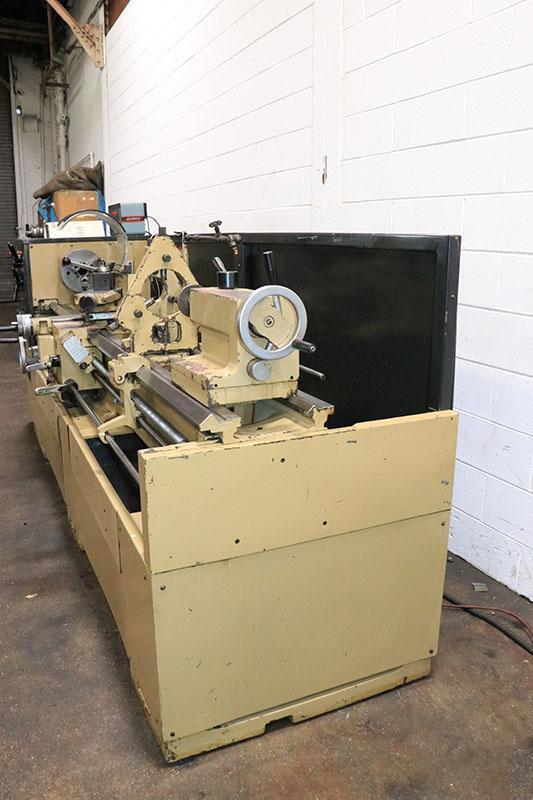

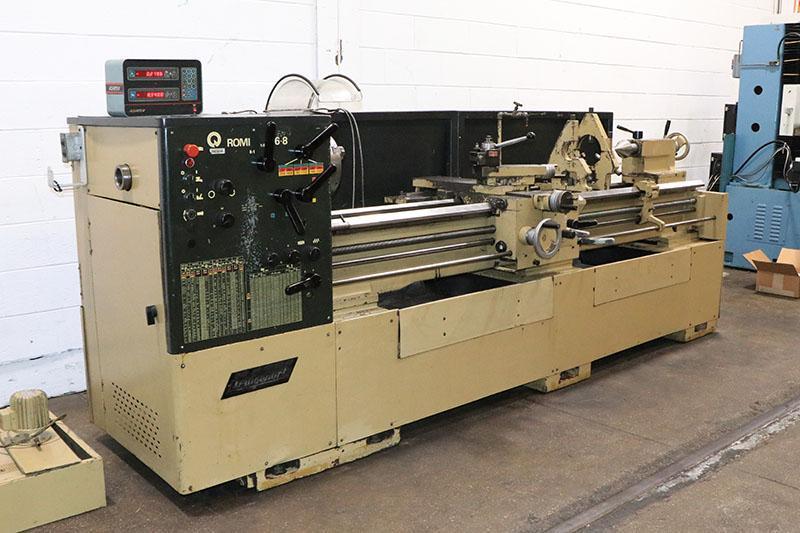

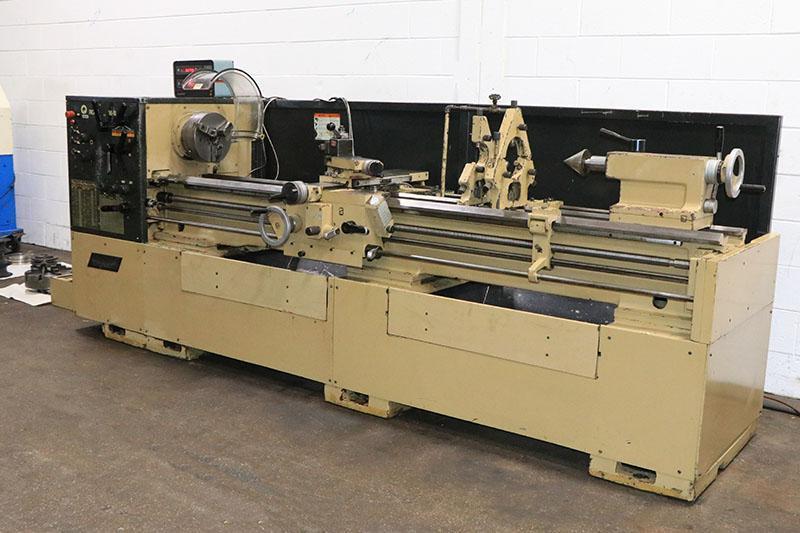

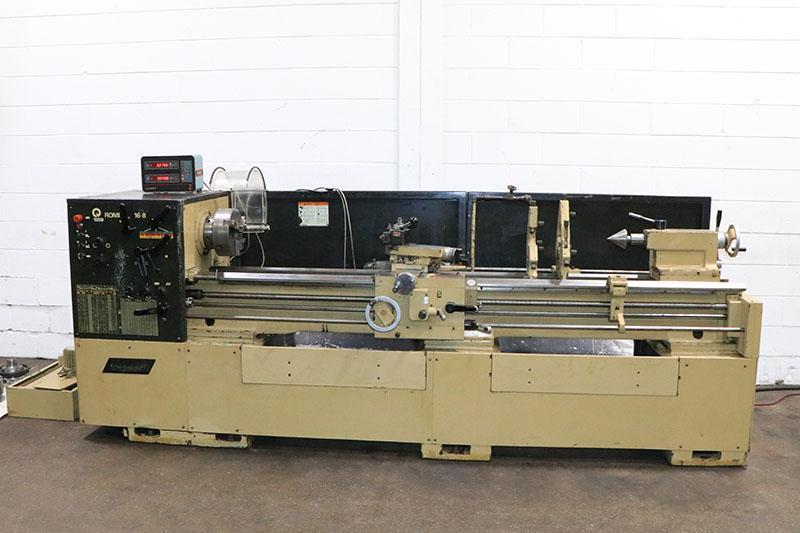

16" x 80" BRIDGEPORT / ROMI ENGINE LATHE

MODEL: 16-8, S/N 0205043-140,  NEW: 1980's

SPECIFICATIONS:

SWING OVER BEDWAYS ................... 16-1/2"

SWING OVER CROSS SLIDE ............... 9-5/8"

HOLE THRU SPINDLE .................... 2-1/4"

DISTANCE BETWEEN CENTERS ............. 80"

WIDTH OF BED ......................... 13-3/8"

SPINDLE NOSE ......................... D1-6" CAMLOCK

SPINDLE SPEED RANGE (12) ............. 22.4 - 1800 RPM

ENGLISH THREADING RANGE .............. 1/2 - 72 TPI

METRIC THREADING RANGE ............... .2 - 56 mm

LONGITUDINAL FEED RANGE(99) .......... .0012" - .2813" IPR

CROSS FEED RANGE (99) ................ .0006" - .1321" IPR

TAILSTOCK SPINDLE TAPER .............. #4MT

TAILSTOCK SPINDLE TRAVEL ............. 6-5/8"

APPROX FLOOR SPACE ................... 127"L x 36"W x 48"H

APPROX WEIGHT ........................ 4,500 LBS

EQUIPPED WITH:

INCH/METRIC THREADING CAPABITIY

ACU-RITE TWO AXIS DIGITAL READOUT

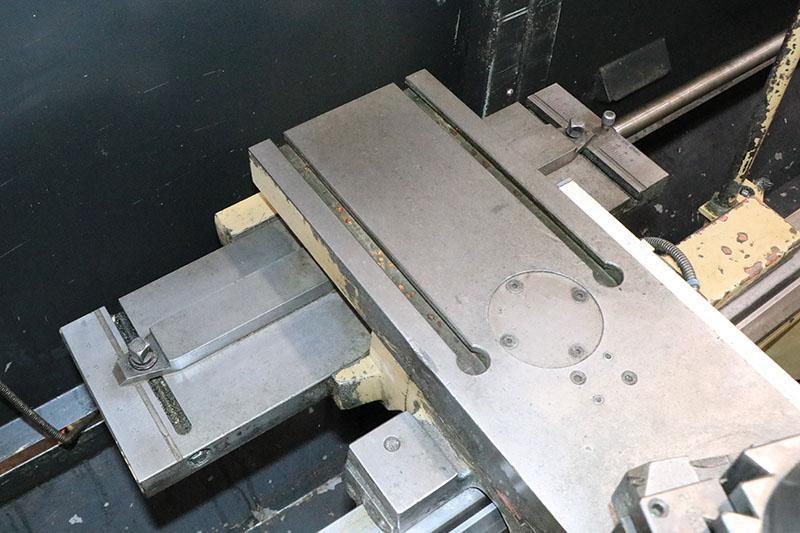

TAPER TURNING ATTACHMENT

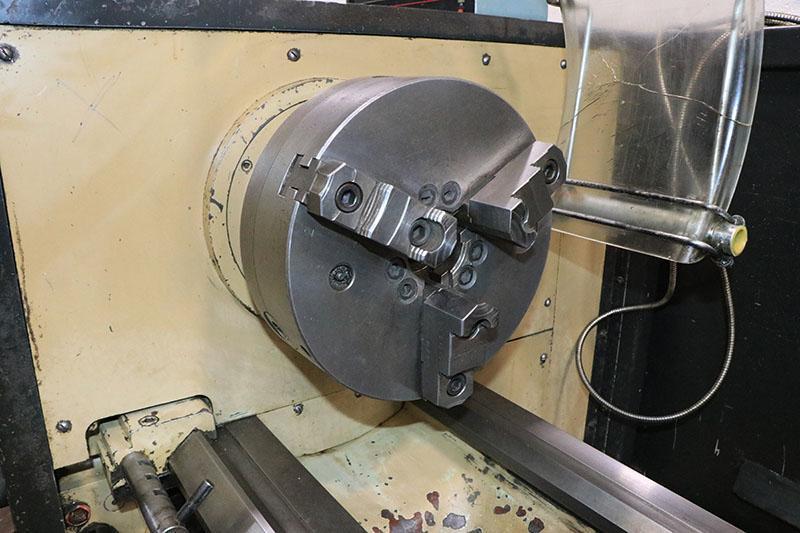

10" 3-JAW CUSHMAN CHUCK

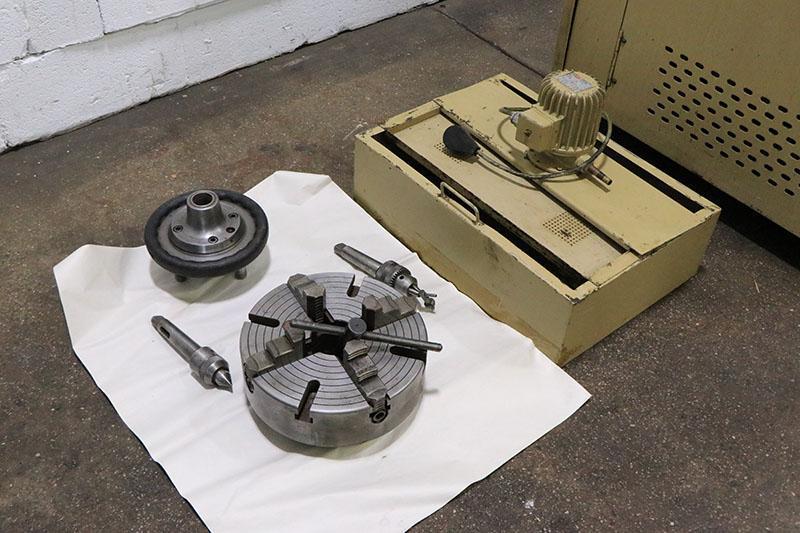

12" 4-JAW CHUCK

HARDINGE SJORGEN 5C COLLET CHUCK

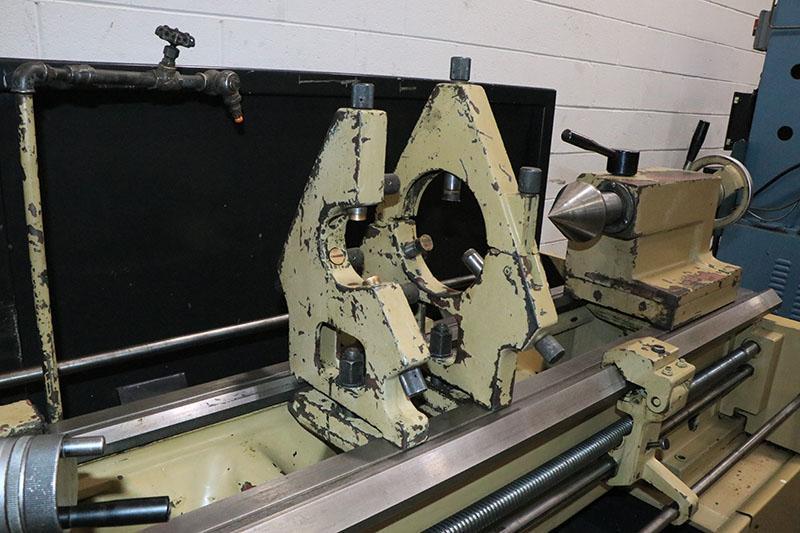

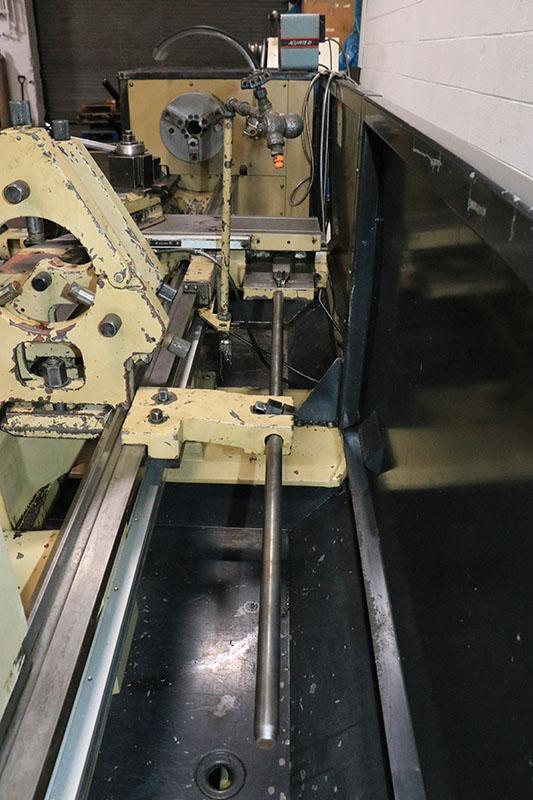

STEADY REST

FOLLOW REST

ALORIS MODEL: CXA QUICK CHANGE TOOLPOST

THREAD DIAL INDICATOR

ADJUSTABLE CARRIAGE STOP

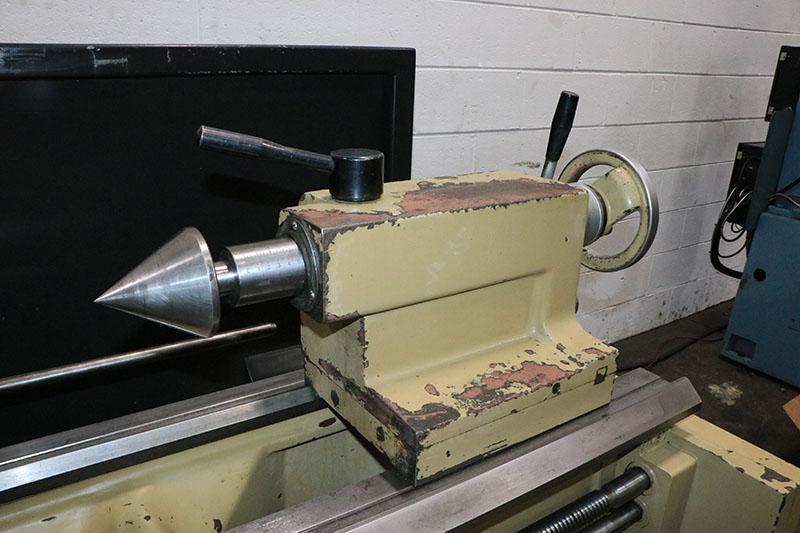

LIVE CENTER FOR TAILSTOCK

3/4" CAPACITY DRILL CHUCK FOR TAILSTOCK

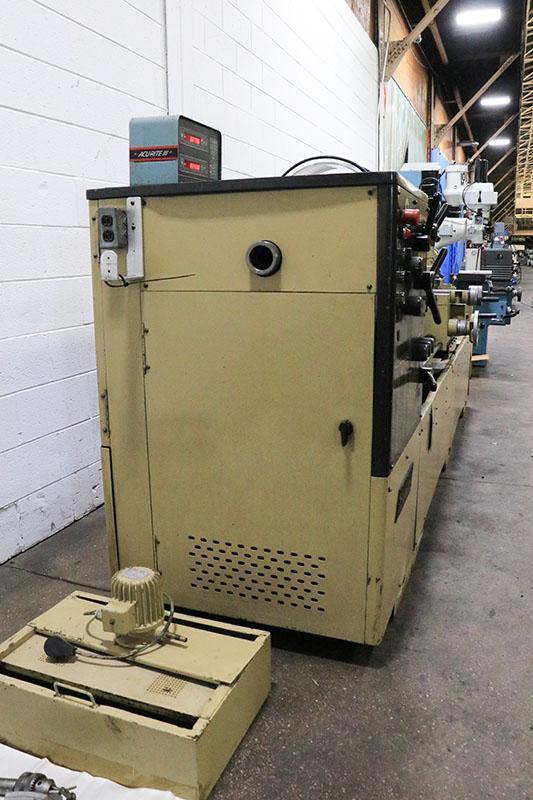

COOLANT SYSTEM WITH REMOVABLE CHIP PANS

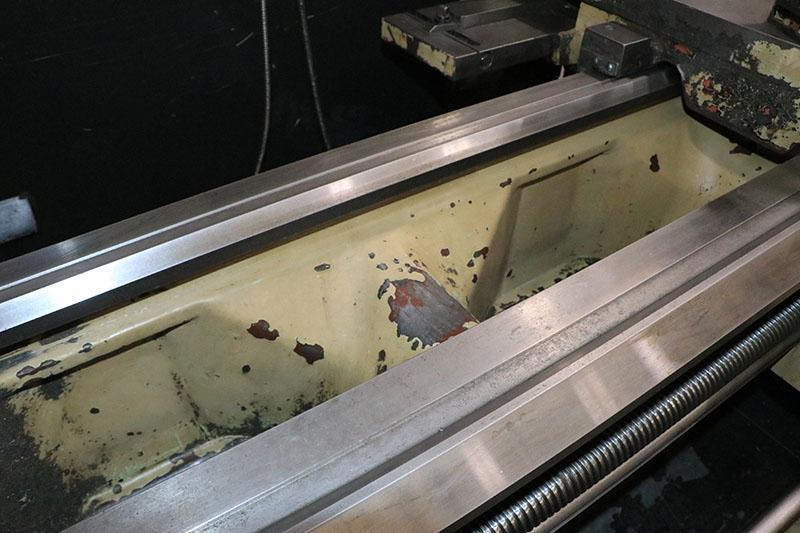

INDUCTION HARDENED & GROUND BED WAYS

7-1/2 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
