Baldor Reliance ZDNM2333T 15HP Vector Drive Motor 230/460V 3PH 1765 RPM

Brand
BALDOR

Model
ZDNM2333T

Type
Motors, A.C.

Stock #
LMWLG-451-MD-001

Condition
Like New

Year
Not Specified

Location
New Hope, Pennsylvania
United States

Equipped With

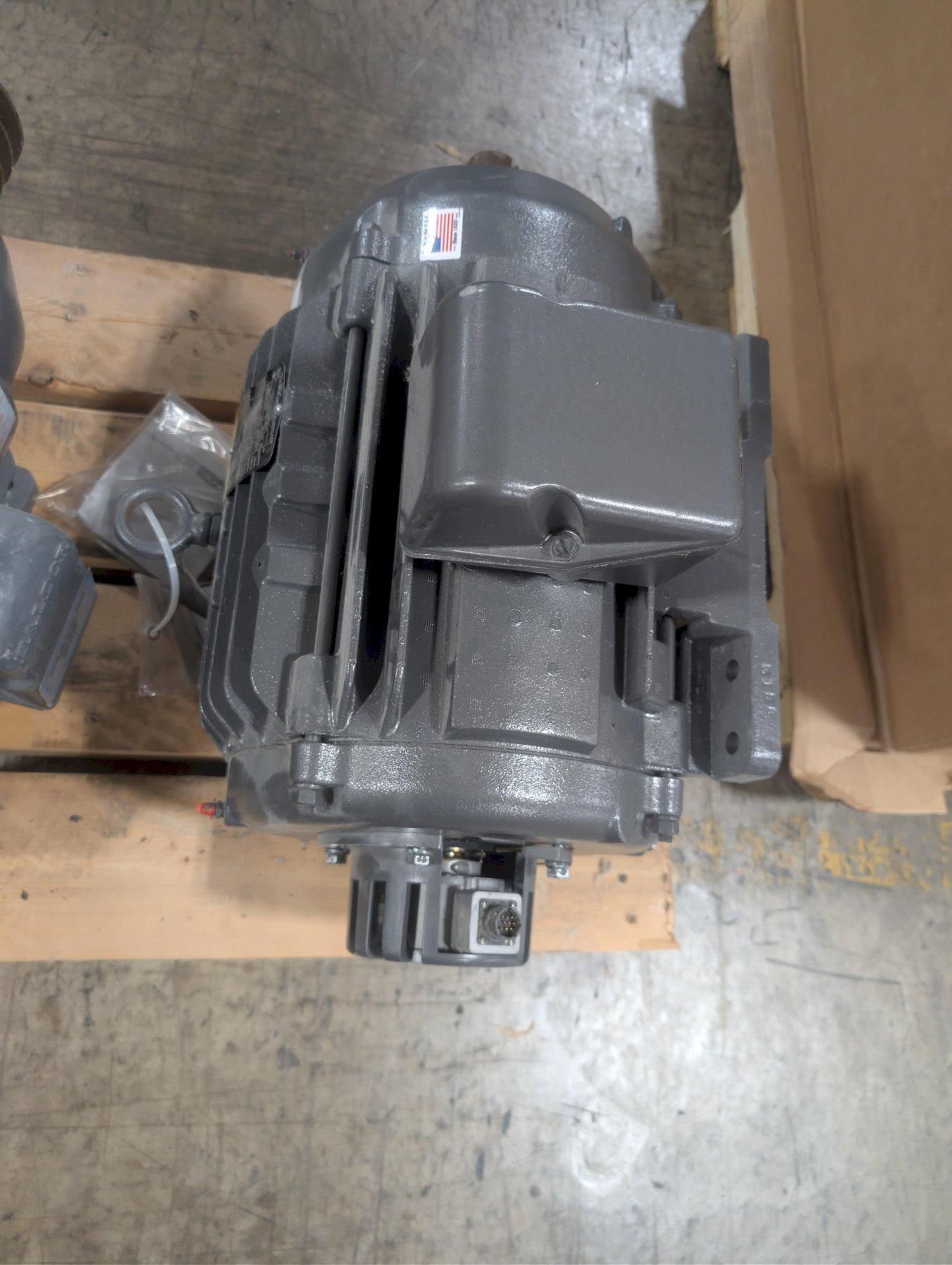

Baldor Reliance ZDNM2333T 15 HP three-phase AC vector-drive motor.

This motor was acquired as a brand-new surplus spare and was reportedly never installed or placed into service. It has been stored without its original factory packaging and may show minor dust, scratches, or other cosmetic shelf wear from storage and handling.

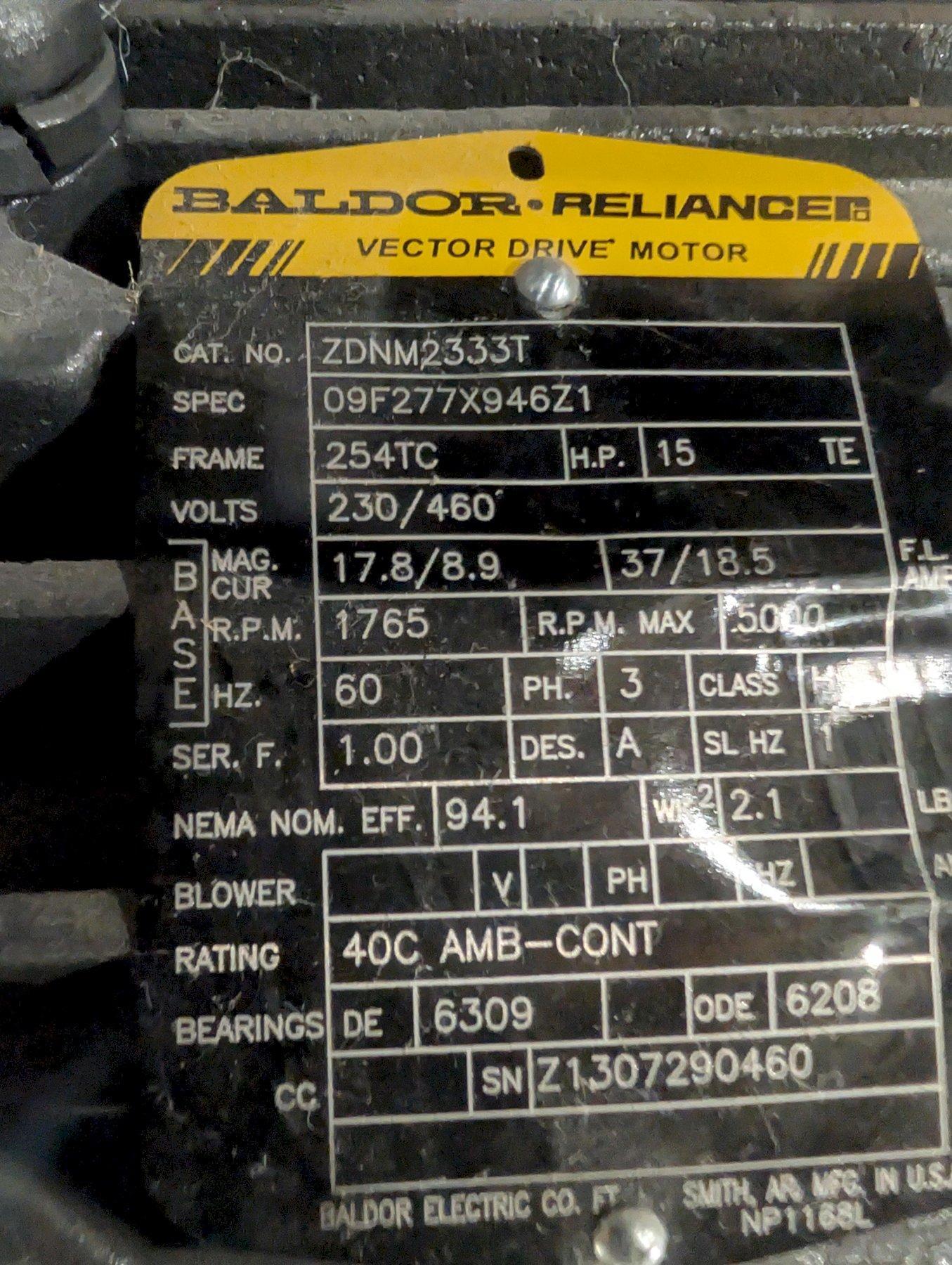

Specifications:

  • Manufacturer: Baldor Reliance
  • Catalog Number: ZDNM2333T
  • Specification Number: 09F277X946Z1
  • Motor Type: AC Vector-Drive Motor
  • Horsepower: 15 HP
  • Voltage: 230/460 VAC
  • Phase: Three-phase
  • Frequency: 60 Hz
  • Rated Speed: 1,765 RPM
  • Maximum Speed: 5,000 RPM
  • Current: 17.8/8.9 amps
  • Frame: 254TC
  • Duty: Continuous
  • Service Factor: 1.00
  • NEMA Nominal Efficiency: 94.1%
  • Drive-End Bearing: 6309
  • Opposite Drive-End Bearing: 6208
  • Serial Number: Z1307290460

The motor includes the encoder connection shown in the photographs for use with compatible vector-drive systems. No drive, controls, cables, or additional accessories are included unless specifically pictured.
