For sale is an Applied Motion Products HT34-697D-YAA stepper motor, designed for high-performance motion control applications. This motor is in excellent condition and offers the following features:

Key Features:

• High Torque Design: Engineered to deliver increased torque output, making it suitable for demanding applications.

• Standard NEMA 34 Dimensions: Ensures compatibility with a wide range of equipment and mounting configurations.

• Integral 10 ft Shielded Cable with Strain Relief: Provides secure and reliable connections, reducing electrical noise and enhancing performance.

• Single Shaft Version Standard: Features a robust single shaft design for straightforward integration.

• UL Recognized: This motor meets UL safety standards, ensuring reliable and safe operation.

Specifications:

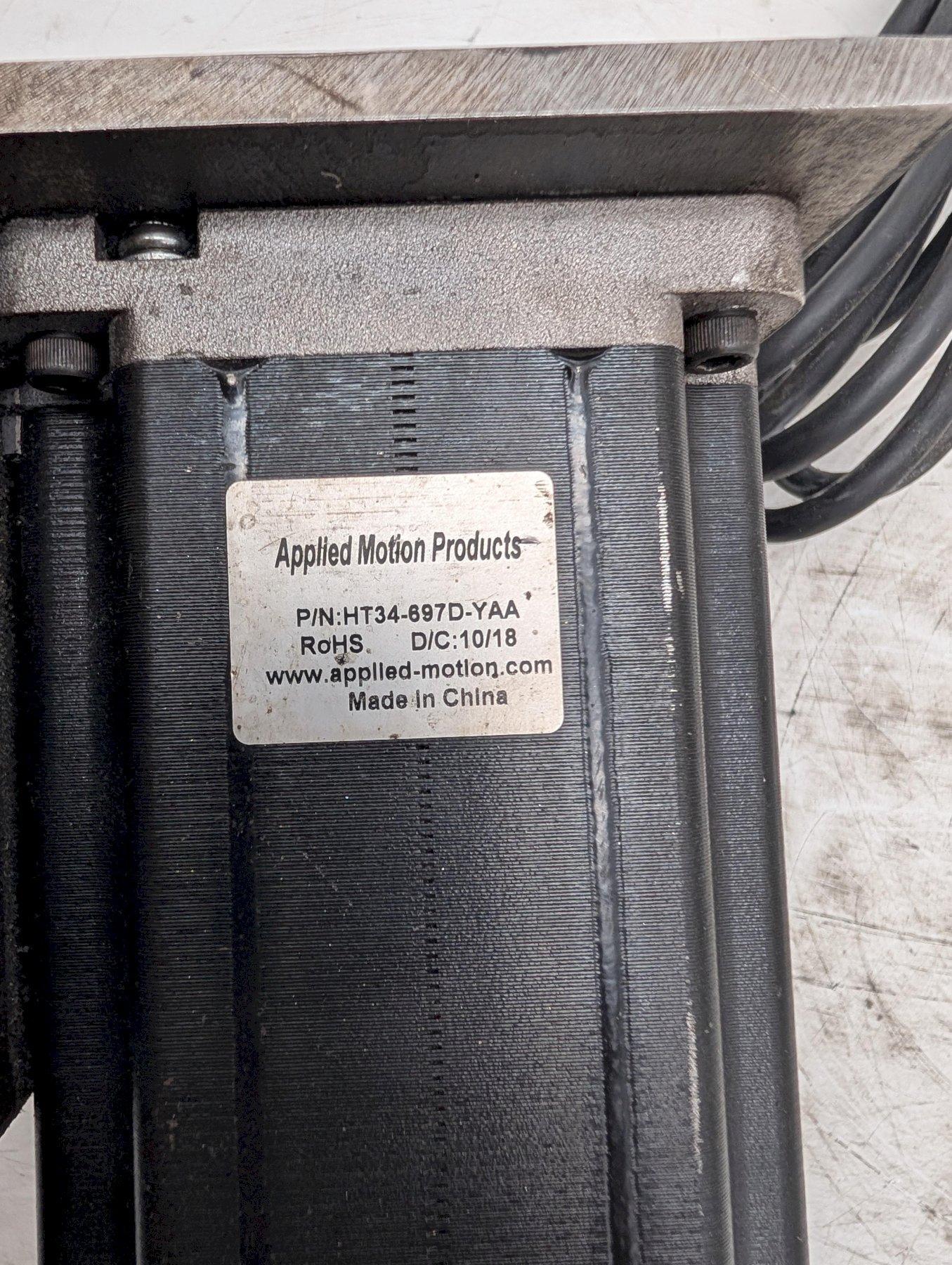

• Part Number: HT34-697D-YAA

• Motor Type: 2-phase hybrid stepper motor

• Step Angle: 1.8 degrees per step

• Holding Torque: Up to 1,694 oz-in (11,962 mNm)

• Current per Phase: 8.9 Amps

• Resistance per Phase: 0.21 Ohms

• Inductance per Phase: 3.5 mH

• Rotor Inertia: 6.23E-02 oz-in-sec²

• Weight: Approximately 9.9 lbs (4.5 kg)

• Length: 6.14 inches (156 mm)

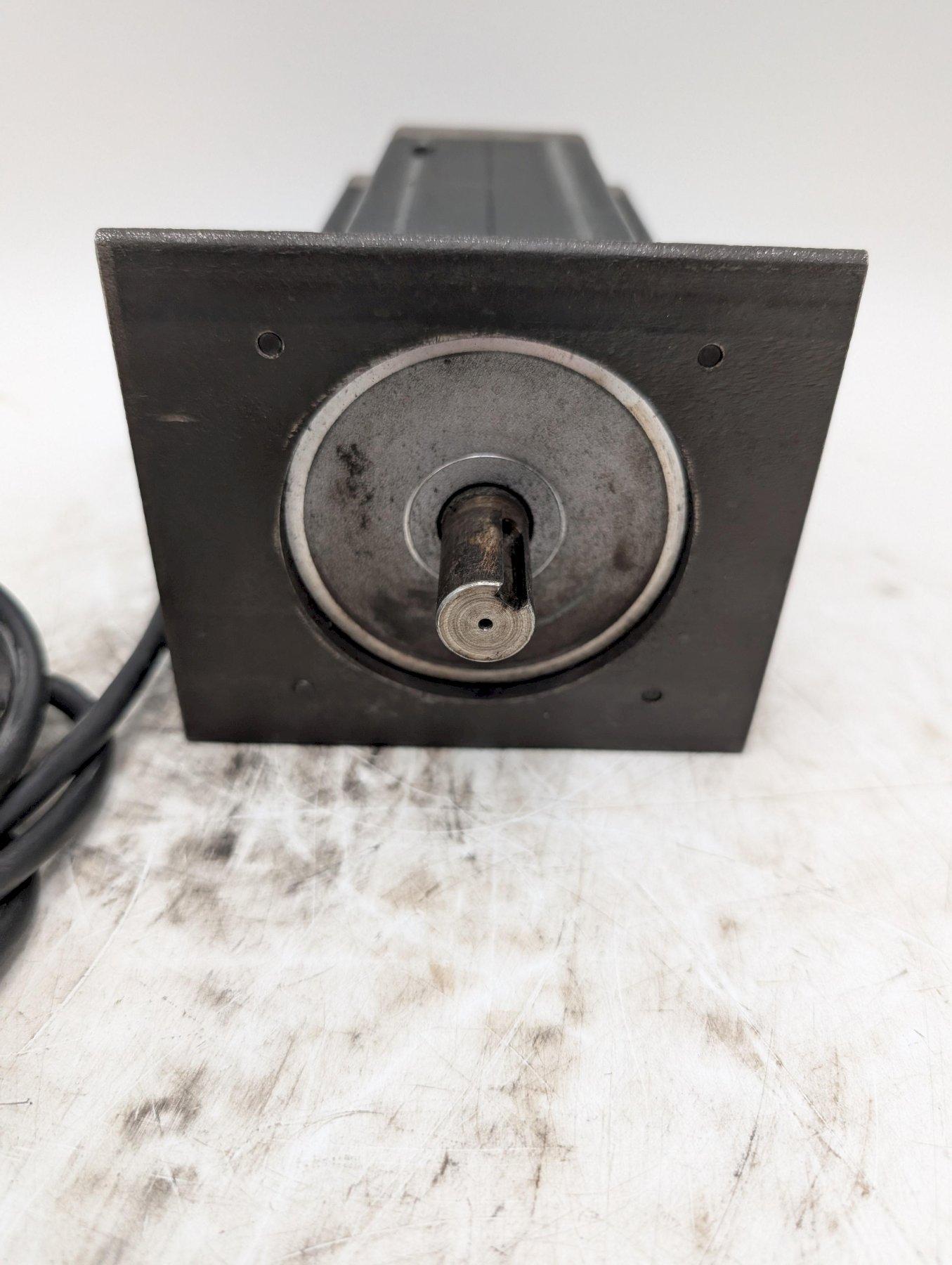

• Shaft Diameter: 0.625 inches (15.875 mm)

  Taken from a working environment where it was actively in use
