Description:

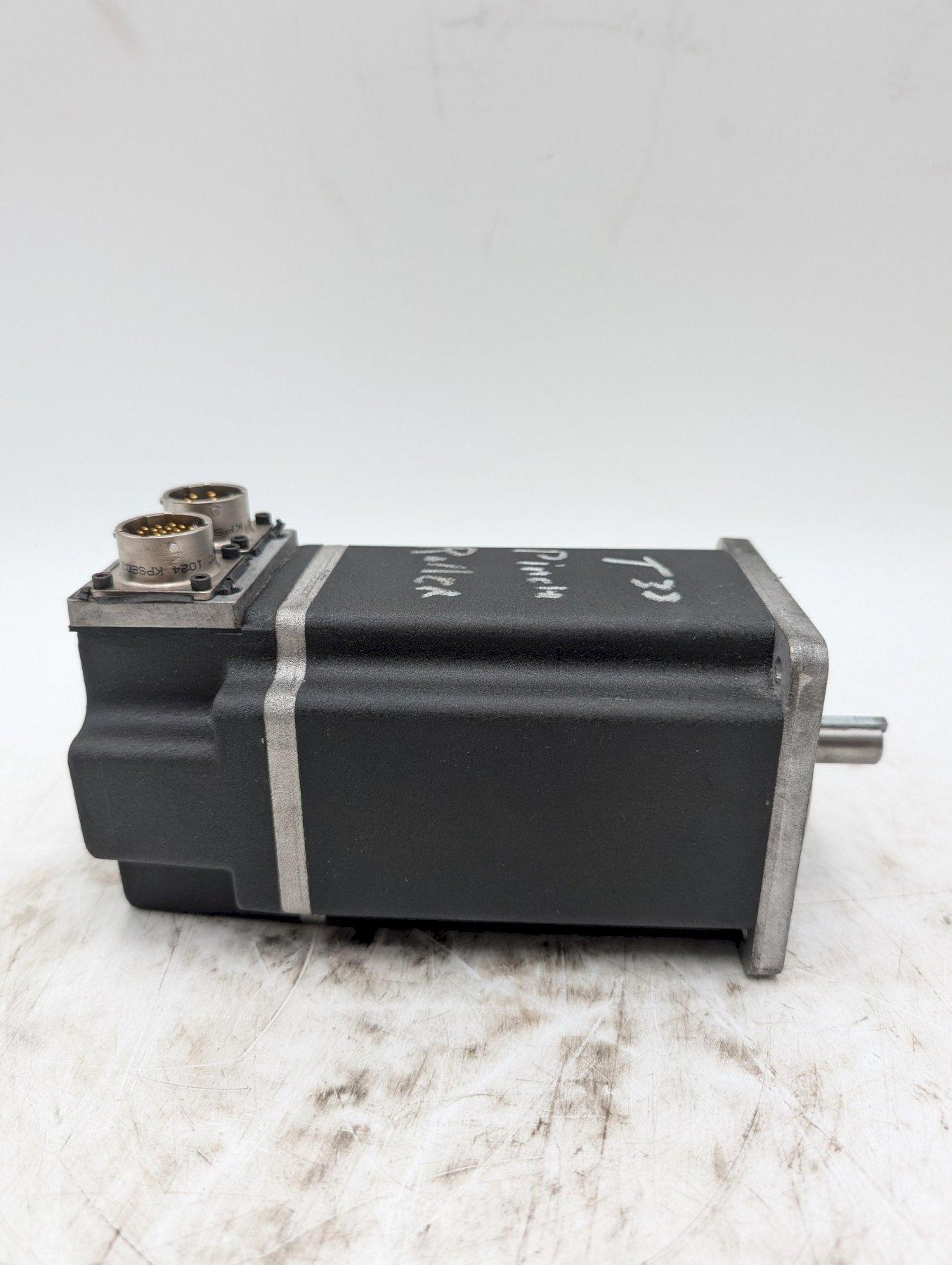

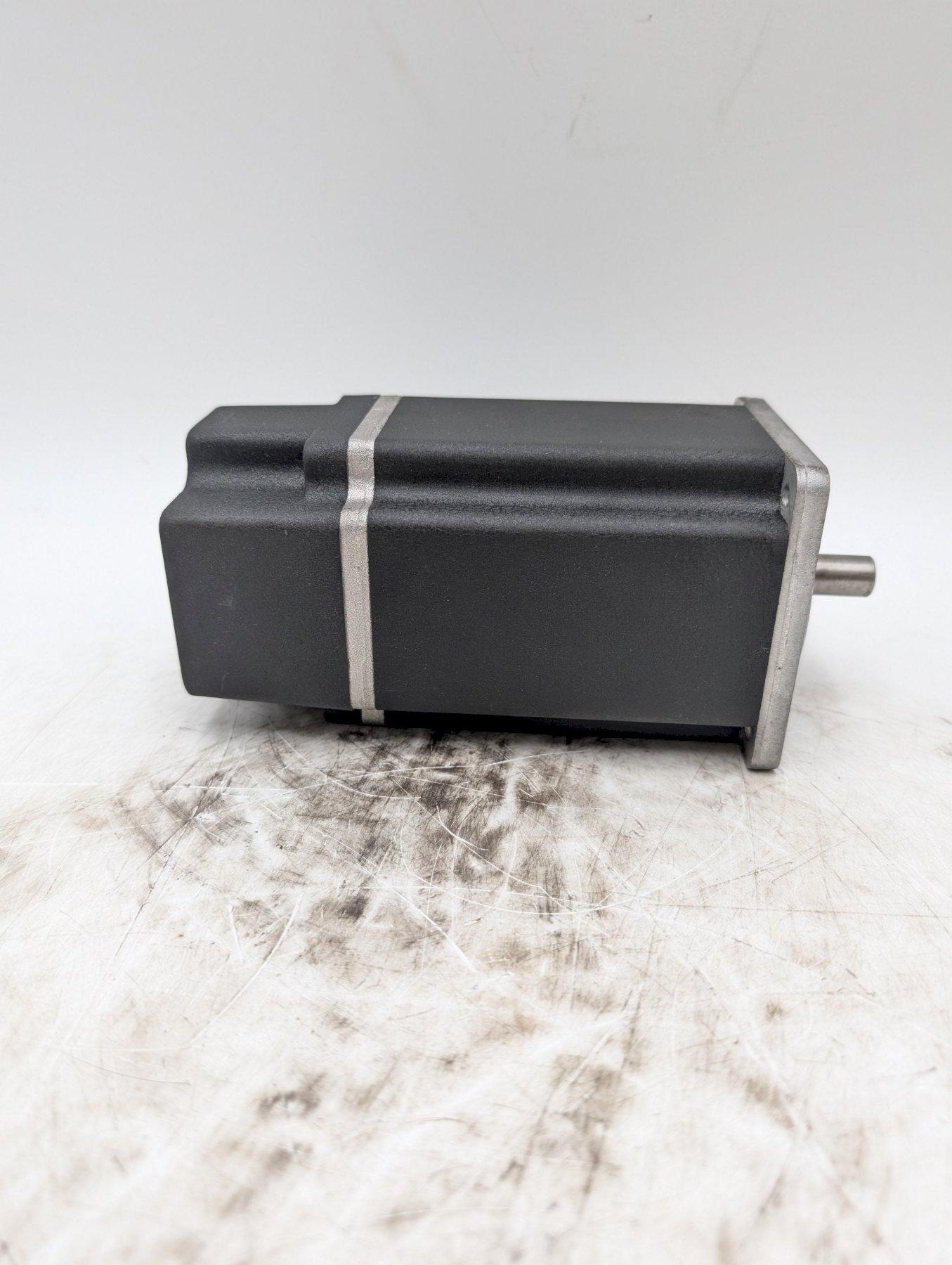

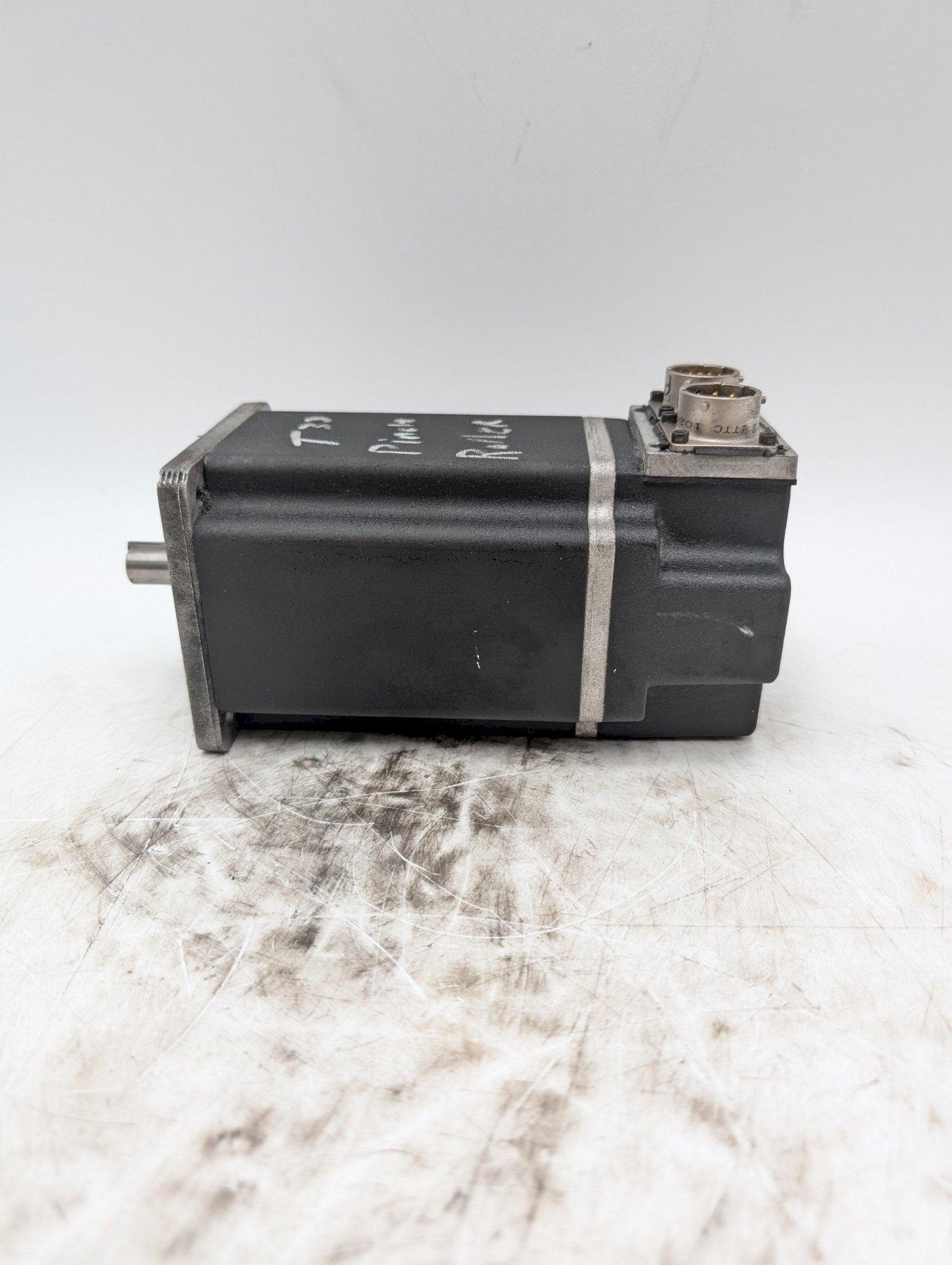

For sale is an Allen-Bradley N-3412-2-H00AA N-Series brushless servo motor, designed for high-performance industrial applications.

FROM THE MANFUACTURER:

Key Features:

• High-Speed Operation: Capable of reaching speeds up to 6000 RPM, suitable for applications requiring rapid motion.

• Continuous Torque: Delivers a continuous torque of 12 lb-in, ensuring consistent performance under load.

• Integrated Encoder: Equipped with a 2000-line count encoder for precise feedback and control.

• Standard NEMA 34 Frame: Ensures compatibility with a wide range of industrial equipment and mounting configurations.

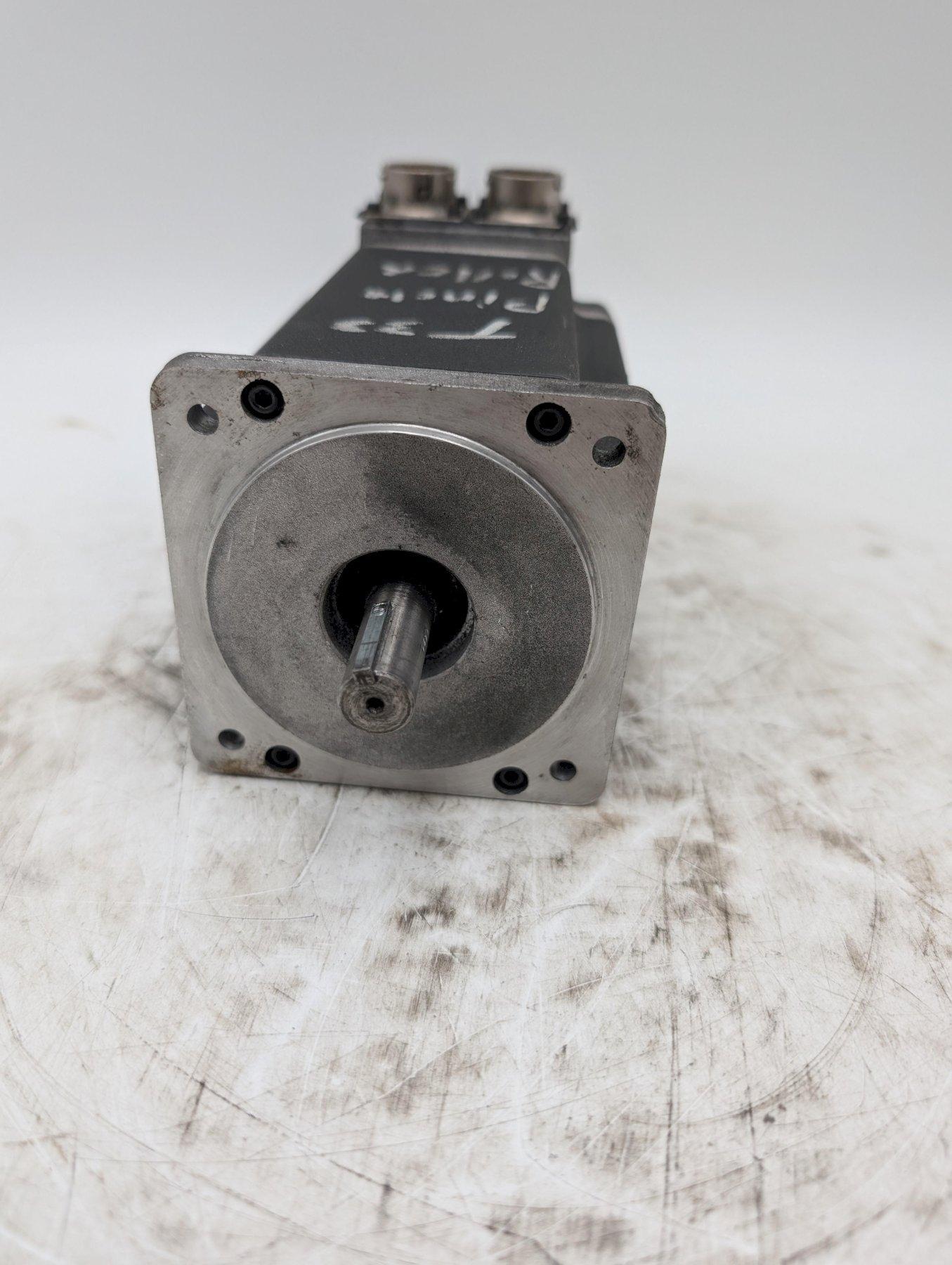

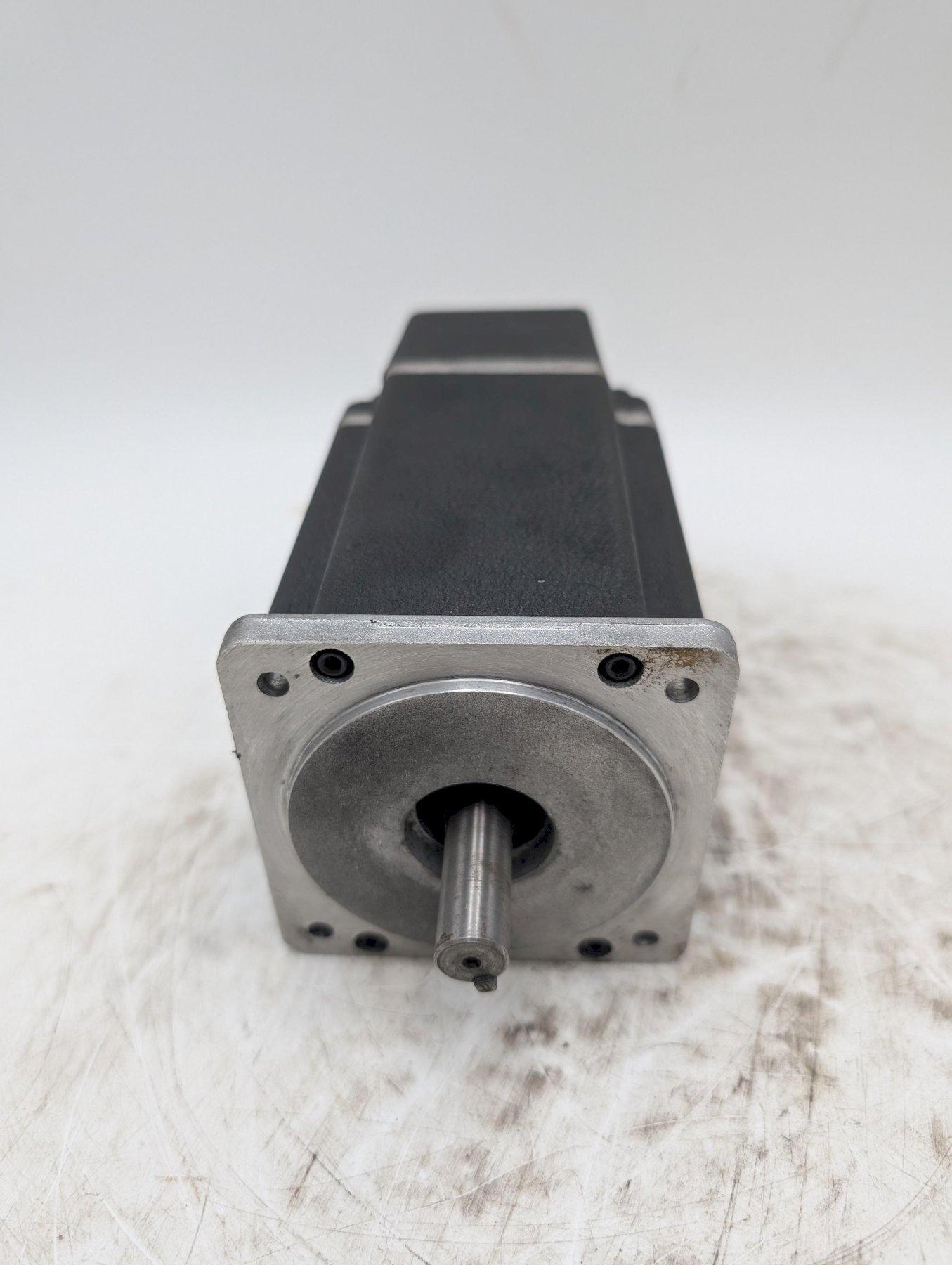

• Stainless Steel Shaft: Features a durable 1/2-inch diameter shaft made of 416 stainless steel for enhanced longevity.

Specifications:

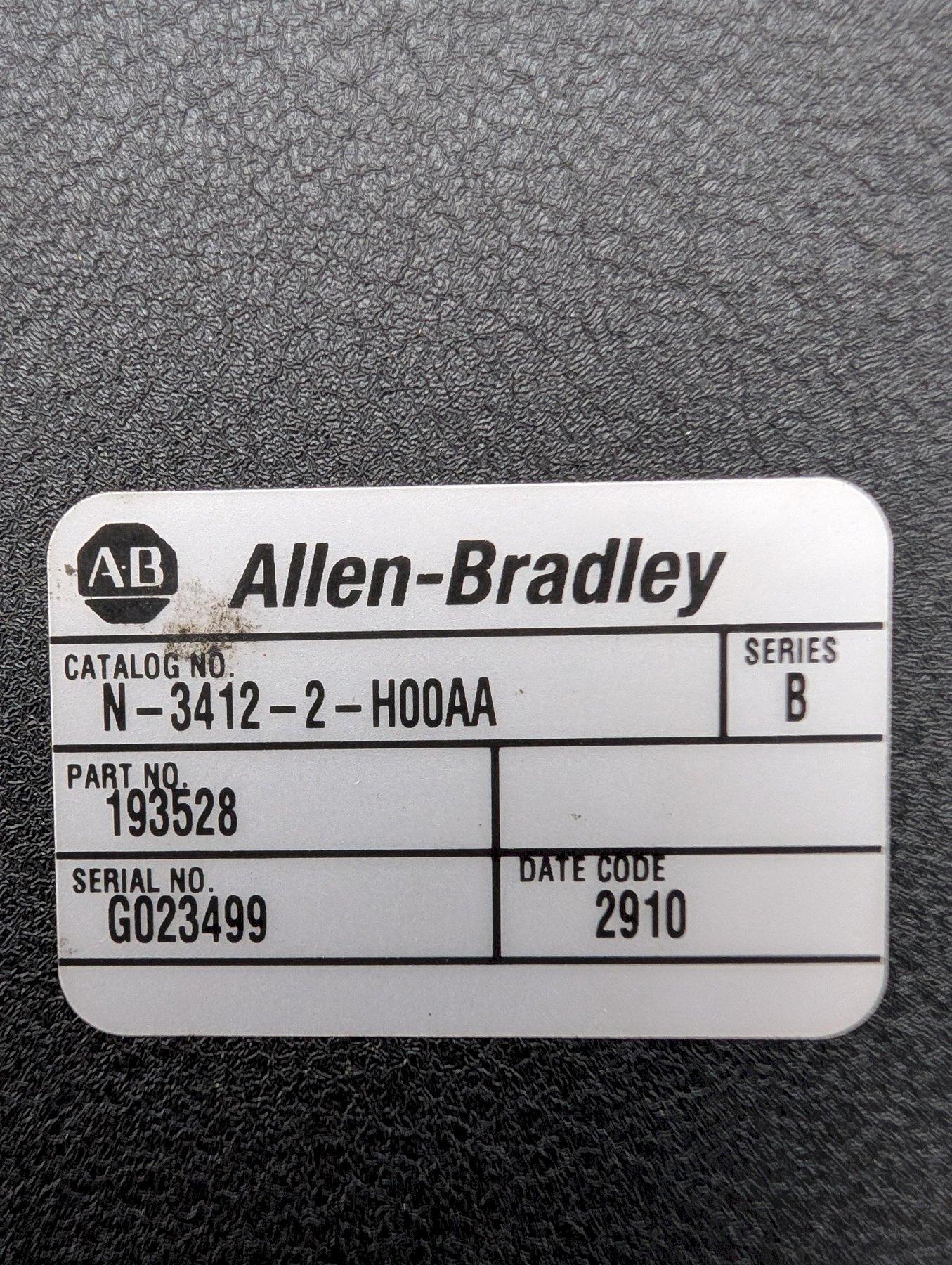

• Model Number: N-3412-2-H00AA

• Series: B

• Part Number: 193528

• Serial Number: G023499

• Frame Size: NEMA 34

• Continuous Torque: 12 lb-in

• Peak Torque: 36 lb-in

• Maximum Speed: 6000 RPM

• Encoder Line Count: 2000

• Supply Voltage: 230 VAC

• Current: 5.2 Amps

• Shaft Diameter: 1/2 inch

• Motor Length: 7 13/16 inches

• Rotor Inertia: 0.00015 kg-m²

• Friction Torque: 0.34 Nm

• Damping: 0.19 Nm/krpm

  Taken from a working environment where it was actively in use
