Specifications
Equipped With

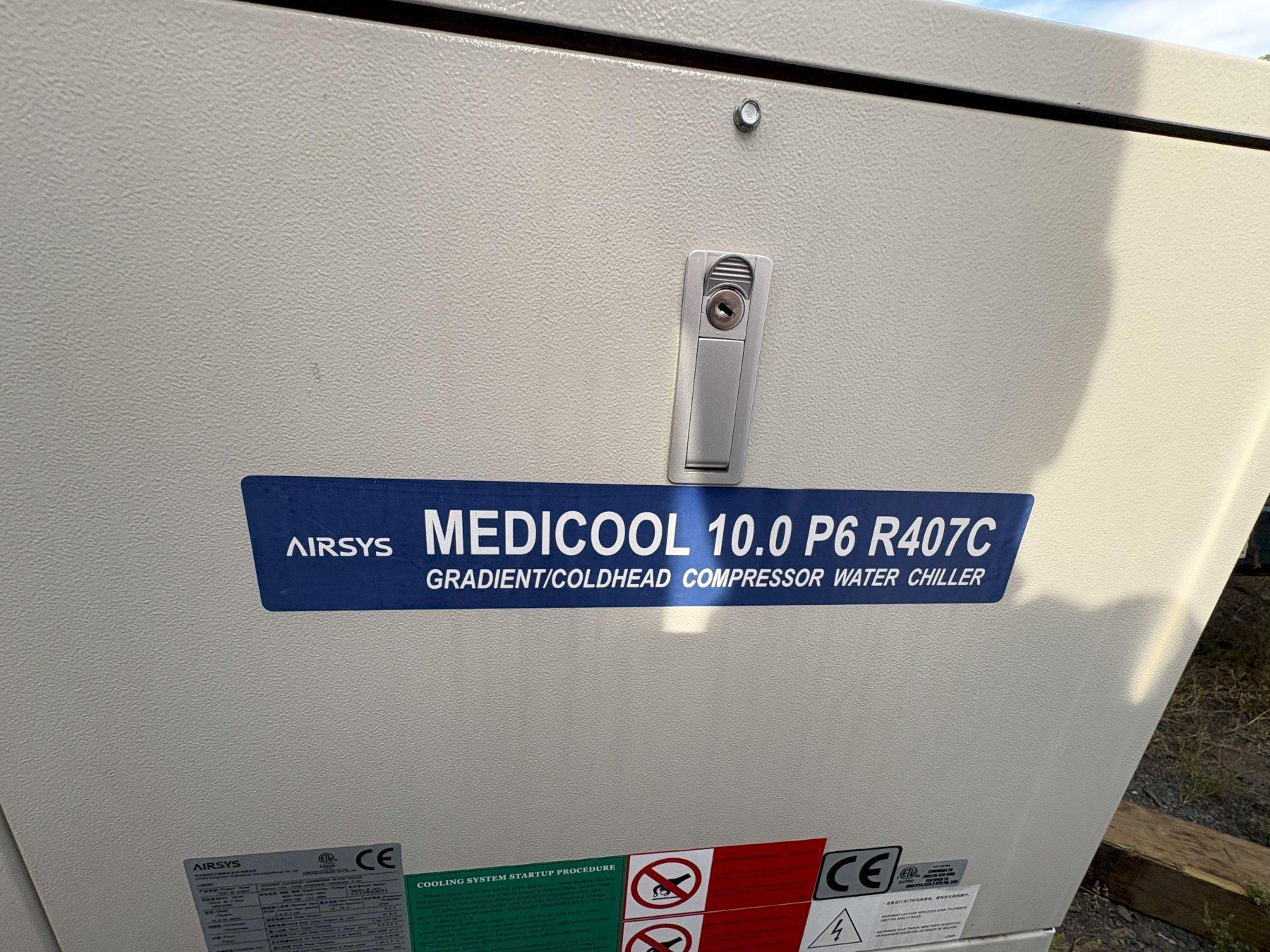

AIRSYS MEDICOOL 10.0 P6 R407C Medical MRI Water Chiller
Condition: Use and in good working order.
Power Req: 460/480vac 3ph
Type: Gradient Coldhead compressor Water Chiller

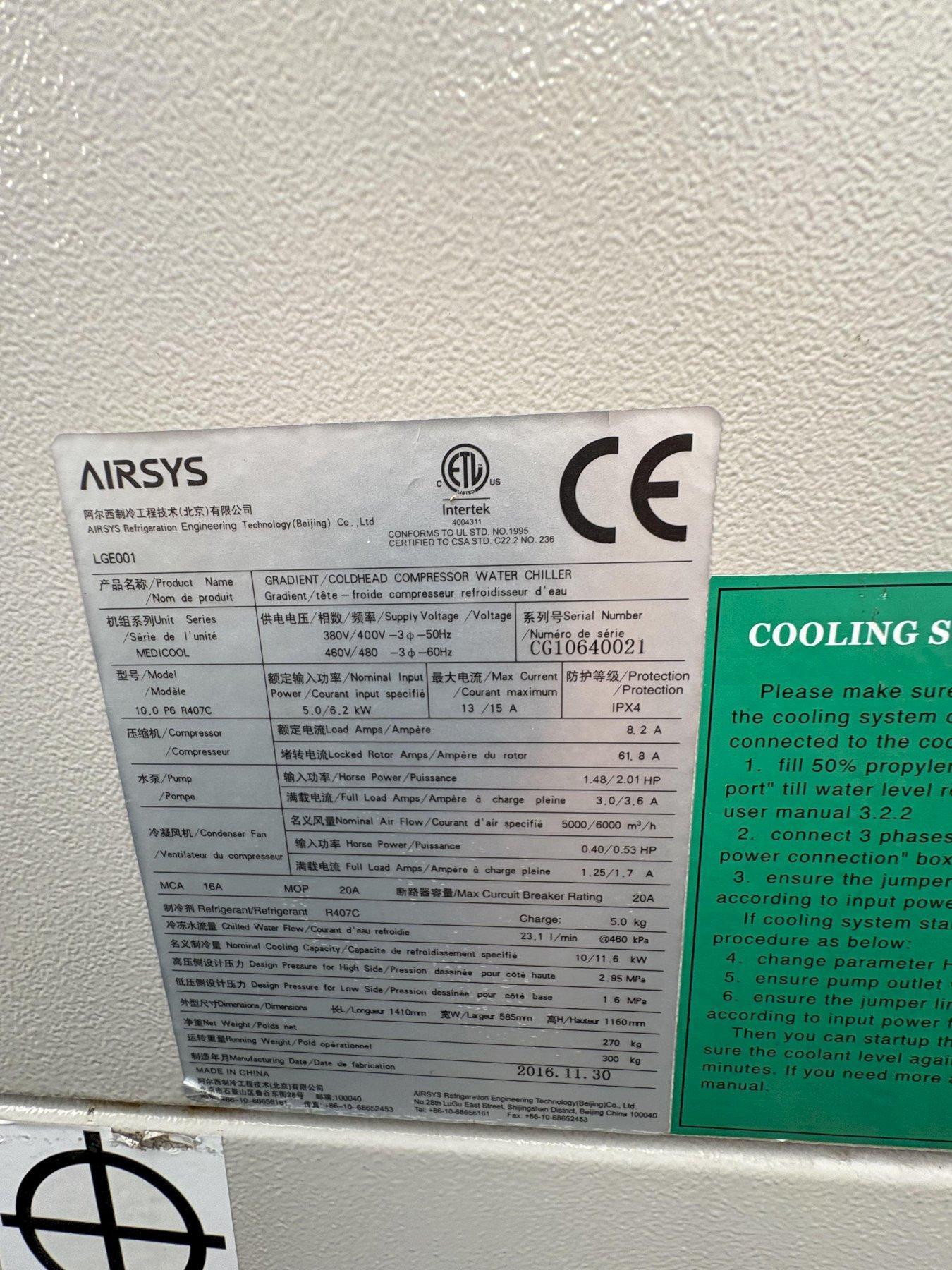

Also, for further specs, see Specification label in image.
The AirSys Medicool 10.0 P6 R407C is a 10kW medical water chiller for MRI and other temperature-sensitive equipment, featuring a 2HP pump providing 23.1 L/min flow, a 460V power supply, and precise temperature regulation with a smart microprocessor controller. It offers 11.6kW cooling capacity with R407C refrigerant and is designed for reliable operation indoors or outdoors up to an ambient temperature of 95°F.
Serial: CG10640021
Key Specifications
Gradient / Coldhead Compressor Water Chiller
Cooling Capacity: 11.6 kW (nominal)
Model: MEDICOOL 10.0 P6 R407C
Protection Rated: IPX4

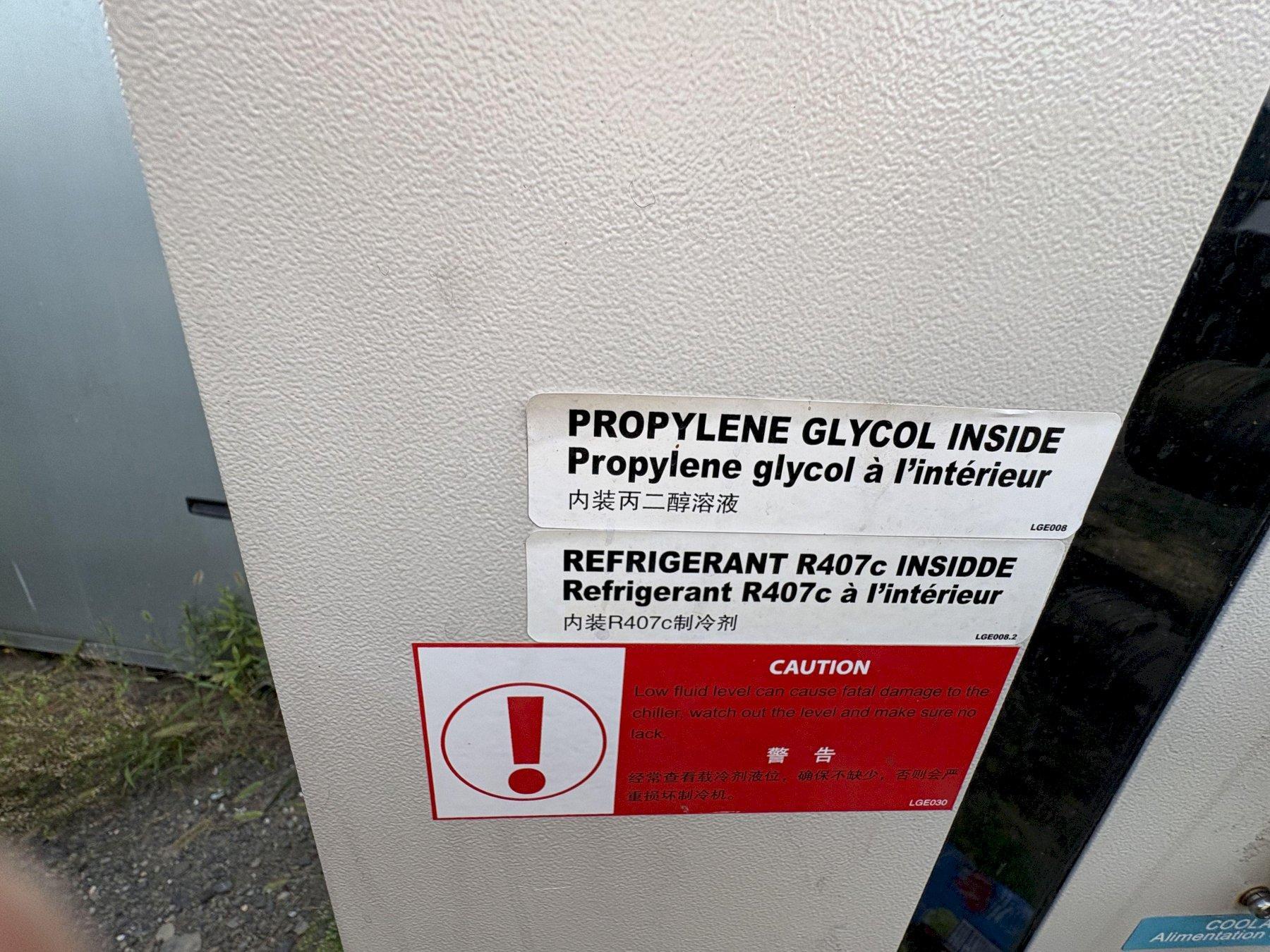

Refrigerant: R407C
Power: 460V-480VAC, 3 Phase
Compressor Load Amps: 8.2 Amps
Pump HP: 2 HP, 3.6 Amps
Chilled Water Flow: 23.1 L/min @ 460 kPa
See image tag for more info.
Design & Features
Single-Loop System: Provides a constant temperature coolant.
Microprocessor Controller: For precise temperature regulation and control.
Remote Control Panel: Allows for temperature monitoring and control from a distance.
Integrated Design: Components like the refrigeration unit, coolant reservoir, and pump are housed in a shelter for indoor/outdoor use.
Ambient Temperature Range: Designed for operation in ambient temperatures up to 95°F (35°C).
Applications
Medical Equipment Cooling: Primarily used for cooling MRI systems and other high-end medical equipment.
Industrial Processes: Suitable for any process or machine requiring precise temperature control.
Reliability
Long Compressor Life: Designed for stability and extended compressor lifespan.
Reliable Components: Uses components from well-known international suppliers.
As is, where is.
