Acme Electric T3533111S 15 KVA general purpose dry-type distribution transformer.

Specifications:

• Manufacturer: Acme Electric
• Catalog / Model Number: T3533111S
• Power Rating: 15 KVA
• Phase: 3 Phase
• Frequency: 60 Hz
• Primary Voltage: 480V Delta
• Primary: 480Δ with FC Taps
• Secondary Voltage: 208Y/120V
• Configuration: Step-Down Transformer
• Enclosure: Type 3R Outdoor
• Insulation Class: 180
• Winding Temperature Rise: 115°C

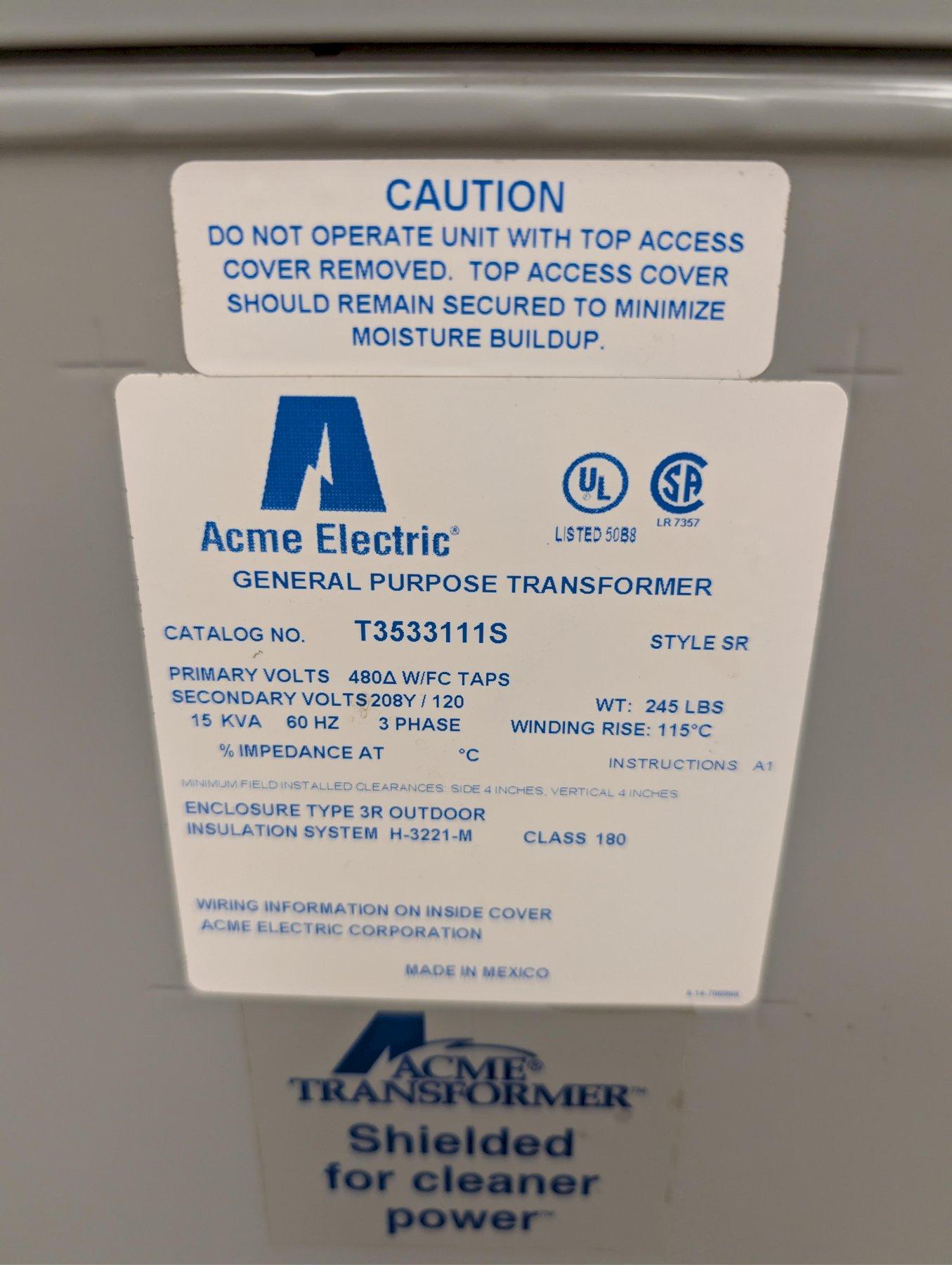

• Weight: 245 lbs (per nameplate)
• Electrostatic Shield: Yes
• Mounting: Floor Mount
• General Purpose Transformer

This transformer is designed to step down 480V three-phase power to 208Y/120V three-phase power and is suitable for a variety of commercial and industrial power distribution applications.

The Type 3R enclosure allows for outdoor applications when properly installed.

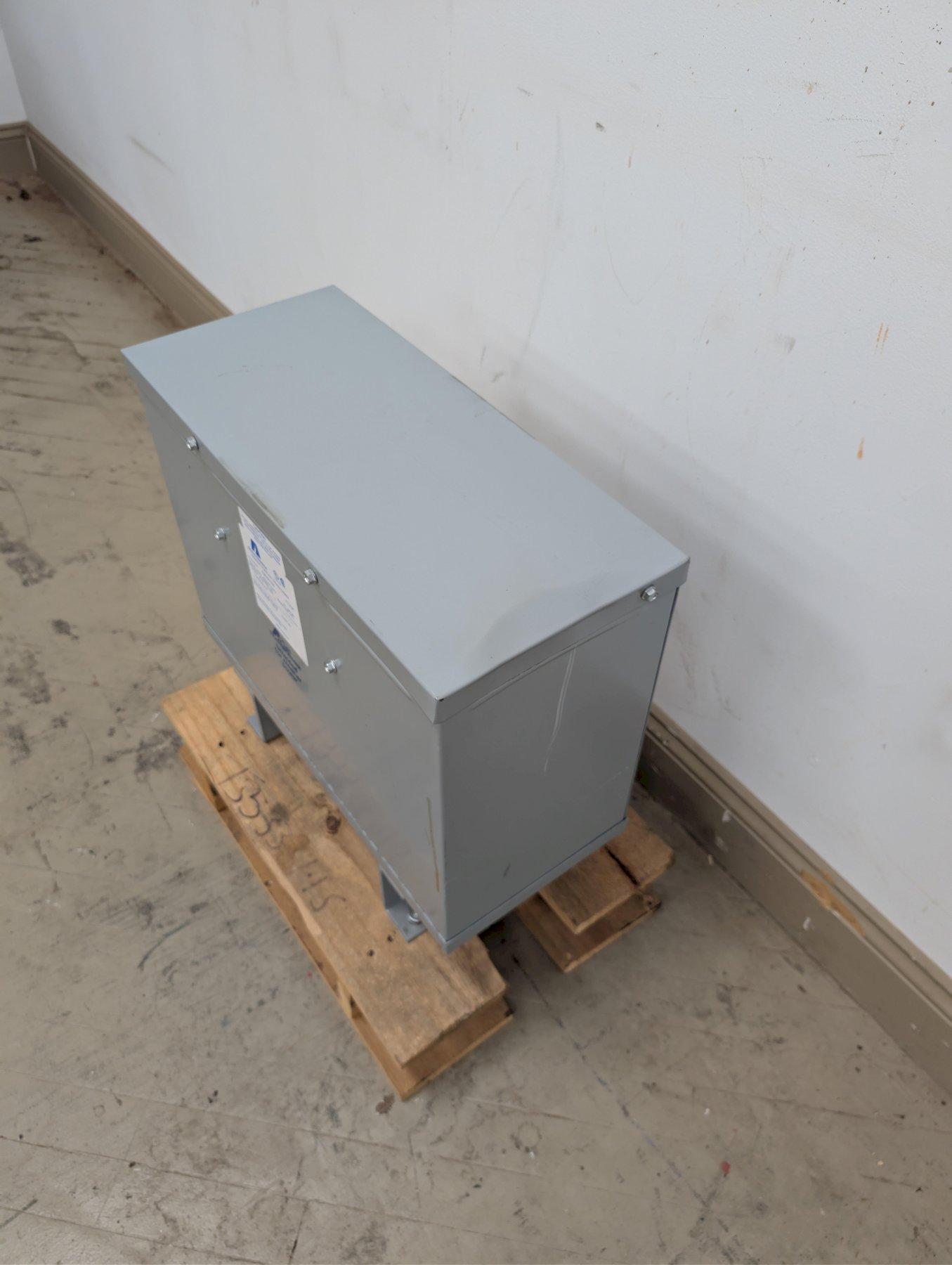

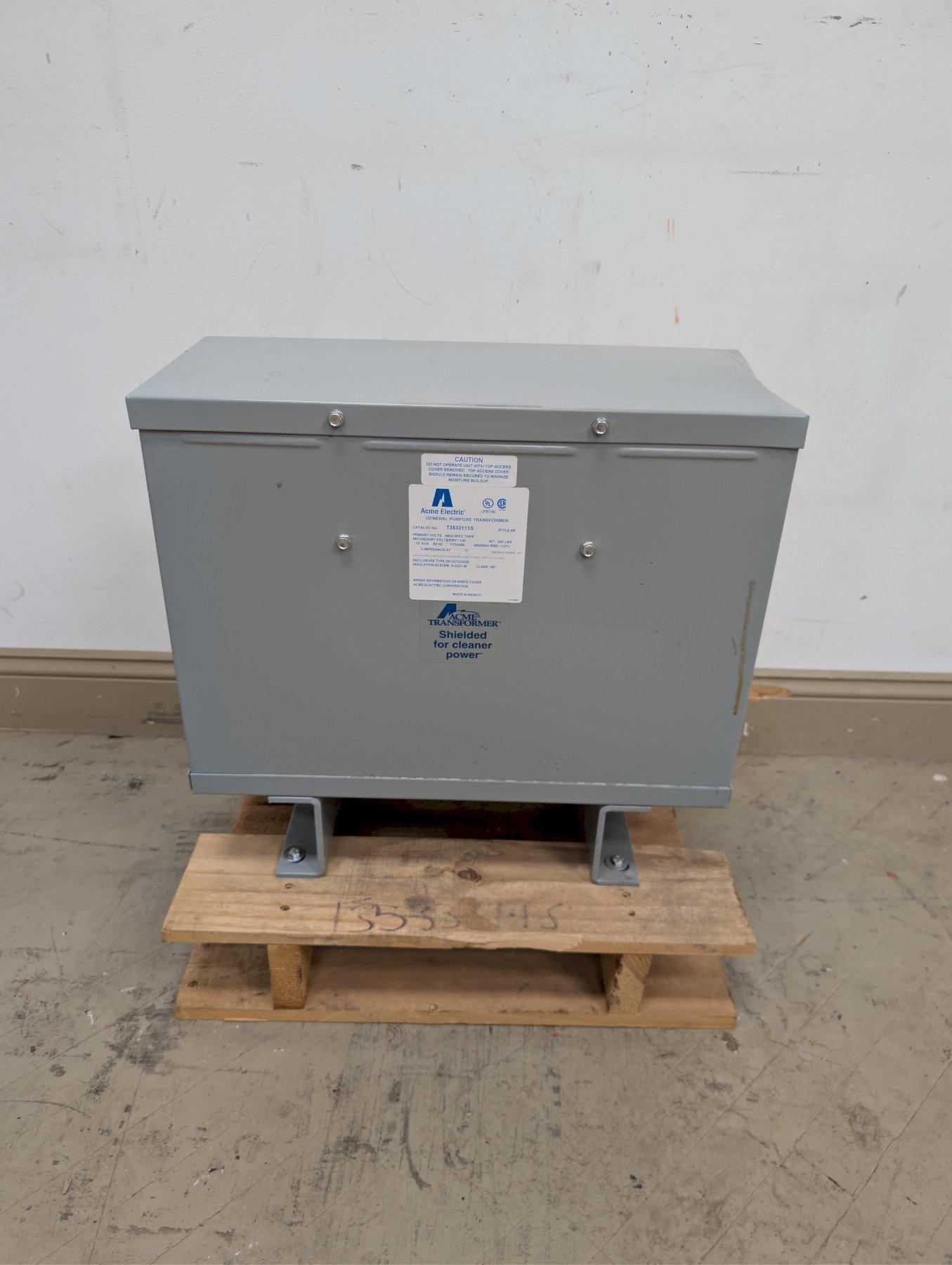

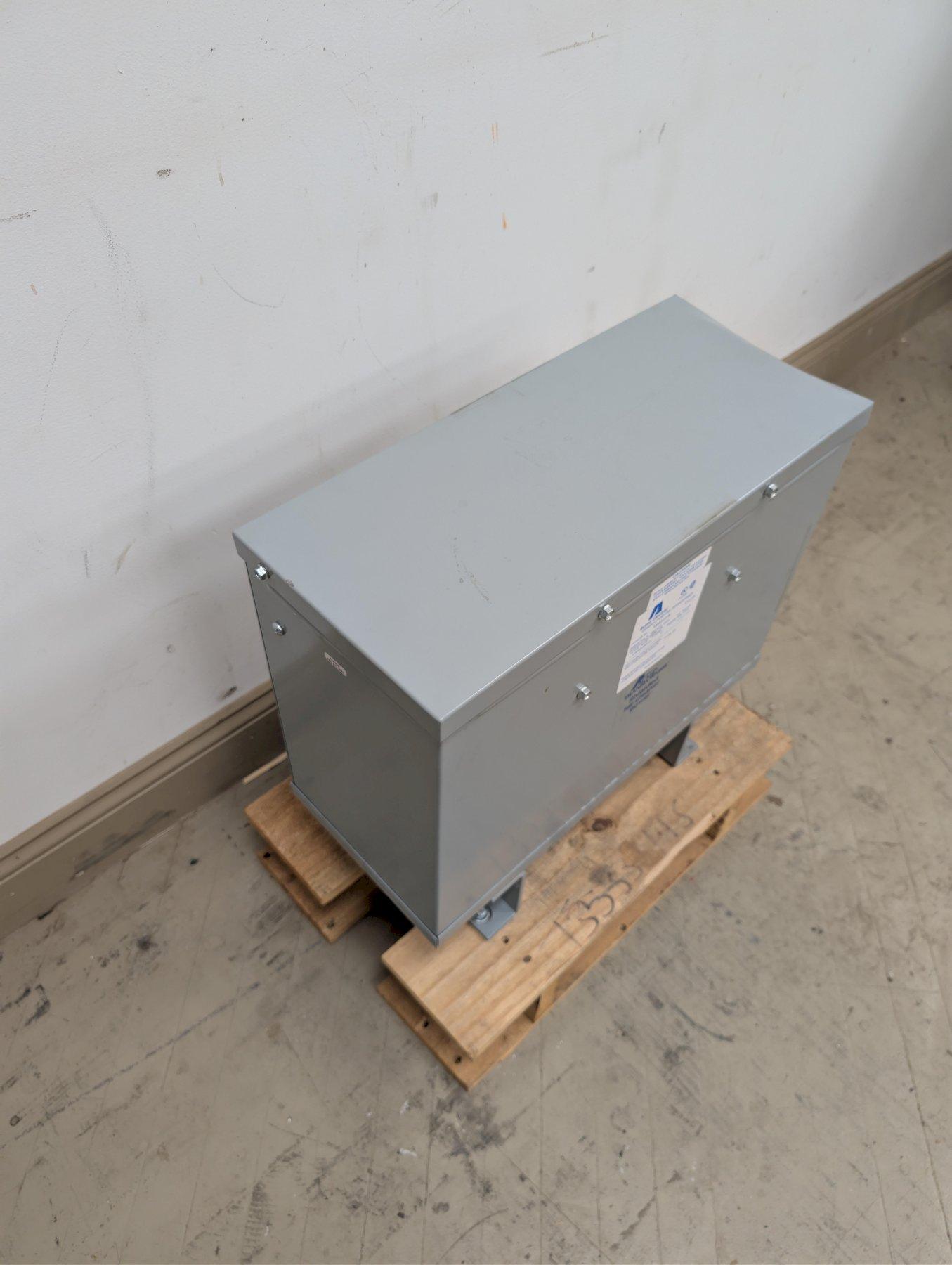

Unit is in used condition and shows normal cosmetic wear, scratches, scuffs, and marks consistent with previous use and storage. Please review all photos carefully for overall condition.

Shipping / Pickup:
Unit weighs approximately 245 lbs according to the manufacturer's nameplate and is currently secured to a pallet. Freight shipping or local pickup is available. Please contact us with your delivery ZIP code and whether the destination is commercial or residential for a freight quote.
