Acme Electric T2A533081S 3 KVA general purpose dry-type distribution transformer.

Specifications:

• Manufacturer: Acme Electric
• Catalog / Model Number: T2A533081S
• Power Rating: 3 KVA
• Phase: 3 Phase
• Frequency: 60 Hz
• Primary Voltage: 480V Delta
• Primary: 480Δ with FC Taps
• Secondary Voltage: 208Y/120V
• Configuration: Step-Down Transformer
• Enclosure: Type 3R Outdoor
• Construction: Encapsulated
• Winding Material: Copper
• Electrostatic Shield: Yes
• Insulation Class: 180°C
• Winding Temperature Rise: 115°C
• Weight: 75 lbs

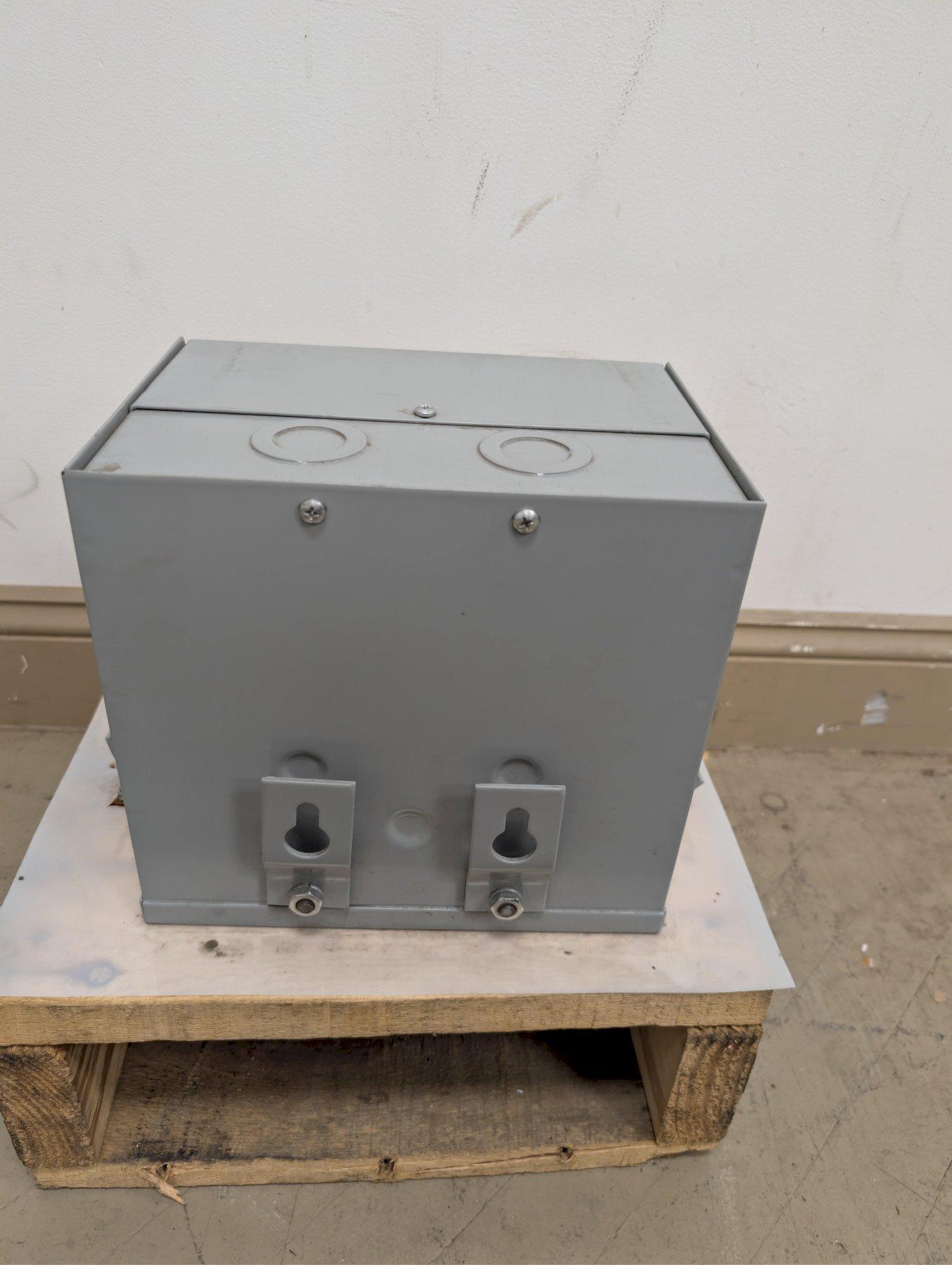

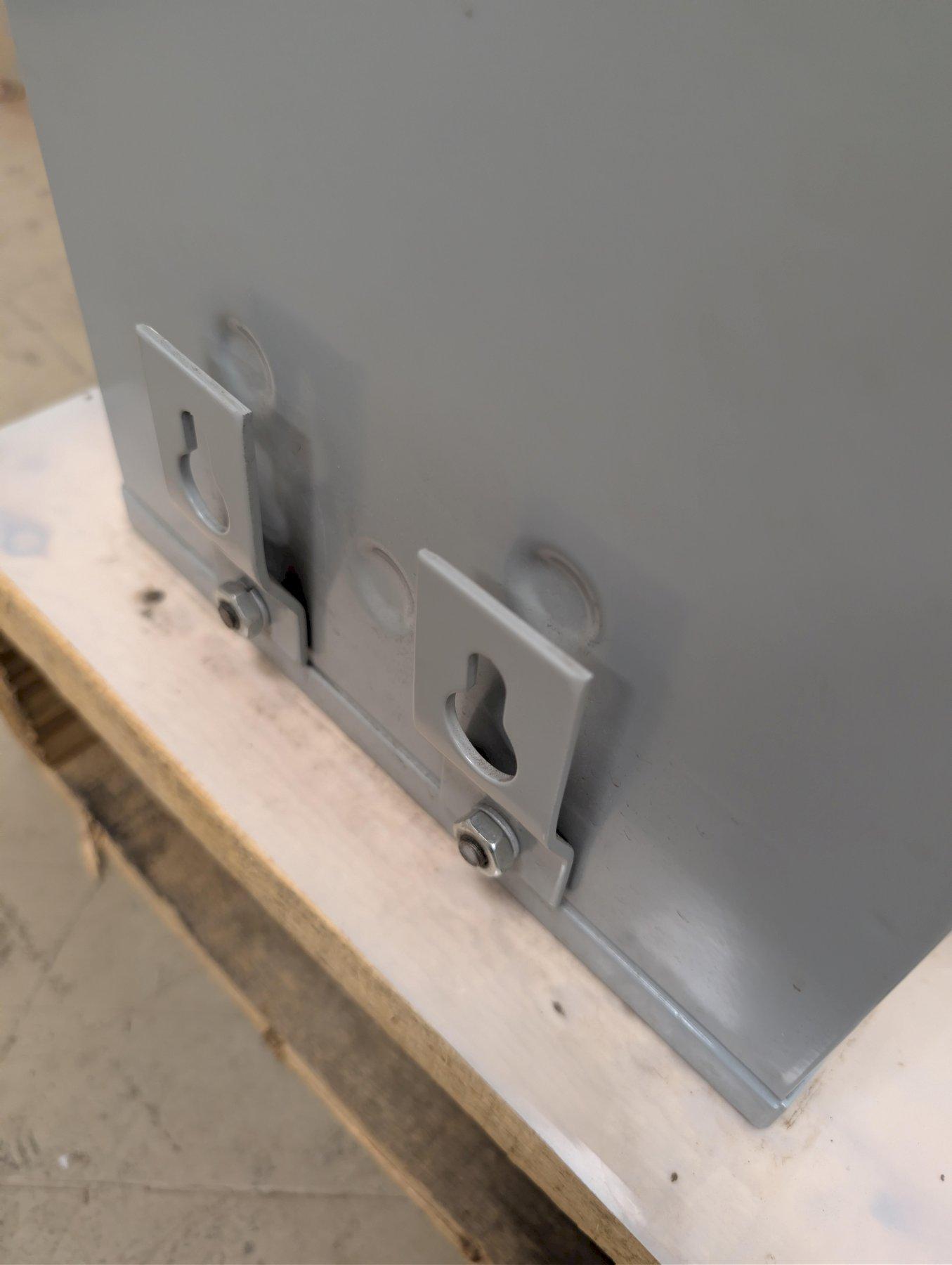

• Mounting: Wall Mount
• UL Listed / CSA Certified

This transformer is designed to step down 480V three-phase power to 208Y/120V three-phase power for commercial and industrial power distribution applications.

The encapsulated construction and NEMA 3R enclosure make this unit suitable for outdoor applications when properly installed.

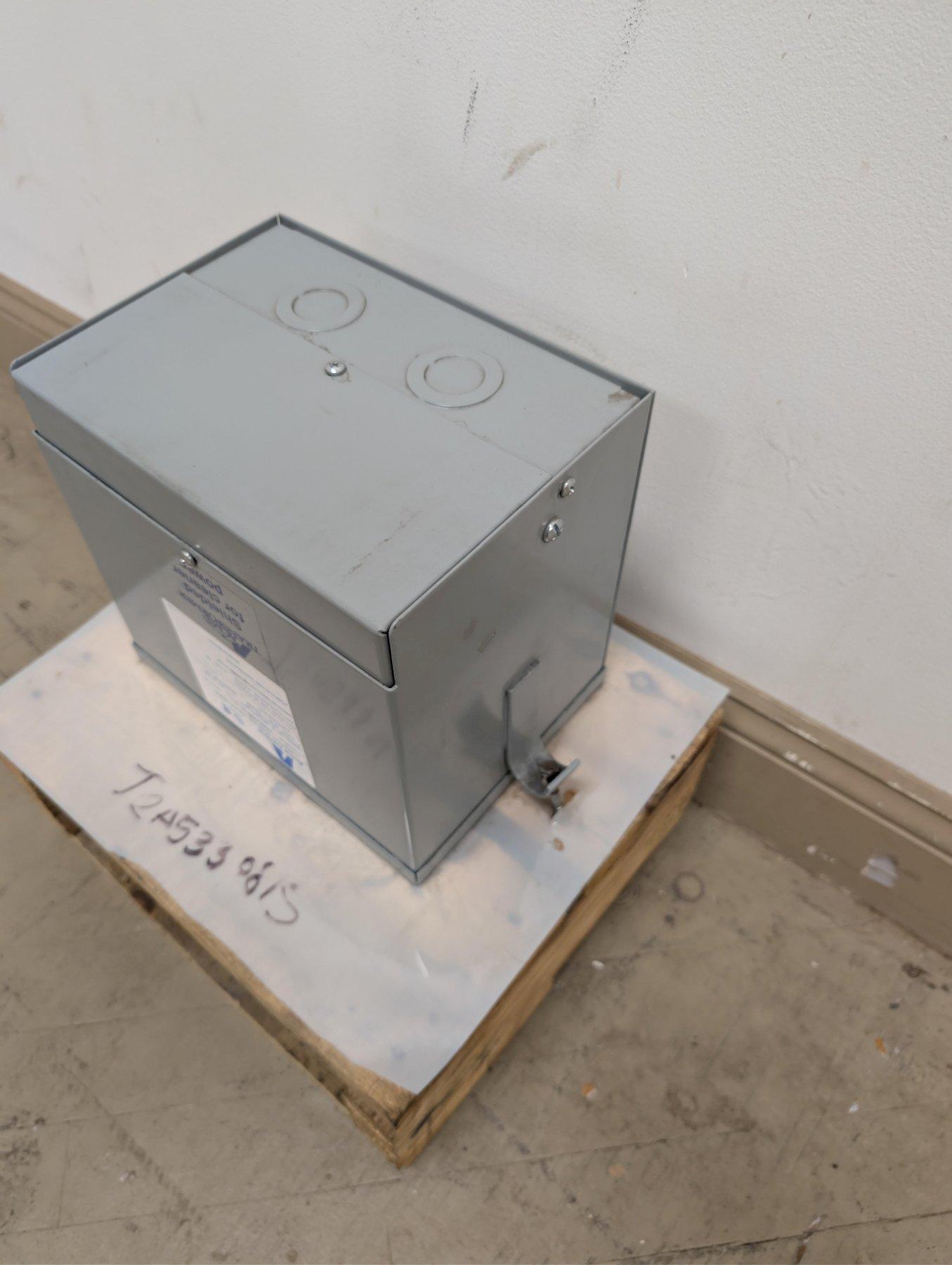

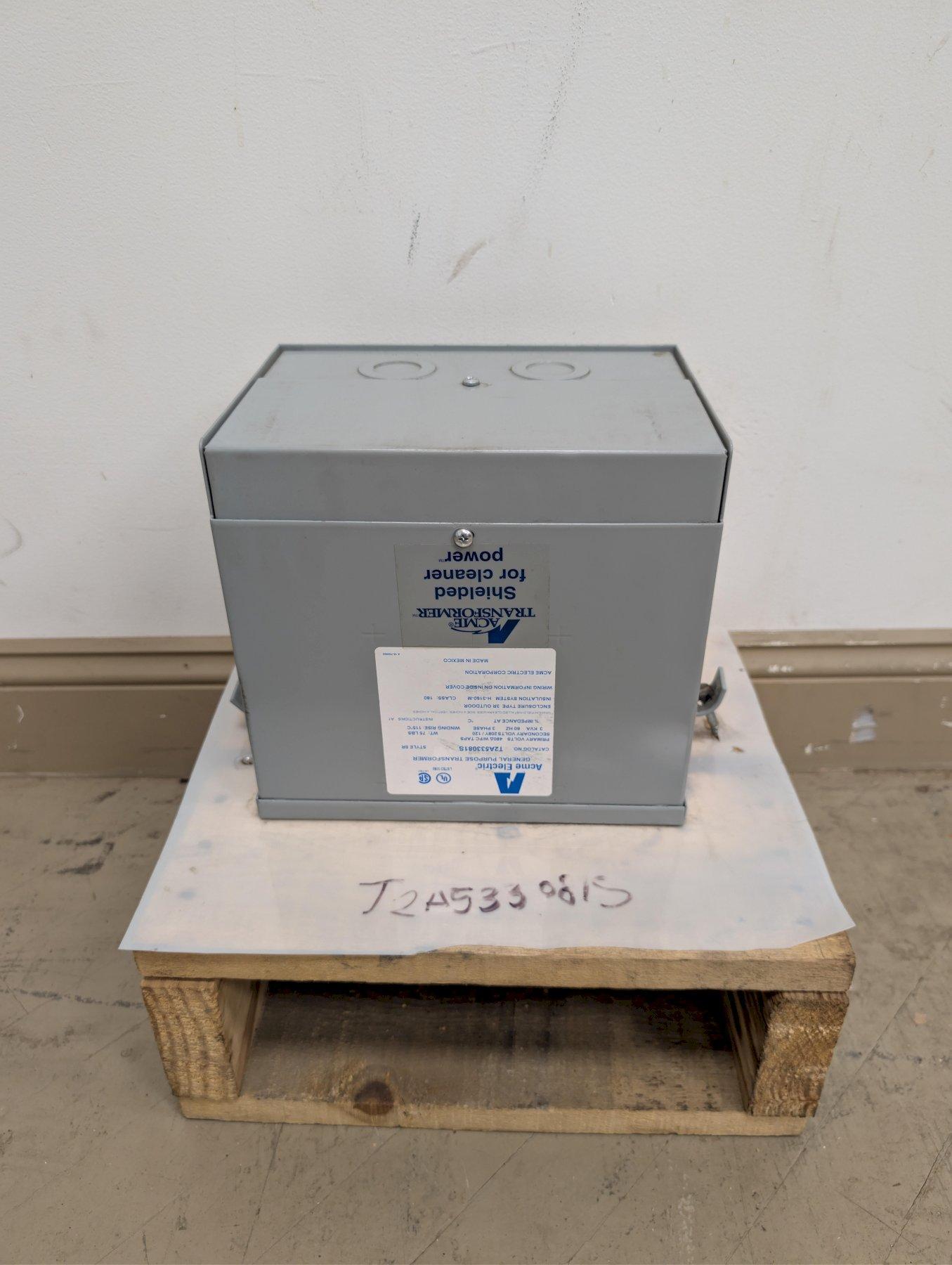

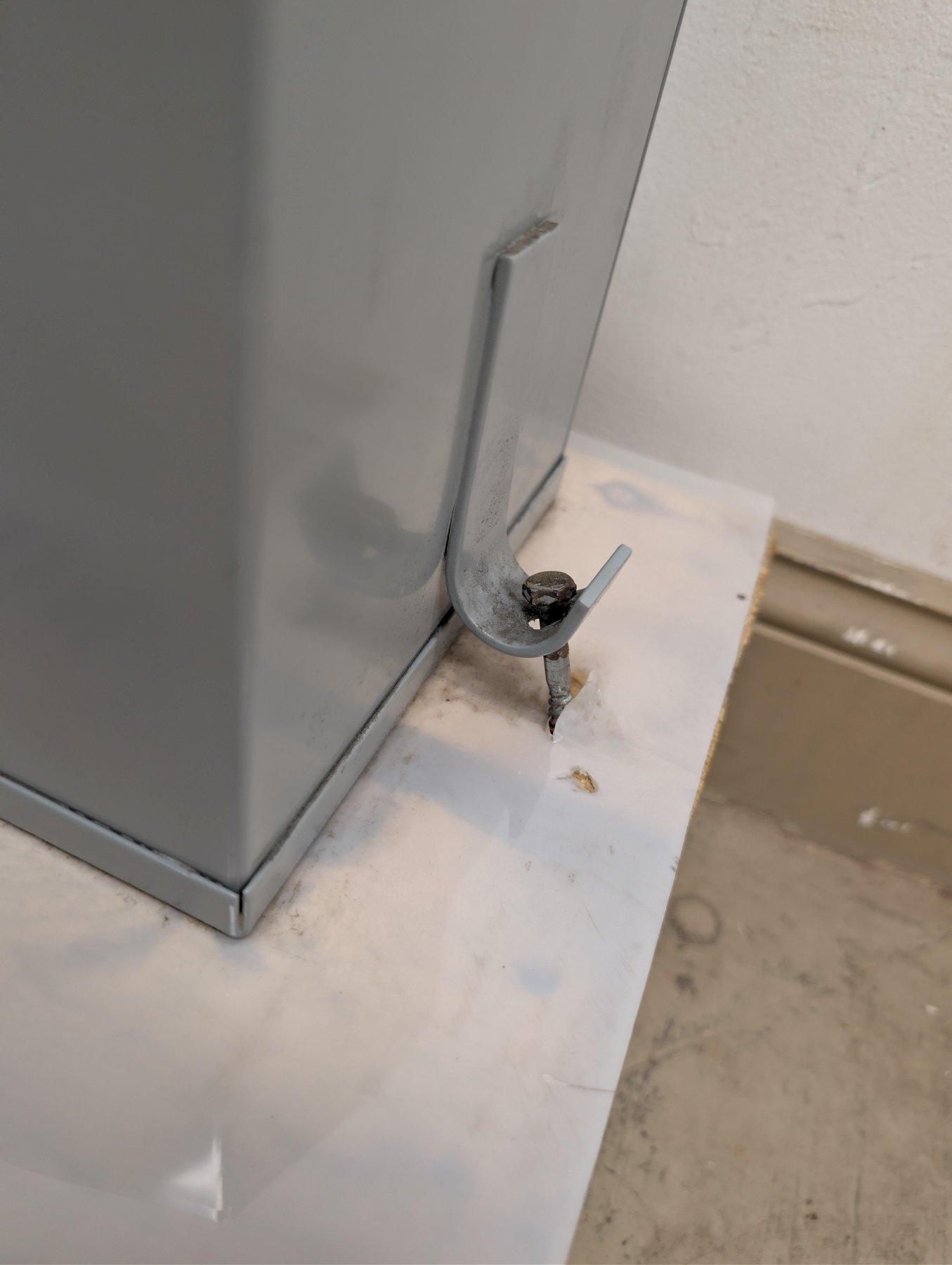

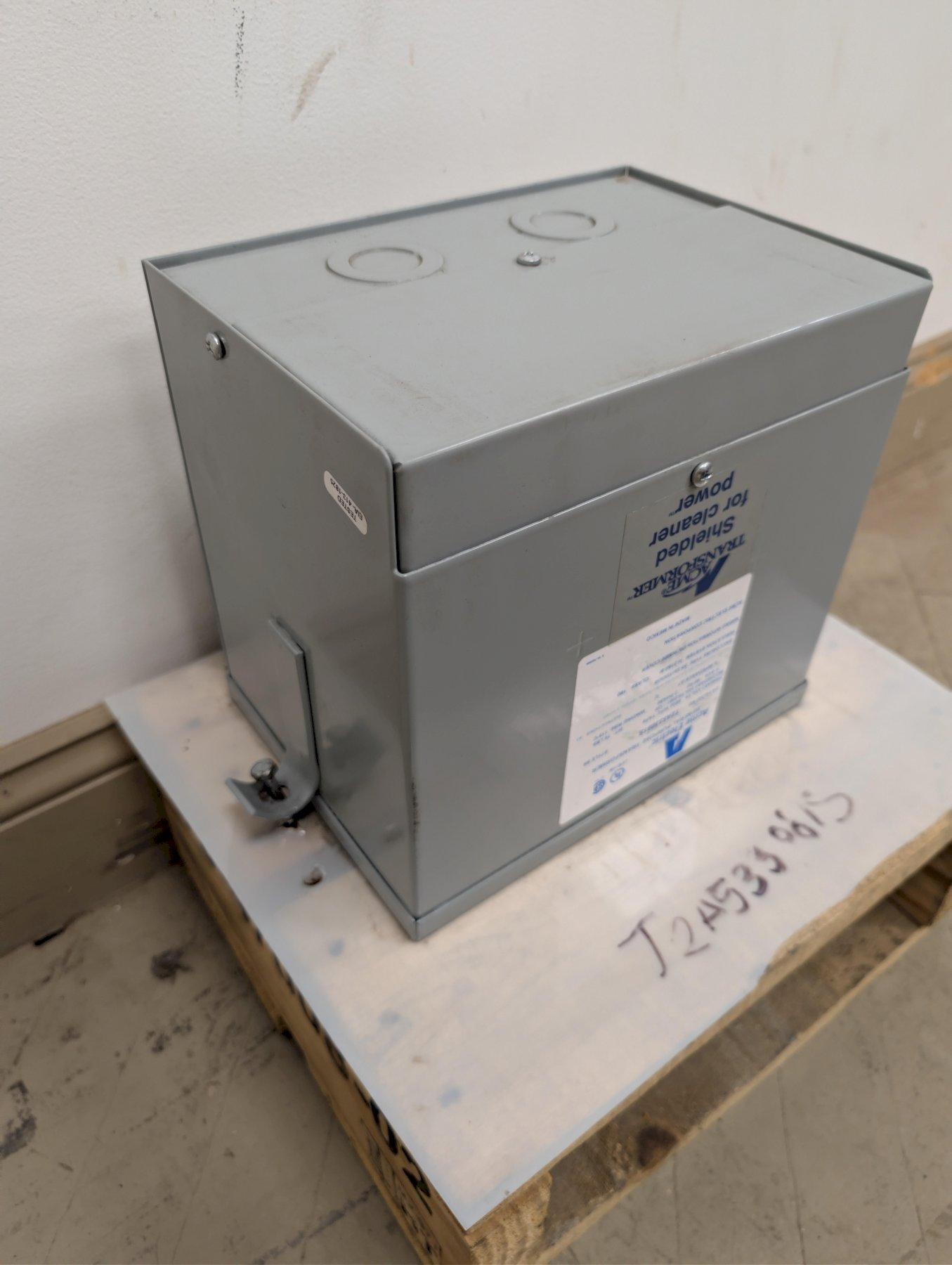

Unit is in used condition and shows normal cosmetic wear, scratches, scuffs, and marks consistent with previous industrial use and storage. Please review all photos carefully for overall condition.

Freight Shipping / Local Pickup:

This item will ship via freight or is available for local pickup. Please contact us with your delivery ZIP code and whether the destination is commercial or residential for a freight shipping quote.
