Acme Transformer T2A527181 450 KVA three-phase dry-type autotransformer for industrial and commercial power distribution applications.

Specifications:

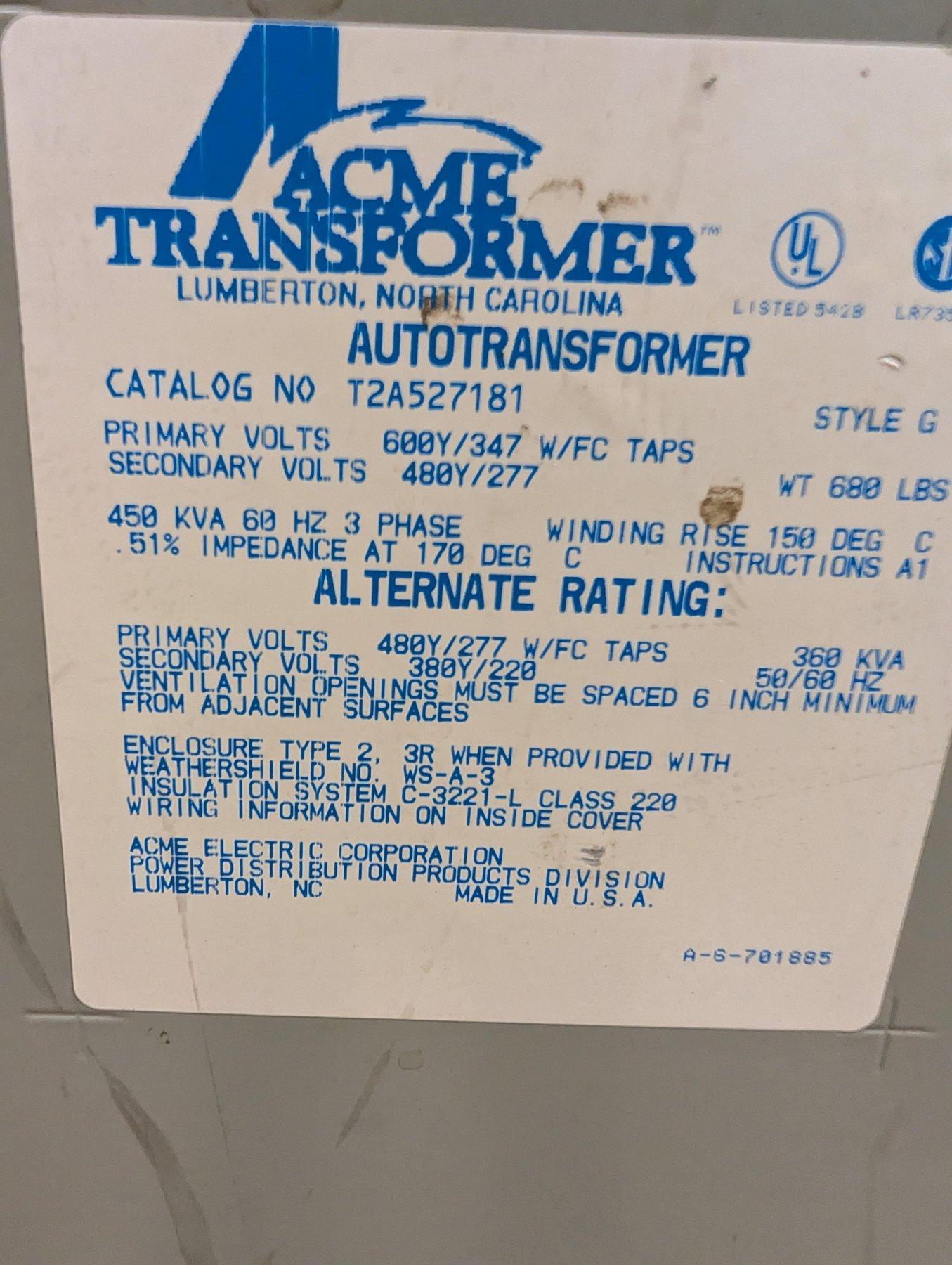

• Manufacturer: Acme Transformer / Acme Electric
• Catalog / Model Number: T2A527181
• Type: Dry-Type Autotransformer
• Power Rating: 450 KVA
• Phase: 3 Phase
• Frequency: 60 Hz
• Primary Voltage: 600Y/347V with FC Taps
• Secondary Voltage: 480Y/277V
• Impedance: 0.51% at 170°C
• Winding Temperature Rise: 150°C
• Insulation System: Class 220
• Winding Material: Aluminum
• Construction: Ventilated
• Mounting: Floor Mount
• Enclosure: Type 2
• Weight: 680 lbs per unit nameplate
• UL Listed / CSA Certified
• Made in USA

Alternate Rating:

• Primary Voltage: 480Y/277V with FC Taps
• Secondary Voltage: 380Y/220V
• Rating: 360 KVA
• Frequency: 50/60 Hz

This is a high-capacity industrial autotransformer designed for voltage conversion in three-phase power distribution systems.

Please note that this is an AUTOTRANSFORMER and does not provide electrical isolation between the primary and secondary circuits.

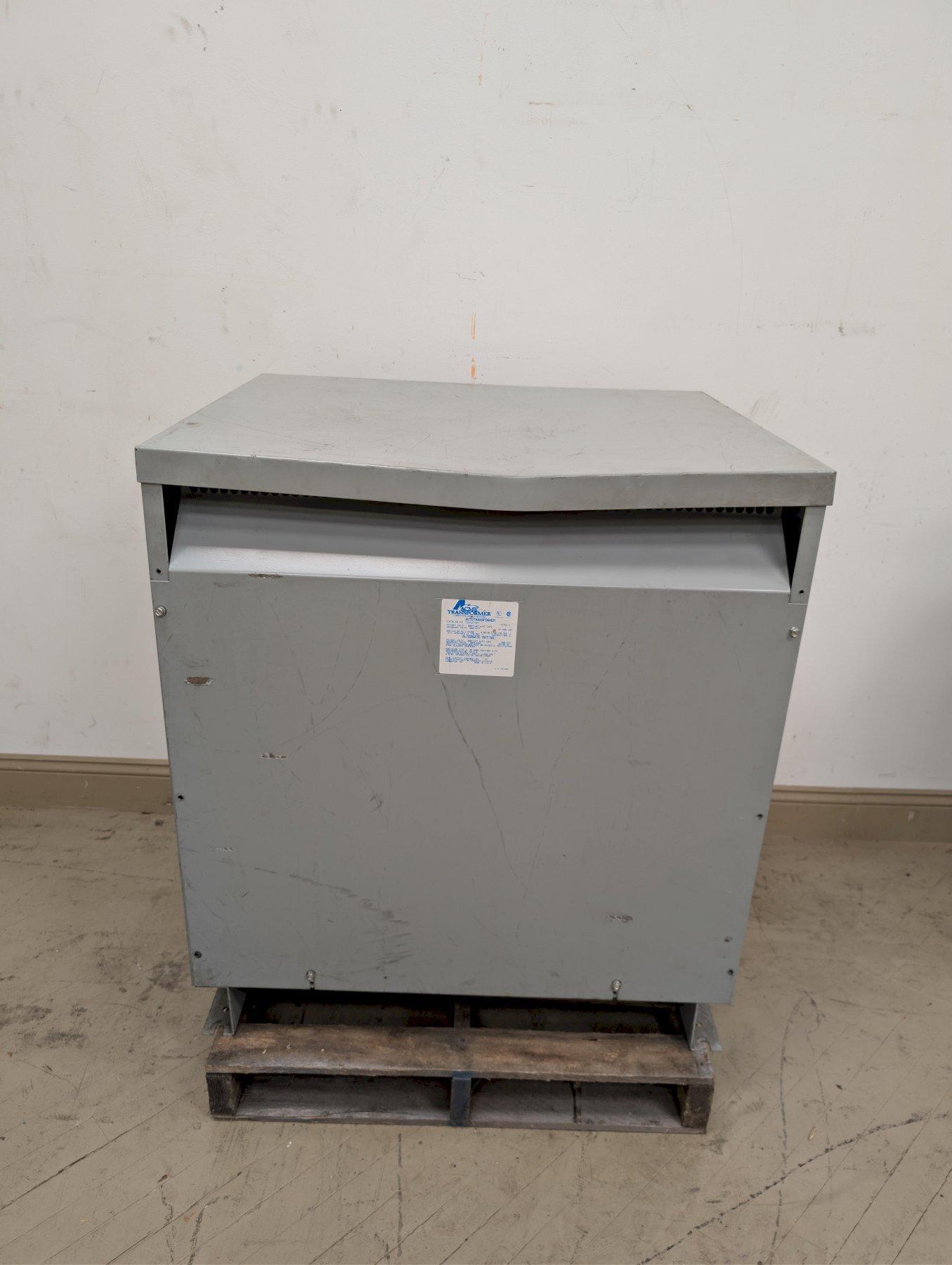

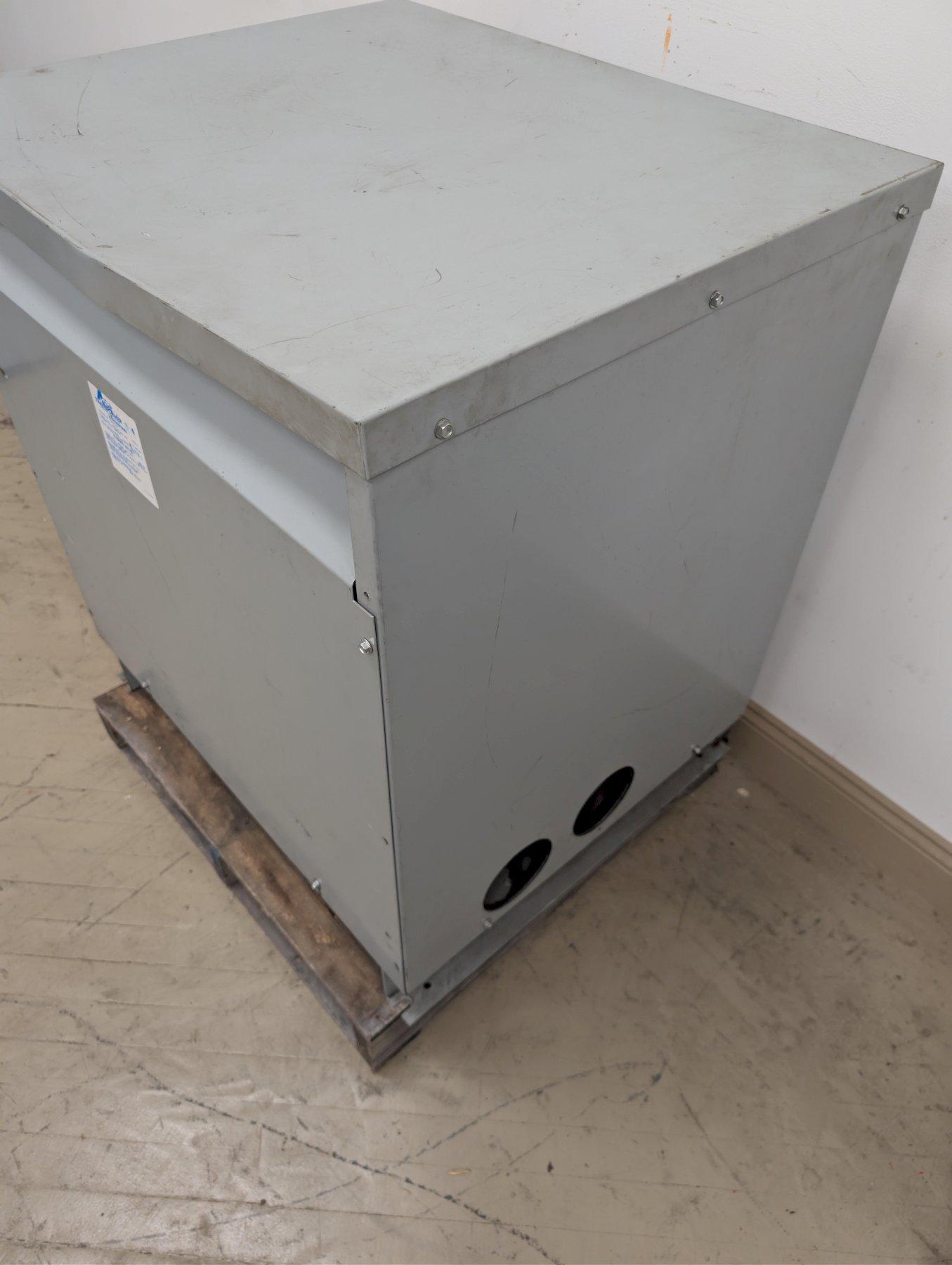

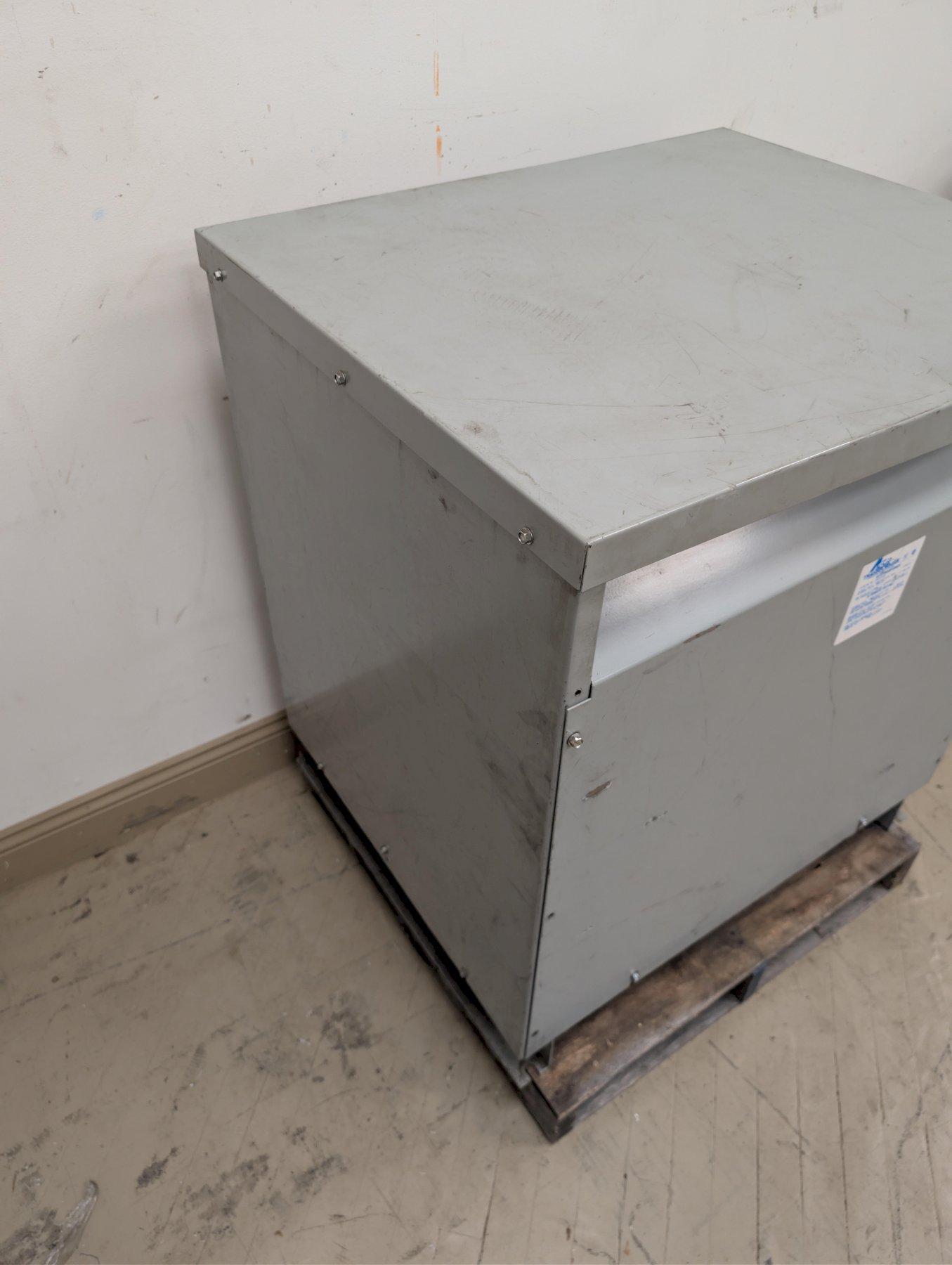

Unit is in used condition and shows cosmetic wear from previous industrial use and storage, including scratches, scuffs, marks, and areas of paint wear. Please review all photos carefully for overall condition.

Freight Shipping / Local Pickup:

Due to the size and weight of this transformer, it will ship via freight or is available for local pickup. Please contact us with your delivery ZIP code and whether the destination is commercial or residential for a freight quote.
