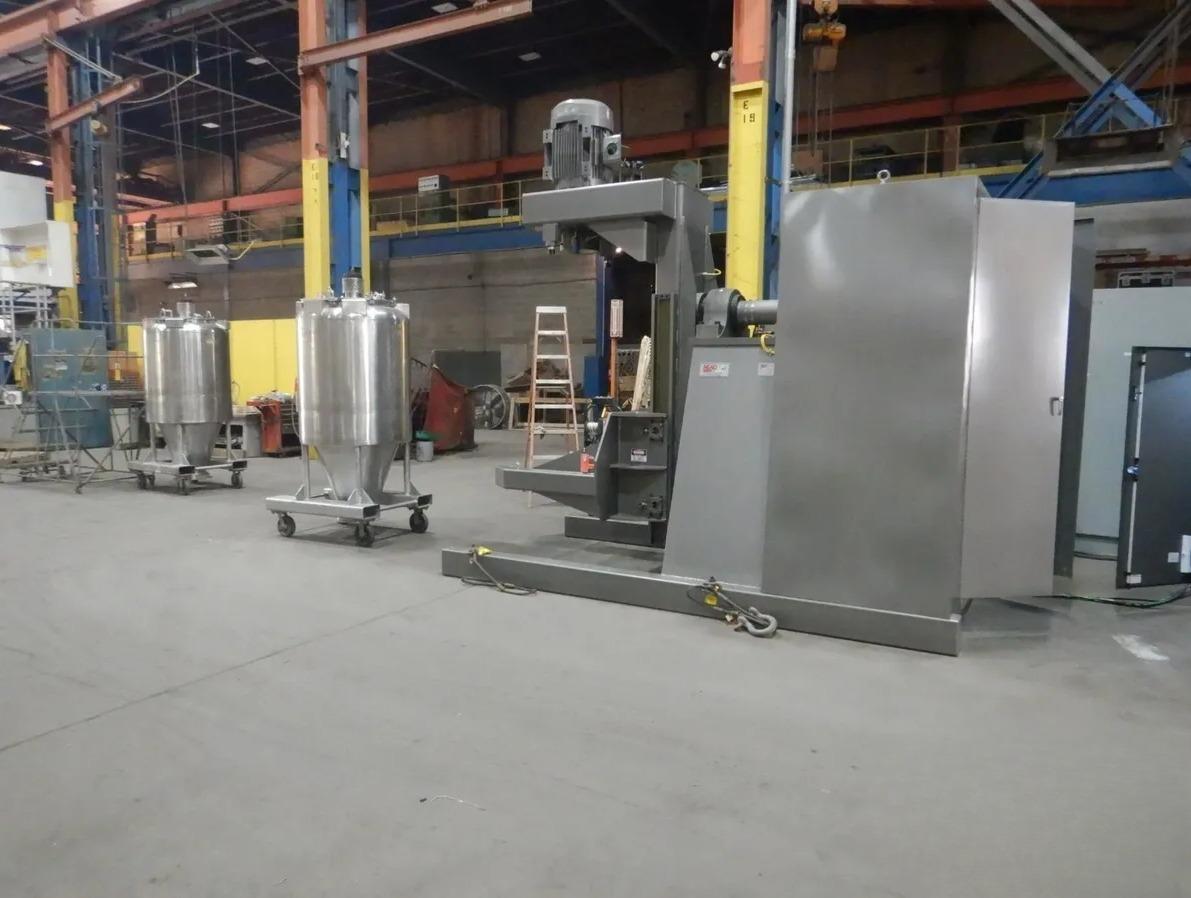

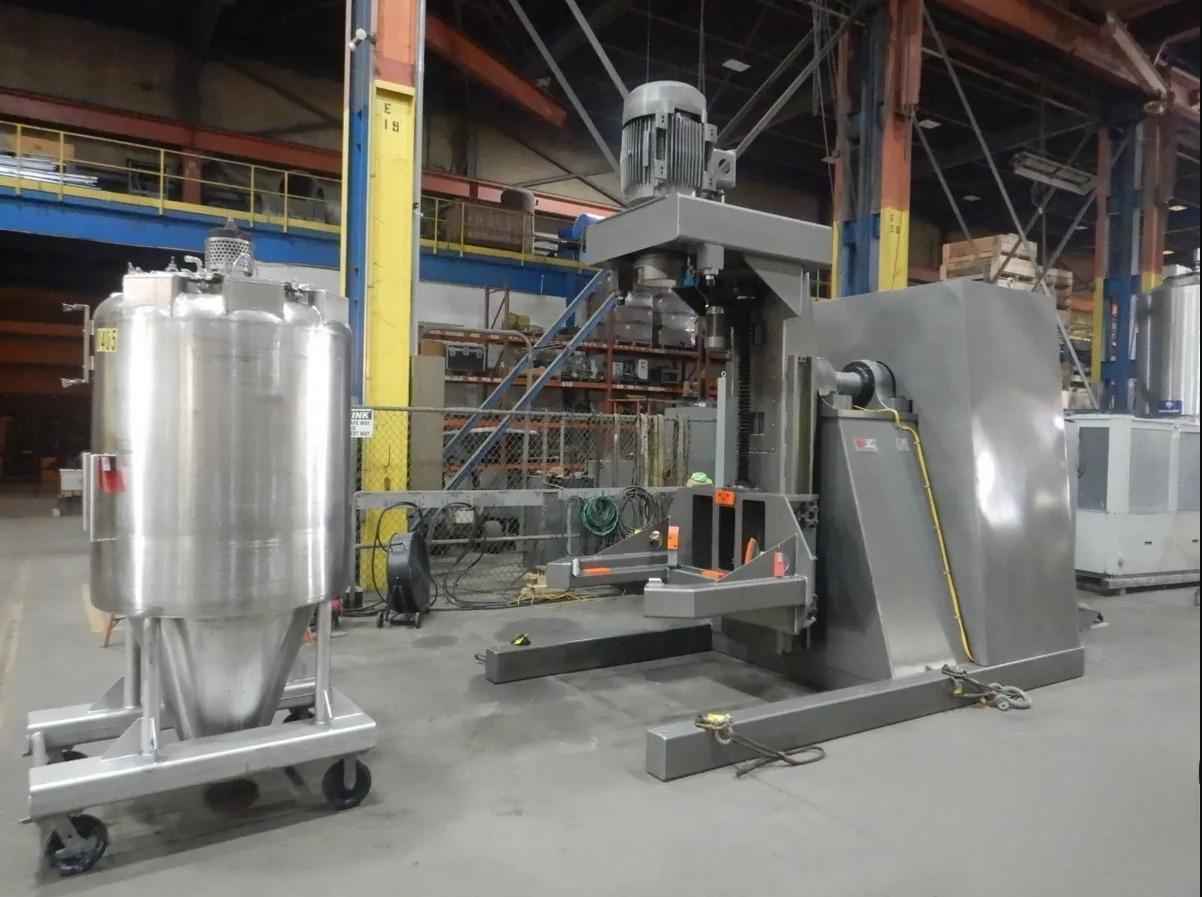

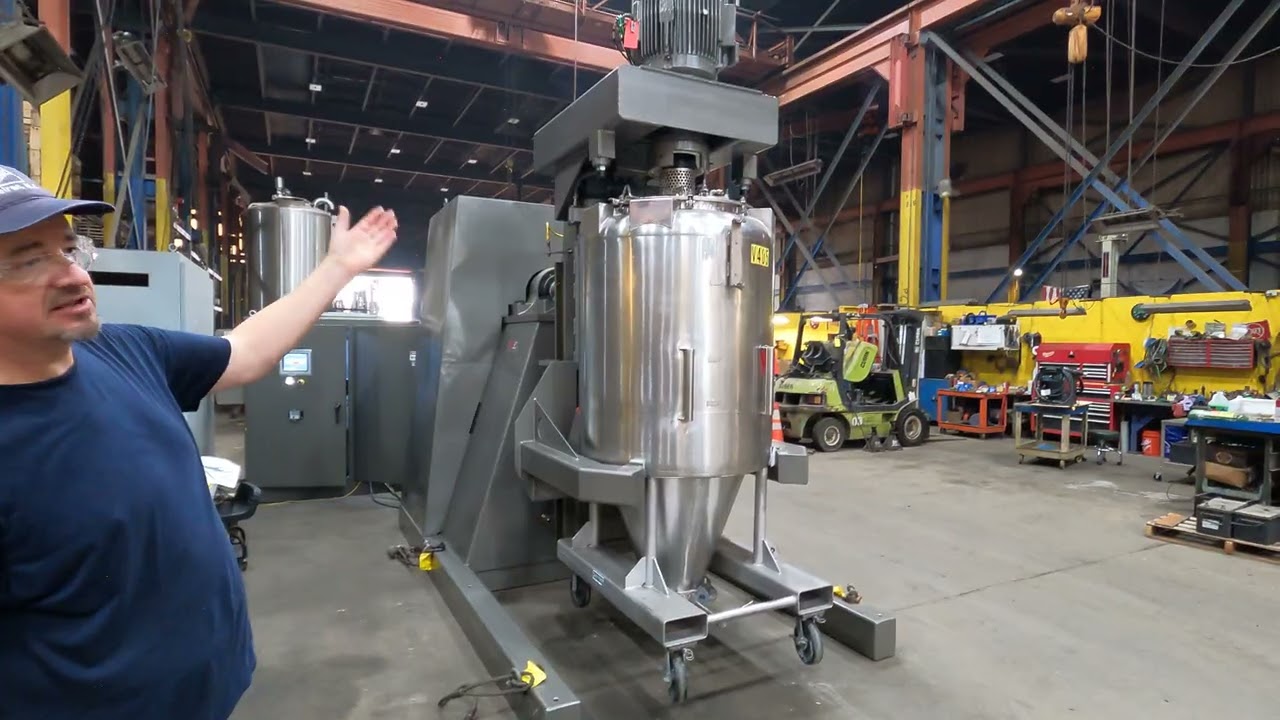

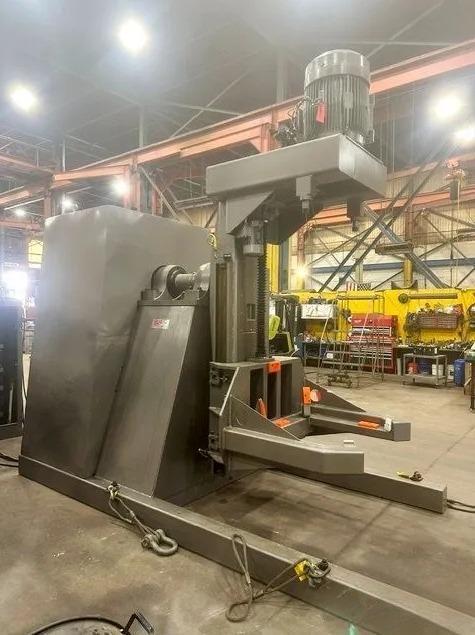

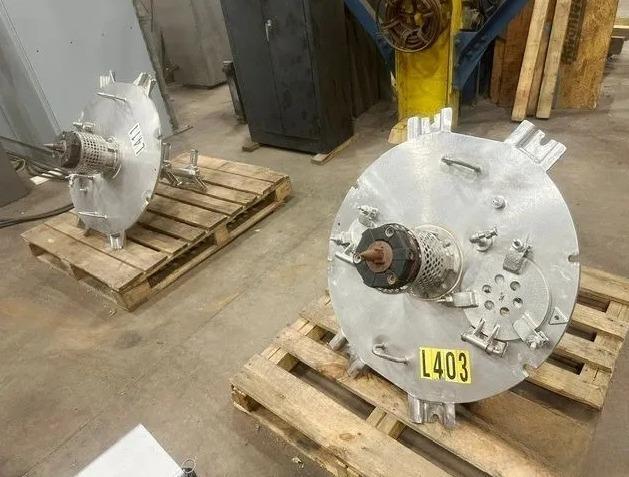

2023 Readco Kurimoto CBM2040 High-Intensity Containerized Batch Mixer

This unused Readco Kurimoto CBM2040 is a high-performance stainless steel batch mixing system designed for dry powder blending, granulation, and high-intensity mixing applications. The CBM (Containerized Batch Mixer) combines a rotating process vessel with a high-speed impeller to produce fast, uniform, lump-free blends while reducing overall batch cycle times. Readco states the CBM system can reduce batch mixing cycles by 50% or more compared to traditional batch systems.

Specifications

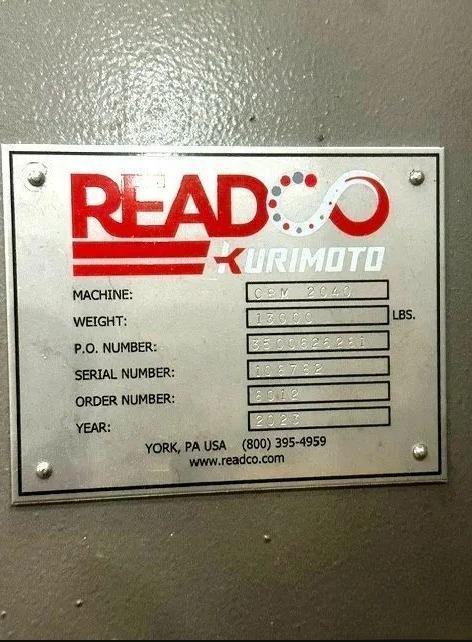

• Manufacturer: Readco Kurimoto
• Model: CBM2040
• Year: 2023

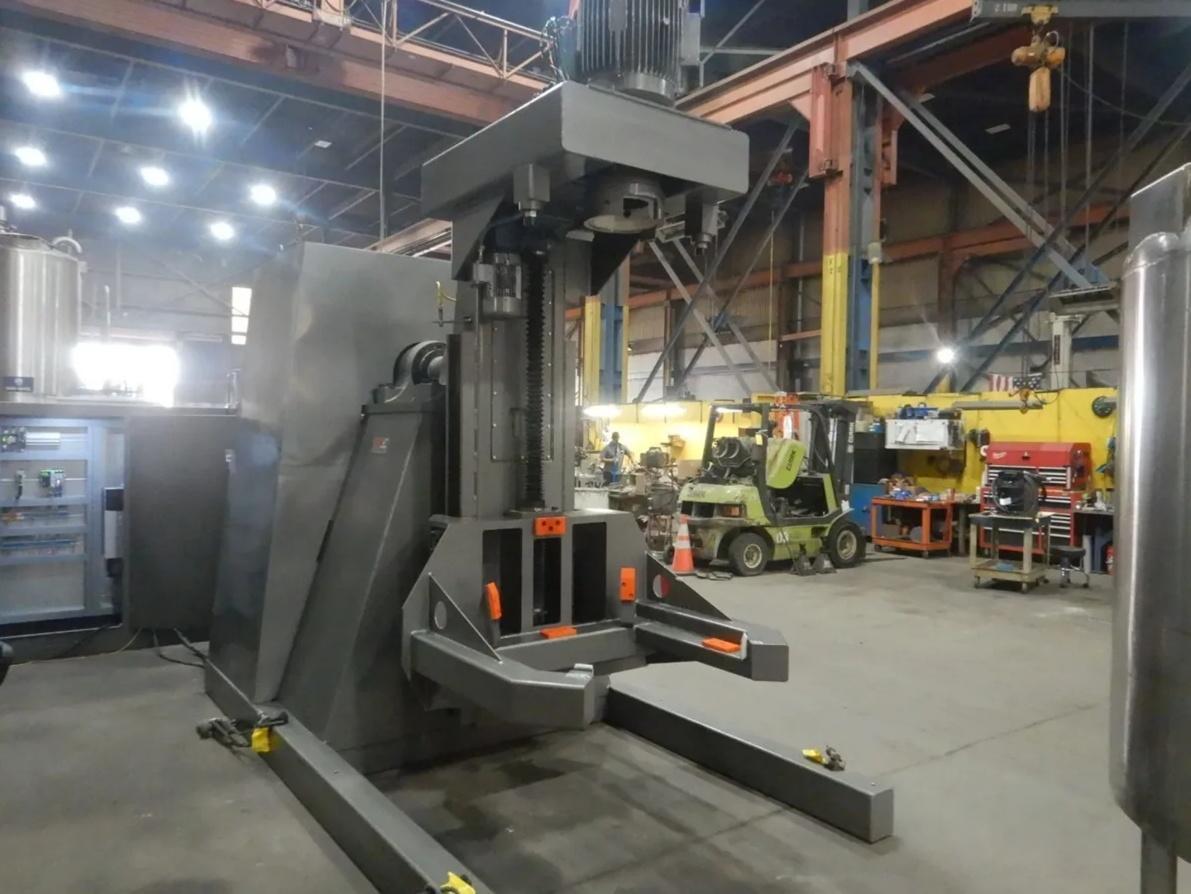

• Drive Station Weight: Approx. 13,000 lbs

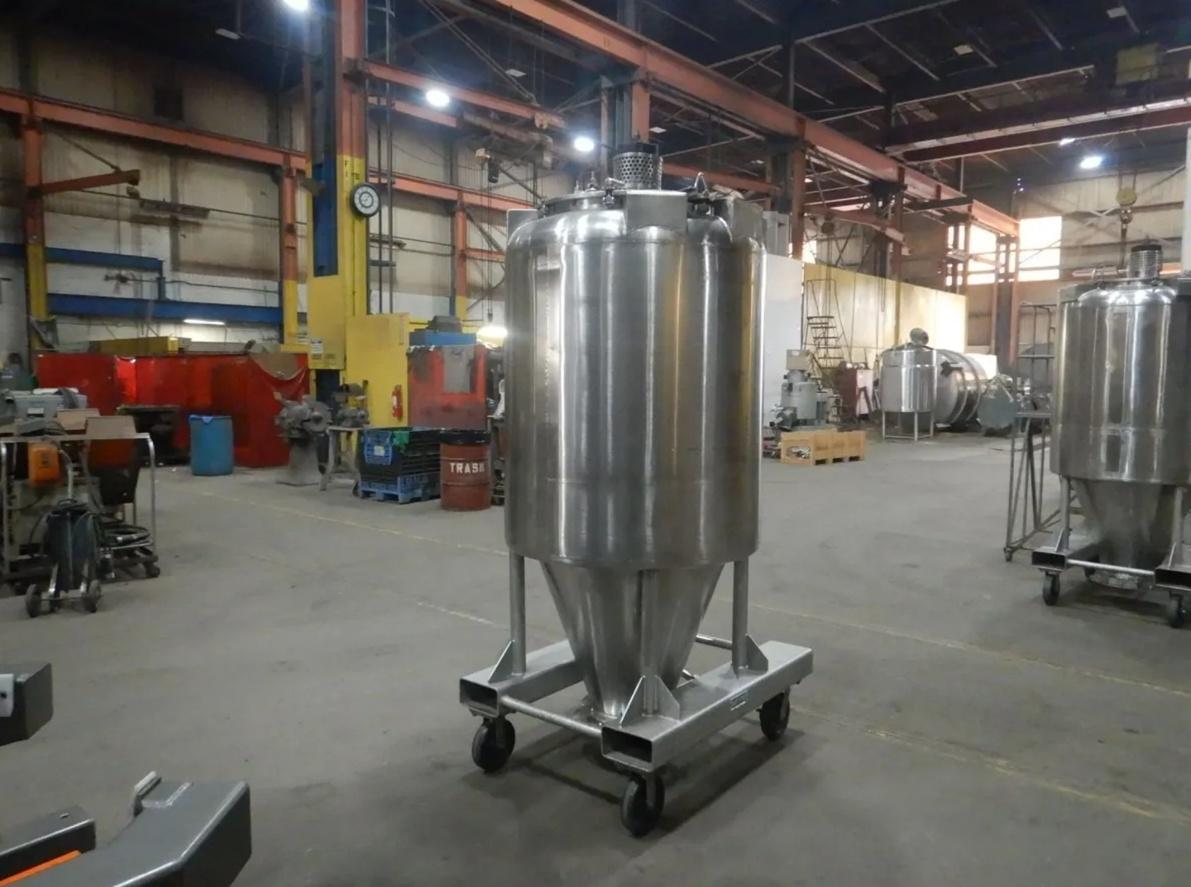

• Process Module Capacity: 40 Cubic Feet

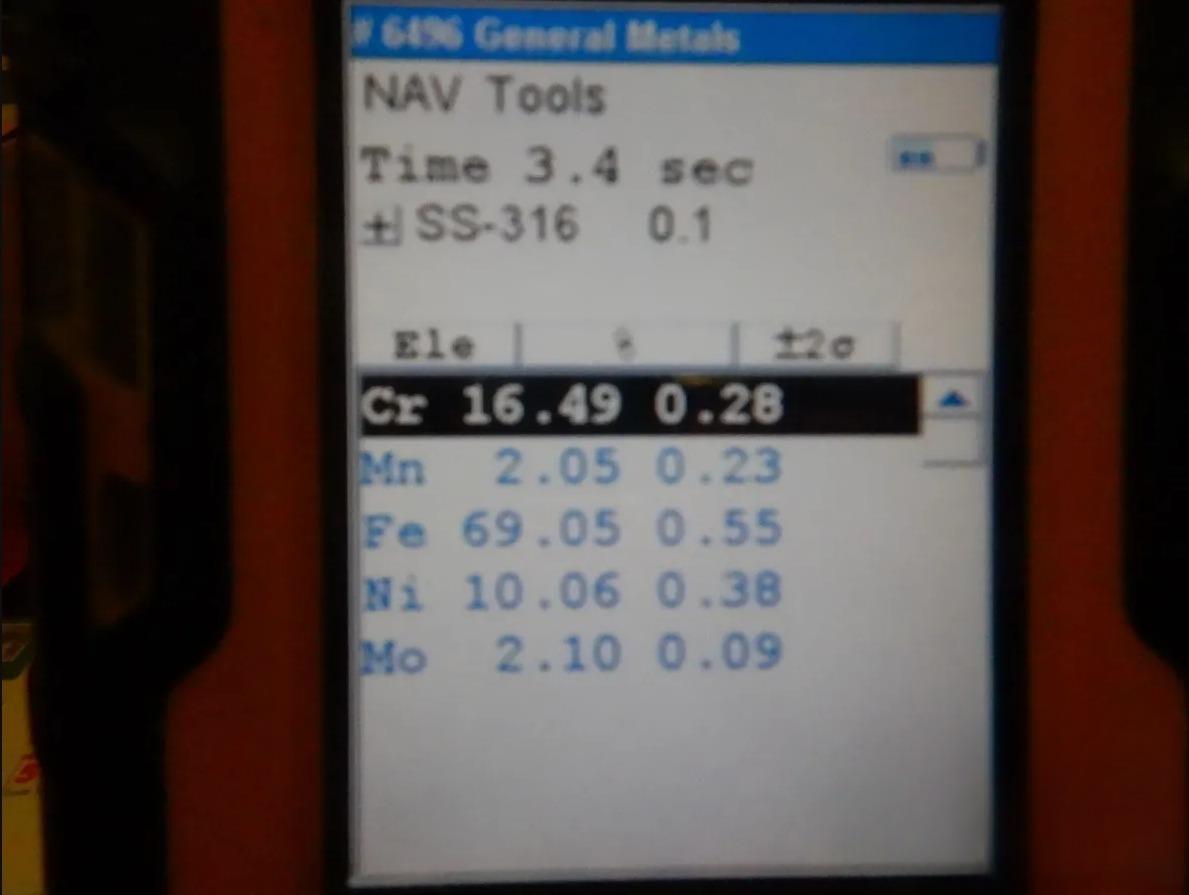

• Construction: 316 Stainless Steel
• Internal Finish: 20 RA
• External Finish: 63 RA
• Discharge Valve: 12" Butterfly Valve

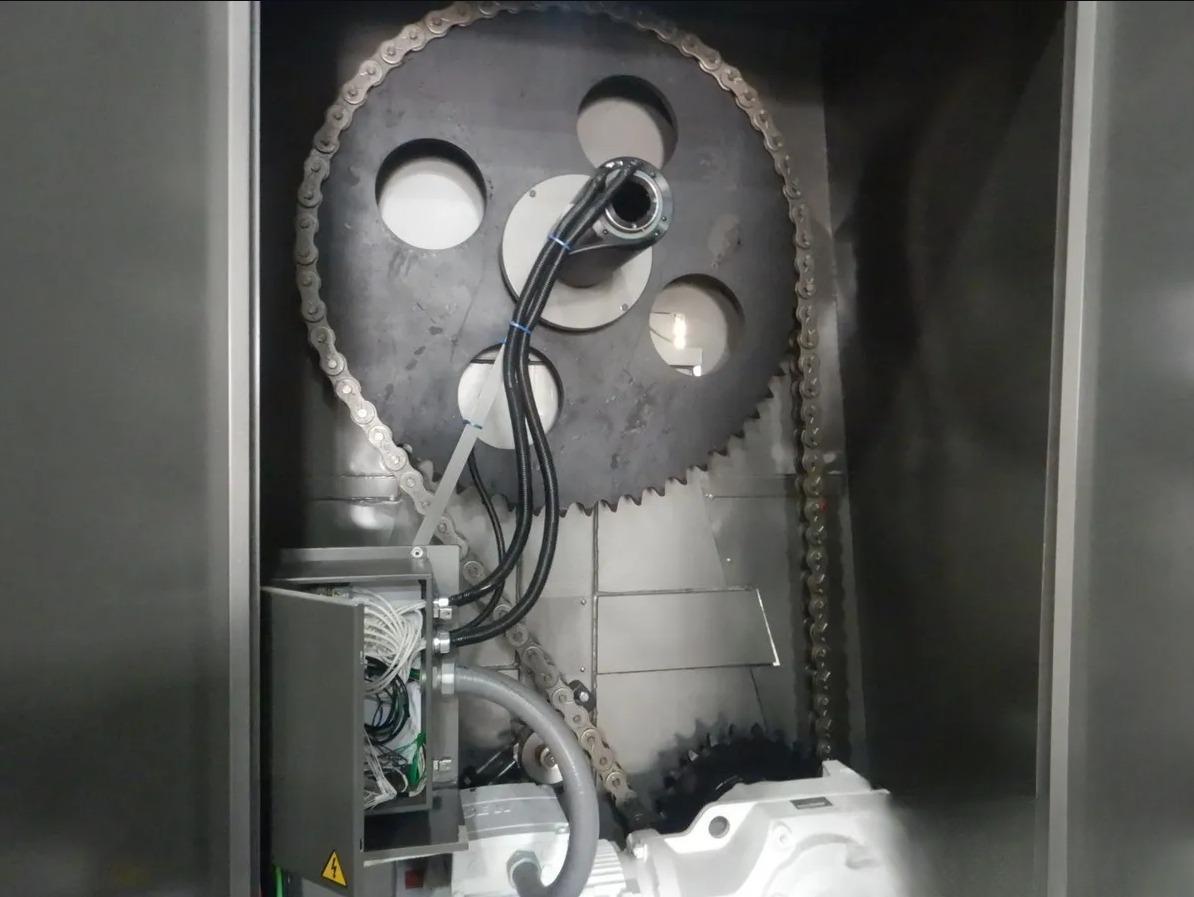

• Tumble Speed: 12 RPM
• Process Bar Speed: Variable, 0-2250 RPM

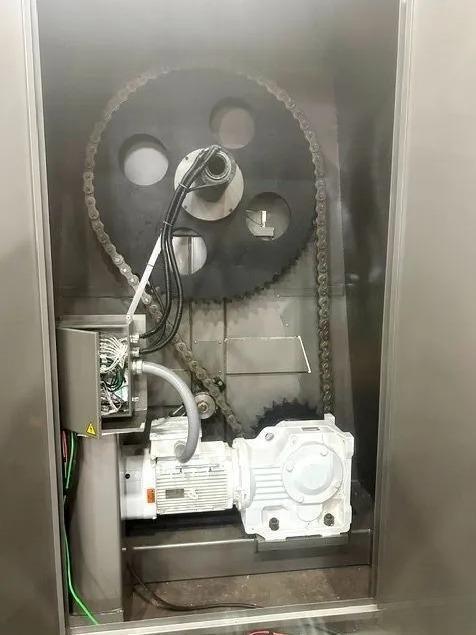

• Tumble Drive Motor: 20 HP, 460V, 3 Phase, 60 Hz
• Process Bar Motor: 60 HP, 460V, 3 Phase, 60 Hz

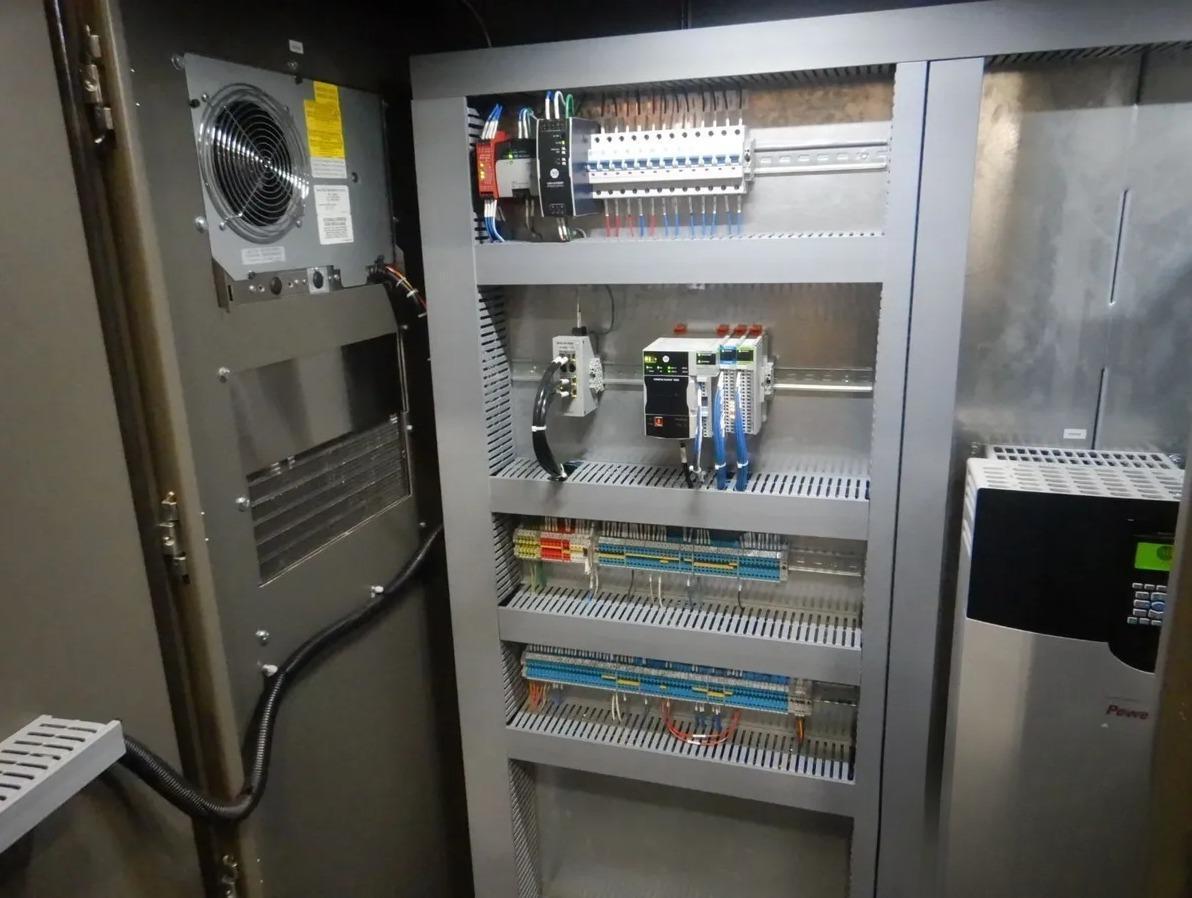

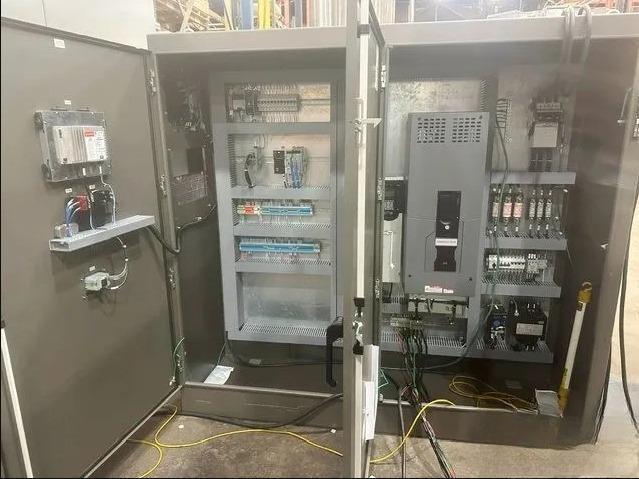

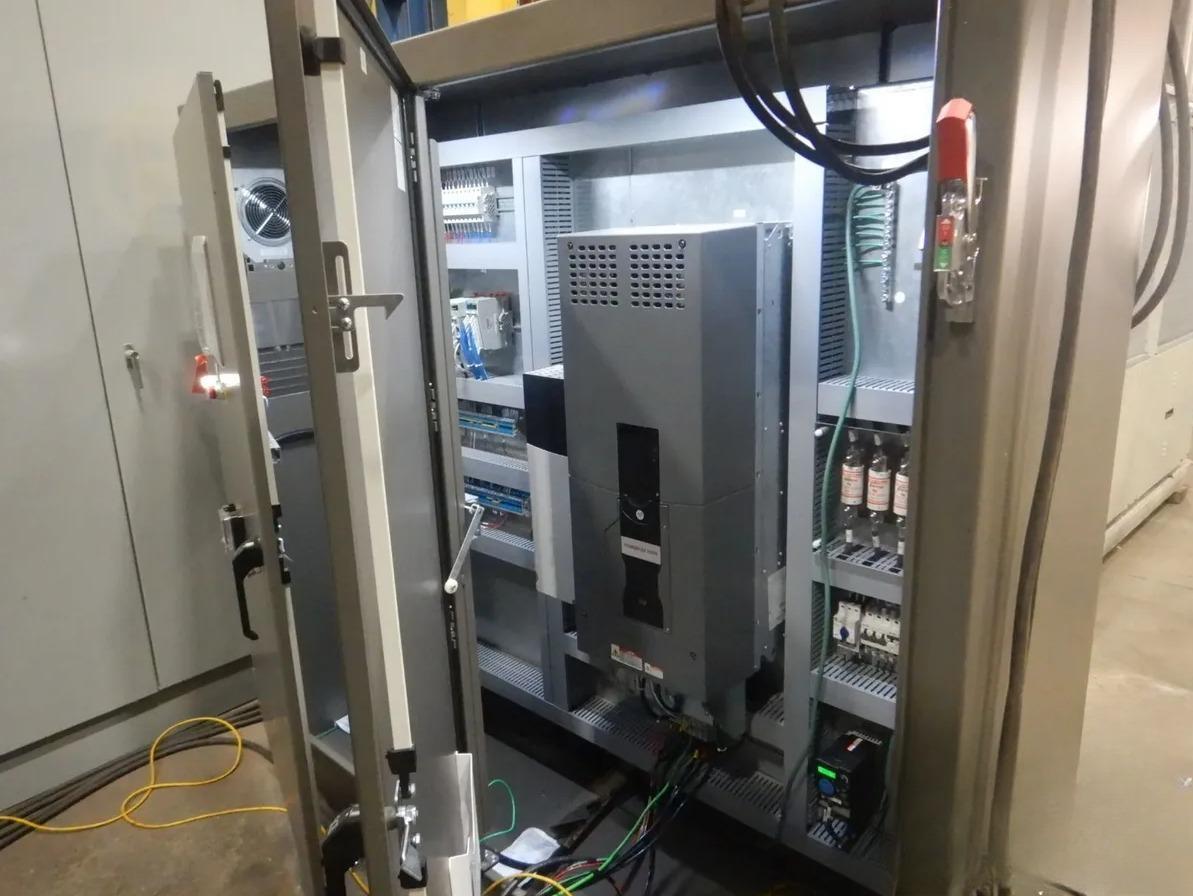

• Electrical Enclosure: NEMA 12
• Variable Frequency Drive

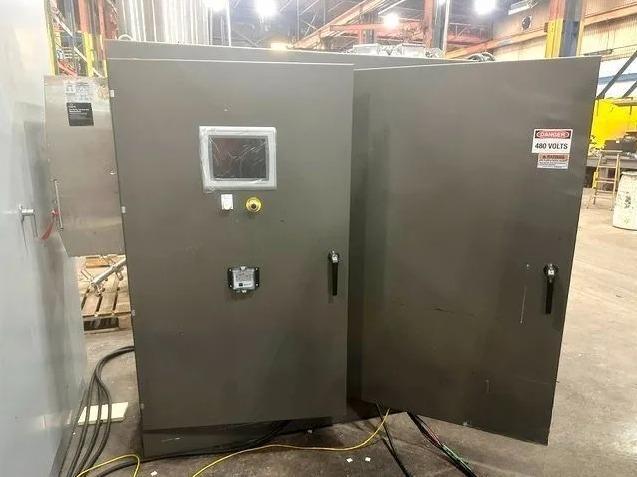

• Operator Control Enclosure

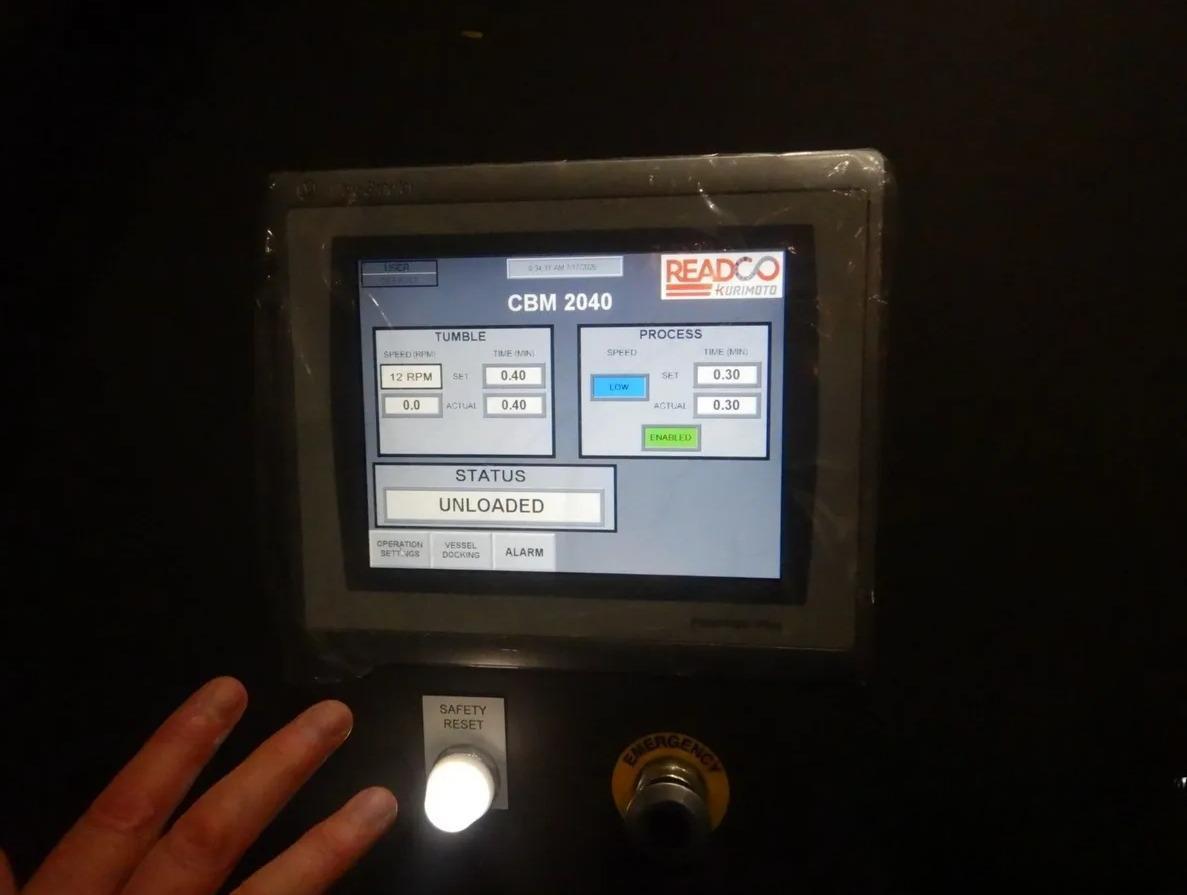

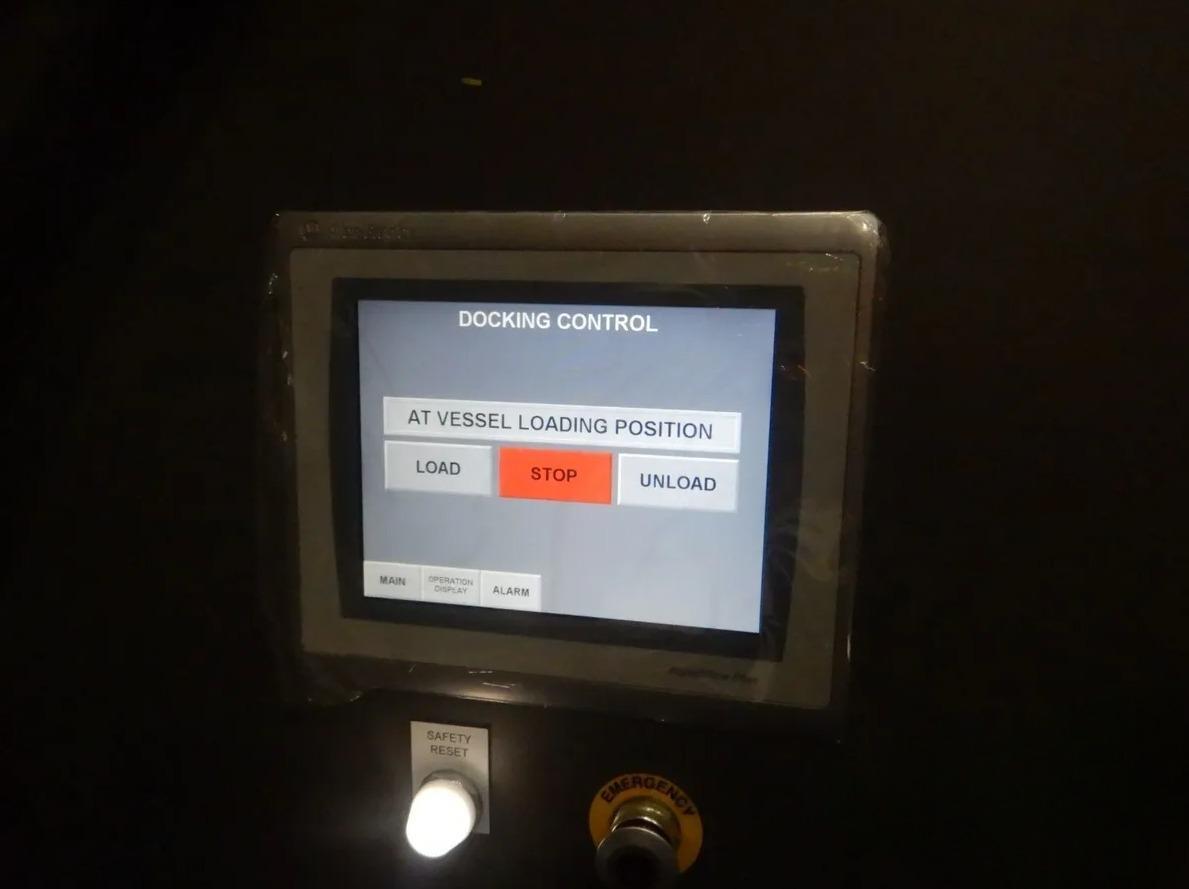

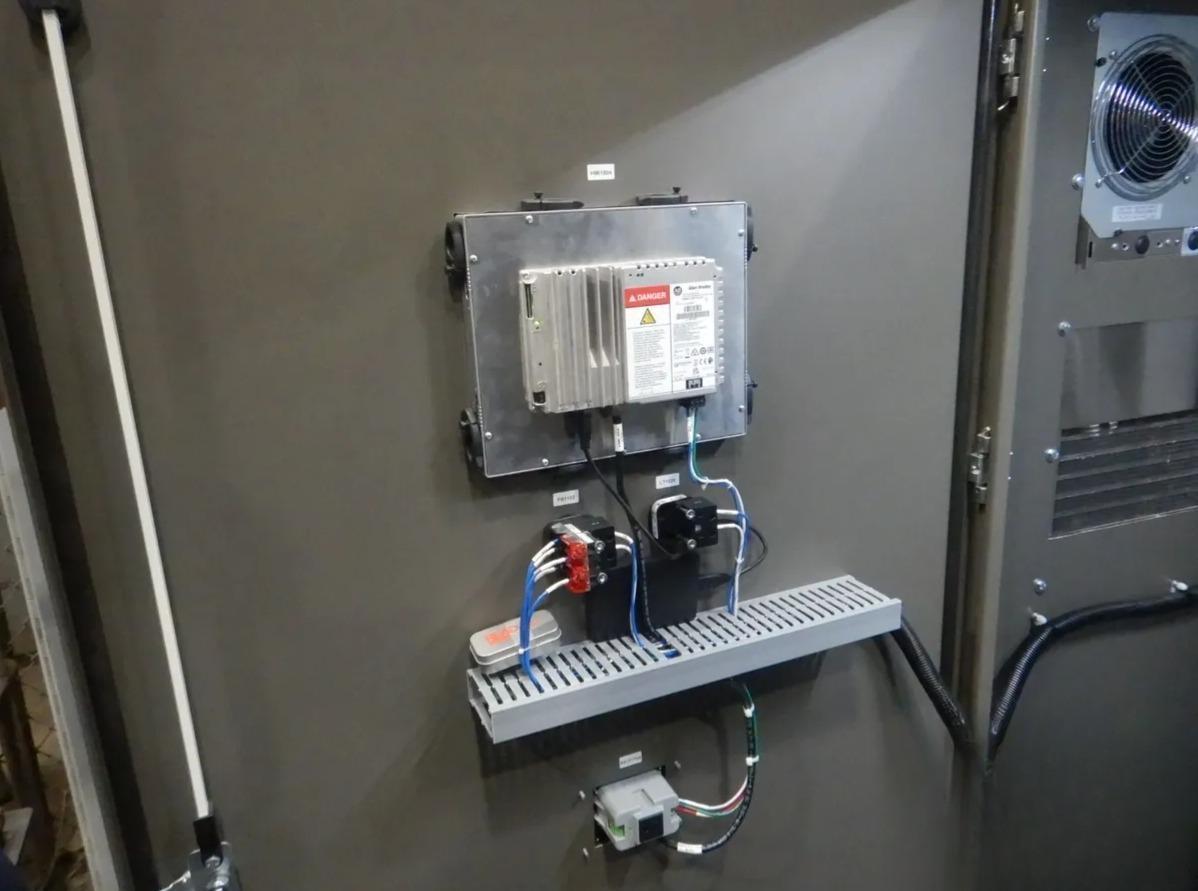

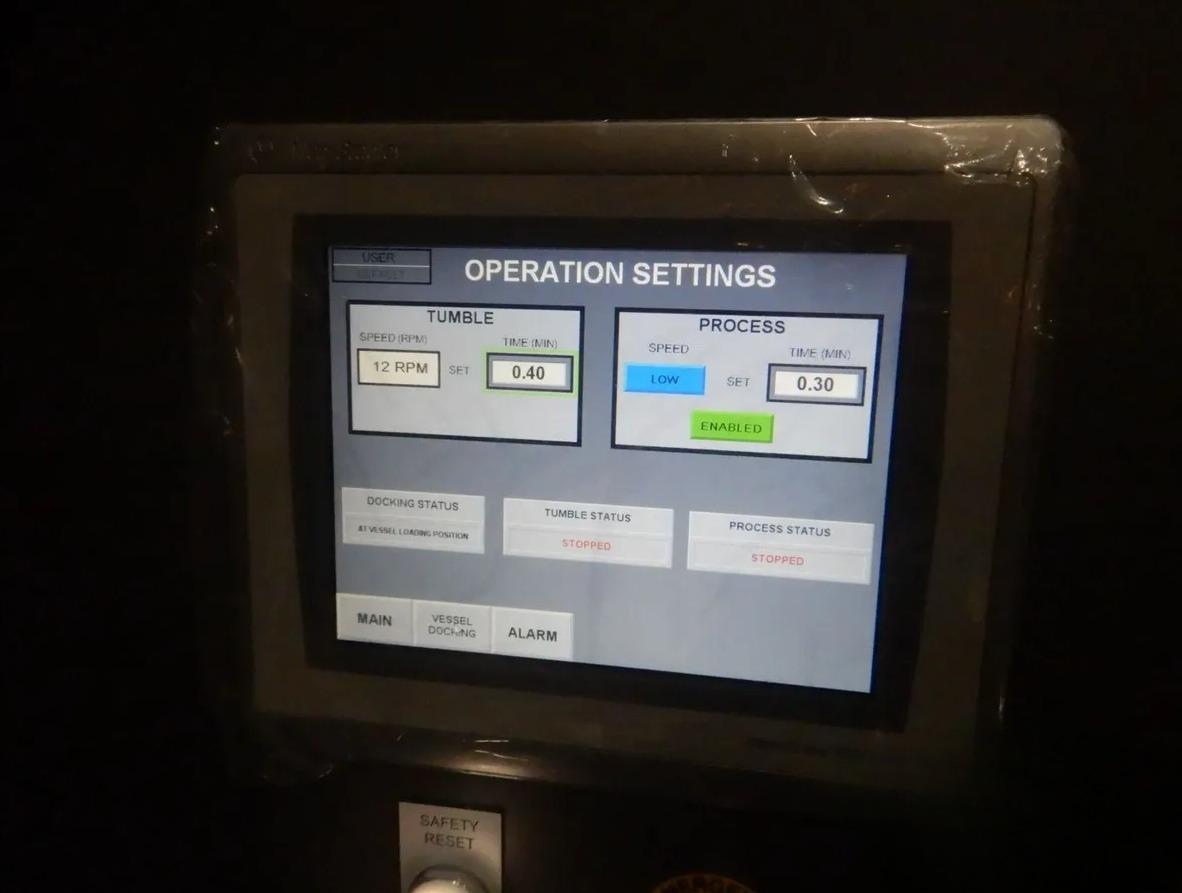

• HMI Touchscreen
• Liquid Addition System
• Variable Speed Impeller

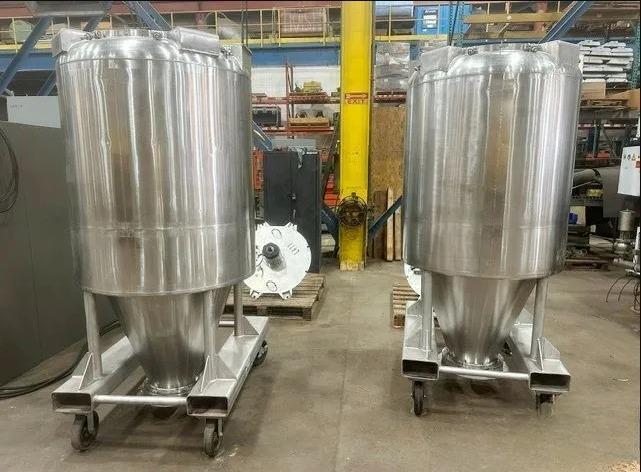

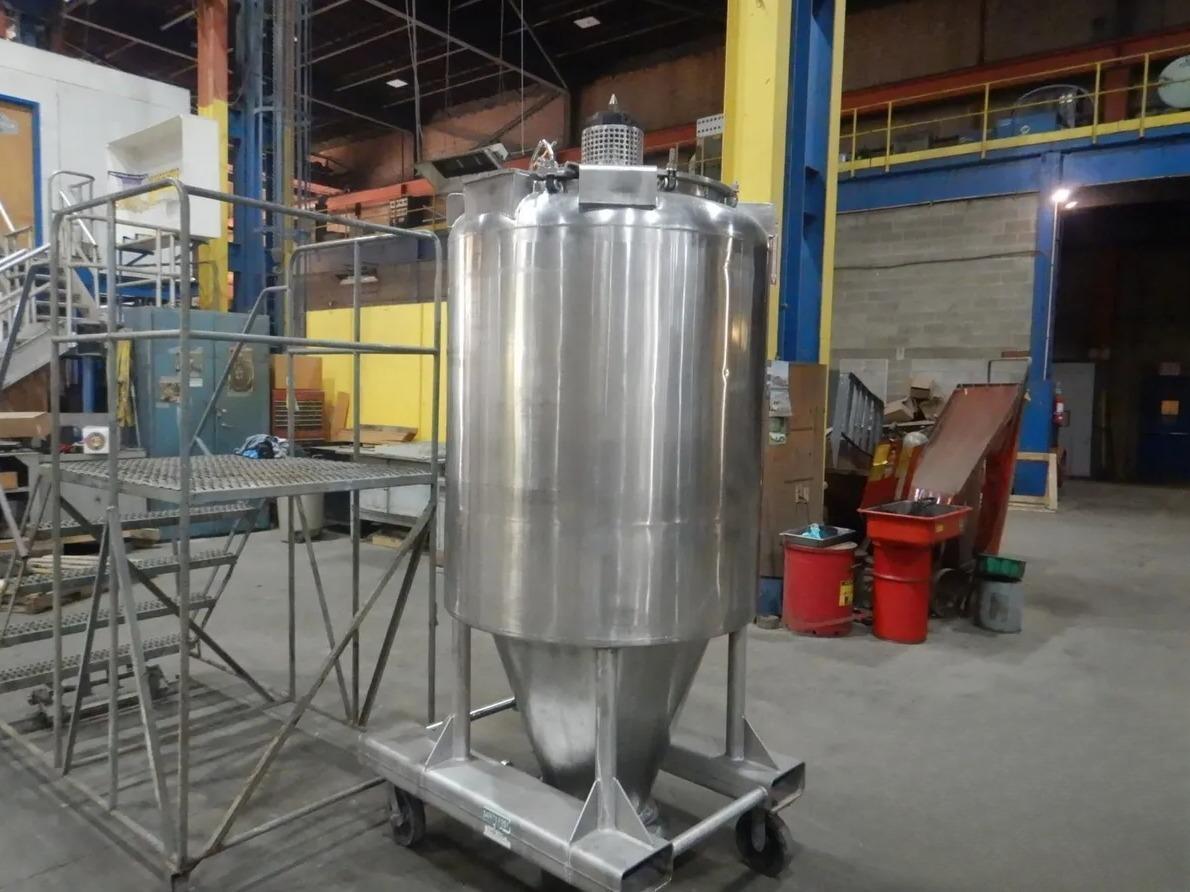

• Designed for removable process modules

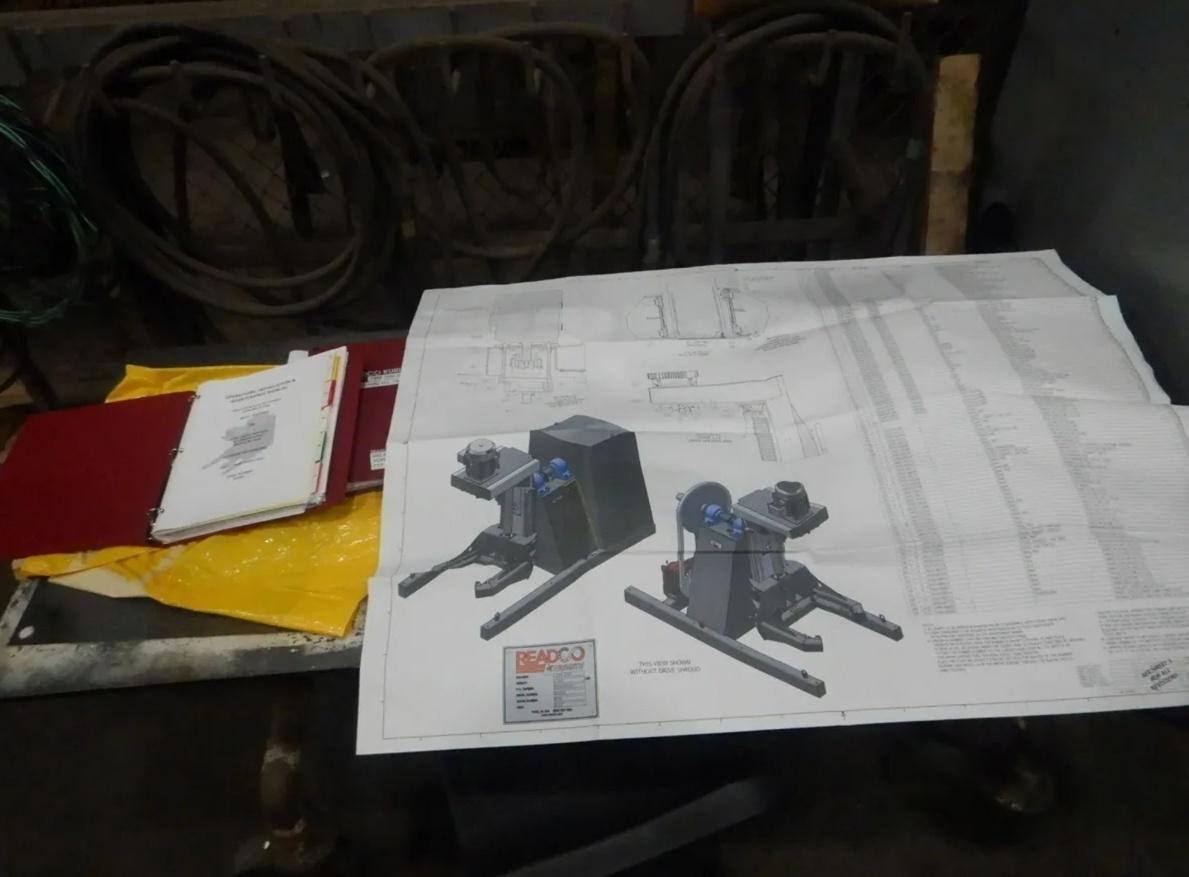

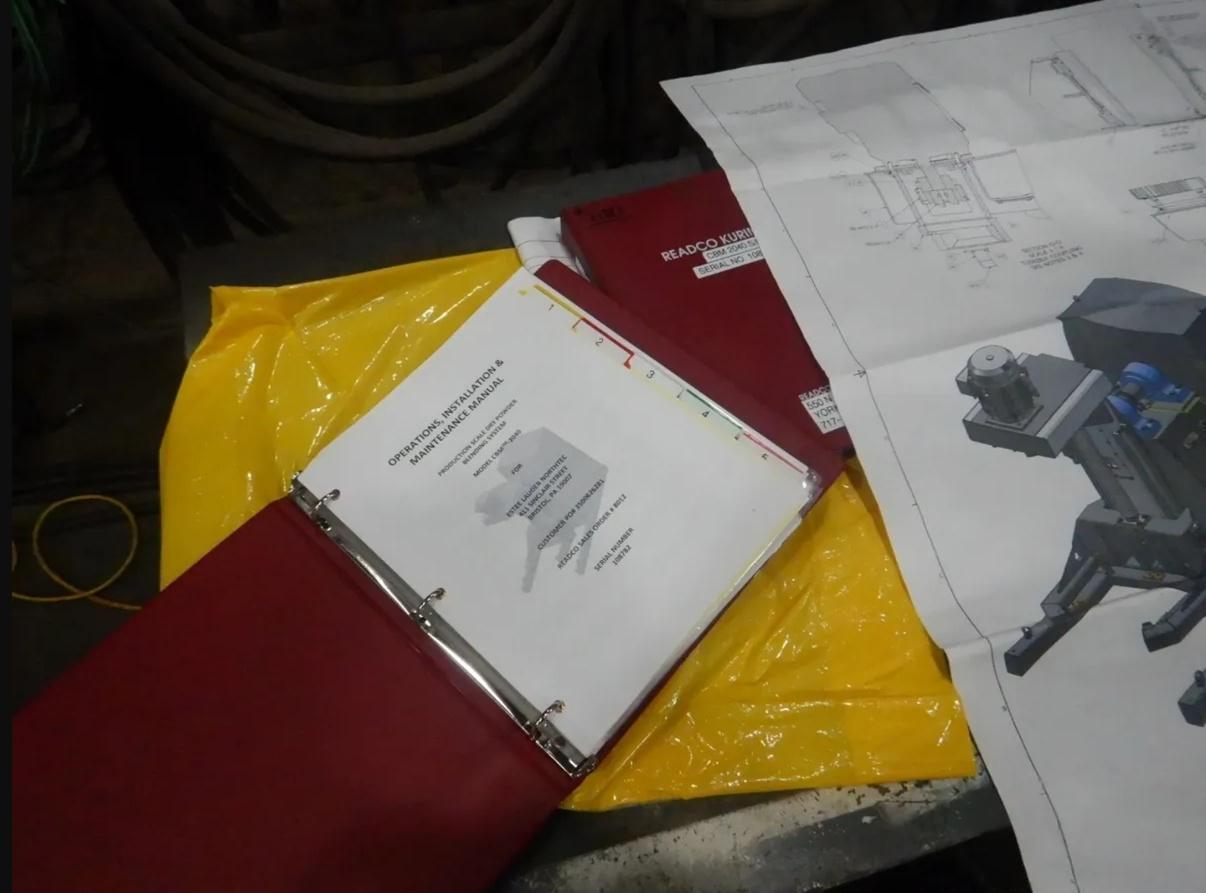

The uploaded Readco specification sheets identify the drive station as model CBM2040 with a 40 cu. ft. 316 stainless process module, 20 HP tumble drive, 60 HP process bar drive, variable-frequency control, HMI touchscreen, and liquid addition capability.

Applications

Ideal for:

• Powder blending
• Battery materials
• Chemicals
• Plastics
• Minerals
• Food ingredients
• Pigments
• Ceramics
• Specialty materials
• Pharmaceutical intermediates (where appropriate)

Features

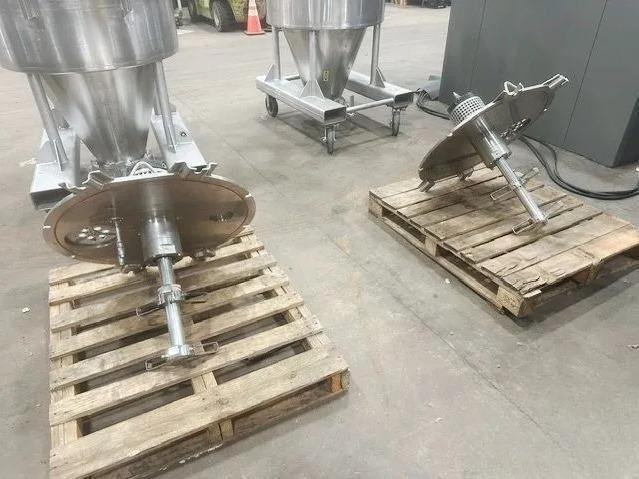

• High-intensity impeller with tumbling action
• Excellent dispersion of powders and additives
• Uniform batch consistency
• Modular process vessel design
• Fast batch changeover
• Reduced cleaning requirements
• Heavy-duty industrial construction
• Automated controls with touchscreen interface

Condition

Unused 2023 unit. Available for inspection by appointment.

Shipping
Ships via flatbed or specialized freight. Loading assistance available. Local pickup is also welcome.
