Capabilities

GENIE IWP-25S SUPERSERIES ACCESS PLATFORM SPECIFICATION

• 9.44 m (30 ft 5 in) working height

• 7.44 m (24 ft 5 in) platform height

• .81 m (2 ft 8 in) standard base width

• 1.02 m (3 ft 4 in) wide base width

• Up to 159 kg (350 lb) lift capacity


PORTABLE WORK PLATFORM STANDARD FEATURES

• Sliding mid-rail standard platform

• Auxiliary platform lowering

• Most rigid mast in the industry

• Choose from standard or wide base

• Standard base rolls through standard doorways

• Wide base rolls through double doorways

• AC power to platform

• Dual activated up/down switch

• Ground fault interrupt lower receptacle

• Tie down attachment points

• Overhead crane attachment points

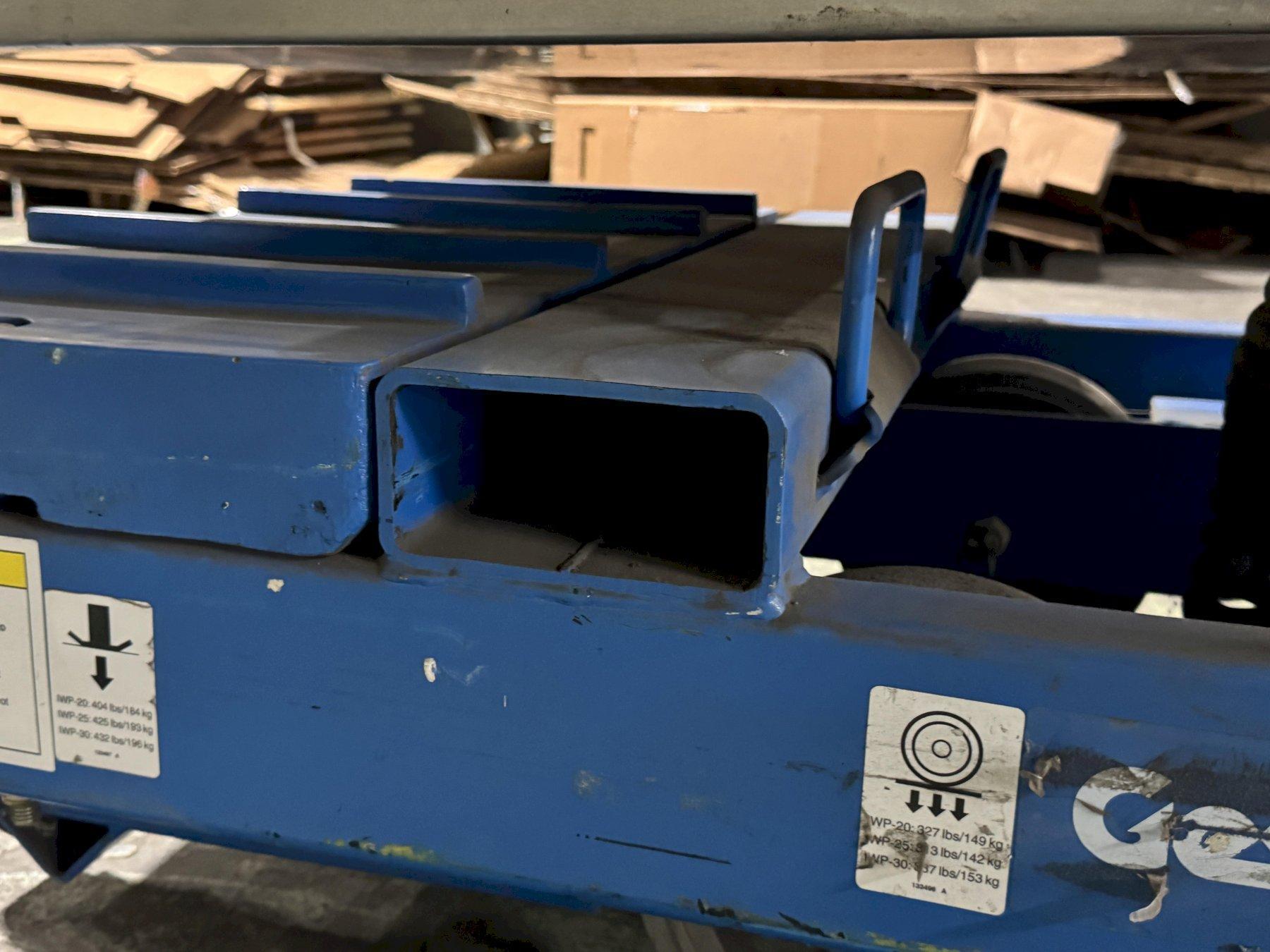

• Wide forklift pockets

• Built-in level sensing with interlocks

 POWER

• AC power 110V / 50-60 Hz

• AC power 220V / 50-60 Hz

• DC power 110V / 230V / 50-60 Hz

• Wwith worldwide automatic “smart” charging system

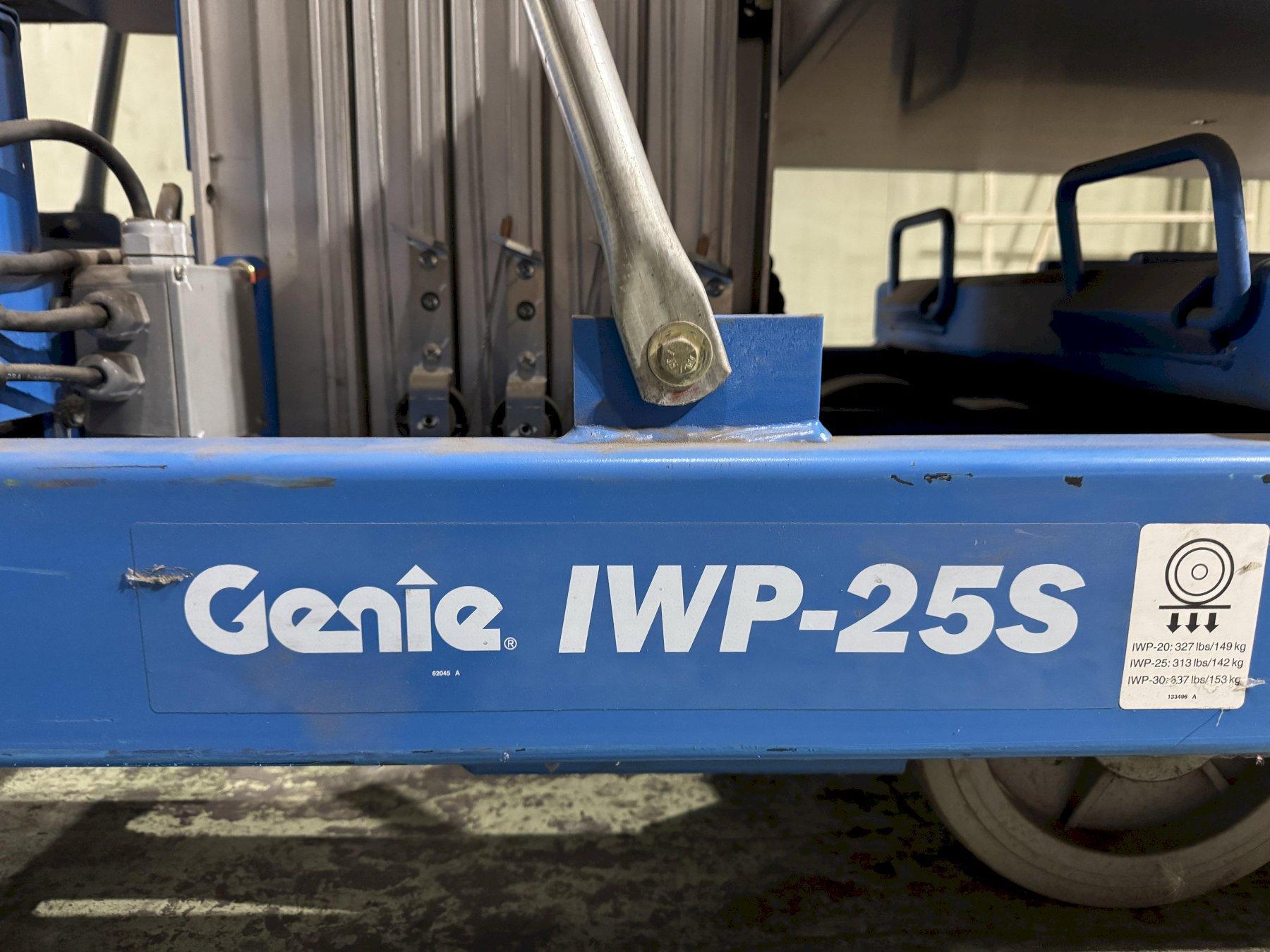

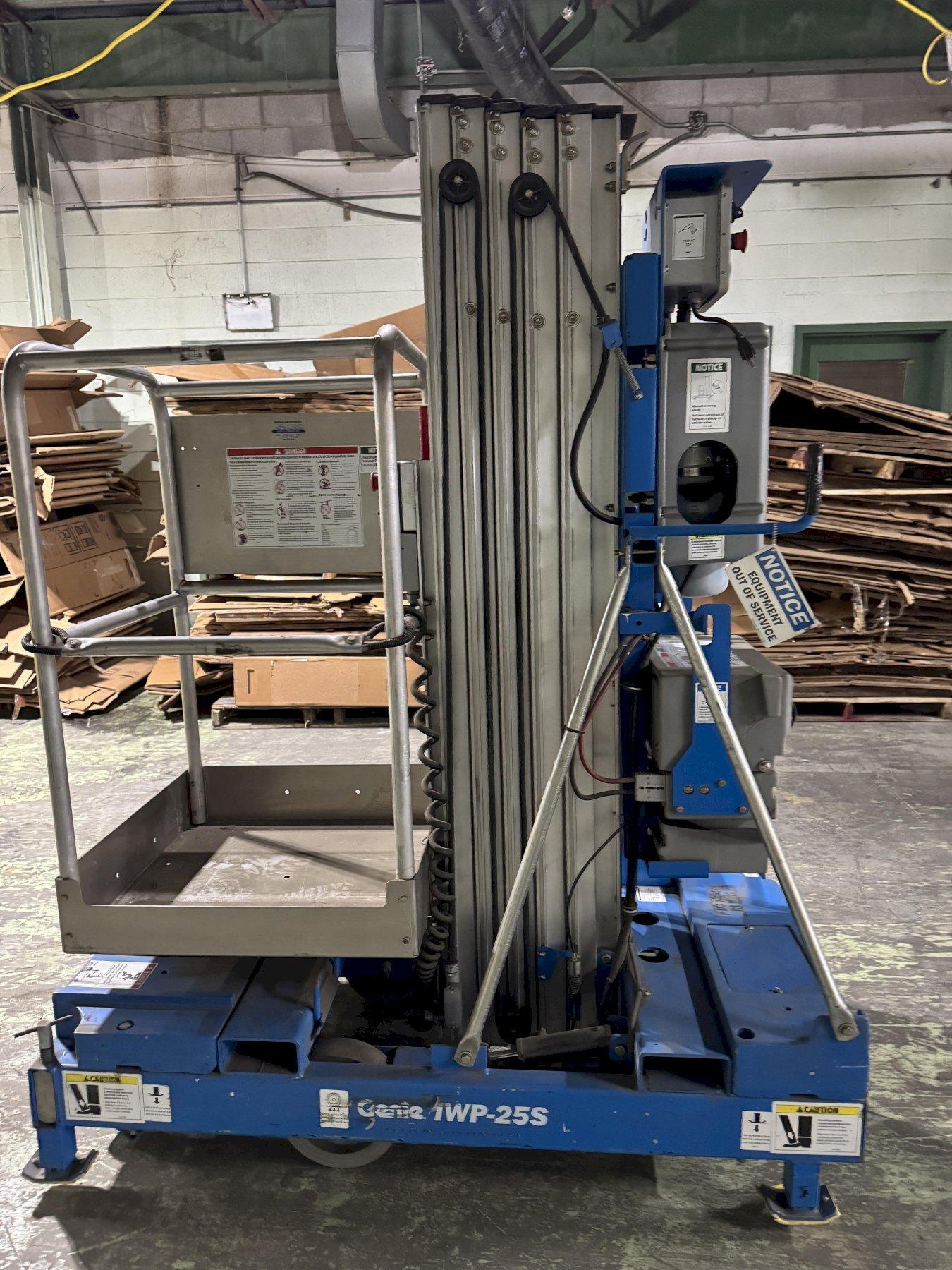

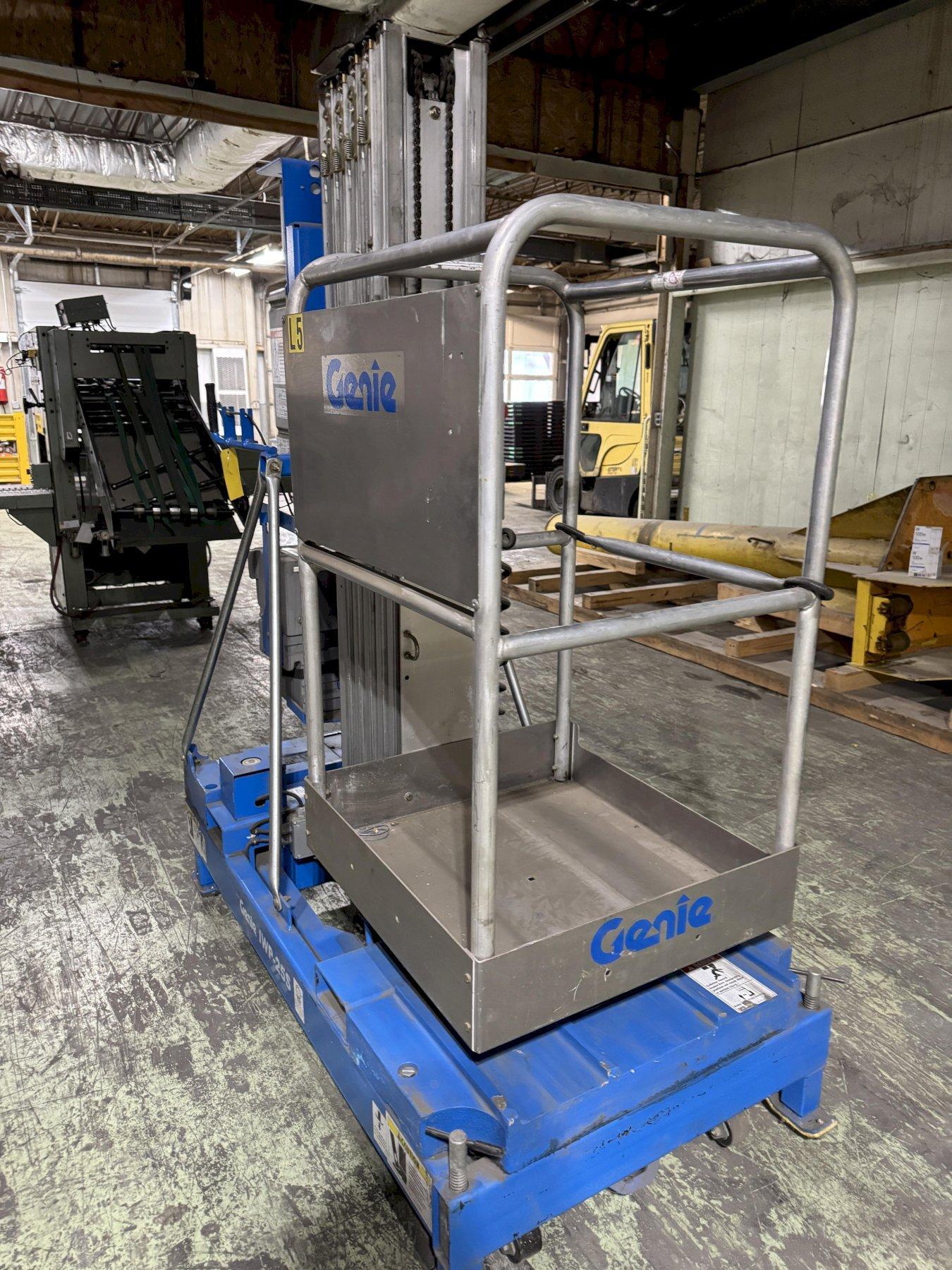

The Genie IWP-25S is a vertical mast lift designed for use in confined spaces, offering quick setup and easy maneuverability. It has a maximum working height of 30 ft 5 in (9.44 m) and a platform height of 24 ft 5 in (7.44 m). The lift capacity is 350 lb (159 kg). The operating weight is 1,290 lb (585 kg) for the standard base AC model  , with variations depending on power source and options.

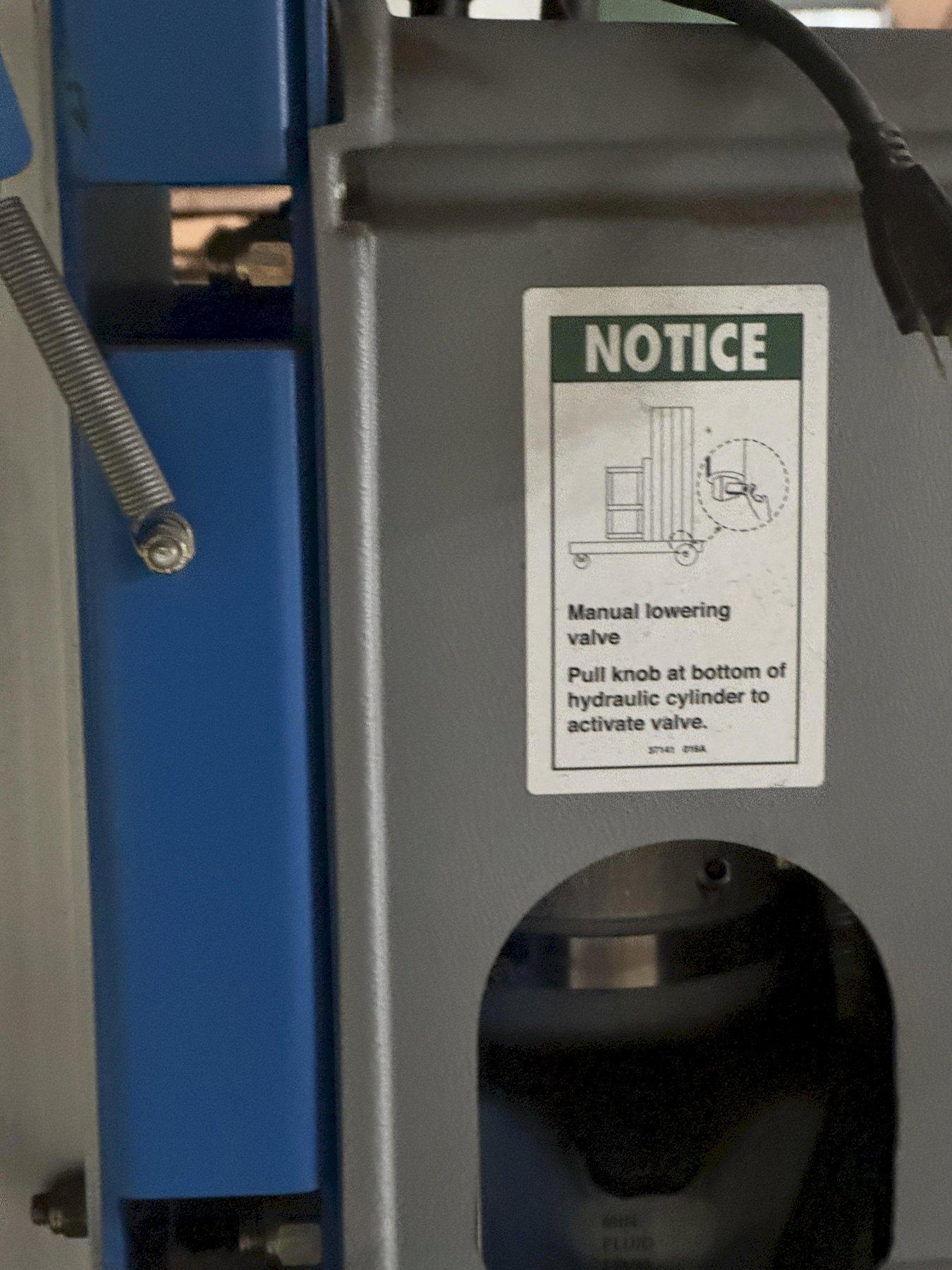

The machine features a standard base width of 2 ft 8 in (0.81 m) and a wide base width of 3 ft 4 in (1.02 m). The overall length is 5 ft (1.52 m), and the stowed height is 6 ft 4 in (1.93 m). It is available with AC (110V/50-60 Hz or 220V/50-60 Hz), DC (12V DC), or push-around power options. The lift includes features such as automatic level sensing with integrated leveling jacks, no outriggers required, and an auxiliary platform-lowering feature on both platform and ground controls for safety during power failures.

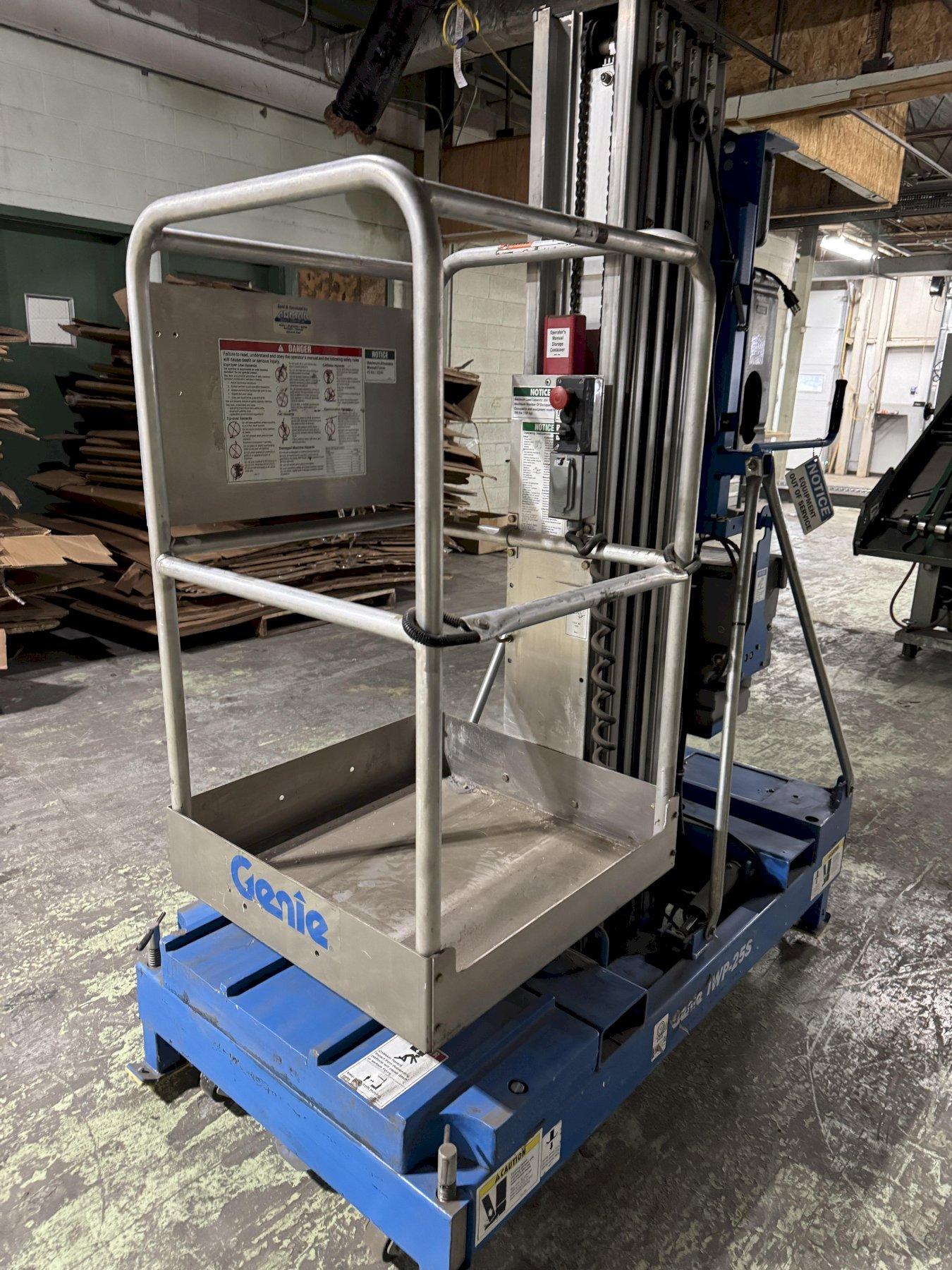

The platform dimensions are 2 ft 0 in (69 cm) in length and 2 ft 0 in (66 cm) in width for the standard configuration. It can be equipped with various platform options, including standard, gated narrow, and fiberglass platforms, though the outreach option is only available on the IWP-20S model. The lift is designed to roll through standard doorways with the standard base and double doorways with the wide base.

As is, where is.
