For sale is an Applied Motion Products HT34-506C stepper motor, designed for high-performance motion control applications. This motor is in excellent condition and offers the following features:

Key Features:

• High Torque Design: Delivers a holding torque of up to 1,260 oz-in (8.898 N·m), making it suitable for demanding applications.

• Standard NEMA 34 Dimensions: Ensures compatibility with a wide range of equipment and mounting configurations.

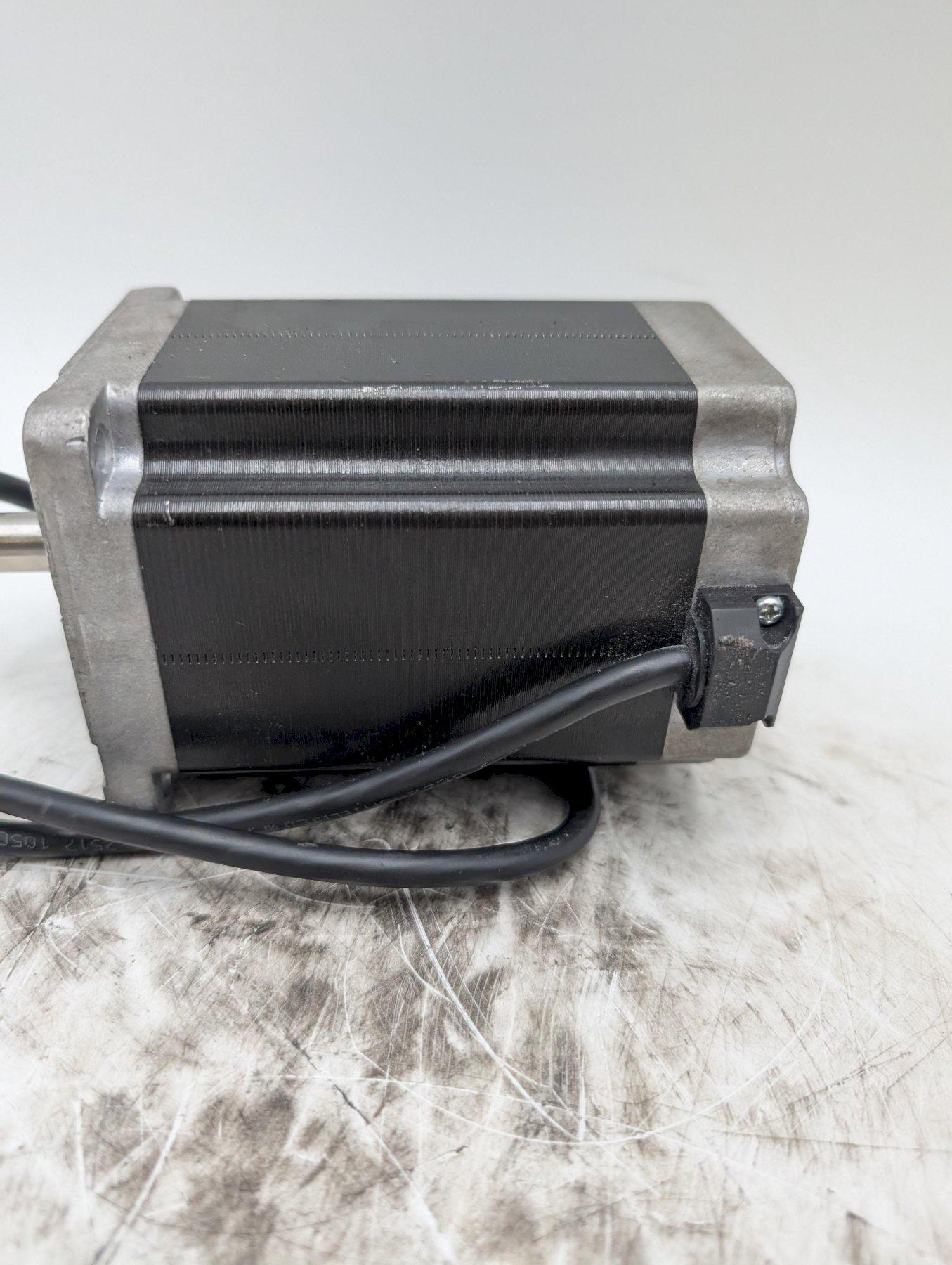

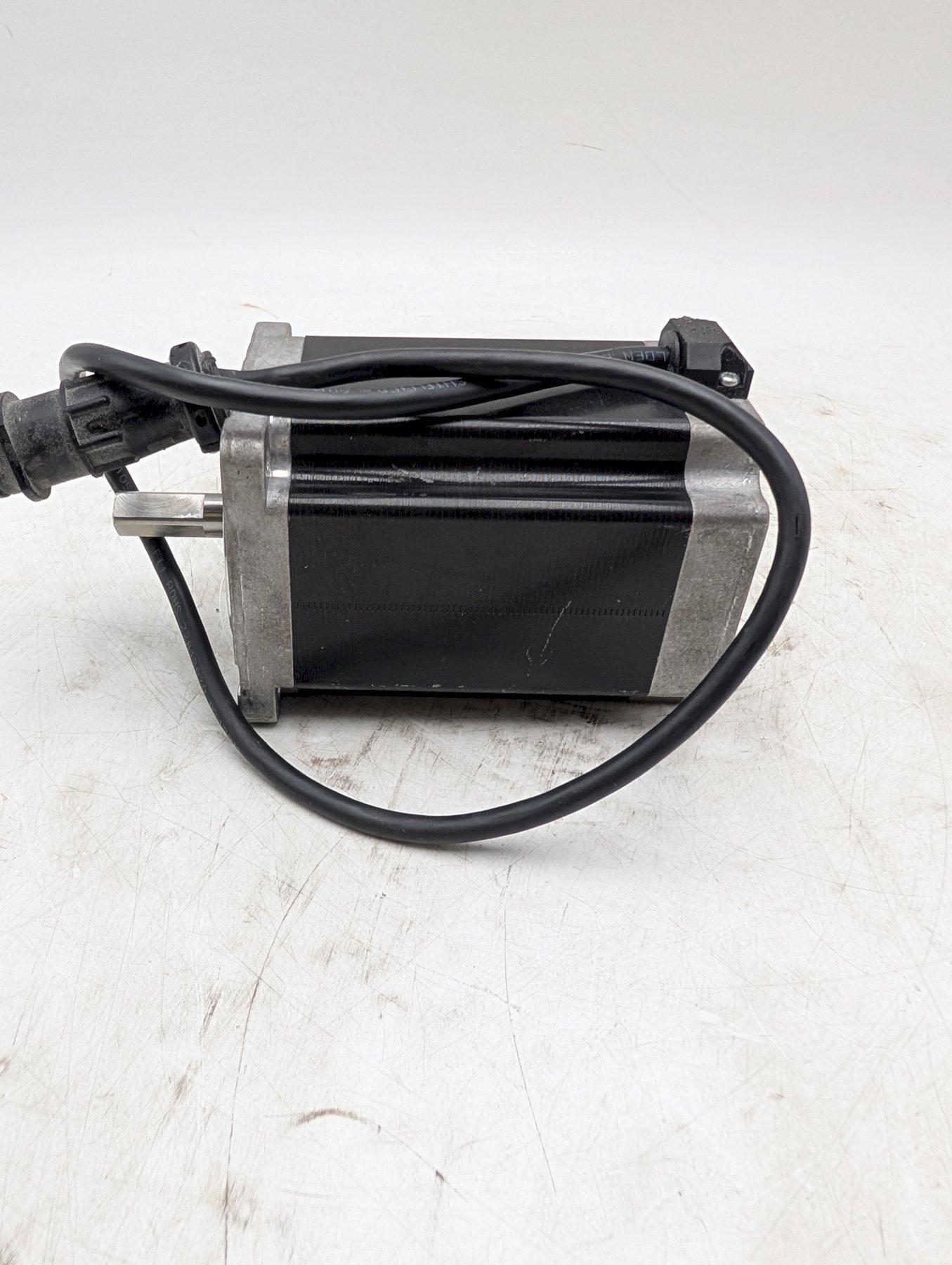

• Integral 10 ft Shielded Cable: Provides secure and reliable connections, reducing electrical noise and enhancing performance.

• Optimized for DC Drives: Designed for use with DC-powered drives, such as the ST10 and STR8 stepper drives, ensuring seamless integration.

Specifications:

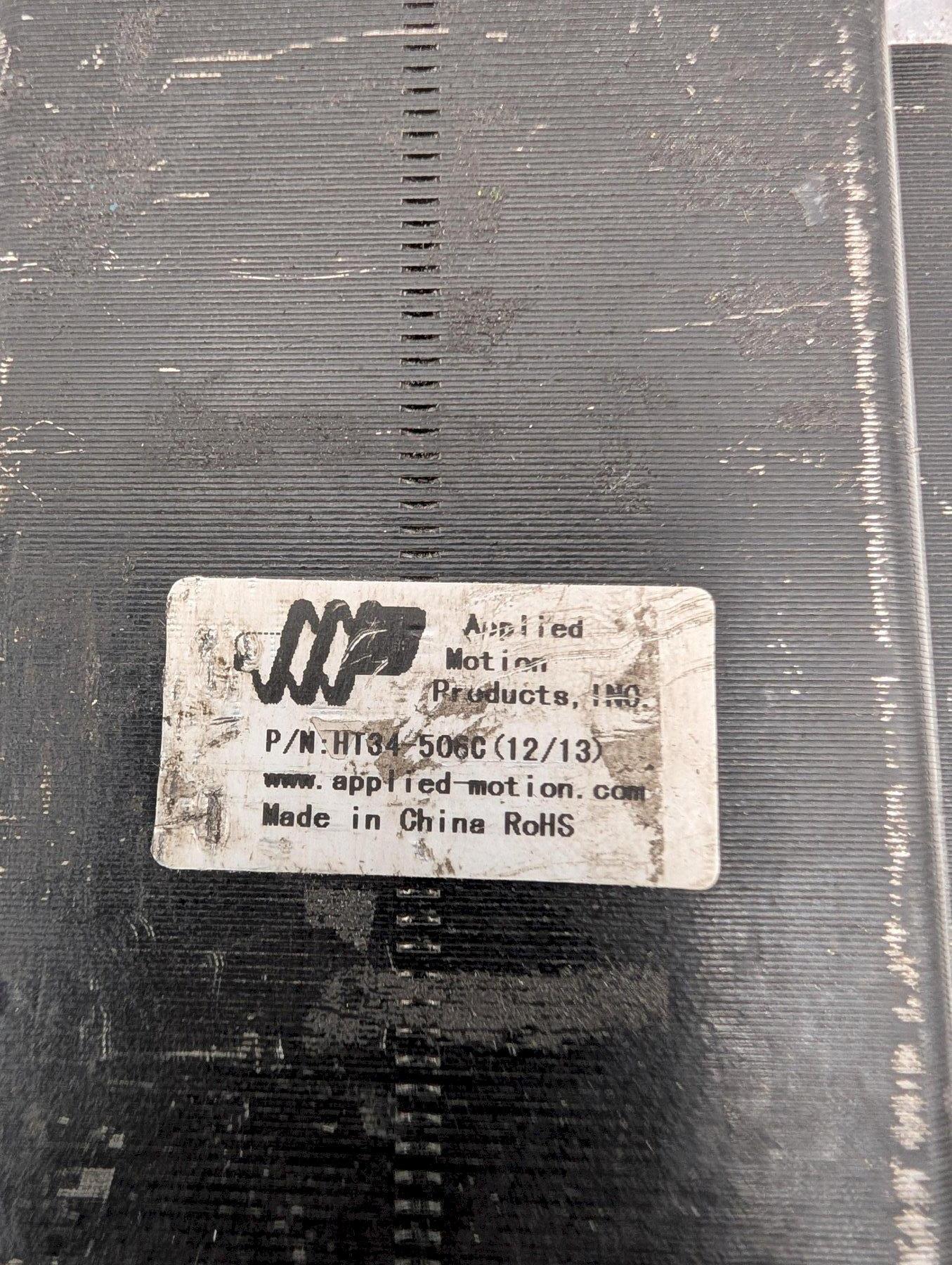

• Part Number: HT34-506C

• Motor Type: 2-phase hybrid stepper motor

• Step Angle: 1.8 degrees per step

• Holding Torque: Up to 1,260 oz-in (8.898 N·m)

• Current per Phase: 5.6 Amps

• Resistance per Phase: 0.5 Ohms

• Inductance per Phase: 5.5 mH

• Rotor Inertia: 8.0E-02 oz-in-sec²

• Weight: Approximately 9.9 lbs (4.5 kg)

• Length: 4.94 inches (125.5 mm)

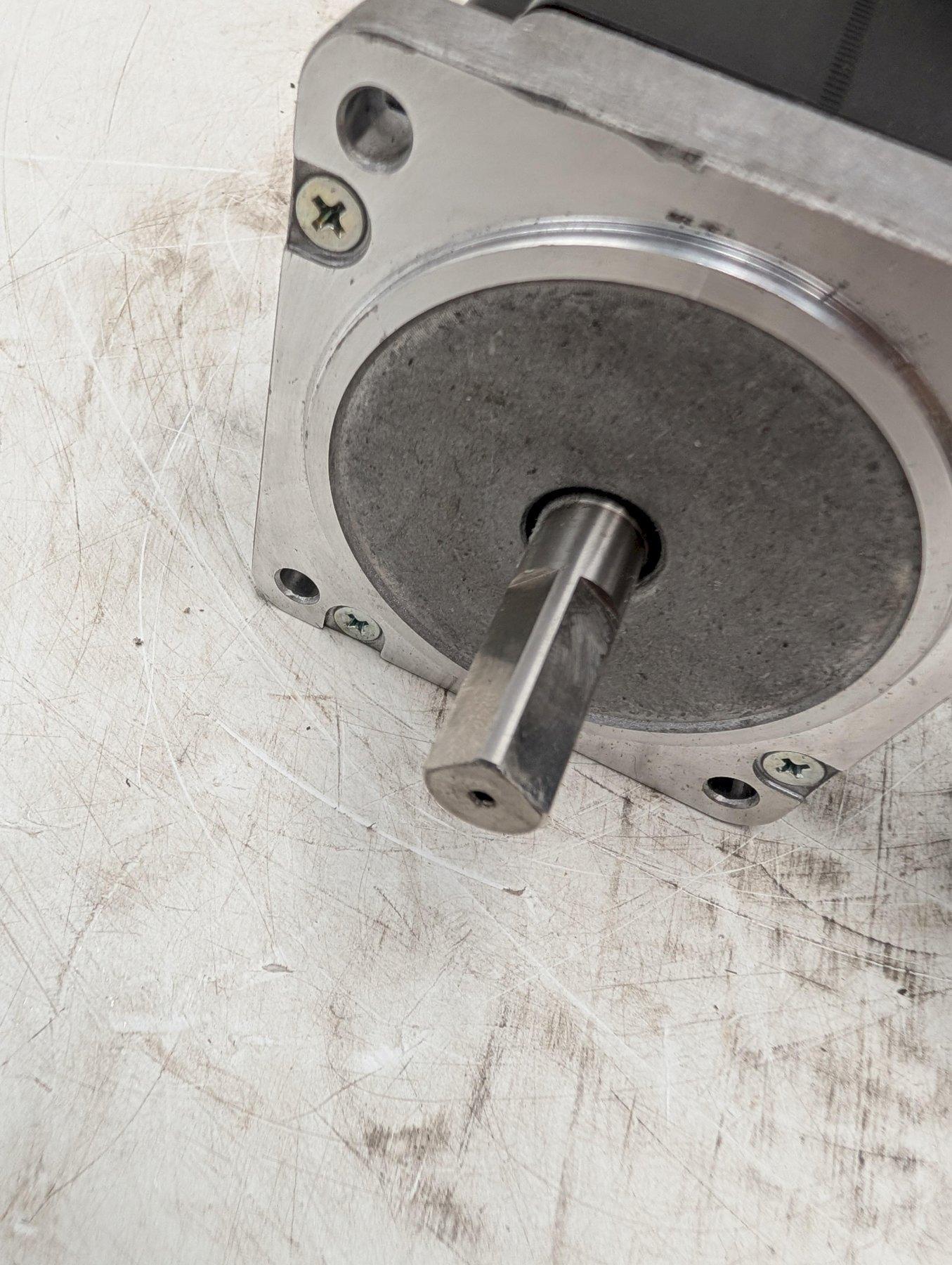

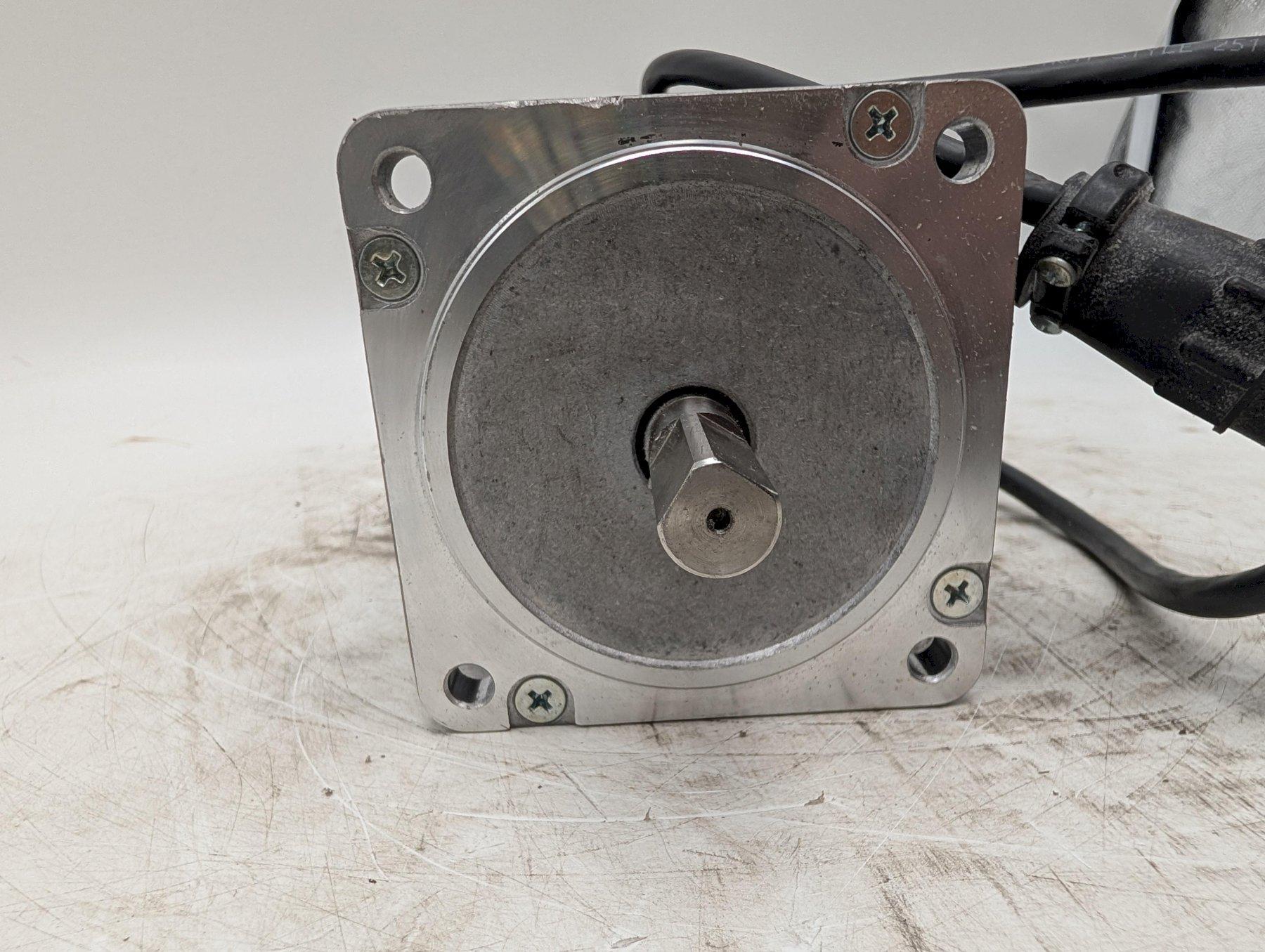

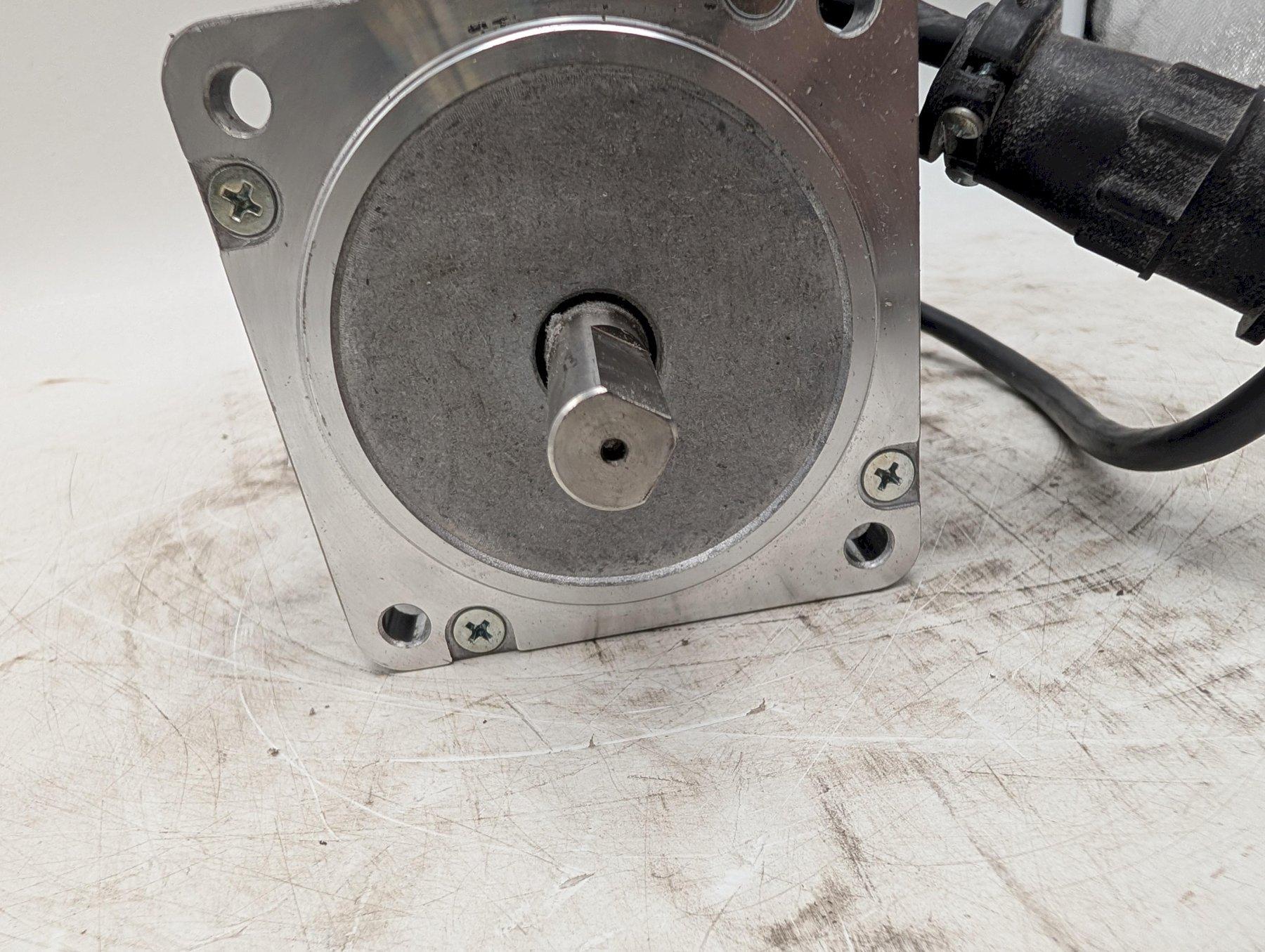

• Shaft Diameter: 0.5 inches (12.7 mm)

  Taken from a working environment where it was actively in use
